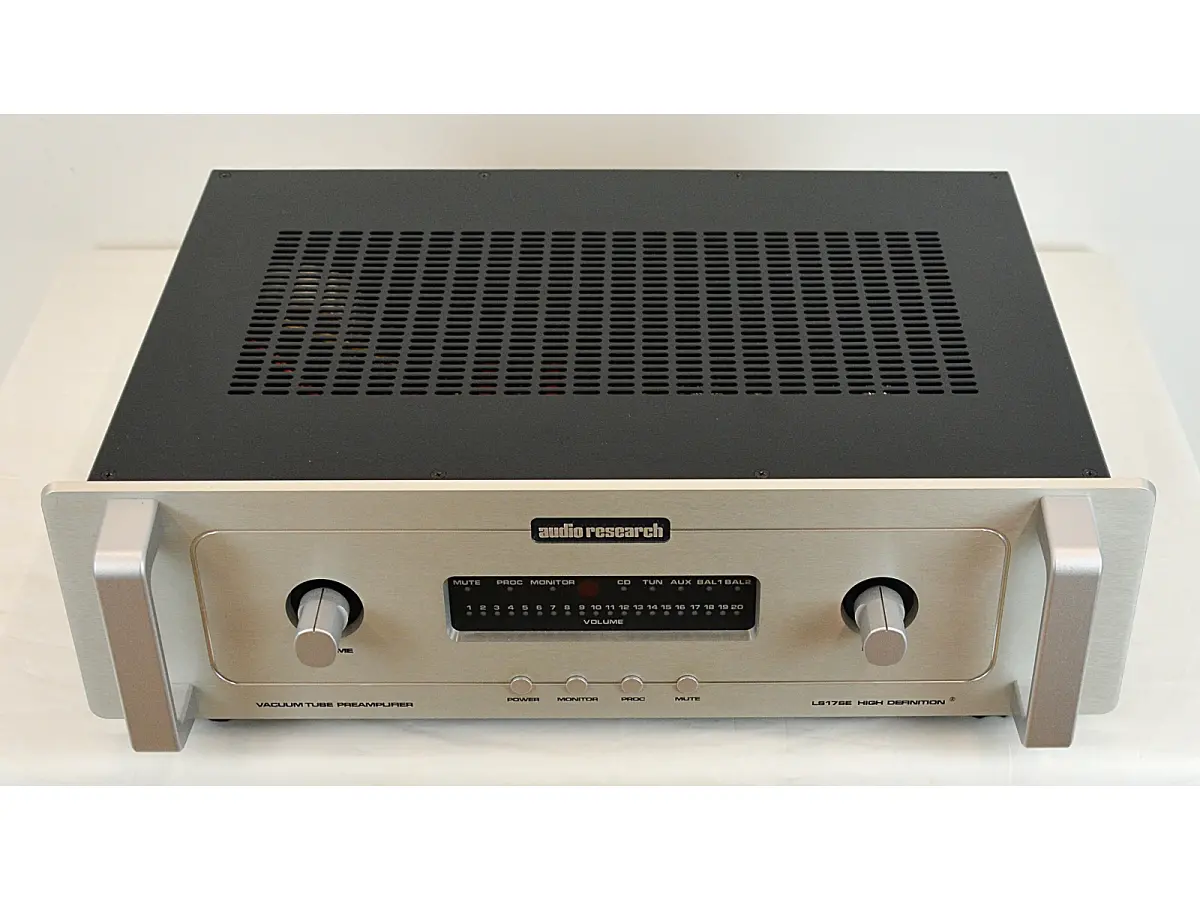

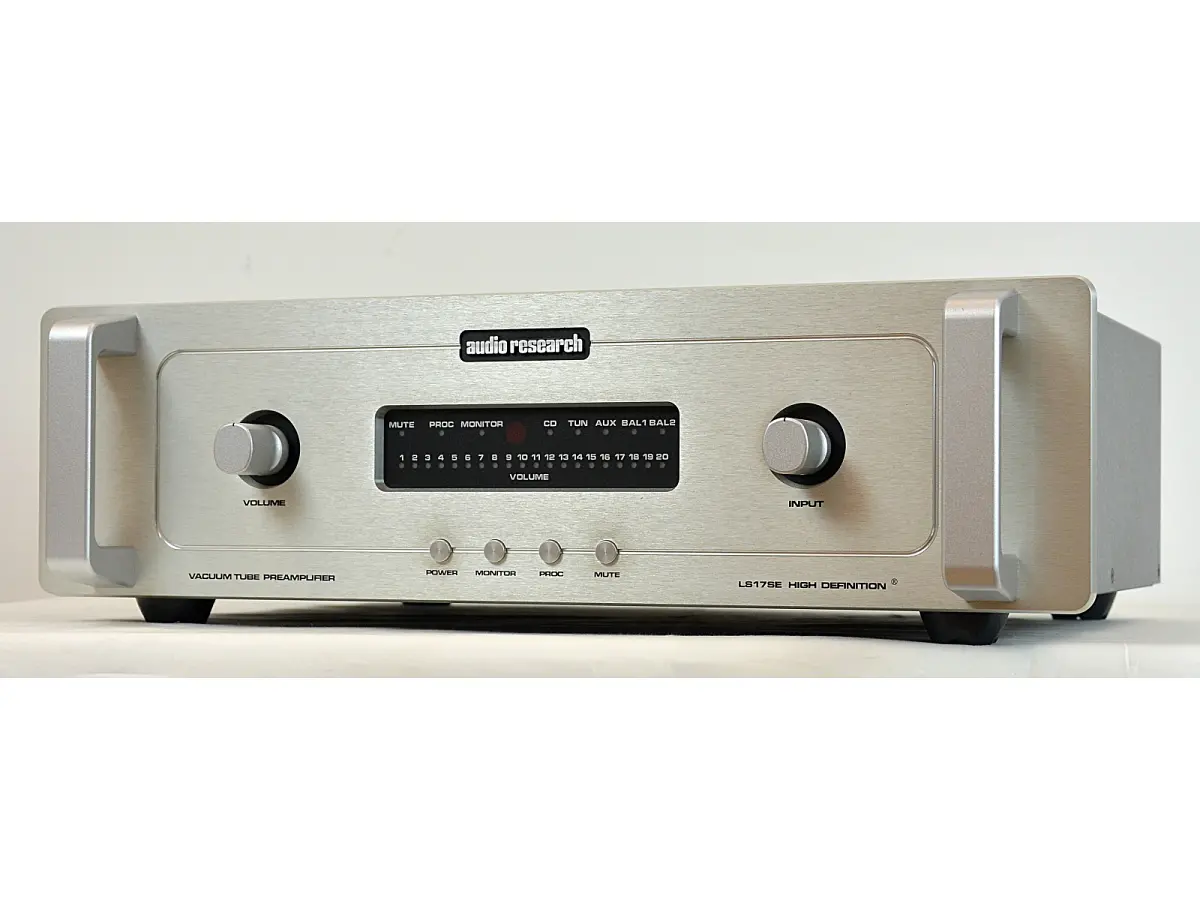

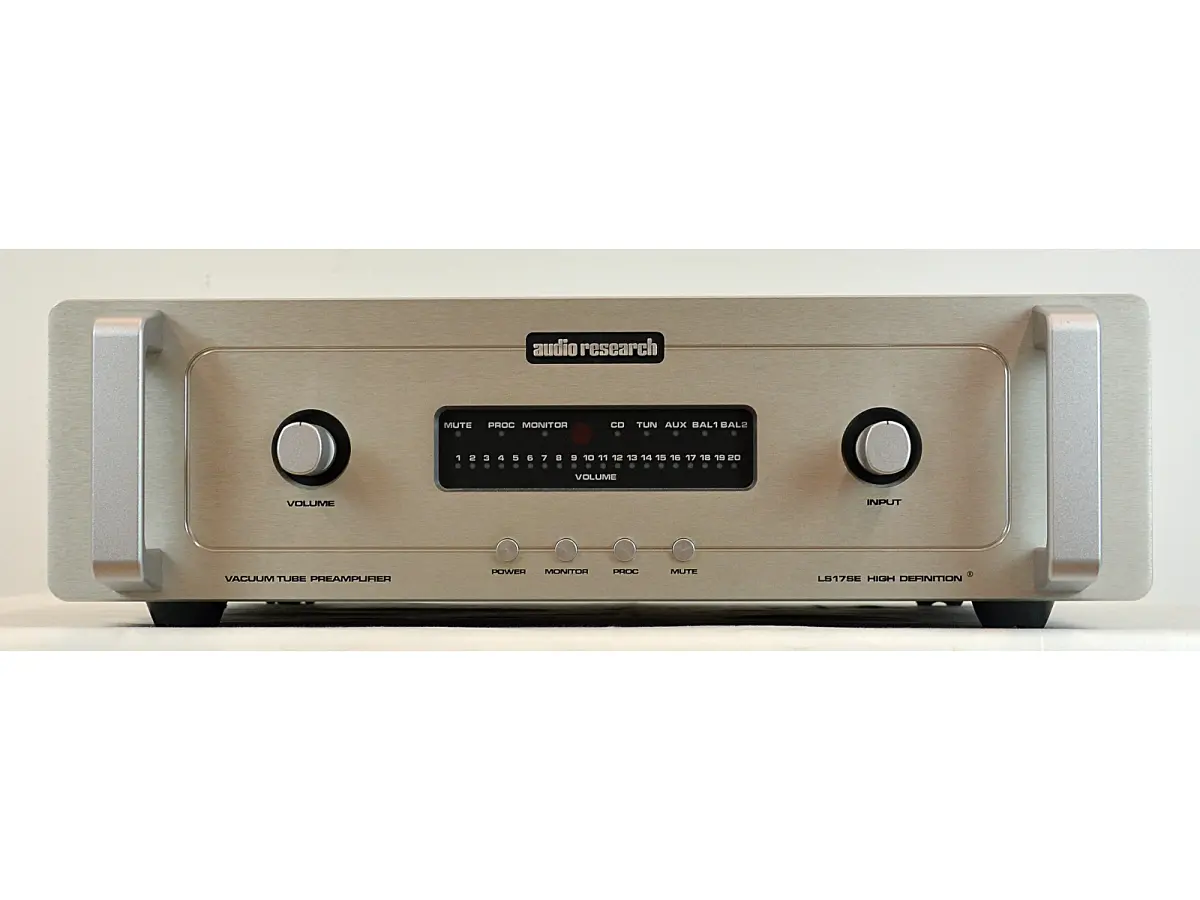

AUDIO RESEARCH LS17SE

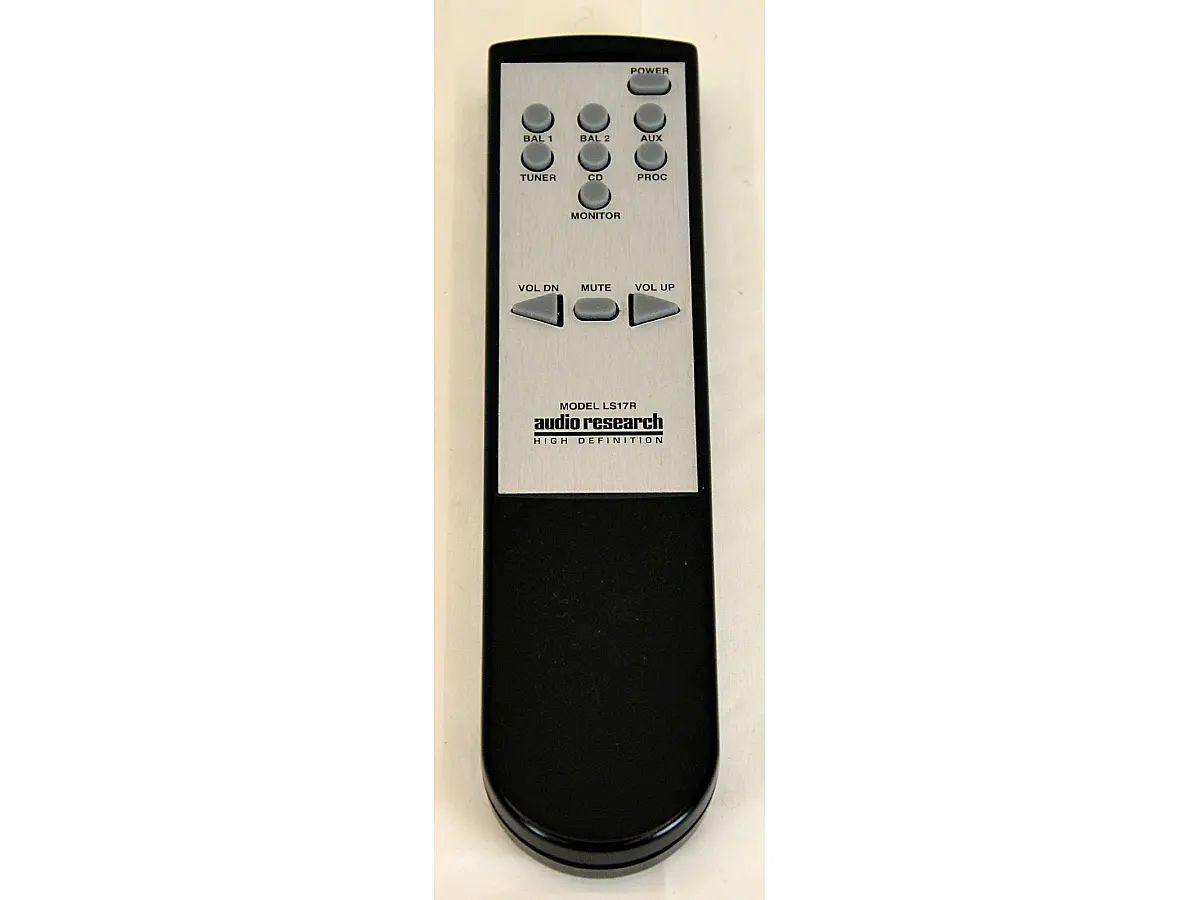

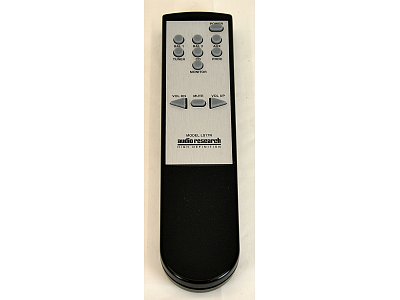

Usato, in ottime condizioni, privo di segni di usura evidenti. Dotato di telecomando, senza imballo originale.

Preamplificatore

Specifiche tecniche
FREQUENCY RESPONSE: +0-3dB, 0.5Hz to 200kHz at rated output (Balanced, 200k ohms load).
DISTORTION: Less than .01% at 2V RMS BAL output.
GAIN: Main output: 12dB Balanced output, 6dB SE output. Tape output: 0dB (Processor input: 0dB SE output).

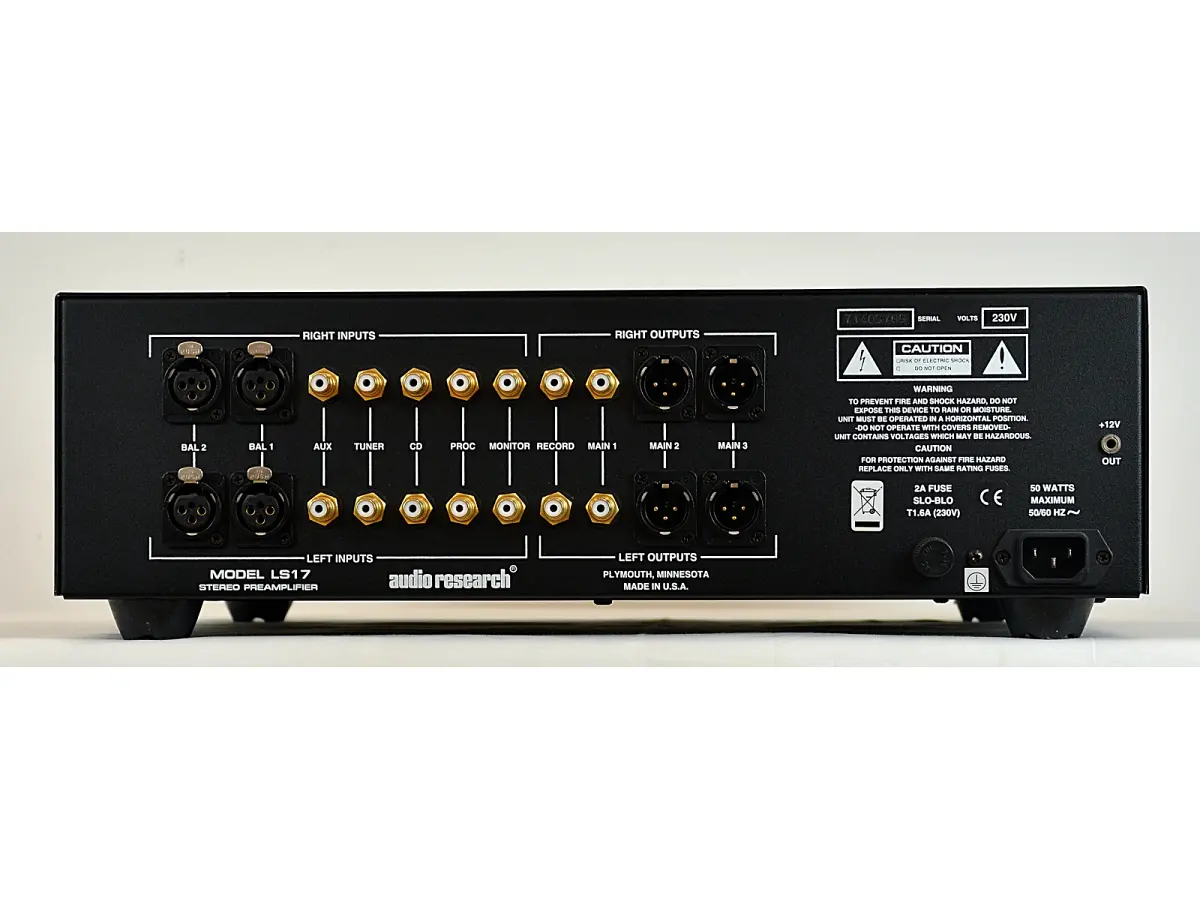

INPUT IMPEDANCE: 120K ohms Balanced, 60K ohms SE. Inputs (7): CD, TUNER, VIDEO, PHONO, AUX 1, AUX 2,
PROCESSOR. (XLR and RCA connectors)
OUTPUT IMPEDANCE: 600 ohms Balanced, 300 ohms SE Main (2). 20K ohms minimum load and 2000pF maximum
capacitance. Outputs (3): 2 main, 1 tape (XLR and RCA connectors).
OUTPUT POLARITY: Non-inverting.
MAXIMUM INPUT: 20V RMS BAL, 10V RMS SE.
RATED OUTPUTS: 2V RMS (1V RMS SE) into 200K ohm balanced load (maximum balanced output capability is 30V RMS
at less than 0.5% THD at 1kHz).
CROSSTALK: -80dB or better at 1kHz and 10 kHz.
CONTROLS: Volume (104 steps), Select Input. Push Buttons: Power, Proc, BAL/SE, Mono, Invert, Mute.
POWER SUPPLIES: Electronically regulated low and high voltage supplies. Automatic 40 sec. warm-up/brown-out
mute. Line regulation better than .01%.
NOISE: 1.7uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (109dB below 2V RMS
output.)
TUBE COMPLEMENT: 2-6H30P dual triode, (Hybrid JFET/ tube audio circuit, solid-state power supply).
POWER REQUIREMENTS: 100-135VAC 60Hz (200-270VAC 50/60Hz) 130 watts. Standby: 2 watts.
DIMENSIONS: 19" (48 cm) W x 7" (17.8 cm) H (standard panel) x 15.5" (39.4 cm) D. Handles extend 1.5" (3.8 cm)
forward of the front panel.
WEIGHT: 30.4 lbs. (13.9 kg) Net; 41.6 lbs. (19 kg) Shipping
