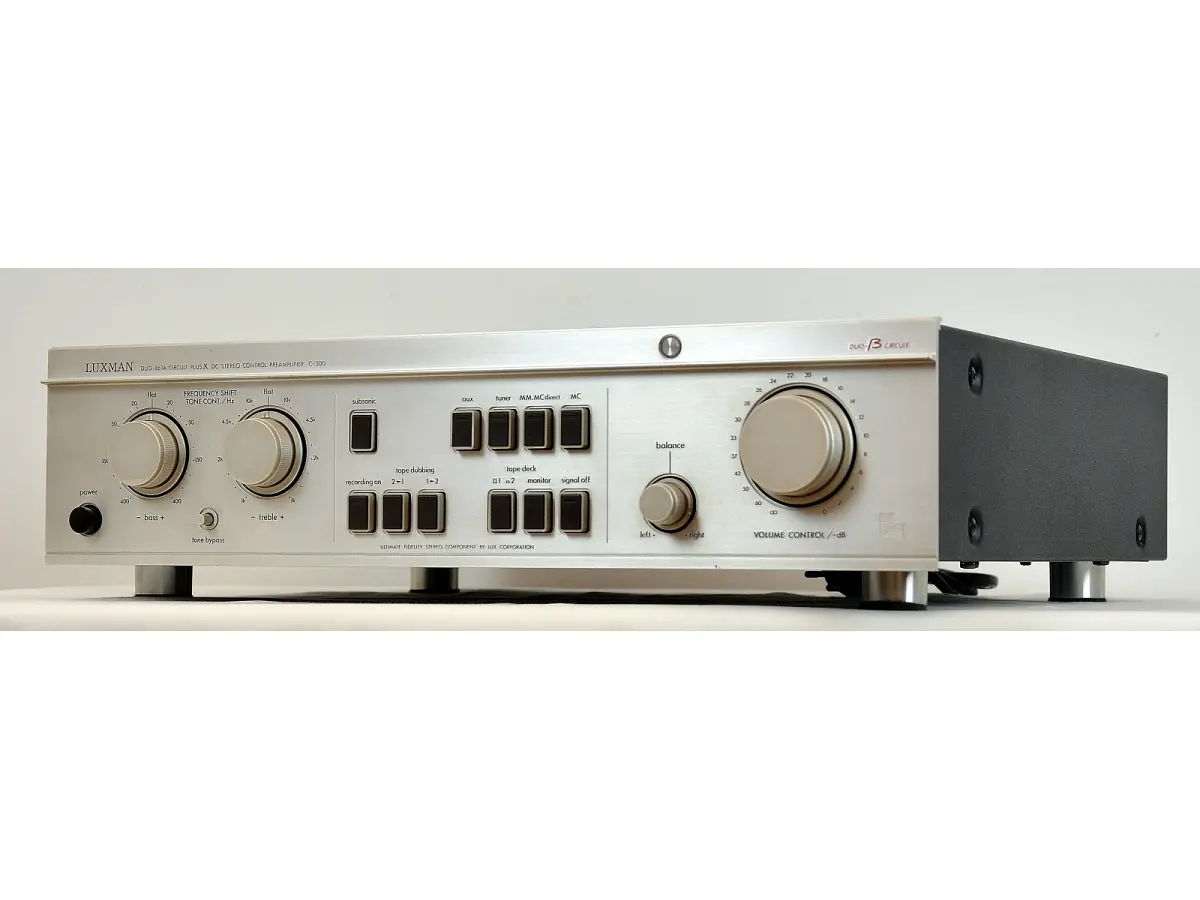

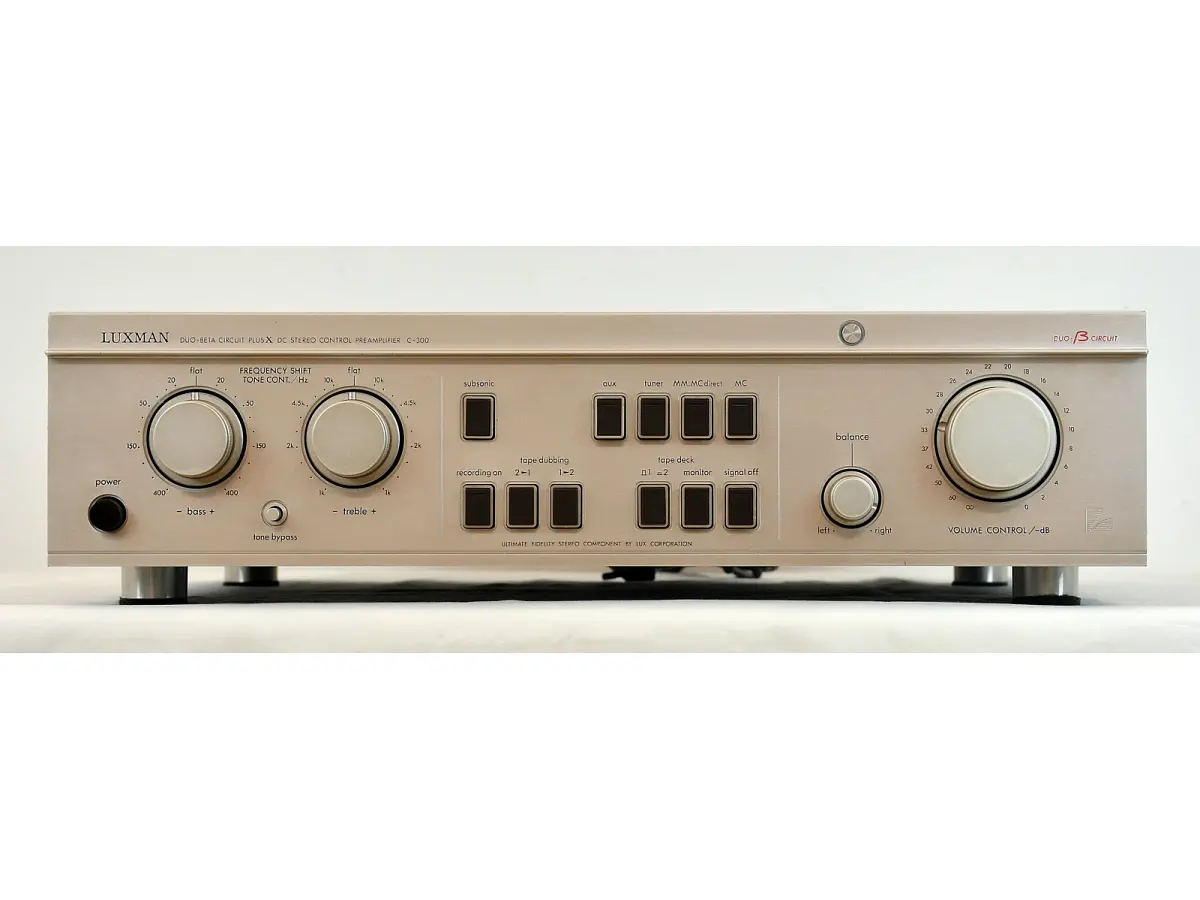

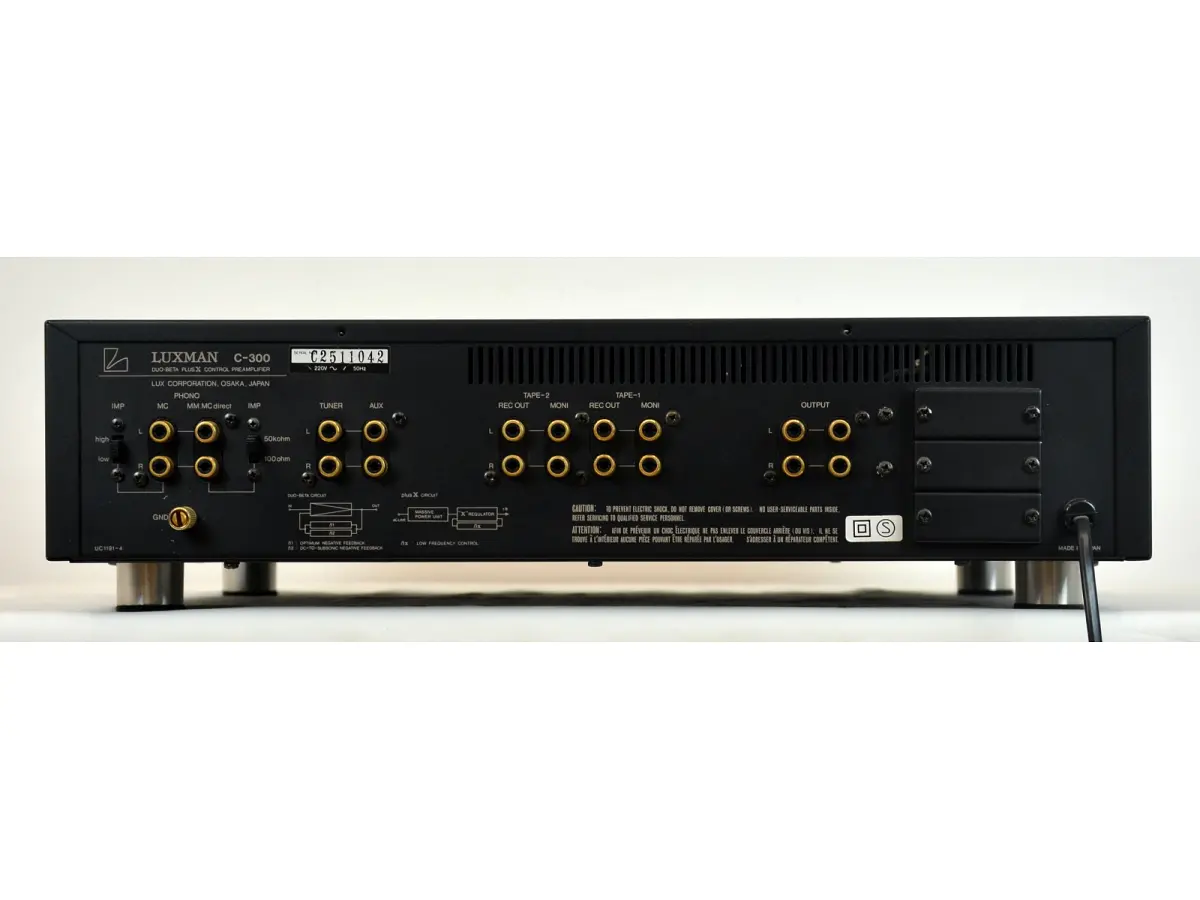

LUXMAN C-300

Second-hand, in good condition, without its original package.

Stereo preamplifier

The C-300 is a dual-mono Class A preamplifier with a modern design that embodies the contemporary style of Luxman in the 1980s.

The MC amplifier is designed with direct-coupled parallel FET input in the first stage and a Class A push-pull output, featuring a dedicated constant voltage circuit to minimize noise and source impedance.

The power supply section is completely separate for the left and right channels, with rectification and constant voltage circuits forming a twin monaural power supply, reducing channel interference. The transformers and capacitors are large to lower impedance and ensure stable power delivery.

High-quality film capacitors are used throughout the stages, and oxygen-free copper shielded cables are employed to optimize sound quality. The tone control includes a continuous shift function for precise balance with simple operations. Additionally, a linear phase sensor helps unify the polarity of connected devices.

The passive Twin T subsonic circuit further enhances sound quality. The structure is designed to eliminate magnetic distortion, with gold-plated terminals and a natural wood cabinet lined with aluminum for effective shielding.

Technical Specifications:

• Frequency response: 0.5Hz to 140kHz
• THD: 0.005%
• Input sensitivity: 0.09mV (MC), 2mV (MM), 140mV (line)
• S/N ratio: 80dB (MM), 100dB (line)
• Output: 140mV (line), 1V (Pre out), 20V (Pre out Max)
• Dimensions: 478 x 163 x 384mm
• Weight: 9kg
