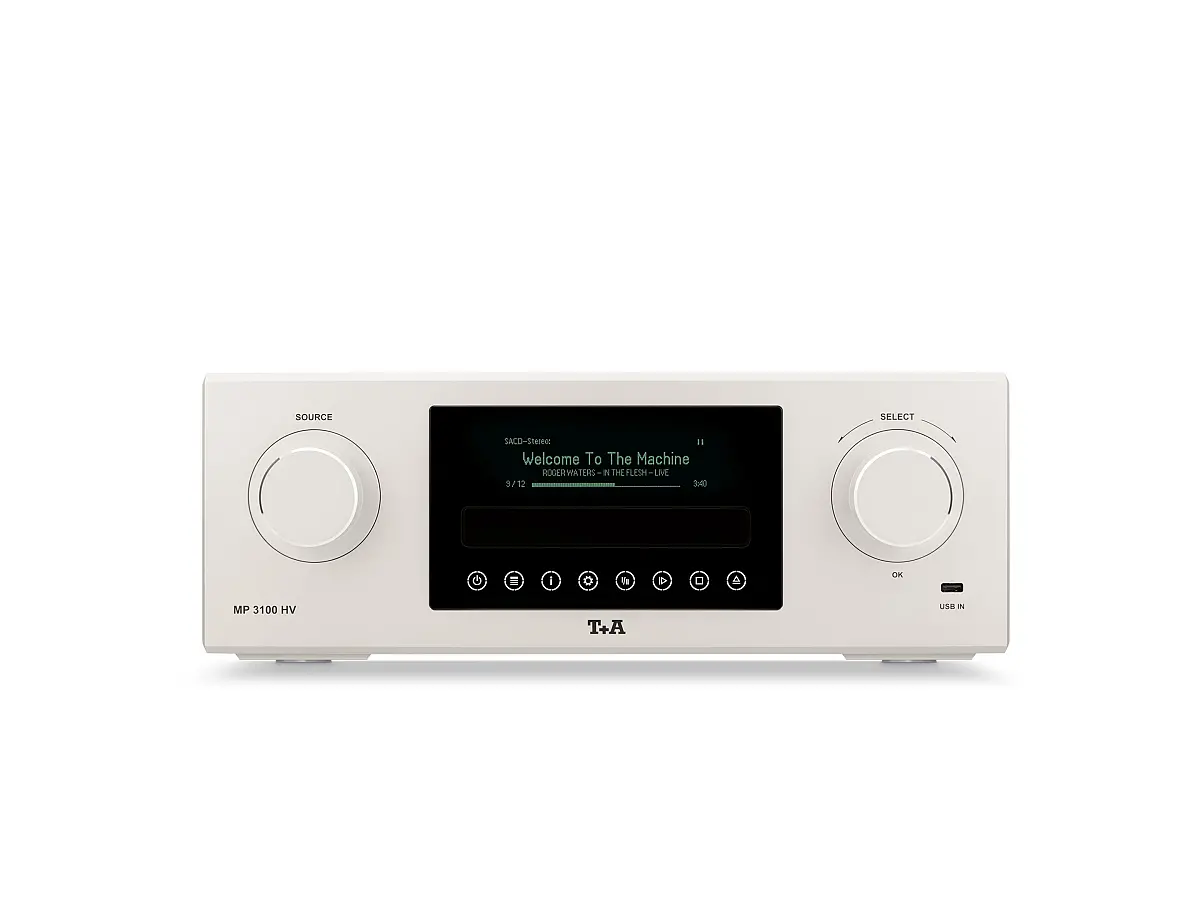

T+A MP 3100 HV

Lettore streaming multi sorgente in grado di eseguire l’elaborazione completa del segnale dei dati bitstream DSD oltre all’elaborazione dei dati PCM secondo standard impeccabili. L‘unità SACD, con il decoder, è in grado di leggere i dischi CD (PCM 44.1 kSps) e SACD (DSD 64 2.8 MHz) alla massima qualità possibile. I dati PCM vengono convertiti utilizzando il convertitore quadruplo differenziale per tutta l’elaborazione del segnale digitale. I dati DSD sono gestiti dall’esclusivo convertitore DSD analogico a 1 bit del PDP 3000 HV, che elabora i dati DSD in forma nativa.

Specifications
SACD drive unit
SACD drive unit High precision linear tracking drive Double-Lasersystem: SACD: 650 nm, CD: 785 nm
Formats SACD Stereo, CD, CD-R, CD-RW, CD Text
Frequency range and dynamics
CD: 2 Hz – 20 kHz / 100 dB,
SACD: 2 Hz – 44 kHz / 110 dB

Streaming Client
Formats / Standards MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV
Data rates PCM 32...192 kHz,16/24 Bit; MP3 bis 320 kBit, constant and variable Data rate
Music services Tidal, qobuz. Deezer, Roon Ready (Subscription required)
Features Gapless Playback for MP3 (Lame), WAV, FLAC. T+A MusicNavigator App for iOS and Android)
Interfaces LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n

Tuner
Internet Radio Airable Internet Radio Service (> 11000 Stations)
FM, FM-HD 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
DAB, DAB+ 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA.
Features RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT), time
Bluetooth A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC.

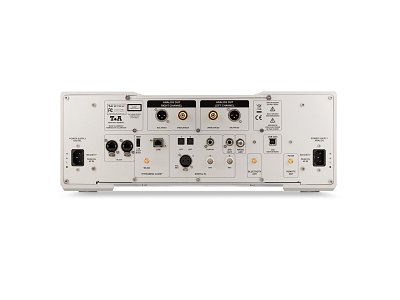

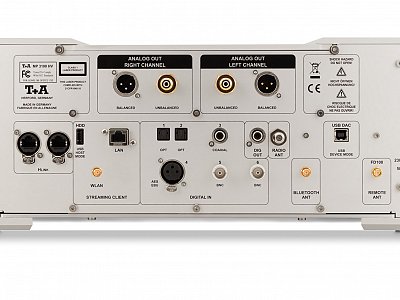

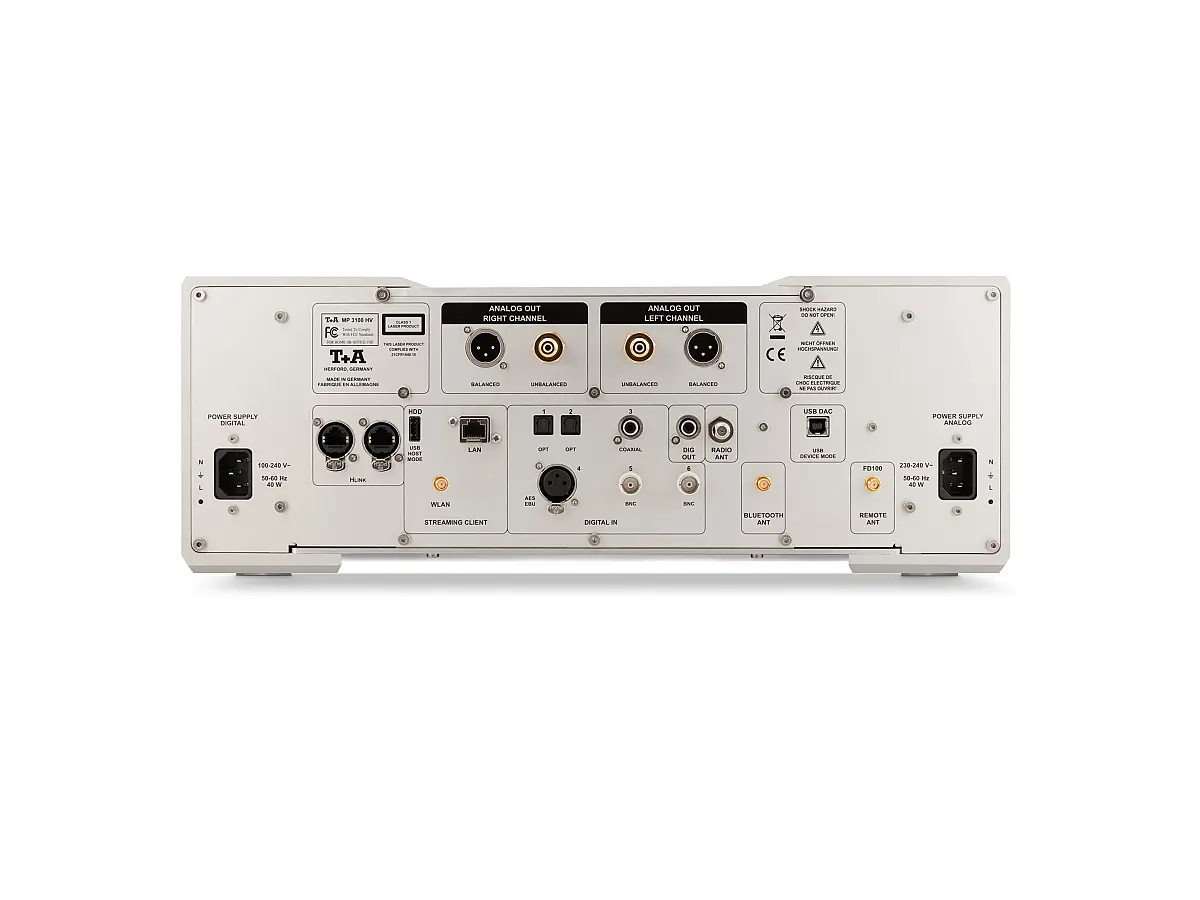

Connections
Outputs analogue Co-axial (RCA) | Balanced (XLR) 2,5 Veff / 50 Ohm | 5,0 Veff / 50 Ohm
Output digital 1 x coax, IEC 60958 S/P-DIF (LPCM)
Digital inputs (digital connecting board)
1x AES-EBU 192 kSps /24 bit
5x S/P-DIF: 1x standard coax, 2 high quality BNC 192 kSps/24 bit and 2 optical TOS-Link 96 kSps /24 bit.
1x USB: Device-Mode up to. 384 kSps (PCM) and DSD512*, supports asynchronous data transfer
2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
* DSD256 and DSD512 only with a Windows PC with appropriate driver installed

D/A Converter
PCM Double-Differential-Quadruple-Converter with four 32-Bit Sigma Delta D/A converters per channel. 352.4 / 384 kSps conversion rate.
DSD T+A True-1Bit DSD D/A-Converter native bitstream
Upsampling (PCM) T+A Digital Signal Processor - synchronous upsampling with 4 selectable oversampling algorithms: FIR short, FIR long, Bezier/IIR, Bezier
Analogue filter Phase-linear Bessel filter 3rd Order with 60 or 120 kHz cut off frequency
Frequency responce
PCM 44.1 kSps: 2 Hz - 20 kHz
PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
Total harmonic distortion < 0,001 %
Signal / noise ratio > 116 dB
Channel separation > 110 dB

Mains 2 x 110-120 V or 220-240 V, 50-60 Hz, 2 x 40 W
Standby < 0,5 W
Dimensions (H x W x D) / Weight 17 x 46 x 46 cm / 26 kg
Remote control F 3100, IR radio remote control T+A MusicNavigator APP
Accessories WLAN aerial, BNC / RCA adapter
Optional Accessories
Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | HV-Individual finish (Individual colours on request)
Finishes
case: silver laquer 47 or titanium laquer 64 heat sink black 42
