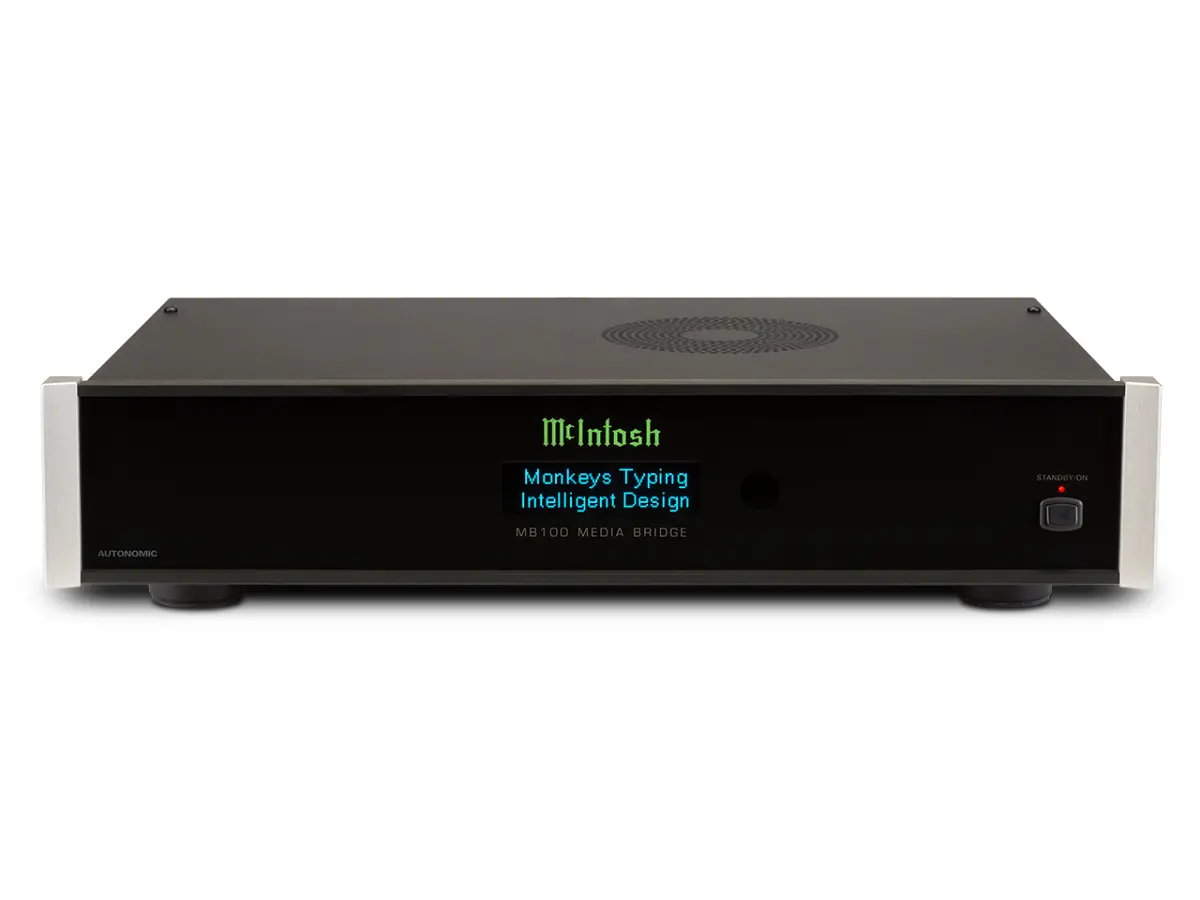

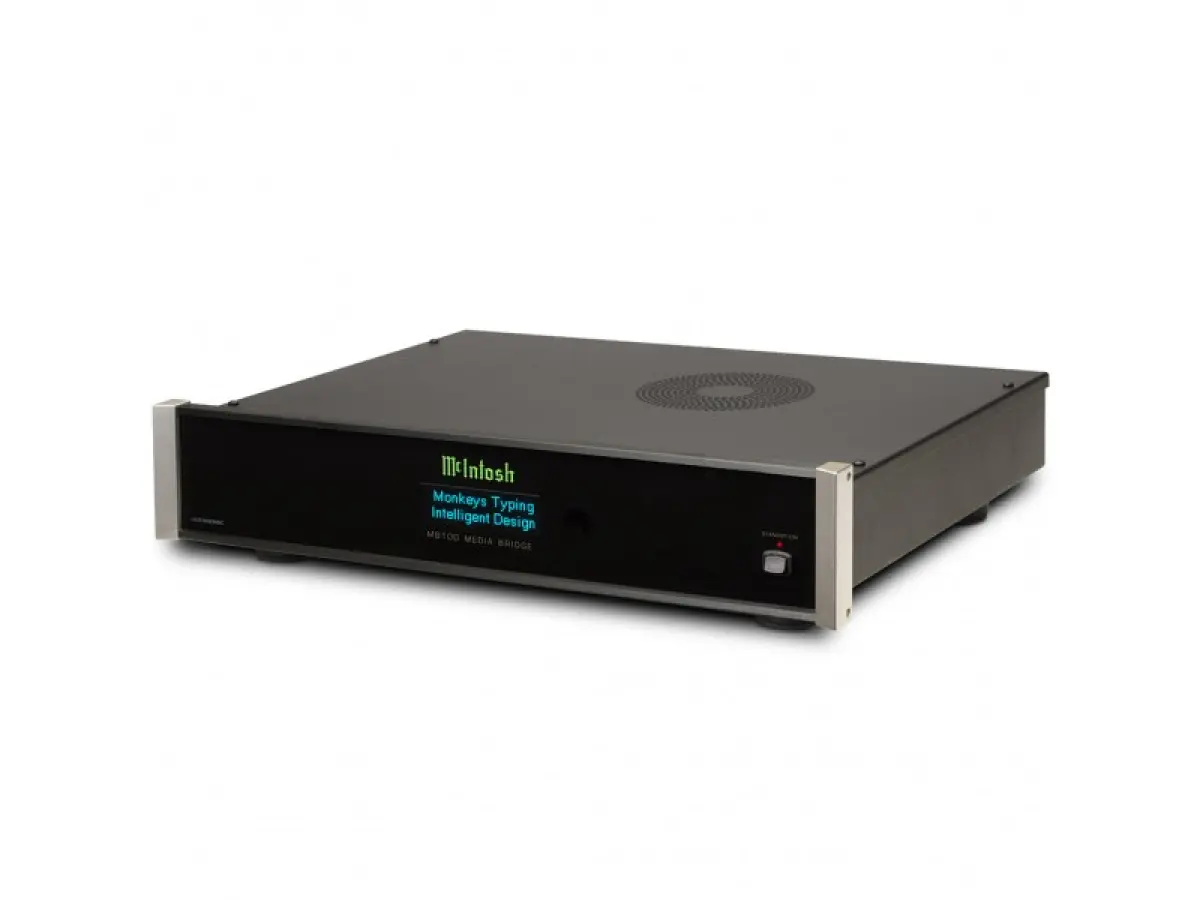

MCINTOSH MB 100 MEDIA BRIDGE

Media bridge (player di rete) – player con memoria interna – 1 tb su hard drive a stato solido – compatibile con file fino a 24 bit e 192 khz – connessione a livello rete, esata o usb (per hd esterni o pen drive) – predisposizione per streaming service via rete (pandora, spotify sirius ecc.) – uscite video hdmi e dvi (solo video) –uscite audio analogiche bilanciata e sbilanciata, digitali ottica e coassiale – dimensioni 98 x 445 x 406 mm – peso 12,7 kg


Specifiche tecniche
TOTAL HARMONIC DISTORTION 0.005%
FREQUENCY RESPONSE 2Hz to 22,000Hz
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED) 4/2 V RMS
SIGNAL TO NOISE RATIO 102dB
OUTPUT IMPEDANCE 600 Ω (Balanced / Unbalanced)
DYNAMIC RANGE 96dB
CONNECTIVITY
INPUTS UNBALANCED 0
OUTPUTS UNBALANCED 1 Stereo
OUTPUTS BALANCED 1 Stereo
DIGITAL COAXIAL INPUT 0
DIGITAL COAXIAL OUTPUT 1
DIGITAL OPTICAL INPUT 0
DIGITAL OPTICAL OUTPUT 1
DIGITAL USB INPUT 4 (2 USB 2.0 / 2 USB 3.0)
DIGITAL USB AUDIO OUTPUT 1 (compatible only with McIntosh products that accept USB audio)
NETWORK CONNECTION 1 (10/100/1000)
DVI OUTPUT 1 (for GUI only)
HDMI OUTPUT 1 (for GUI only)
ESATA INPUT 1
DIGITAL AUDIO SPECIFICATIONS
DIGITAL INPUT FORMAT N/A
DIGITAL INPUT SAMPLE RATE N/A
DIGITAL OUTPUT FORMAT
SPDIF (PCM)
DIGITAL OUTPUT SAMPLE RATE Up to 24-Bit/192kHz
CONTROL
POWER CONTROL INPUT 1
POWER CONTROL OUTPUT 1
TOTAL HARMONIC DISTORTION 0.005%
FREQUENCY RESPONSE 2Hz to 22,000Hz
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED) 4/2 V RMS
SIGNAL TO NOISE RATIO 102dB
OUTPUT IMPEDANCE 600 Ω (Balanced / Unbalanced)
DYNAMIC RANGE 96dB
CONNECTIVITY
INPUTS UNBALANCED 0
OUTPUTS UNBALANCED 1 Stereo
OUTPUTS BALANCED 1 Stereo
DIGITAL COAXIAL INPUT 0
DIGITAL COAXIAL OUTPUT 1
DIGITAL OPTICAL INPUT 0
DIGITAL OPTICAL OUTPUT 1
DIGITAL USB INPUT 4 (2 USB 2.0 / 2 USB 3.0)
DIGITAL USB AUDIO OUTPUT 1 (compatible only with McIntosh products that accept USB audio)
NETWORK CONNECTION 1 (10/100/1000)
DVI OUTPUT 1 (for GUI only)
HDMI OUTPUT 1 (for GUI only)
ESATA INPUT 1
DIGITAL AUDIO SPECIFICATIONS
DIGITAL INPUT FORMAT N/A
DIGITAL INPUT SAMPLE RATE N/A
DIGITAL OUTPUT FORMAT SPDIF (PCM)
DIGITAL OUTPUT SAMPLE RATE Up to 24-Bit/192kHz
CONTROL
POWER CONTROL INPUT 1
POWER CONTROL OUTPUT 1
REAR PANEL DATA INPUT 1
REAR PANEL IR SENSOR INPUT 1
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D) 17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)
WEIGHT 13.5 lbs (6.1kg)
SHIPPING WEIGHT 28 lbs (12.7kg)
REAR PANEL DATA INPUT 1
REAR PANEL IR SENSOR INPUT 1
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D) 17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)
WEIGHT TOTAL HARMONIC DISTORTION 0.005%
FREQUENCY RESPONSE 2HZ TO 22,000HZ
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED) 4/2 V RMS
SIGNAL TO NOISE RATIO 102DB
OUTPUT IMPEDANCE 600 Ω (BALANCED / UNBALANCED)
DYNAMIC RANGE 96DB
CONNECTIVITY
INPUTS UNBALANCED 0
OUTPUTS UNBALANCED 1 STEREO
OUTPUTS BALANCED 1 STEREO
DIGITAL COAXIAL INPUT 0
DIGITAL COAXIAL OUTPUT 1
DIGITAL OPTICAL INPUT 0
DIGITAL OPTICAL OUTPUT 1
DIGITAL USB INPUT 4 (2 USB 2.0 / 2 USB 3.0)
DIGITAL USB AUDIO OUTPUT 1 (COMPATIBLE ONLY WITH MCINTOSH PRODUCTS THAT ACCEPT USB AUDIO)
NETWORK CONNECTION 1 (10/100/1000)
DVI OUTPUT 1 (FOR GUI ONLY)
HDMI OUTPUT 1 (FOR GUI ONLY)
ESATA INPUT 1
DIGITAL AUDIO SPECIFICATIONS
DIGITAL INPUT FORMAT N/A
DIGITAL INPUT SAMPLE RATE N/A
DIGITAL OUTPUT FORMAT SPDIF (PCM)
DIGITAL OUTPUT SAMPLE RATE UP TO 24-BIT/192KHZ
CONTROL
POWER CONTROL INPUT 1
POWER CONTROL OUTPUT 1
REAR PANEL DATA INPUT 1
REAR PANEL IR SENSOR INPUT 1
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D) 17.5" (44.45CM) X 3-7/8" (9.8CM) X 16" (40.64CM)
WEIGHT 13.5 LBS (6.1KG)
SHIPPING WEIGHT 28 LBS (12.7KG) 13.5 lbs (6.1kg)
SHIPPING WEIGHT 28 lbs (12.7kg)
