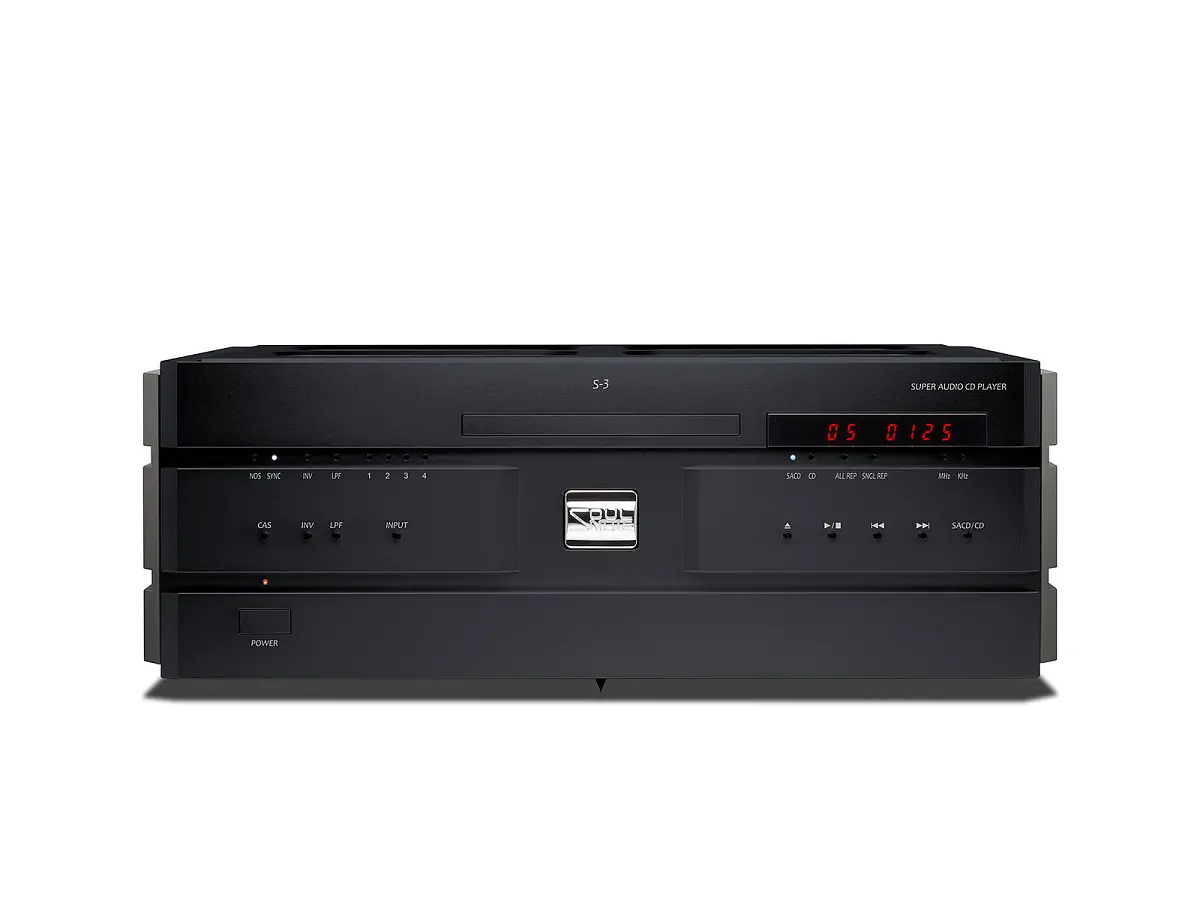

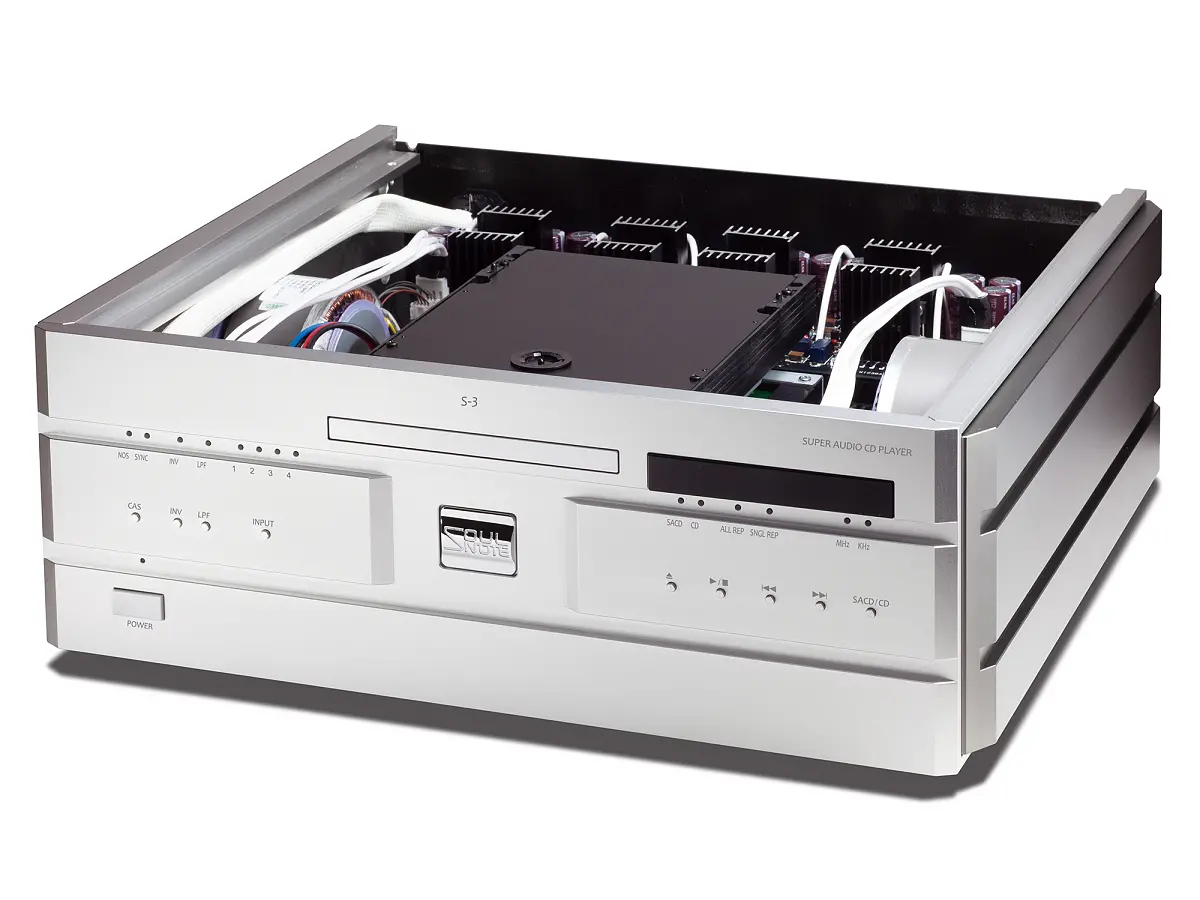

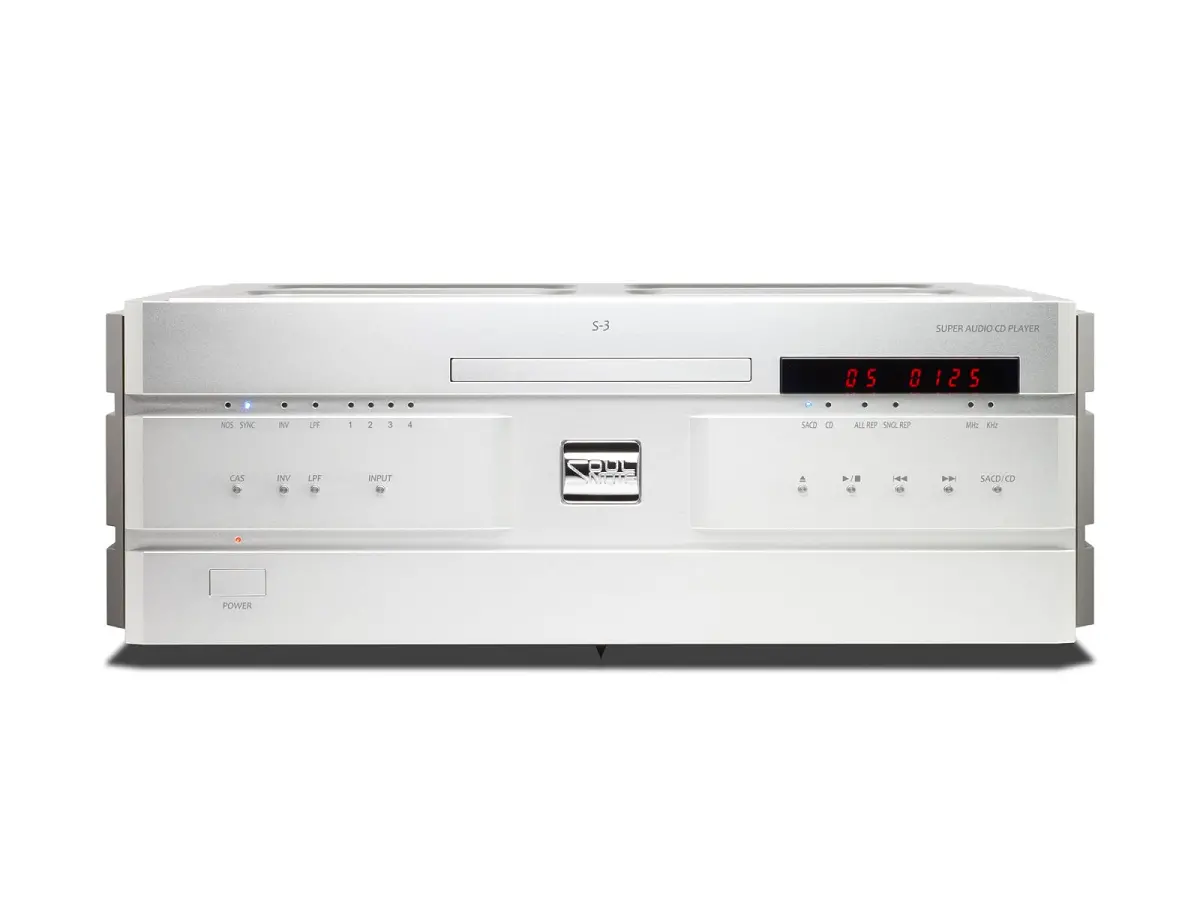

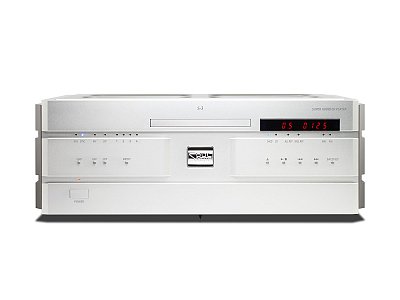

SOULNOTE S-3 REFERENCE

L'ultimo sistema di riproduzione digitale con sincronizzazione dell'orologio. Lettore Super Audio CD estremamente potente che riproduce delicati suoni naturali e vivacità.

Specifiche tecniche
Available Compact Disc super audio CD and music CD (CD, CD-R and CD-RW)

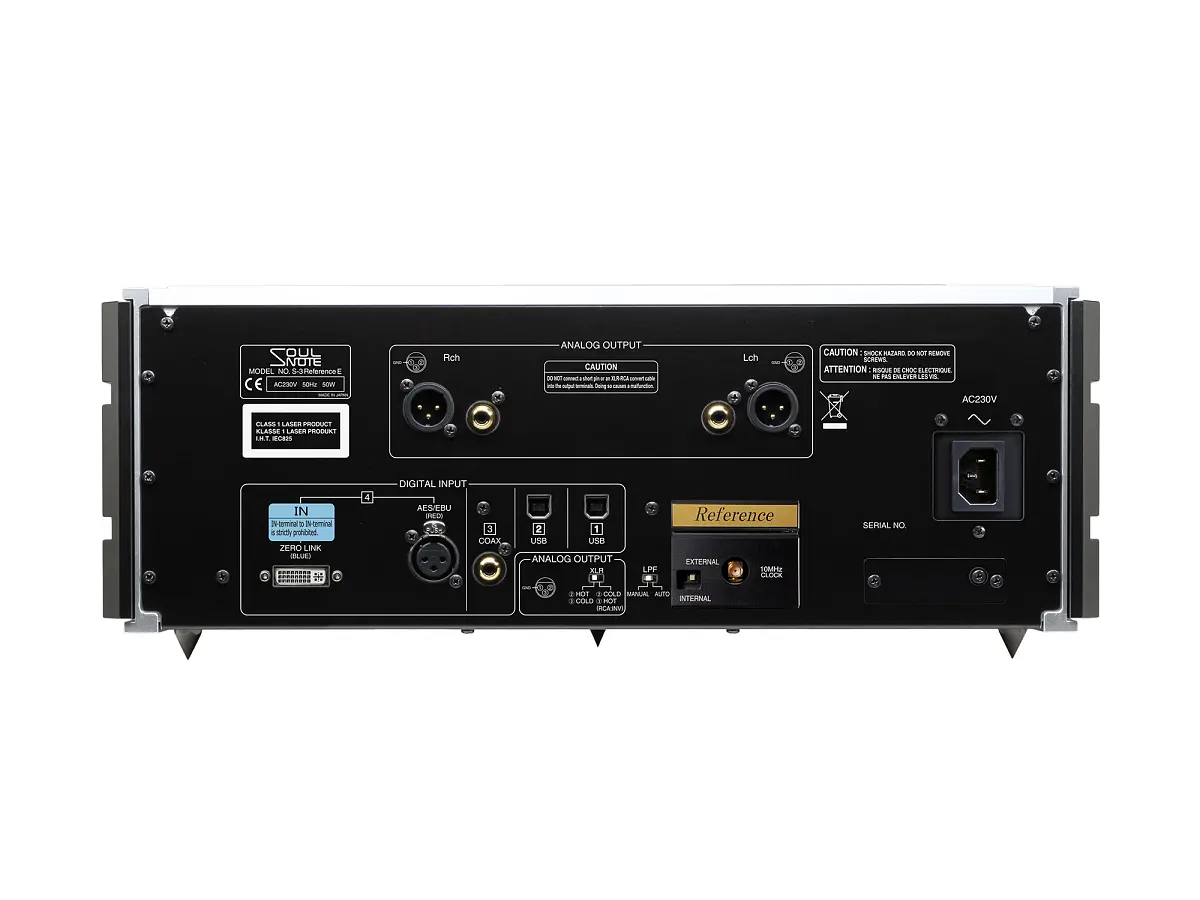

Digital input 2 USB (Type B) inputs, 1 coaxial input (S/PDIF), 1 AES/EBU input
Supported sampling frequency
USB: Max. 768kHz (PCM) / Max. 22.6MHz (DSD) Coaxial, AES/EBU: Max. 192kHz (PCM) / Max. 2.8MHz (DSD64 DoP v1.1)
Analog output 1 XLR output, 1 RCA output
Analog Output level
Balanced: 5.6Vrms (Adapted Load Impedance 5 k Ohms or more)
Unbalanced: 2.8Vrms(Adapted Load Impedance 5 k Ohms or more)
Analog Frequency characteristic 2Hz ? 150kHz?(+0/-1dB?
S/N ratio 110dB
Total harmonic distortion 0,008?
Analog filter 1st or passive type
External clock input 10MHz (BNC 50ohms)
Power voltage 230V AC 50Hz
Power consumption 50W
Maximum external dimensions Main unit: 454(W) × 170(H) × 393(D)mm
Weight 27kg
Included accessories Spike board, spikes, remote controller, power cable
