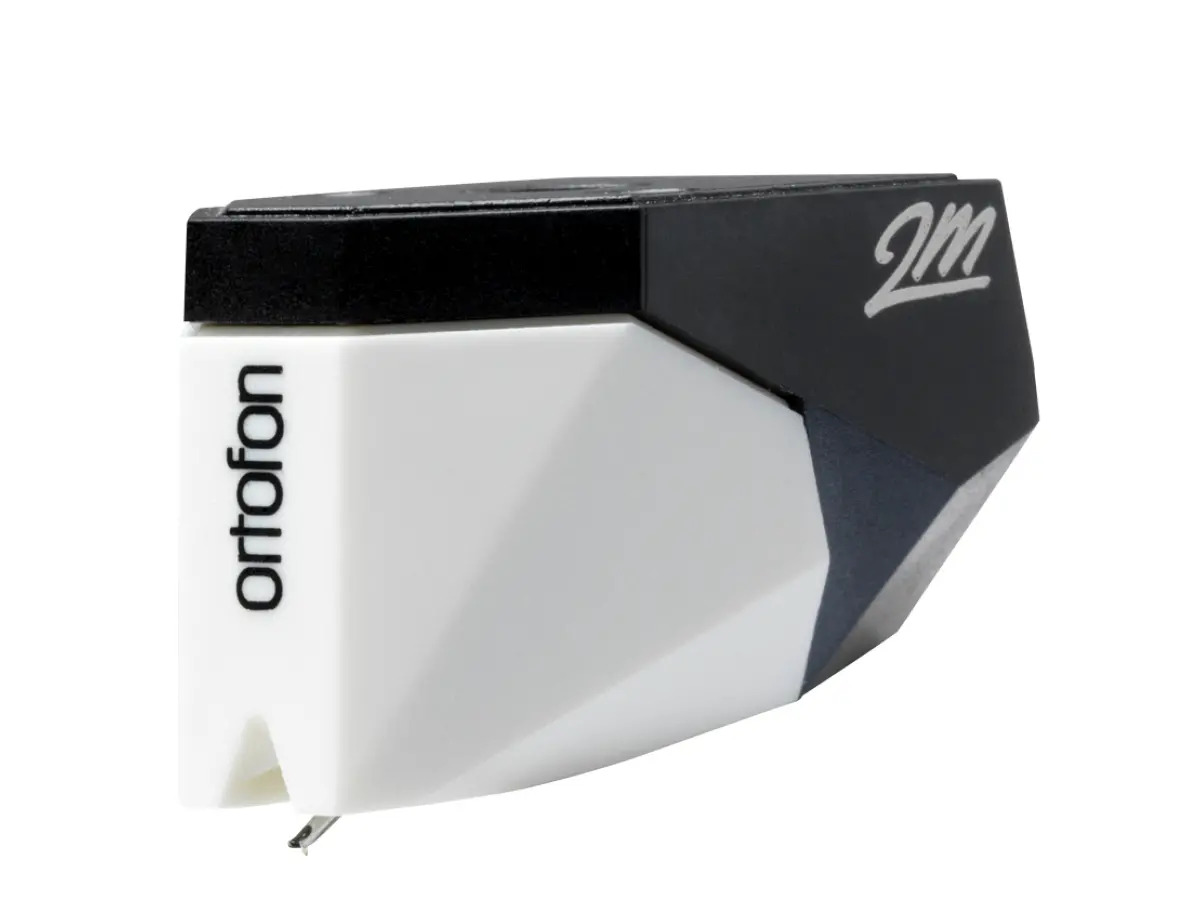

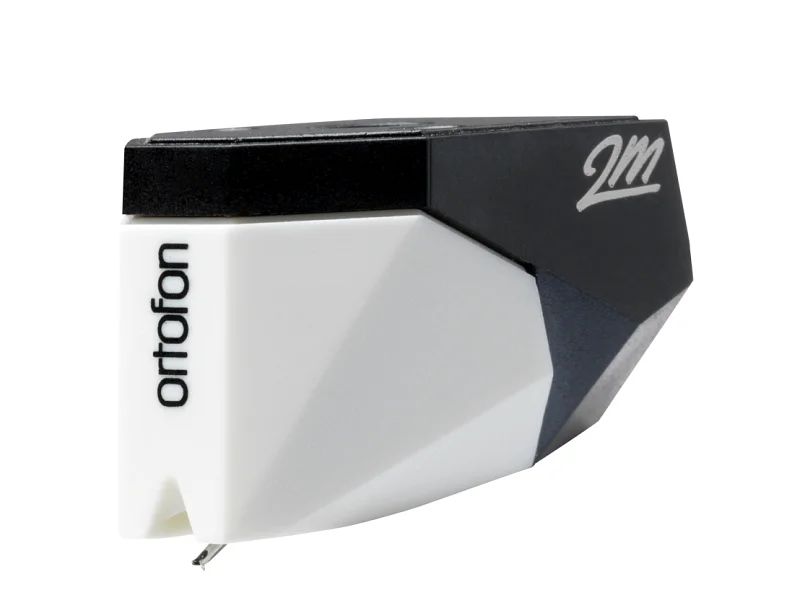

ORTOFON 2M MONO

Fonorivelatore MM MONO- Magnete Mobile Serie 2M
Stilo sferico nude.
Tensione di uscita 4mV (mono)
Peso di lettura consigliato 1,8gr.
Resistenza di carico consigliata 47Kohm
Peso 7,2gr.

Specifiche:
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Frequency range at - 3dB  - 20-22.000 Hz
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral  -  18 µm/mN
Stylus type  -  Nude Spherical
Stylus tip radius - R18 µm
Tracking force range  - 1.6-2.0 g (16-20 mN)
Tracking force, recommended -  1.8 g (18 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  - 700 Ohm
Internal inductance  -  350 mH
Recommended load resistance  - 47 kOhm
Recommended load capacitance  - 150-300 pF
Cartridge colour, body/stylus - Black/White
Cartridge weight without screws  - 7.2 g
2M PnP MkII cartridge with integrated headshell weight  -  20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
