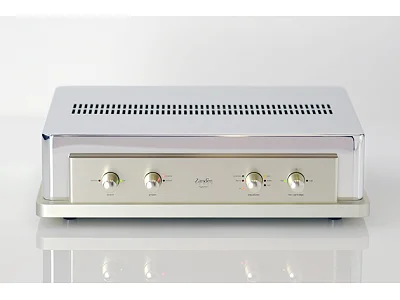

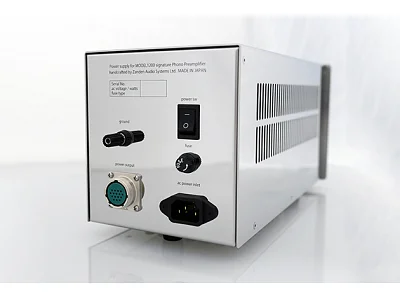

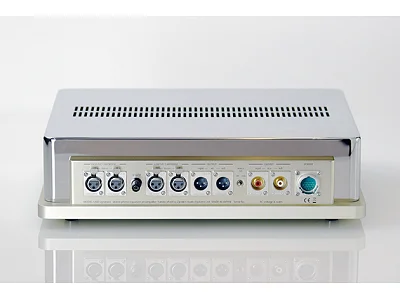

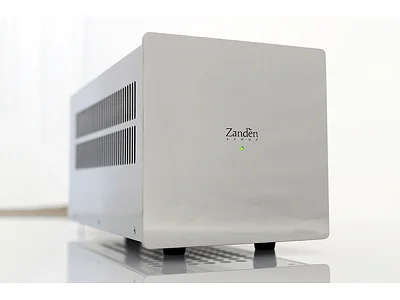

ZANDEN MODEL 1200 SIGNATURE

Pre phono con alimentazione esterna, 5 curve di equalizzazione – Ingressi MC Alto/Basso livello


Specifiche tecniche
EQ curve positions: RIAA, TELDEC, EMI, COLUMBIA, DECCA are combined with 3 positions of 4th time constant
Inputs:
- Low impedance MC cartridge x1 (XLR or RCA)
- High impedance MC cartridge x1 (XLR or RCA)
Input impedance
low: 35?
hi: 480?
Outputs: XLR and RCA
Output impedance: 300?
Gain
Low MC: 64dB (1kHz, RIAA)
High MC: 54dB (1kHz, RIAA)
Frequency deflection: 0.5dB (20Hz - 30kHz) maximum
Total harmonic distortion: 0.13% @ 2V RMS output, 1kHz
Signal to Noise: -73dB (IHF-A, 5.0mv RMS)
Tube compliment
Main unit : 6922 x6
Power supply unit : 6922 x1, 6CA4 x2
Channel balance: 0.5dB maximum
Power consumption: 75W
Dimensions
(main) W: 398mm / H: 103mm / D: 405mm
(power) W: 155mm / H: 163mm / D: 336mm
Weight: (main) 9.0kg (power) 8.0kg
