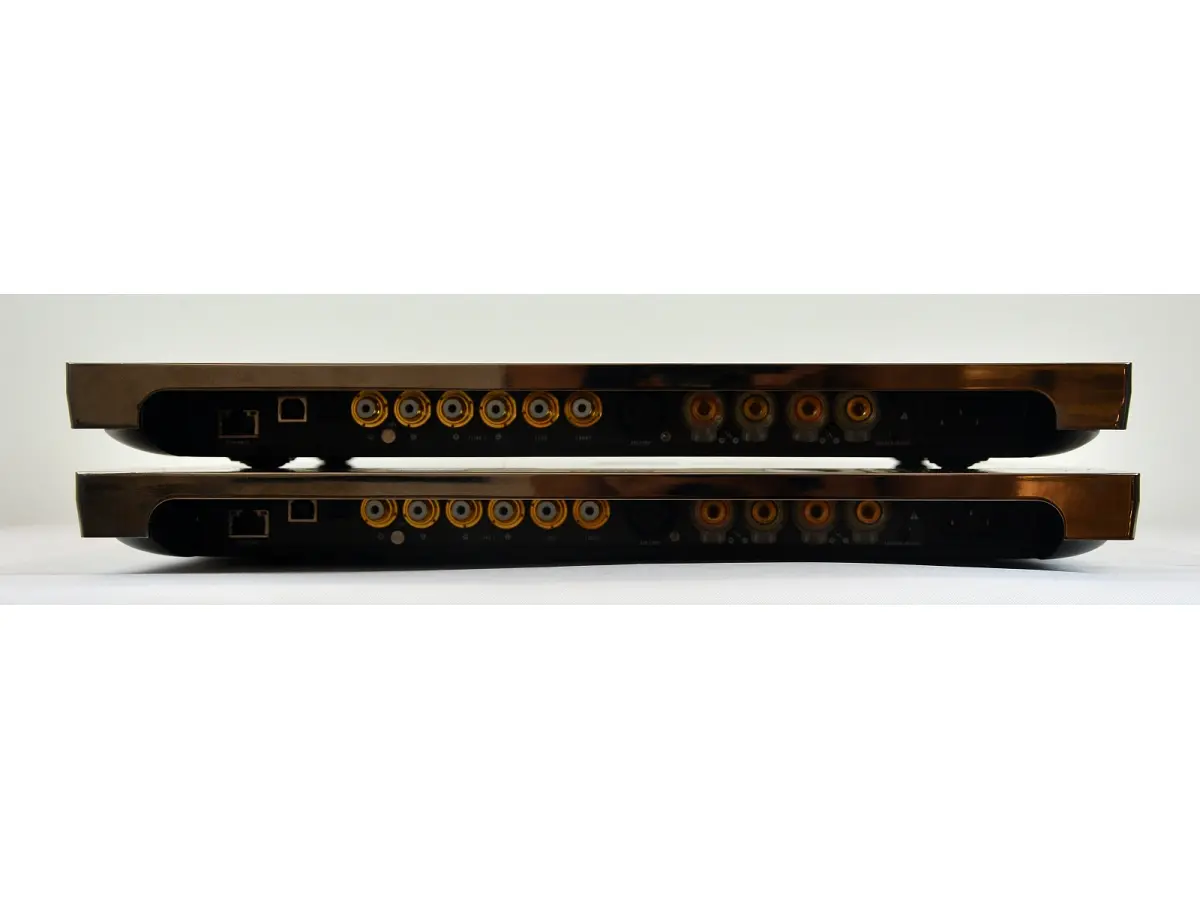

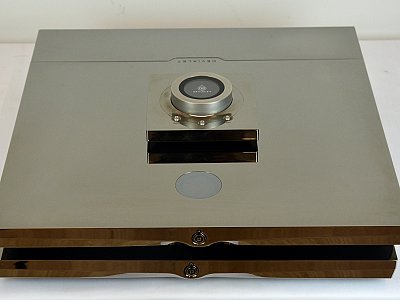

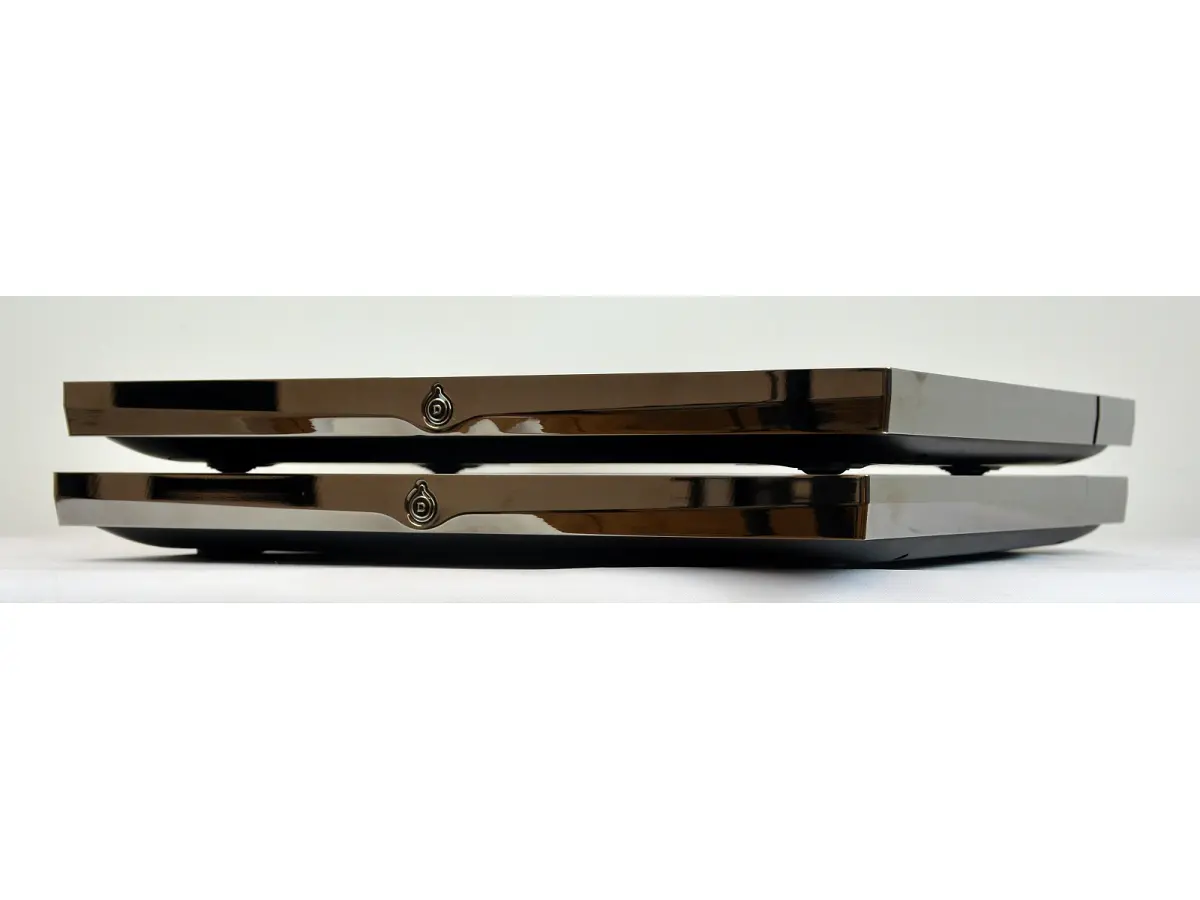

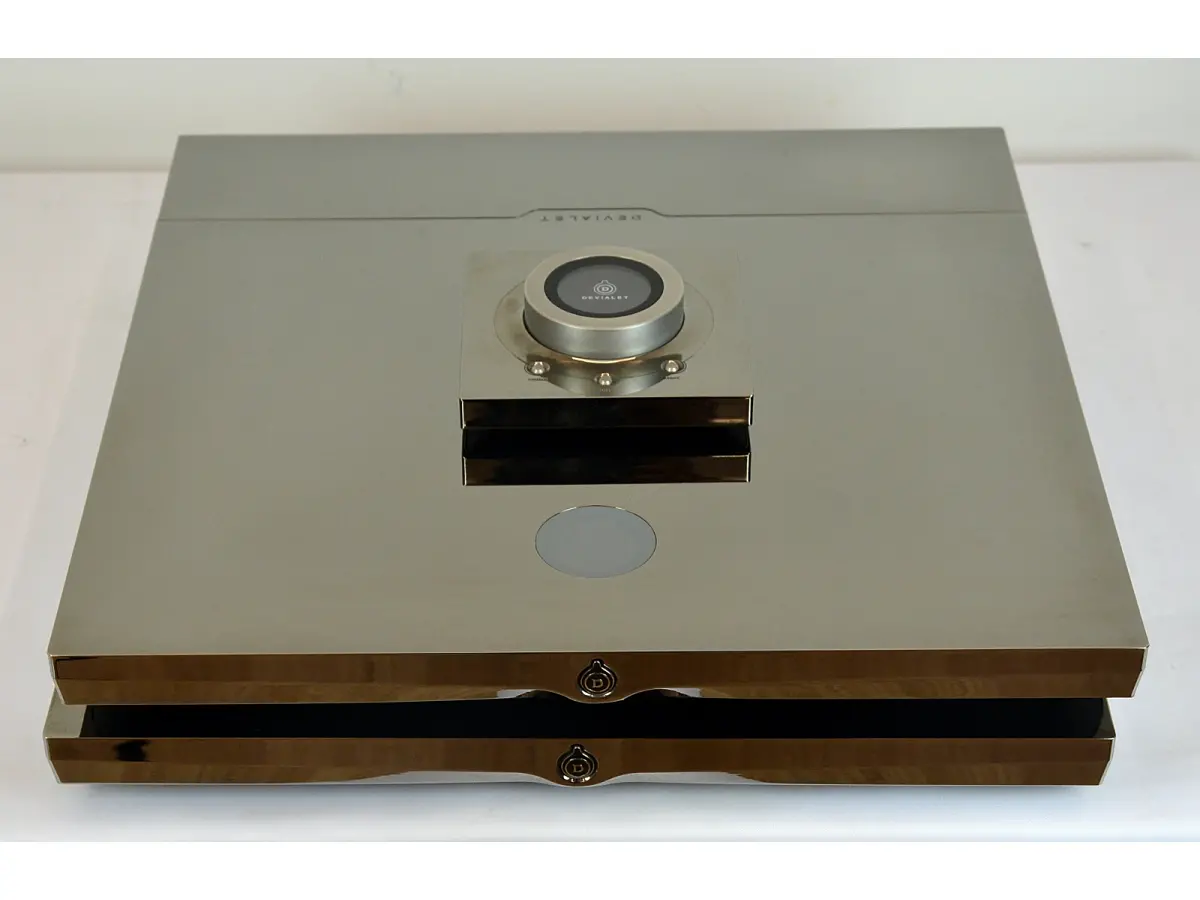

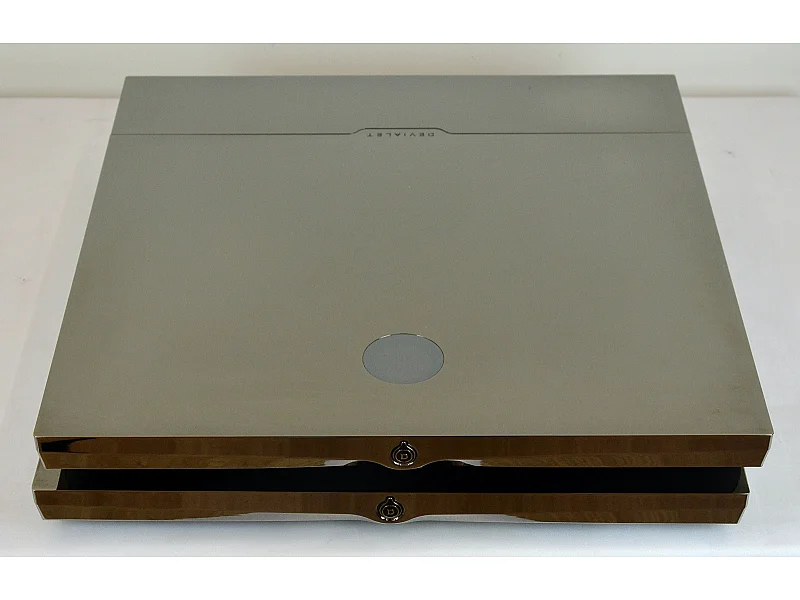

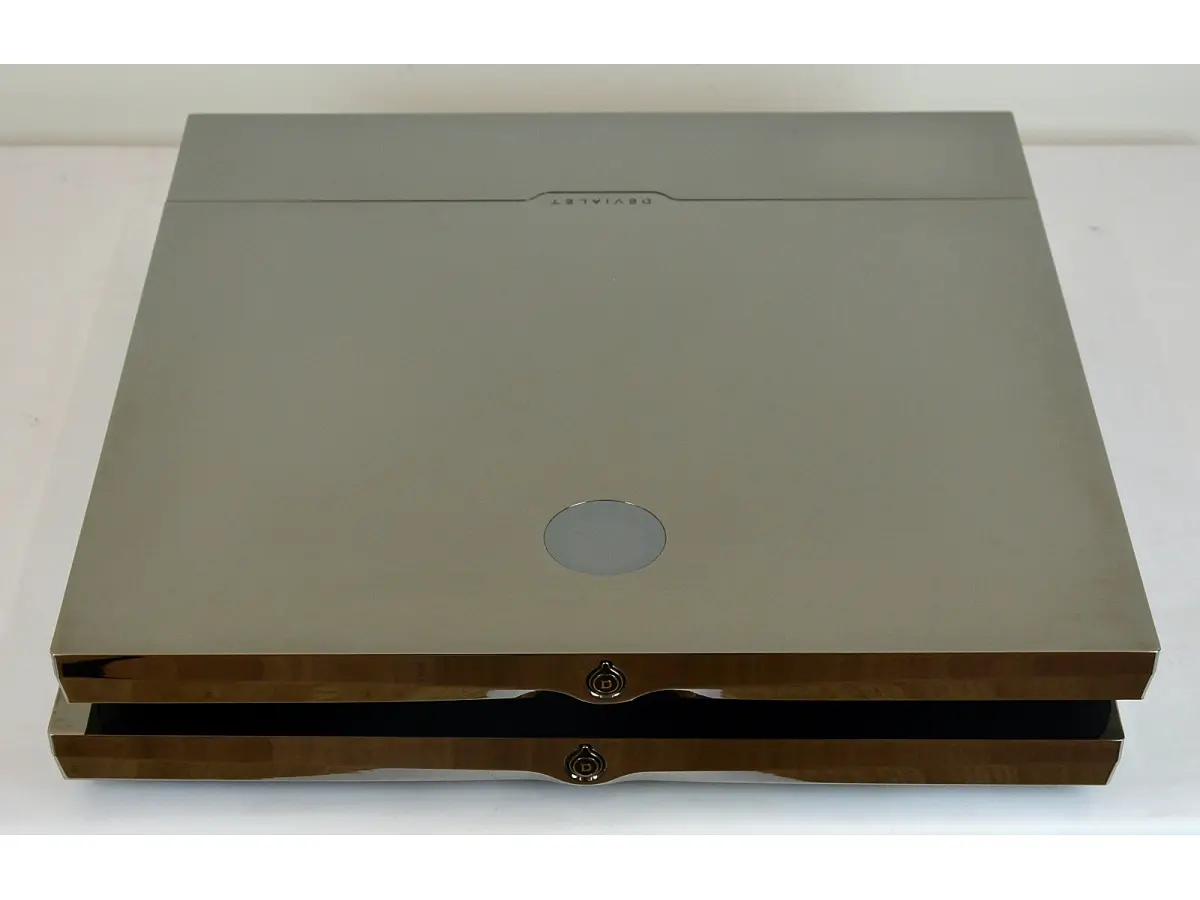

DEVIALET 200/400

Usato, in perfette condizioni, privo di segni di usura evidenti. Con telecomando ed imballo originale.
Due amplificatori integrati dual mono modello 200, in configurazione a ponte 400

Molto più di un ordinario amplificatore, Devialet reinventa e unisce per la prima volta tutte le componenti chiave di un’esperta riproduzione musicale (preamplificatore, amplificatore, DAC, streamer, phono stage) in un’unica sottile piastra.
Il Devialet 200 è un sistema stereo completamente configurabile.
Uno stadio phono per configurazioni complesse. Maggiori connessioni. Maggiore potenza. Può essere collegato ad un'altra unità 200 per creare un Dual Mono 400.
Il miglior Stereo, il primo passo verso il Dual Mono.

2x200 Watts 6?
THD+noise 0.001%
Rapporto S/N: 130 dB
Stadio phono avanzato

PACKAGING CONTENTS:
1 Devialet Expert – Le 200
1 Expert Remote (3 AAA LR03 1.5V batteries)
1 power cable – adapted to the country
1 SD card for downloading configurations via the Configurator
User's manual for Devialet Expert – Le 200
1 warranty booklet (5 years)
1 microfiber cloth
1 pair of gloves for handling

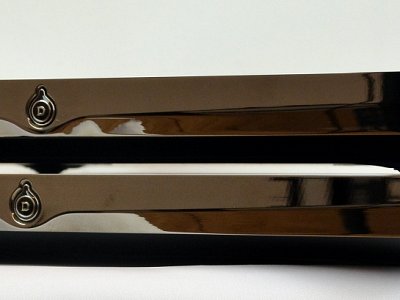

CHASSIS CARVED OUT OF A SINGLE ALUMINIUM BLOCK:
Black chrome finish
Dimensions: 383mm x 383mm x 40mm (l, w, h)
Weight: 5.9 kg

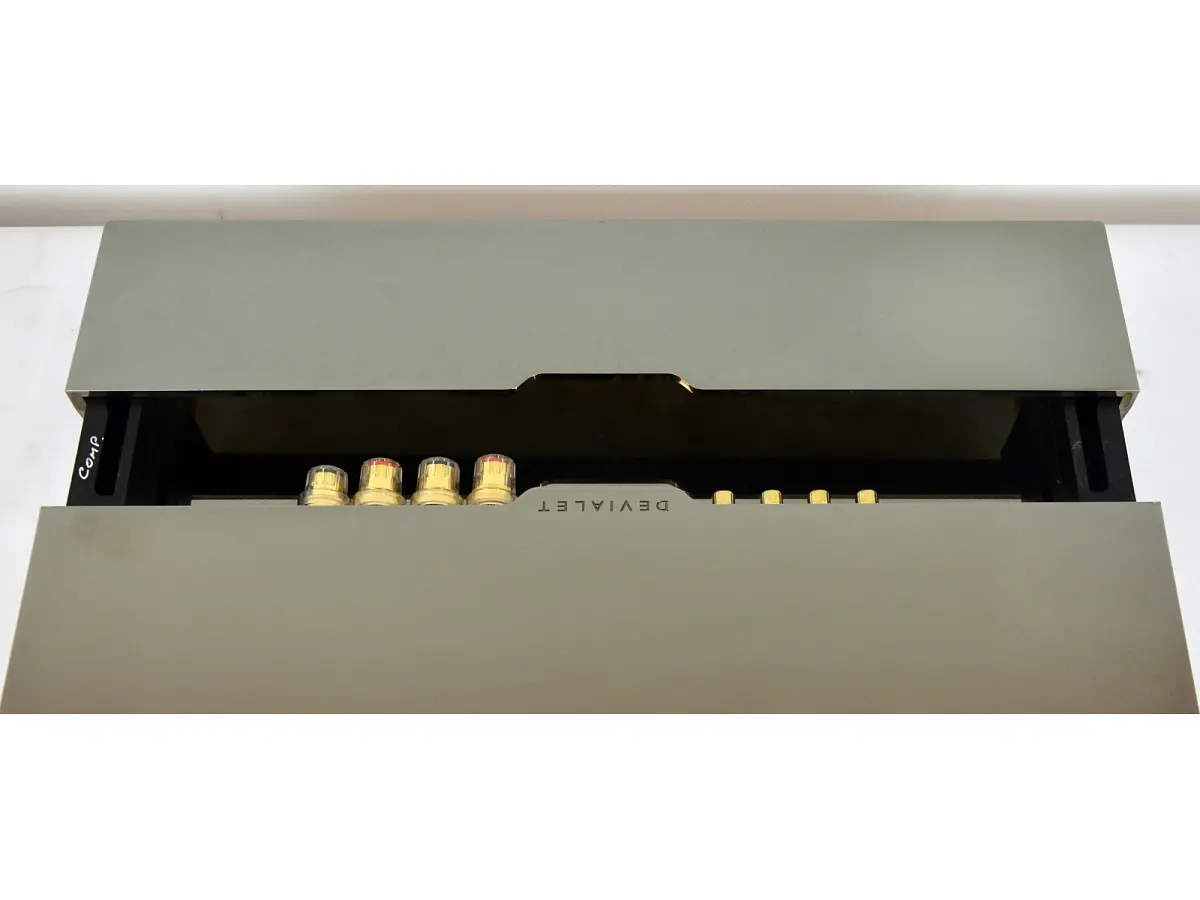

Sliding removable connector cover
Horizontal or vertical installation with automatic tilt detection
ELECTRICAL POWER SUPPLY:
Universal 80-265Vac – 50/60Hz
Power cable provided adapted to the country
Patented single stage switching mode topology
High power level: 600W continuous, 3000W peak
High output with power factor correction (PFC)
High resiliency to hazards potentially encountered on distribution networks : brownouts, quick transients, overloads

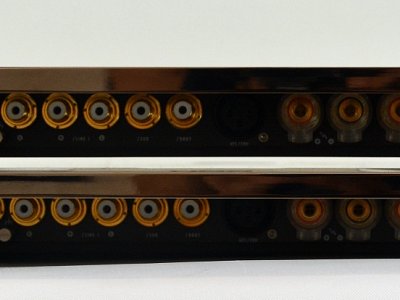

INPUTS / OUTPUTS:
2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer
Formats supported: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
RJ45 10/100 Mbps Ethernet input for the Devialet AIR universal streamer
Formats supported: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
USB Audio 2.0 asynchronous input/output
Formats supported:
16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
Special characteristics:
Very low latency
Bi-directionality for digitisation of the active source
S/PDIF TOSLINK optical connector:
Formats supported: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
3.5mm mini-jack S/PDIF optical + RS232 connector:
Formats supported:
PCM 16bits/44.1kHz jusqu'à 24bits/96kHz
Device control via the bidirectional RS232 protocol up to 115200 bauds (documentation available via the configurator)
RCA 1 & RCA 2 connector (selected via the configurator)
1 or 2 coaxial S/PDIF digital inputs
Formats supported:
16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
1 S/PDIF coaxial (RCA1) digital output
Formats supported: PCM 24bits/48kHz/96kHz/192kHz
Multi-room use and monitoring loop
Pre-amplified analogue output
Set or variable volume
Output level up to 4 Vrms
Stereo/mono/left/right mixing
Available active filtering
WM8740 D/A convertor operating at 24 bits/192 kHz
Compatible with subwoofer, headphone amplifier, monitoring loop
May be activated / deactivated via remote control
RCA 3 & RCA 4 connectors (selected via the configurator)
Line-in stereo analogue input
24-bit/96 kHz or 24-bit/192 kHz sampling
T.I. PCM4202 A/D convertor
Accepts voltages up to +/- 10V
Maximum recommended level: 4 Vrms
Phono level stereo analogue input
24-bit/96 kHz or 24-bit/192 kHz sampling
T.I. PCM4202 A/D convertor
Accepts voltages up to +/- 100mV
Maximum recommended level: 15mVrms
Advanced conversion stage
1 or 2 coaxial S/PDIF digital inputs
Formats supported:
16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz
3.5mm mini-jack trigger connector

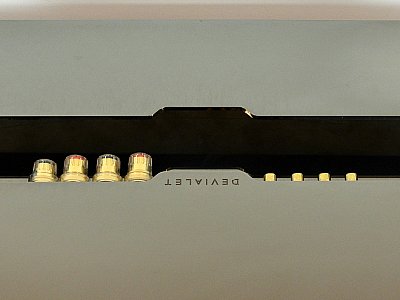

Speaker output:
Patented ADH® (Analog Digital Hybrid) hybrid amplification core
4 mm banana plugs or fork connectors
Maximum power of 2 x 200 Wrms under 6?
Adjustable from 30 Wrms to 200 Wrms via the configurator
Compatible with all speakers, from 2? to 16?
Short-circuit protection
Available active filtering
THD+N (harmonic distortion) at full power: 0.001%
SMTPE IMD (intermodulation distortion): 0.001%
SNR (signal-to-noise ratio): 130dB (unweighted)
Thermal distortion: below measurement threshold
Output impedance: 0.001?
Passband: DC–87kHz (-3dB), DC–60kHz (-1dB), DC–30kHz (-0.1dB)
PHONO STAGE
Cells supported: MM/MC
MM sensitivity of 1mVRMS at 15mVRMS
MC sensitivity of 100 ?VRMS at 5000 ?VRMS
256 combinations for the resistive/capacitive charge of the cells
Stereo/mono/left/right mixing
13 equalisation curves available
Specific menu for dynamic adjustment of all these settings
PREAMPLIFIER & MAIN DIGITAL/ANALOGUE CONVERTOR:
Patented Magic Wire Digital / Analogue Converter, D/A T.I. PCM1792
Unique high-precision MasterClock with very low jitter: 2ps rms
Conversion of all inputs into 24-bit/192 kHz
Built-in DSD / PCM conversion
SAM profile via configurator
Available active filtering on all analogue outputs via configurator
Volume control in increments of 0.5 dB
Volume adjustment range: -97.5 dB to +30.0 dB
Bypass/pass-thru mode available input by input
Balance adjustment
Tone control: bass +/-18 dB, treble +/-18 dB with variable frequency cut-off via configurator
ON-BOARD INTELLIGENCE:
SD card connector for software updates and configurations
3 SHARC DSPs (400 MHz)
1 x 16 MHz RISC processor
4 x 40 MHz RISC processors
1 x 64 MHz RISC processo
OMNIDIRECTIONAL RADIO REMOTE CONTROL:
Chassis carved out of a single aluminium block
Black chrome finish
Dimensions: 114 mm x 114 mm x 34 mm (l, w, h)
Requires 3 AAA batteries (1.5V LR03), provided – service life of a set of batteries: 2 years
No peering required
Ultra responsive, latency < 3ms
