LINN ISOBARIK
Pair of floorstanding loudspeakers
Code: 07161804
All our products are covered by Italian warranty.

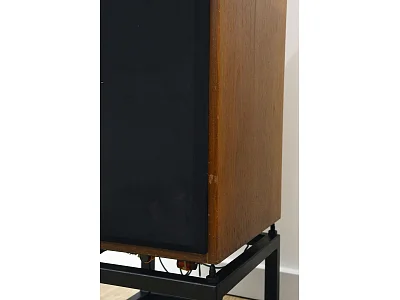

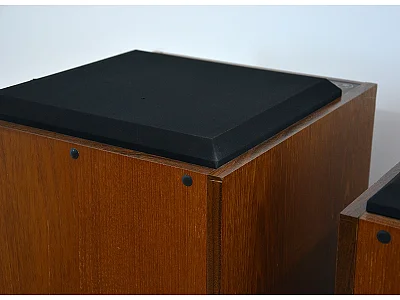

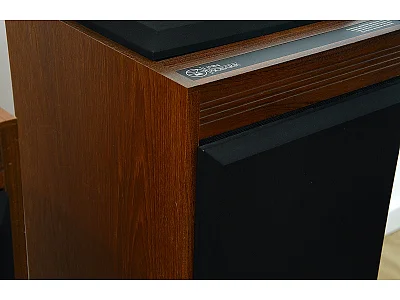

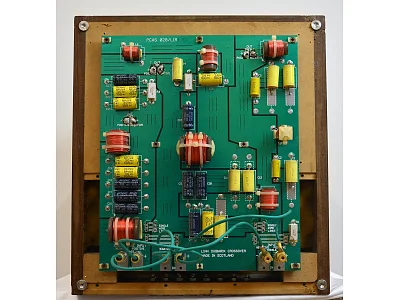

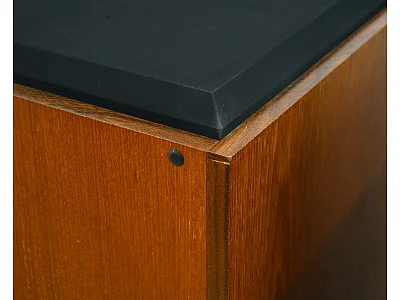

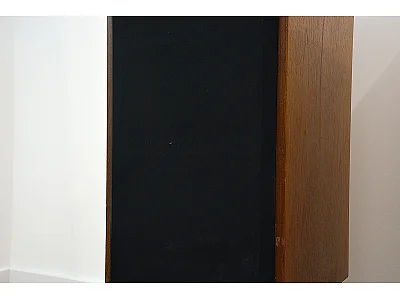

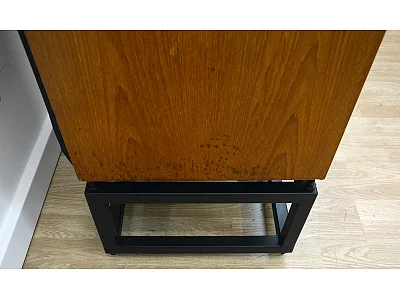

Second-hand, in good condition, both speakers have some scratches (see pictures). No original package. Item On Consignment. * Crossover upgraded to model MKII by Linn.
Pair of floorstanding loudspeakers

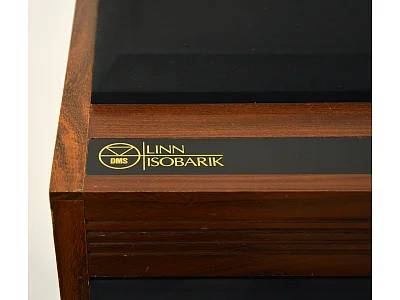

The Isobarik loudspeaker was originally available in two types: DMS
(domestic monitor speaker) an internal passive crossover, whereas PMS
had no crossover at all, and instead used an external Active crossover.
DMS were discontinued in 1988 due to the introduction of an external
passive crossover. This improved passive performance and allowed very
easy upgrade to Active.

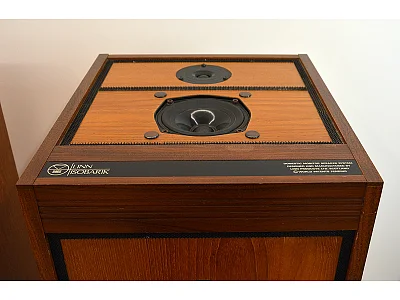

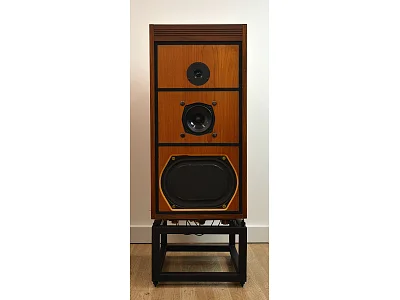

Each speaker has two of each drive unit
fitted – i.e. two bass, two mid and two treble. The second bass unit is
hidden inside the cabinet, behind the visible bass unit and this forms
the basis for our patented Isobarik equal-pressure bass system. This
means that the front speaker behaves as if it is in a much bigger
enclosure.
Introduced: 1973
Ceased Production: 1992
Size: W 343mm x D 416mm x H 760mm

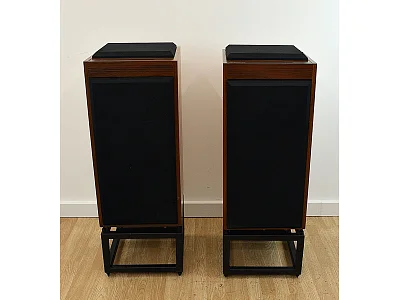

Stand height: 230mm (not including spikes)
Weight: 43Kg
Type: 3-Way Infinite Baffle
Frequency Response: 25Hz-20kHz +/-3dB
Minimum impedance: 3.7ohms (4 ohm crossover)
Efficiency: 86dB for 1 watt at 1 metre (1KHz)
Crossover points: 375Hz & 3KHz
Power handling: 100watts music
Aktiv/Passive: Both

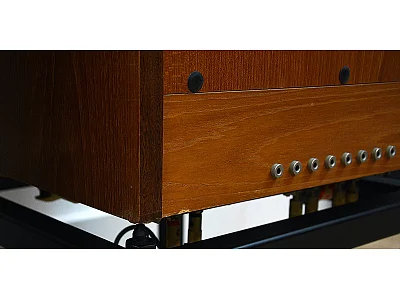

Tri-wireable Yes
Drive units: Treble -- 2 x 19mm soft-dome tweeter
Mid -- 2 x B110 (specially modified)
Bass -- 2 x B139 (specially modified)
Cabinet Loading: Infinite baffle
