ELAC MIRACORD 50

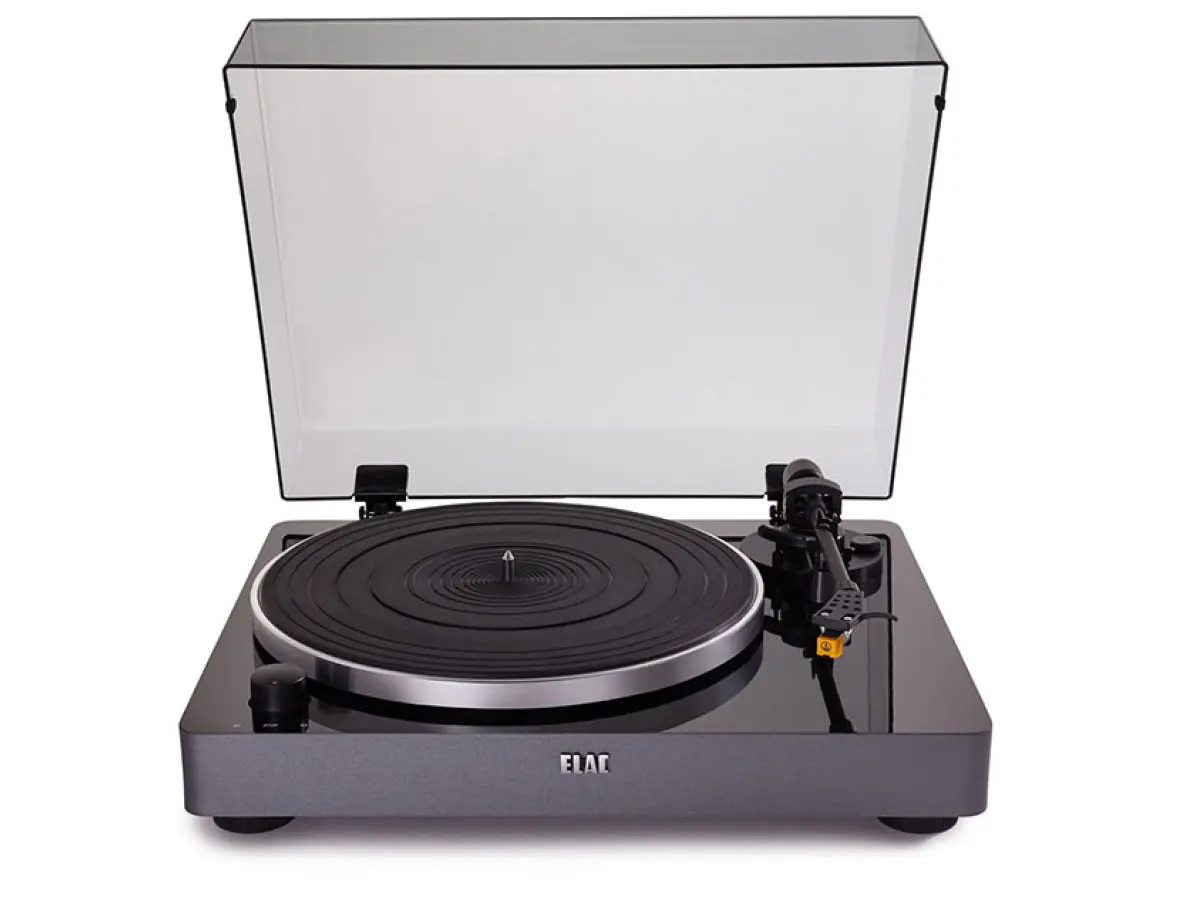

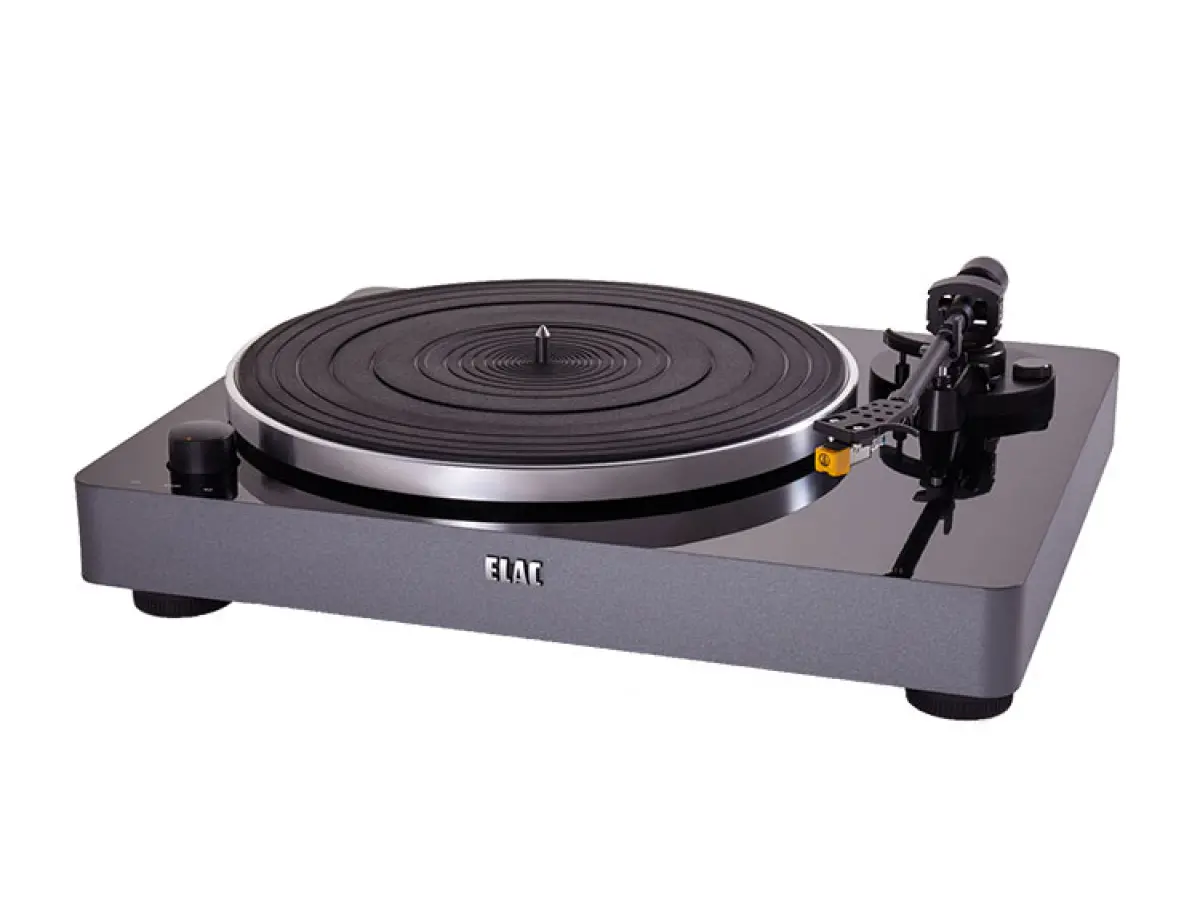

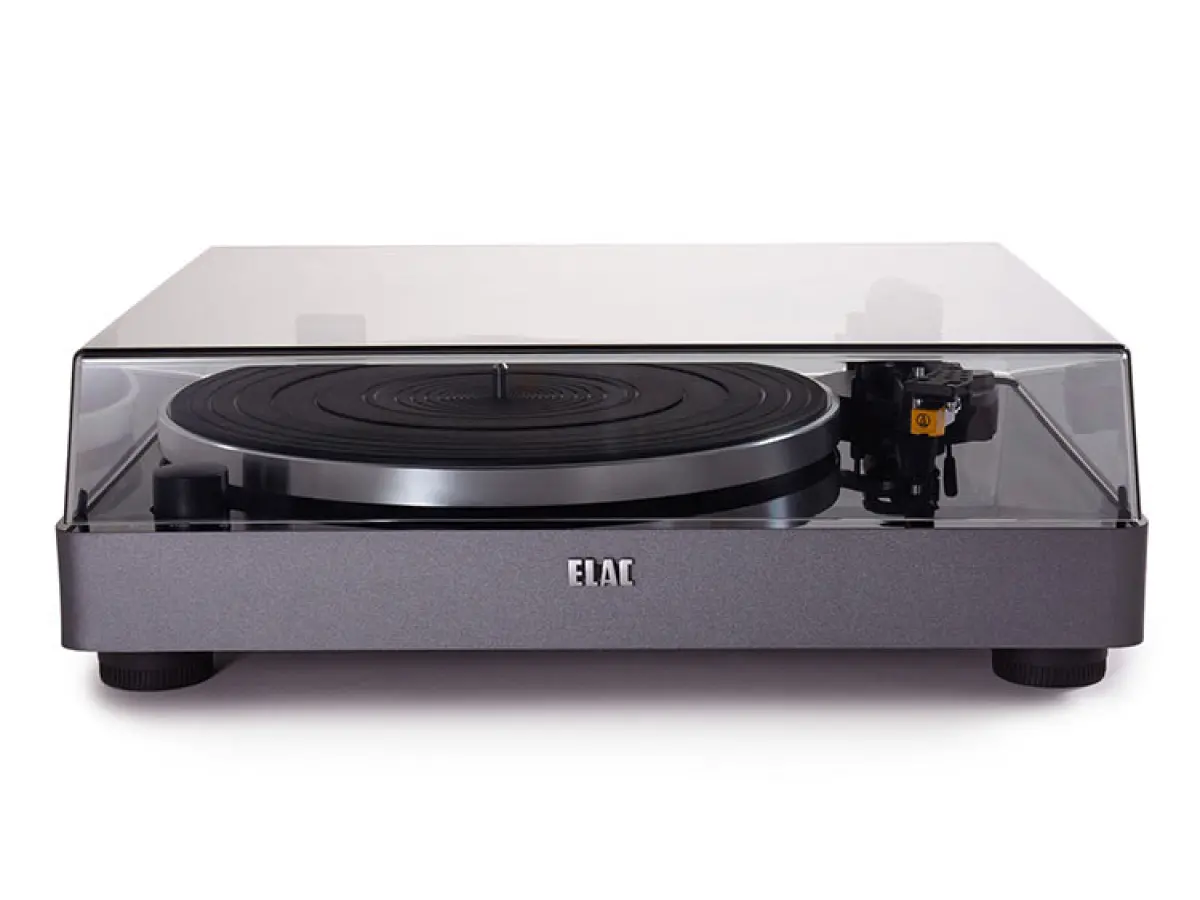

The Miracord 50 Turntable
ELAC’s Miracord 50 Turntable is designed to deliver exceptional vinyl transcription, inspired by the iconic Miracord name from the Golden Age of Stereo, when turntables reigned supreme. The Miracord 50 is carefully engineered with a belt-drive motor and die-cast aluminum platter. A precision static balanced, straight-tube tonearm with removable headshell features a factory-mounted MM phono cartridge. Designed with convenience in mind, the Miracord 50 is equipped with a built-in defeatable phono preamplifier, allowing you to add this turntable to virtually any music system.

Turntable Section
Drive System: Belt drive
Motor: DC motor
Selectable Speeds: 33??? and 45 rpm
Motor Servo: Speed rotation and servo system
Rotation Speed Variation: +/-1%
Wow and Flutter: 0.1%
Signal-to-Noise Ratio: -67 dB or higher (A-weighted) -60 dB or higher (unweighted)
Platter: Aluminum die-cast
Platter Diameter: 0 in / 300 mm

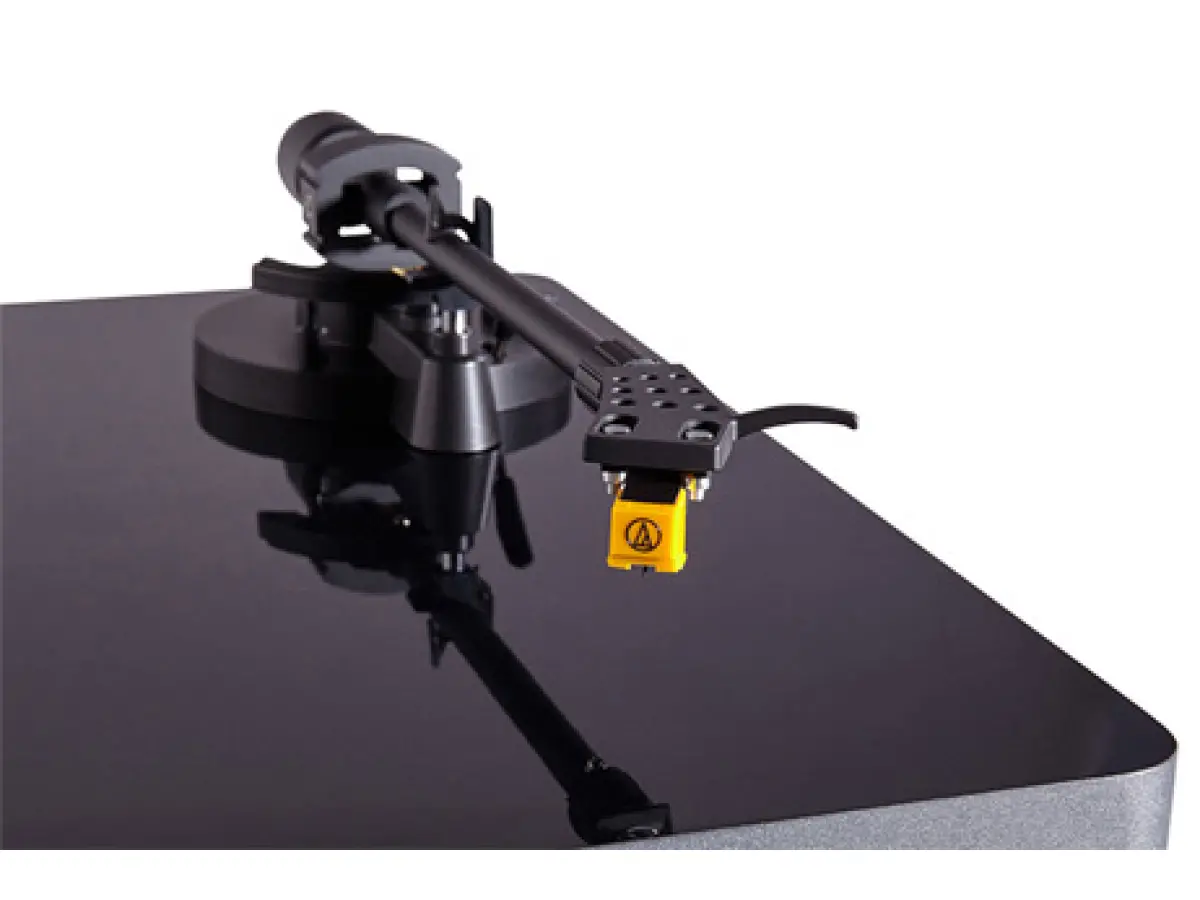

Tonearm Section
Type: Aluminum tube, static-balanced
Effective Arm Length: 8 in / 223.6 mm
Stylus Pressure Range: 0 to 4 g
Cartridge Weight Range: 3.5 to 6g
Effective Arm Mass: 27.4 g
Overhang: 18.6 mm
Offset Angle: 25 degrees
Anti-Skating: Adjustment Supported
Main Bearing: Stainless steel

Cartridge Section:
Type: Audio-Technica AT91 moving magnet
Stylus Construction: Bonded diamond
Mount: Half-inch
Frequency Response: 20 Hz to 20 kHz
Channel Separation: >18 dB
Channel Balance: 2.5 dB
Vertical Tracking: Angle 20 degrees
Stylus Pressure: 2.0 g +/-0.5 g
Cartridge Weight: 5.0 g +/-0.5 g
Headshell Weight: 0 g (including screws, nuts and wires)

Phono Equalizer Amplifier
Type: Moving magnet (MM)
Phono Output: 2.5 mV (1 kHz, 3.54 cm/sec)
Line Output: 140 mV (-17 dBV)
Phono/Line: Switchable
Supported Load Impedance: 47 kΩ
Connector: RCA pin jack including RCA cable accessories
Voltage: 100 to 240 V AC / 50 to 60 Hz
Power Consumption: 1.5 W (less than 0.5 W at standby)
Dimensions: (WXHXD) 5.5 x 16.05 x 14.20
Weight: 12.10 lb
