PROJECT DAC BOX S2 +

DAC with 32bit and DSD256 support

Miniature high quality digital to analogue converter!
DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can't affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!

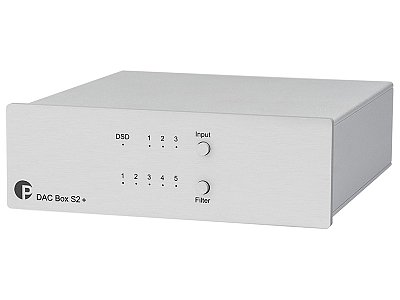

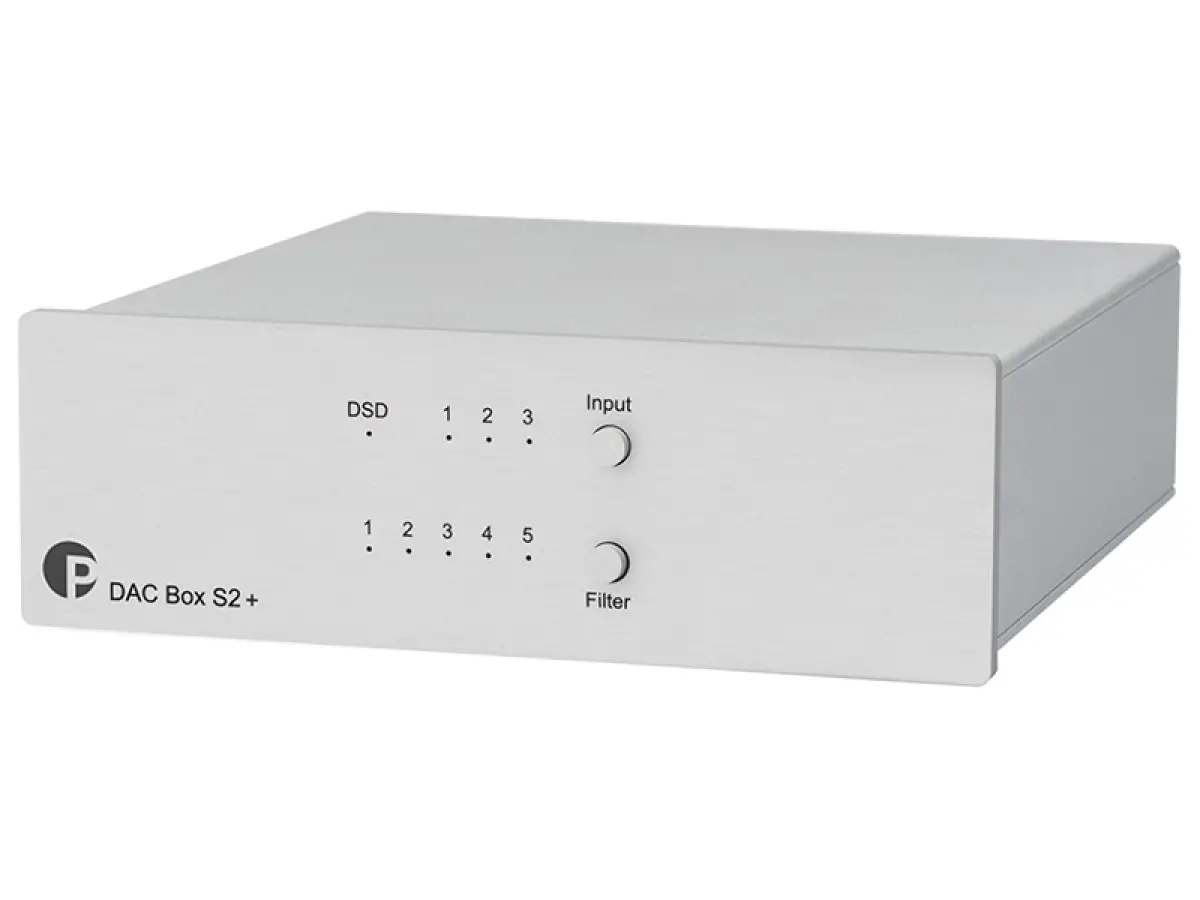

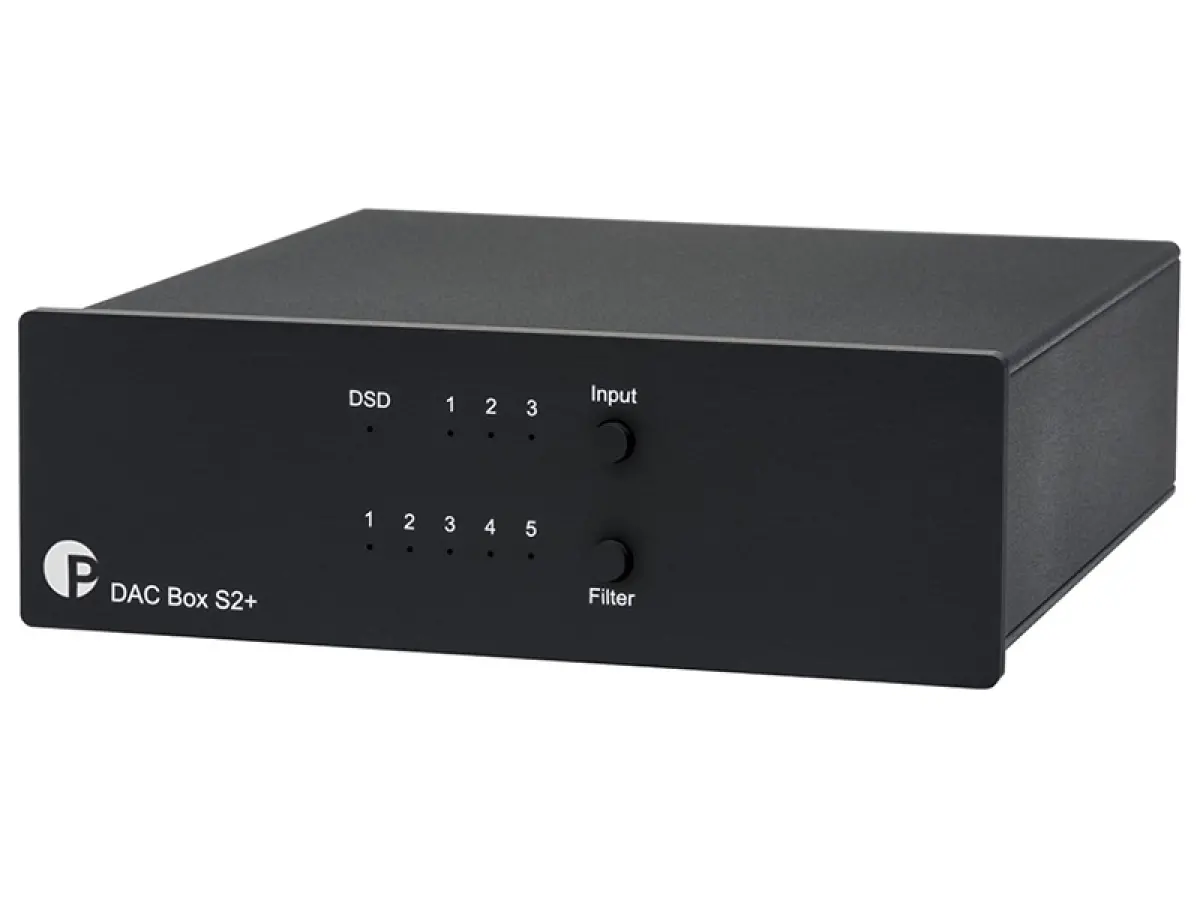

DAC Box S2 + comes in silver or black.

Features
High end ESS Sabre ESS9038 DAC
Proprietary clock circuity design
Organic polymer capacitors and thin film miniMELF resistors
32bit / 768kHz PCM support
DSD64, DSD128 & DSD256(DSD over PCM)
Up to 24bit/192kHz for optical & coax inputs
5 selectable digital filter characteristics
1 proprietary optimum transient digital filter
Synchronization of all internal oscillators
Jitter as low as 100 Femtoseconds!

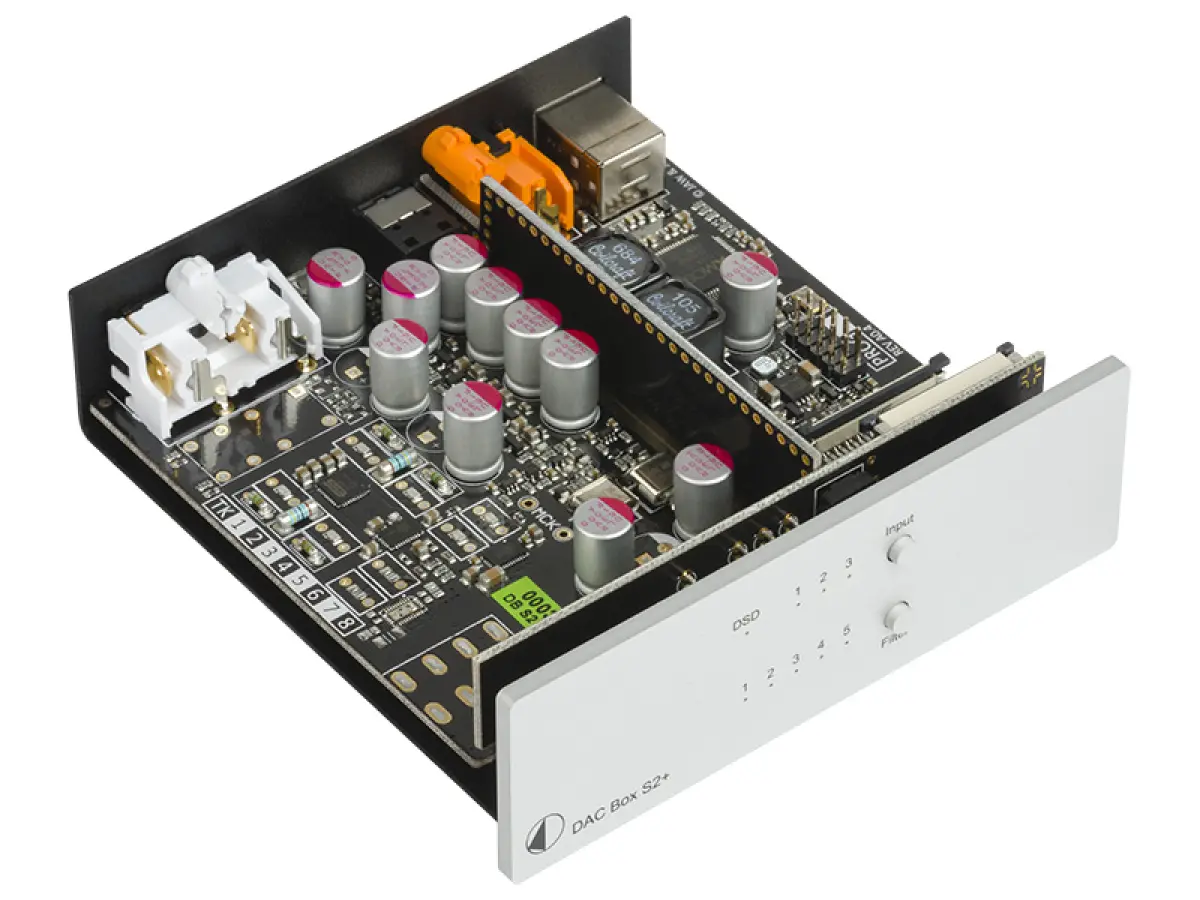

Gold plated four layer PCB
Full alu/metal sandwich casing in silver or black

Technical Specifications

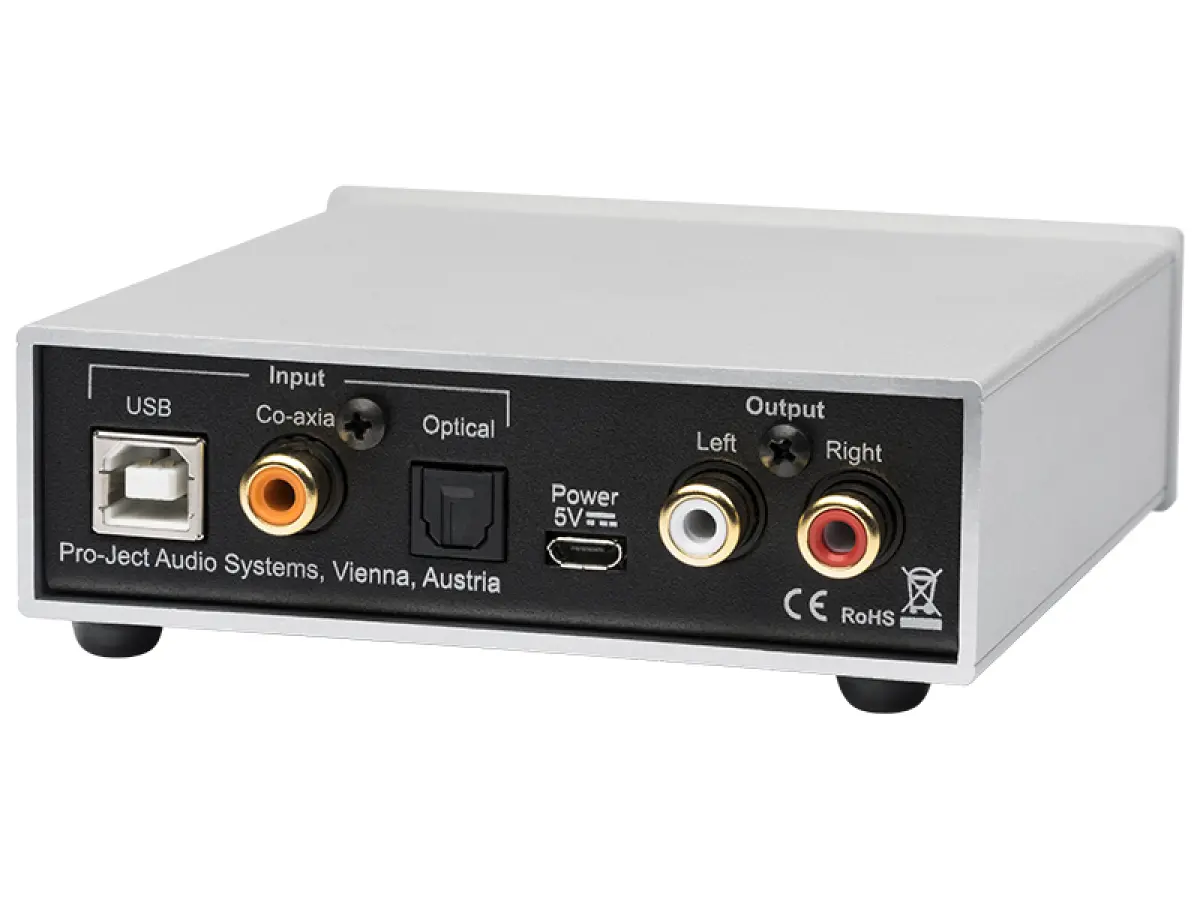

Digital inputs    1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
D/A-converter    1x ESS9038Q2M 32-bit Playback formats
Filter settings    5 different selectable on front
USB    up to DSD256, PCM up to 32b/768kHz
Coaxial    PCM up to 24 b /192 kHz
Optical    PCM up to 24 b / 192 kHz
Frequency response    20 Hz - 20 kHz
THD    0,0007% bei 0dB, 2V RMS, 1kHz
Dynamic range    120 dB
Output    1 pair of RCA/Cinch-sockets
Outboard Power supply     5V/1A DC (included)
Dimensions W x H x D    103 x 37 x 122 mm 2 (including knob and connectors)
Weight    355g without power supply
