GOLD NOTE HP-10 DELUXE

Headphone amplifier with analog and digital inputs (Bluetooth aptX HD 5.1, USB-C) with premium DAC (AKM AK4493).

The HP-10 is a high-end headphone amplifier designed for the most demanding users, featuring a Dual-Mono balanced Class A design that preserves signal purity and delivers exceptional audio quality. With its four headphone outputs, numerous features, and ample power output, it is capable of handling any type of headphone on the market.

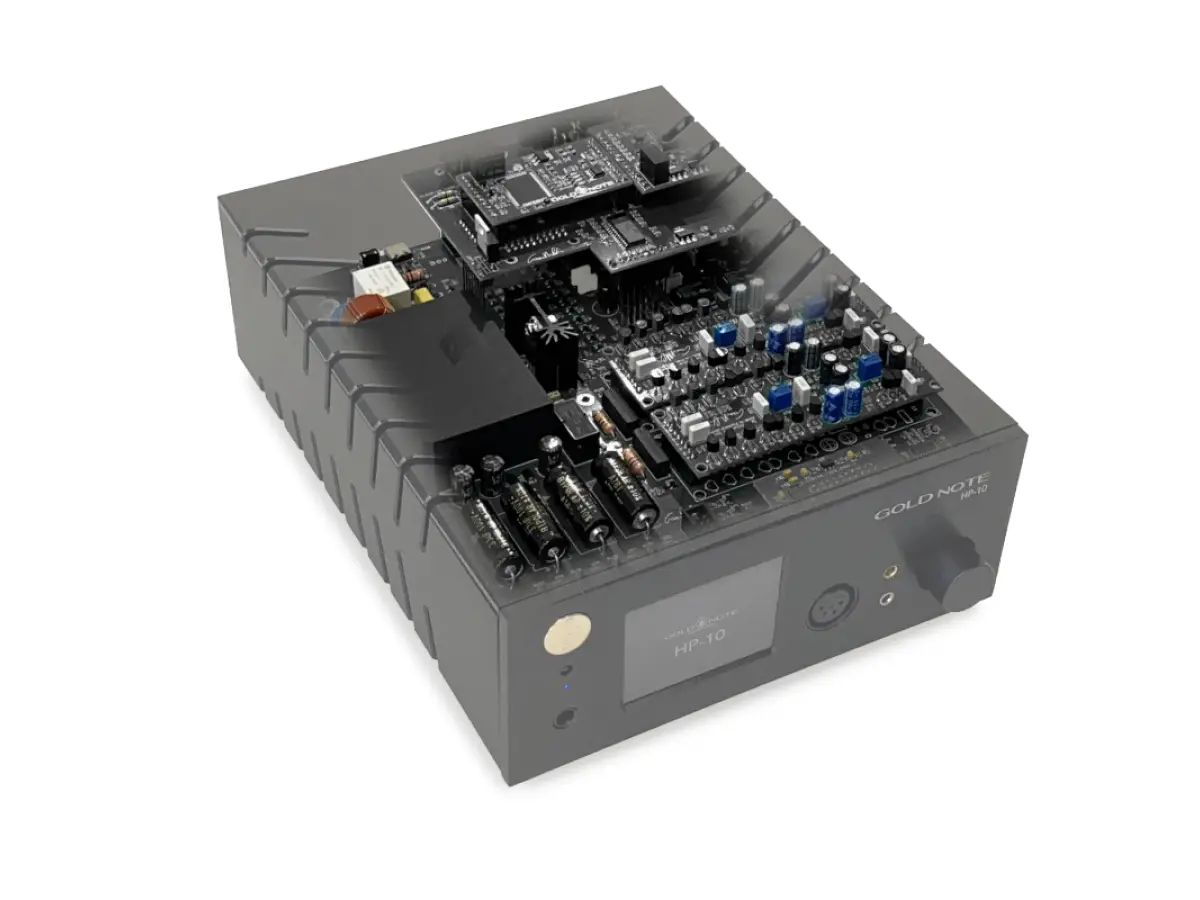

The audio path is built with high-quality components, and all settings are applied in real-time in the analog domain. The high audio quality, versatility, and unique features make the HP-10 an exceptional amplifier at an unbeatable price.

The HP-10 is equipped with a touchscreen display for quick adjustments and a simplified user experience. Ideal for high-end systems, it offers advanced functions such as Crossfeed adjustment (to recreate the soundstage as if listening through speakers), Harman equalization (to optimize the audio signal for headphone listening), variable gain and damping factor, as well as phase selection (0/180°) and mono/stereo mode.

REMOTE CONTROL, TOUCHSCREEN AND KNOB
The HP-10 can be controlled through the included remote control, the touchscreen display, and the knob located on the front panel, providing the best user experience possible. Using the remote control, you can adjust any setting during headphone listening while comfortably seated on your couch. Additionally, the HP-10 features a trigger IN/OUT connection, allowing the synchronization of power on and off for the rest of the system with the headphone amplifier.

INNOVATIVE FEATURES

• Crossfeed: Mixes the L/R channels to recreate the soundstage as if listening through speakers.
• Harman Curve: Optimizes the equalization for headphone listening.
• Superflat: Linearizes the frequency response for high frequencies.
• DF (Damping Factor): Adjusts the damping factor for the best match with the headphones.
• Balance: Precise control of the L/R channel volume to personalize the listening experience based on individual hearing needs and headphone drivers.

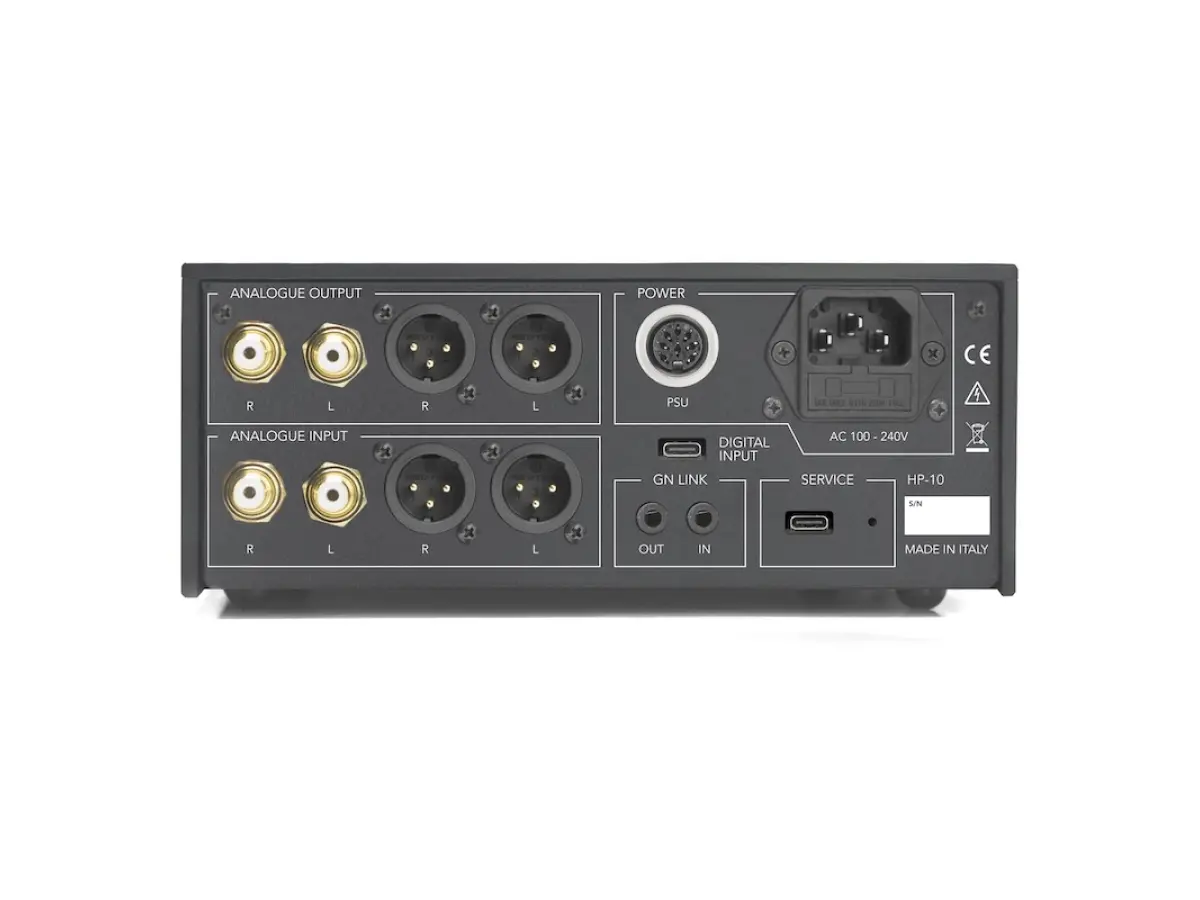

All models are equipped with balanced (XLR) and unbalanced (RCA) inputs. The additional digital inputs allow for direct music streaming from smartphones, tablets, or computers.

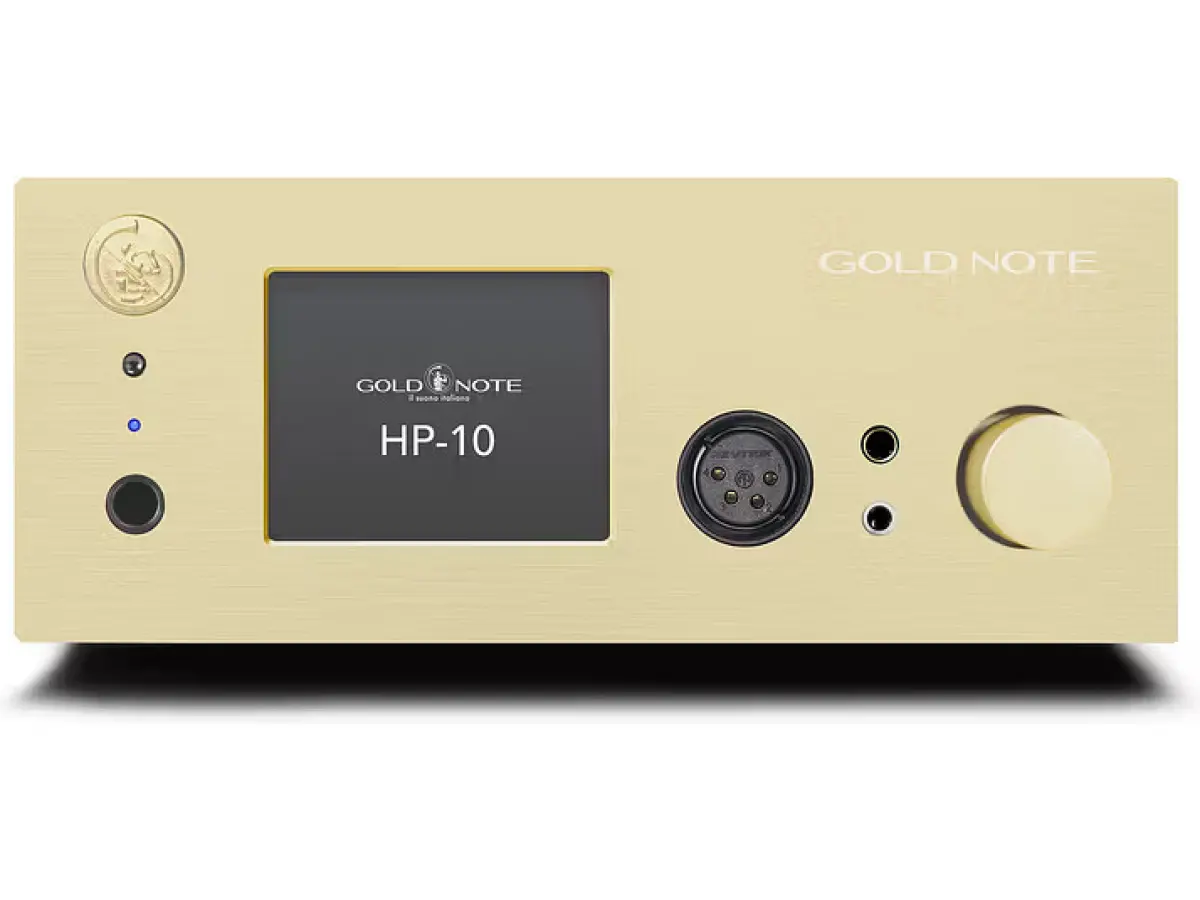

The wide range of outputs allows you to use the HP-10 with your favorite headphones: unbalanced connectors (3.5 mm, 6.3 mm) and balanced (4.4 mm, XLR) are available on the front panel. Additionally, by selecting the RCA/XLR line outputs, the HP-10 can be used as a line preamp while maintaining the ability to apply all the settings from the Studio set.

To offer maximum flexibility, the HP-10 supports both stereo and mono audio playback. In stereo mode, the L/R channels can be inverted, while in mono mode, the channels can be summed (L+R) or one single channel (L or R) can be selected.

Technical Specifications:

• Stereo XLR and unbalanced (RCA) inputs
• Stereo XLR and unbalanced (RCA) outputs
• Headphone outputs: 6.3mm, 3.5mm, 4.4mm balanced, XLR 4 pin
• 4 Crossfeed settings and Harman curve
• Connector for optional external power unit PSU-10 EVO
• Touchscreen graphical display
• Remote control included
• Dimensions: L220 x H80 x D260 mm
• Weight: 3 kg
