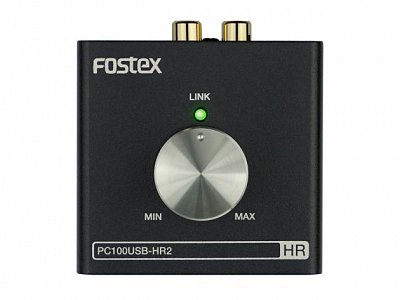

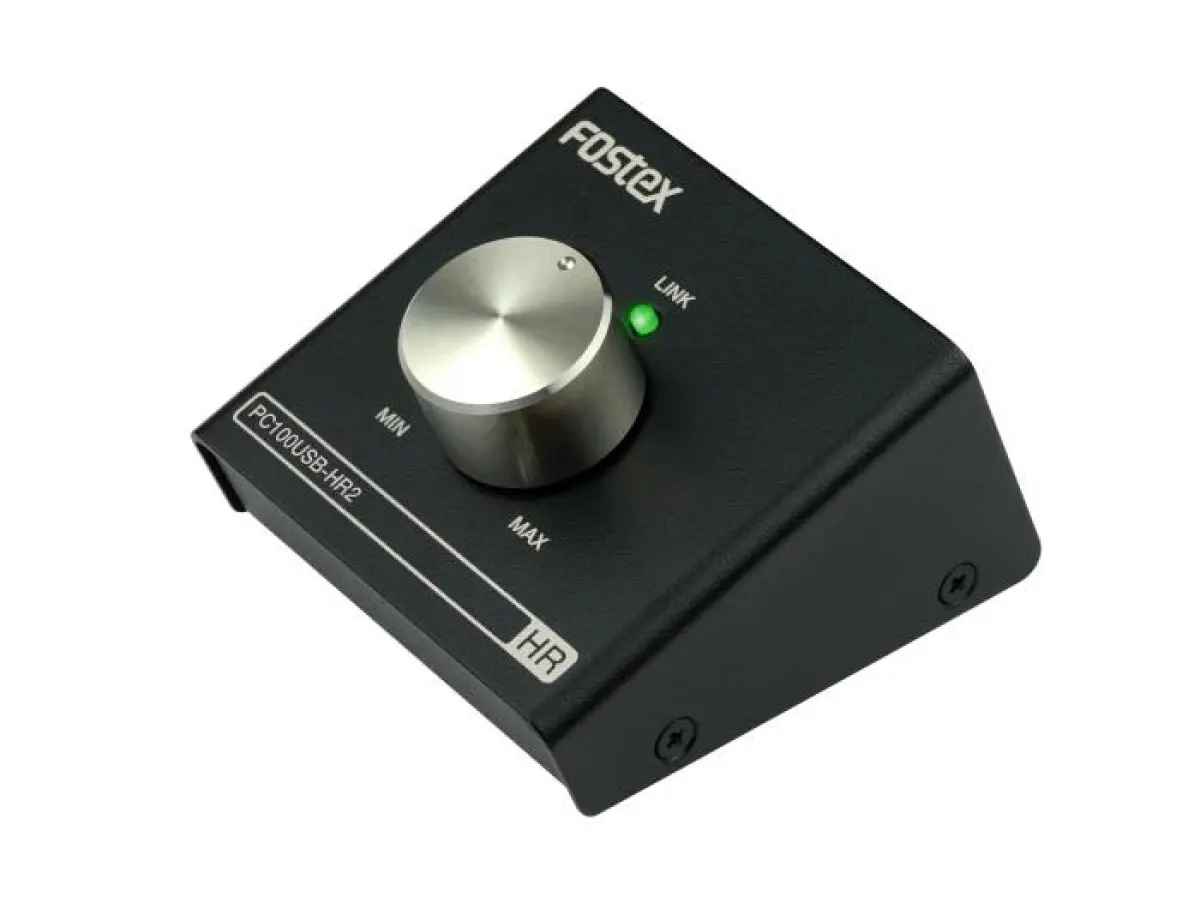

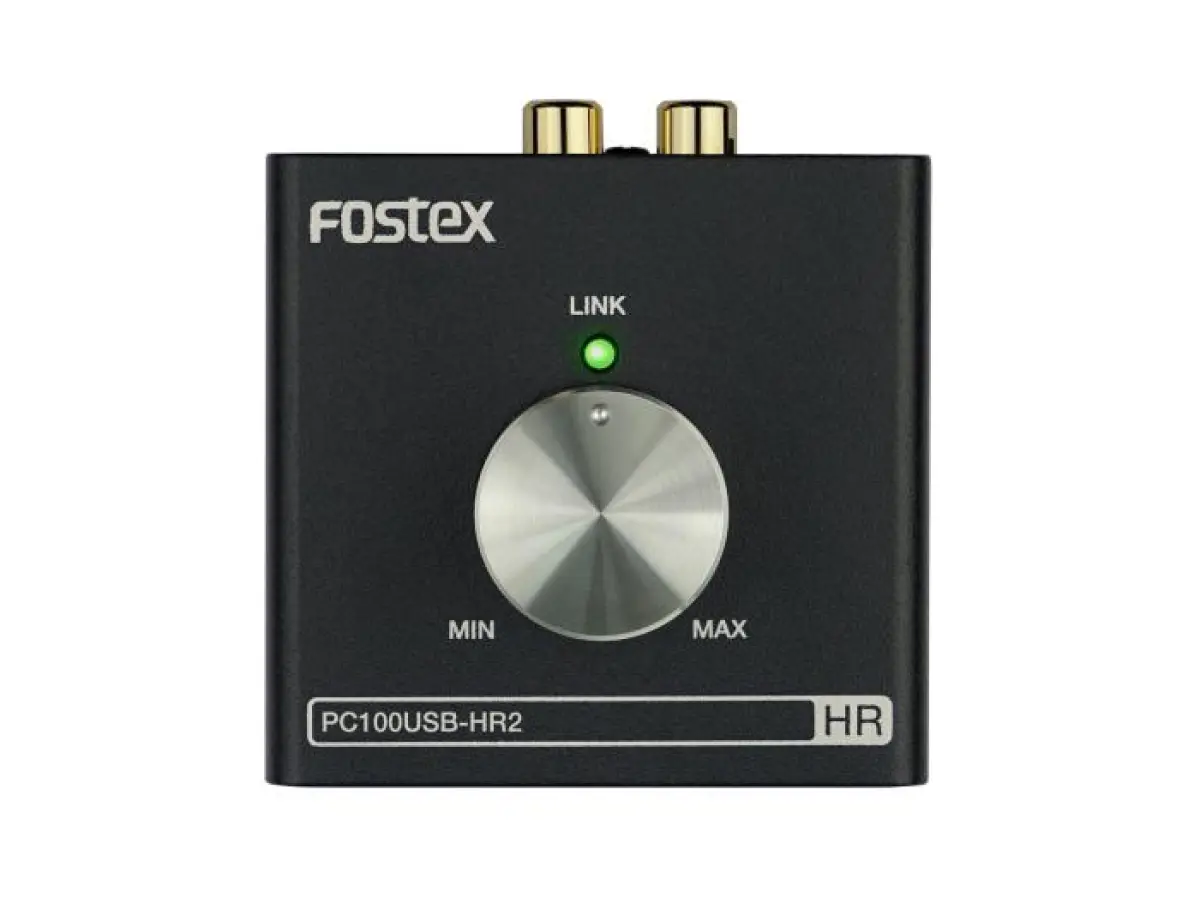

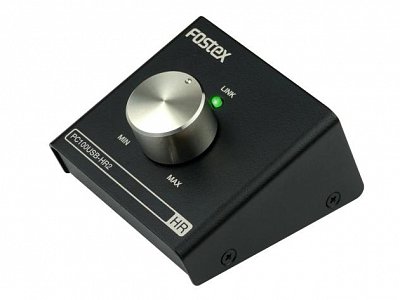

FOSTEX PC100USB-HR2

Model PC100USB-HR2 is a desktop type of volume controller with built-in USB/DAC that comply with 24bit 96kHz high resolution audio playback. The ideal tool for controlling the audio level of your PC when using a powered speaker system such as Fostex speakers PM0.1, PM0.3(d) etc.


Main features
- Quick and easy volume control of the connected powered speakers right next to your PC.
- High resolution DAC compatible up to 24bit / 96kHz and audio quality parts realize best performance in this affordable price range.
- Works as a quality headphone amp too


In Detail
- Quick and easy volume control of the connected powered speakers right next to your PC.
- High resolution DAC compatible up to 24bit / 96kHz and audio quality parts realize best performance in this affordable price range.
- Works as a quality headphone amp too
- No external power is required as it works with USB buss power.
- No need to install extra driver software both on PC and Mac
- High class looking in silver finish and well-weighted volume knob
- Works right out of box with the supplied USB and RCA pin cable


Specifications

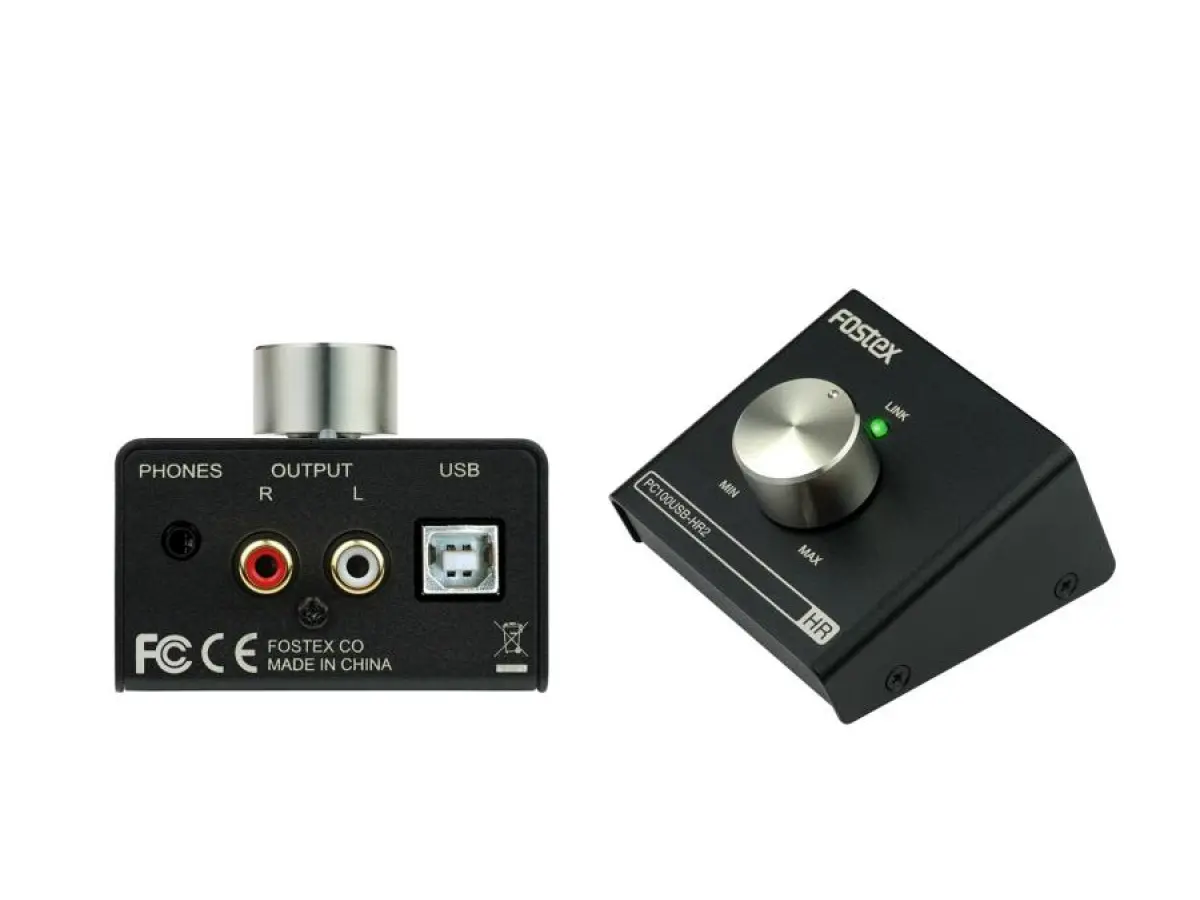

Connectors
[USB] connector

Connector type: USB Connector B
Sampling frequency: 32, 44.1, 48, 88.2, 96 kHz
Quantization: 16/24bit


[OUTPUT (L,R)] connectors
Connector type: RCA jack
Applicable load impedance: 10k ohm
Nominal output level: +6dBv (0dBFS)


[PHONES] connector
Connector type: 3.5mm stereo mini jack
Applicable load impedance: 32 ? or more
Maximum output power: 5mW + 5mW (32 ? load, THD < 0.5%)


General
Dimensions: 66 (W) x 44 (H) x 70 (D) mm (excluding legs)
Weight: Approx. 200g
Power requirement: USB bus power (5V, 500mA)
Max Power Consumption: 2.5W
Supplied accessories: USB2.0 cable (AB type, 1m) x 1 RCA ??? RCA pin cable (1m) x 2
