ROTEL MICHI Q5

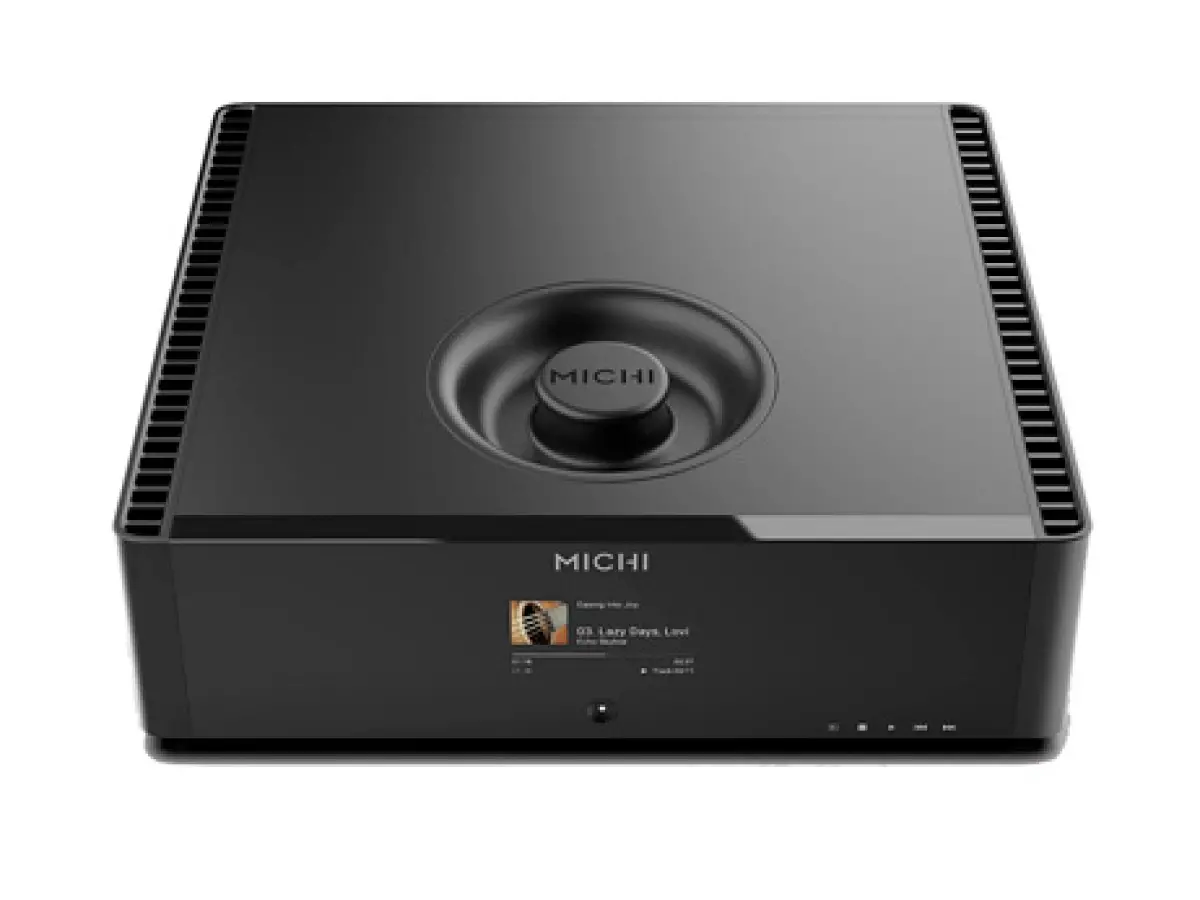

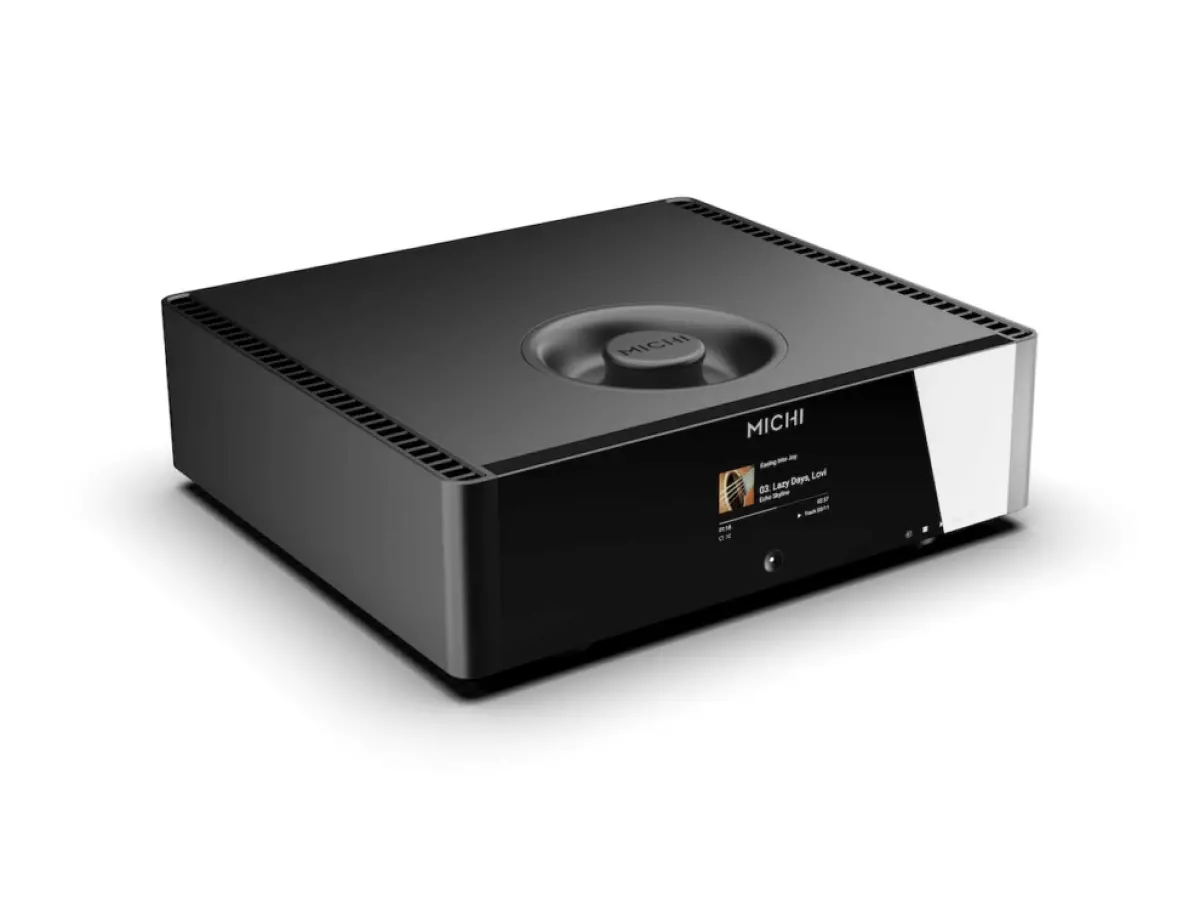

The Michi Q5 by Rotel represents an evolution in the brand's lineup, introducing a CD player with an integrated DAC designed for high-level performance. Its top-loading mechanism, crafted from CNC-machined aluminum and suspended on floating springs, minimizes vibrations, ensuring optimal disc reading.

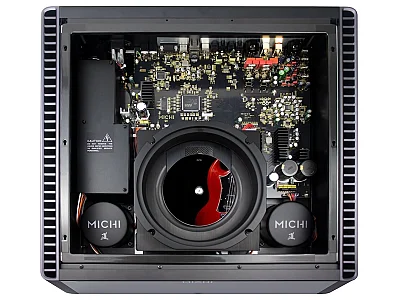

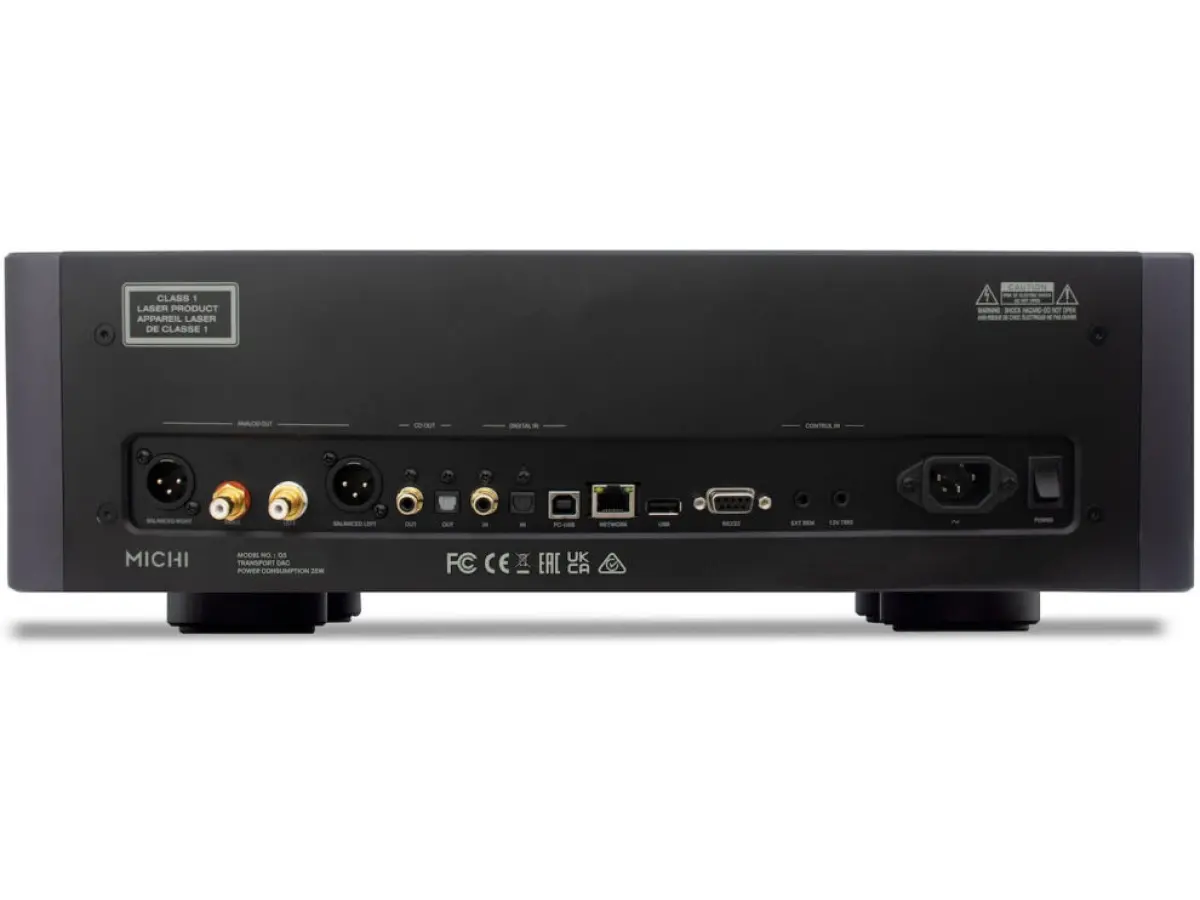

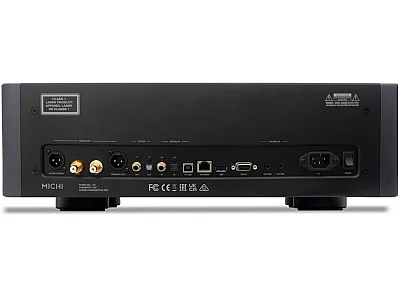

At the heart of the Q5 is the ESS ES9028PRO converter, configured with four dedicated channels per stereo channel, delivering precise digital-to-analog conversion and an extremely low noise floor. The fully balanced output circuit supports XLR and RCA connections, while the coaxial and optical digital outputs allow for use as a pure transport.

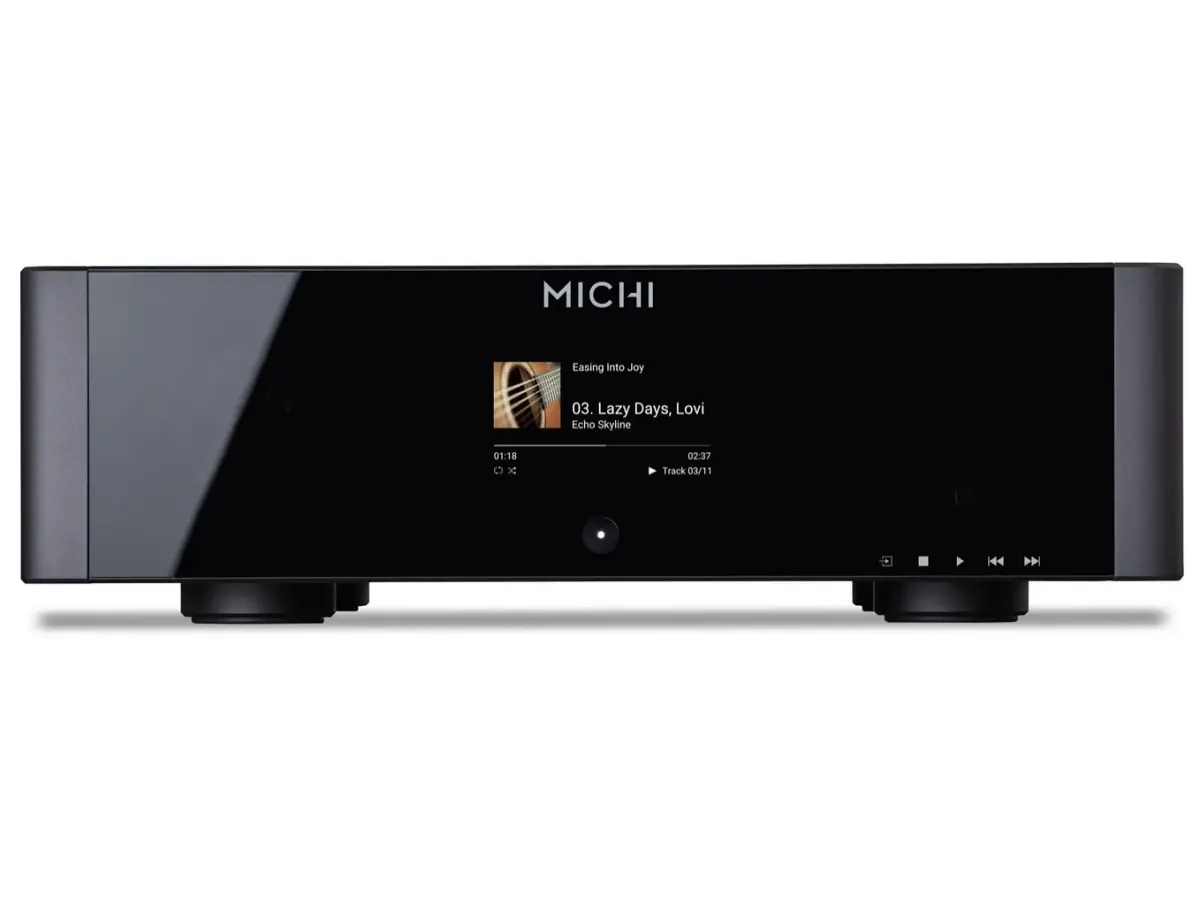

Versatility is a key strength, thanks to digital inputs including USB for PC (up to 32-bit/384kHz, with MQA and DSD 4x support), coaxial, and optical (up to 24-bit/192kHz), making it a perfect hub for digital music. The color TFT display provides detailed information and album cover visualization, enhancing the user experience.

Built with a robust 23.5 kg chassis and a dual toroidal transformer, the Q5 ensures stability and clean power delivery. The system is completed with the Michi remote control, RS232, and Ethernet ports for seamless integration with automation systems.

Technical specifications:

• Total harmonic distortion (CD, electrical, optical, PC-USB inputs): < 0.0006%
• Intermodulation distortion: < 0.002%
• Frequency response:
  • 20 Hz - 20 kHz (+0 dB, -0.1 dB)
  • 10 Hz - 70 kHz (+0 dB, -3 dB)
• Channel balance: ± 0.5 dB
• Channel separation: > 104 dB @ 10 kHz
• Signal-to-noise ratio (A-weighted, IHF): > 115 dB
• Analog output level:
  • Unbalanced (RCA): 2.3 V
  • Balanced (XLR): 4.9 V
• Analog output impedance:
  • Unbalanced (RCA): 100 Ω
  • Balanced (XLR): 4 kΩ
• Digital input formats:
  • Electrical/Optical: SPDIF LPCM (up to 24-bit / 192 kHz)
  • PC-USB: USB Audio Class 2.0 (up to 32-bit / 384 kHz)*
    • *Driver installation required
  • DSD: Native up to 4X (11.2 MHz) and DoP up to 2X (5.6 MHz)
  • MQA and MQA Studio: Up to 24-bit / 384 kHz
  • Certification: Roon Tested
• D/A Converter: ESS ES9028PRO DAC
• Dimensions (W×H×D): 485 × 150 × 452 mm
• Net weight: 23.5 kg
