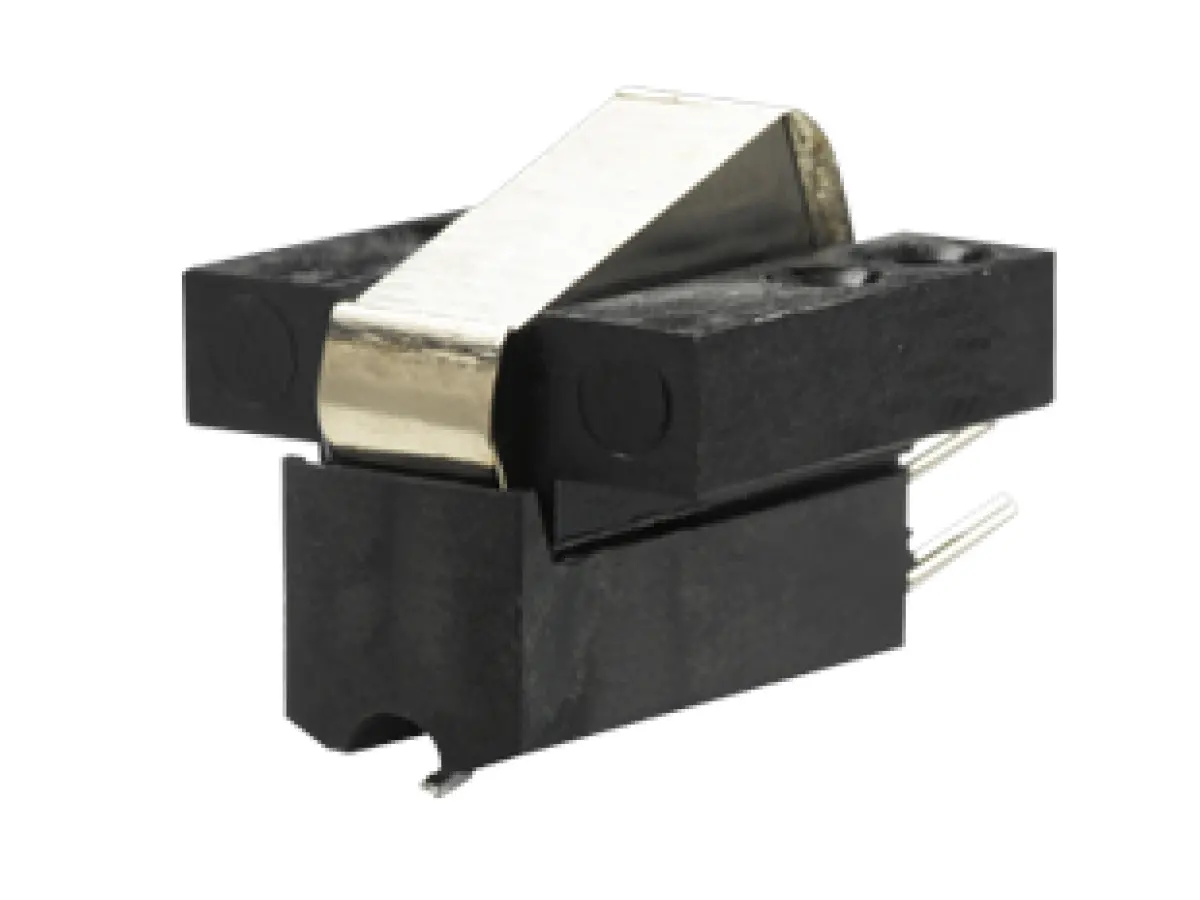

ORTOFON SPU CLASSIC N

The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM series, but is sold without the integrated headshell unit.
The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.
Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells* can use the Classic N to recreate an authentic and functional SPU cartridge.


Technical data
Output voltage at 1000 Hz, 5cm/sec. 0.2 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz ± 3 dB
Tracking ability at 315Hz at recommended tracking force *) 65 µm
Compliance, dynamic, lateral 8 µm/mN
Stylus type Nude spherical
Stylus tip radius R 18 µm
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force, recommended 4.0 g (40 mN)
Tracking angle 20°
Internal impedance, DC resistance 2 Ohm
Recommended load impedance > 10 Ohm
Coilwire material High Purity Copper (OFC)
Cartridge colour Black
Cartridge weight 13 g
