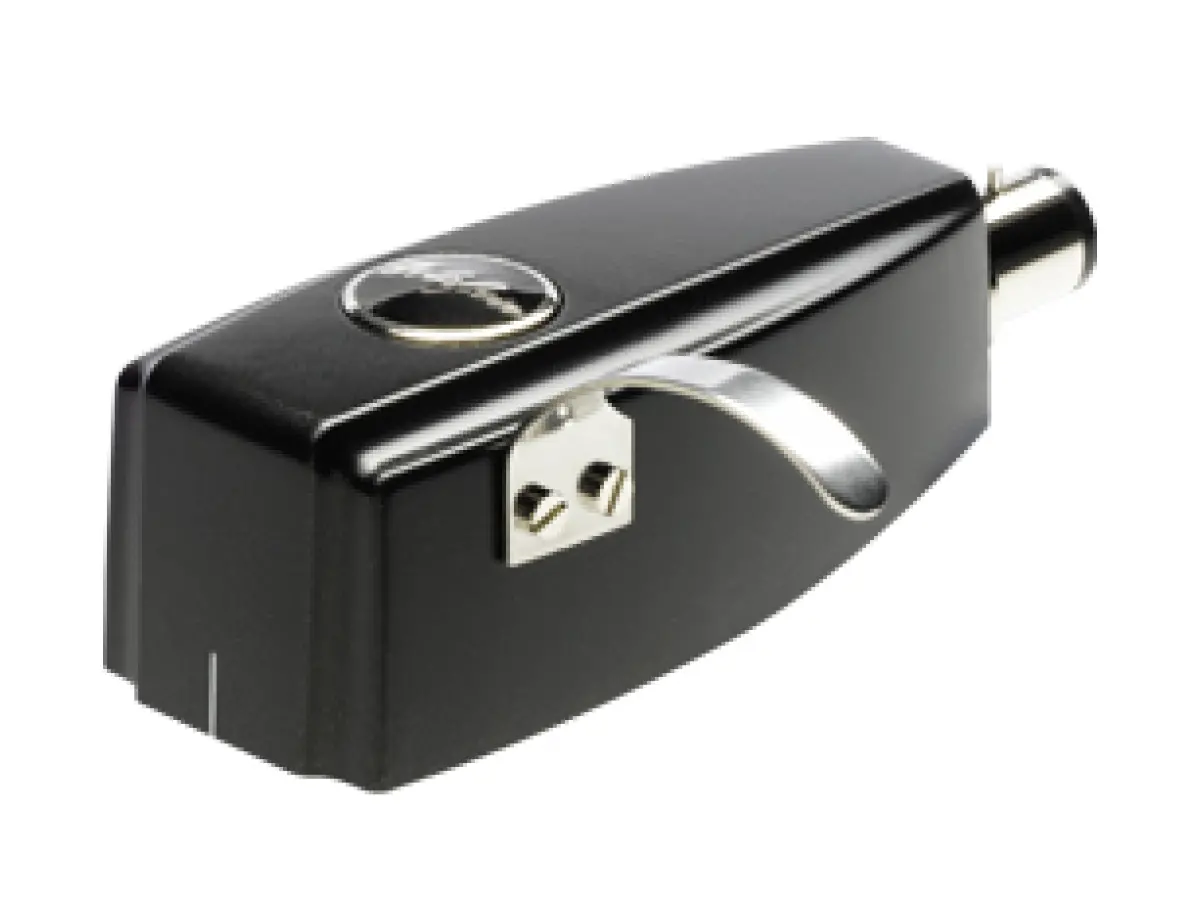

ORTOFON MONO CG 25 DI MKII

The Mono CG 25 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile for the playback of early 25 µm mono recordings. The CG 25 Di MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.
The SPU Mono CG 25 DI MKII cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers.


Specifications
Output voltage at 1 kHz, 5cm/sec 1.5 mV
Frequency response 20 Hz - 20 kHz 3/- 1 dB
Tracking ability at 315Hz at recommended tracking force 60 µm
Compliance, dynamic, lateral 7 µm/mN
Stylus type Spherical
Stylus tip radius R 25 µm
Tracking force range 3.0-4.0 g (30-40 mN)
Tracking force, recommended 3.5 g (35 mN)
Tracking angle 20°
Internal impedance, DC resistance 6 ohm
Recommended load impedance 100 ohm
Coil wire material High Purity Copper (OFC)
Cartridge body material Ground wood and resin composite
Cartridge colour Black matte
Cartridge weight 35 g
