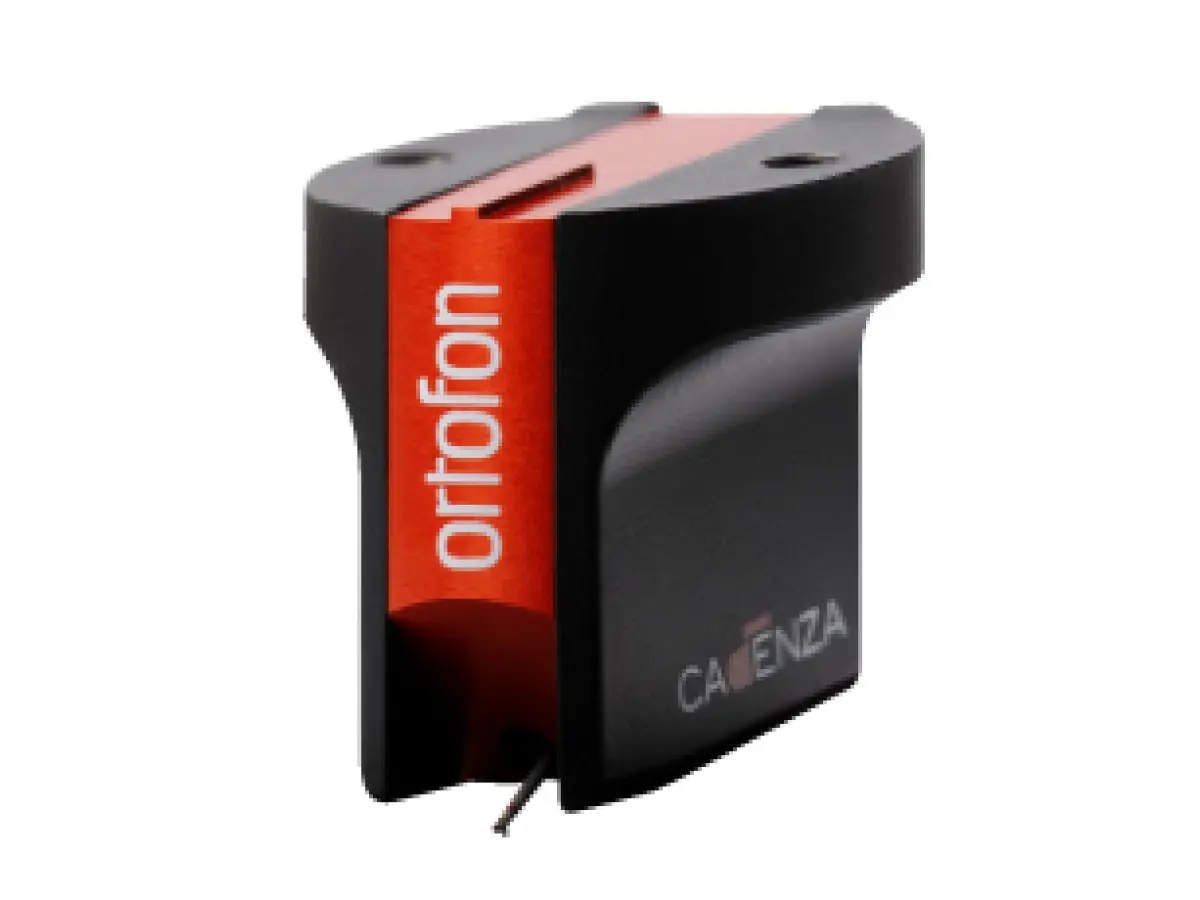

ORTOFON MC CADENZA RED
Cartridge
Code: 1000040
All our products are covered by Italian warranty.
The Cadenza Red model is using a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance.
The sound picture of Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue and have great space and depth in the stereo image.
Technical data
Output voltage at 1 kHz 5 cm/sec0,45 mV
Channel balance< 1,5 dB
Channel separation at 1 kHz> 23 dB
Channel separation at 15 kHz> 15 dB
Frequency range at -3 dB20 Hz - 50 kHz
Frequency response 20 Hz - 20 kHz+3/-1
Tracking ability at 315 Hz at recommended tracking force *)80 ?m
Compliance, dynamic, lateral12 ?m/mN
Stylus typeNude Fine Line on Alu cantilever
Stylus tip radiusr/R 8/40
Tracking force range2,2-2,7 g (22-27 mN)
Tracking force recommended2,5 g (25 mN)
Tracking angle20º
Internal impedance, DC resistance5 Ohm
Recommended load impedance50-500 Ohm
Cartridge body materialStainless steel Aluminium
Cartridge colourRed/Black
Cartridge weight10,7 g
