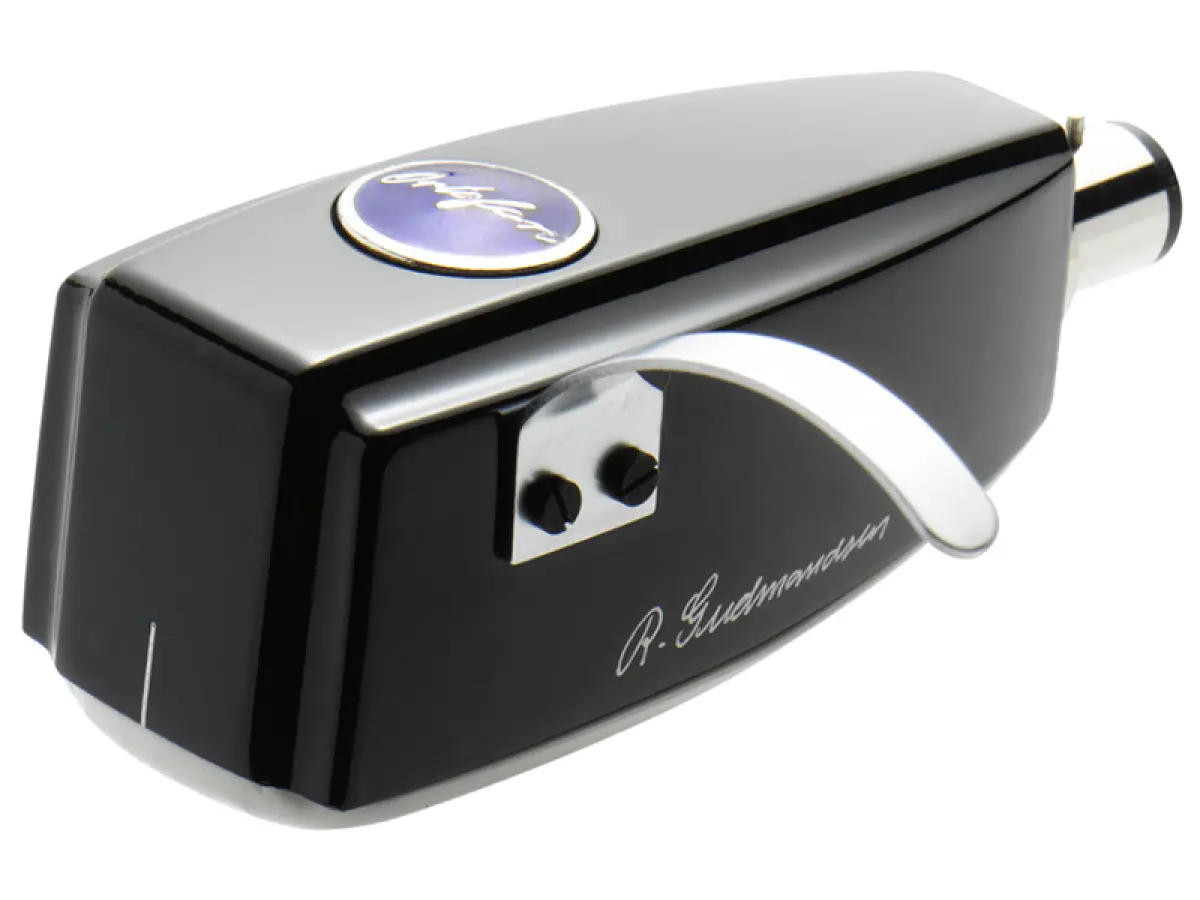

ORTOFON SPU MEISTER SILVER G MKII
Code: 97366023
All our products are covered by Italian warranty.
Features
The SPU Meister Silver G MkII has been improved on coil winding material, stylus, and magnet. The cartridge has been outfitted with high purity multi-conductor 6-nines Silver wire (of a purity of 99.9999 %) for a more open and revealing high-end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail. The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
Specifications
Channel balance at 1 kHz 1 dB
Output voltage at 1 kHz, 5cm/sec 0.3 mV
Channel seperation at 1 kHz 20 dB
Channel seperation at 15 kHz 10 dB
Frequency response 20 Hz - 10 kHz 2/-1 dB
Tracking ability at 315Hz at recommended tracking force 70 ?m
Compliance, dynamic, lateral 8 ?m/mN
Stylus tip radius r/R 8/18 ?m
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force, recommended 4.00 g (40 mN)
Tracking angleb 20º
Internal impedance, DC resistance 3 ohm
Recommended load impedance 10 ohm
Coil wire material Silver, 6-nines
Cartridge body material Ground wood and resin composite
Cartridge colour Shiny black
Cartridge weight 28 gram
