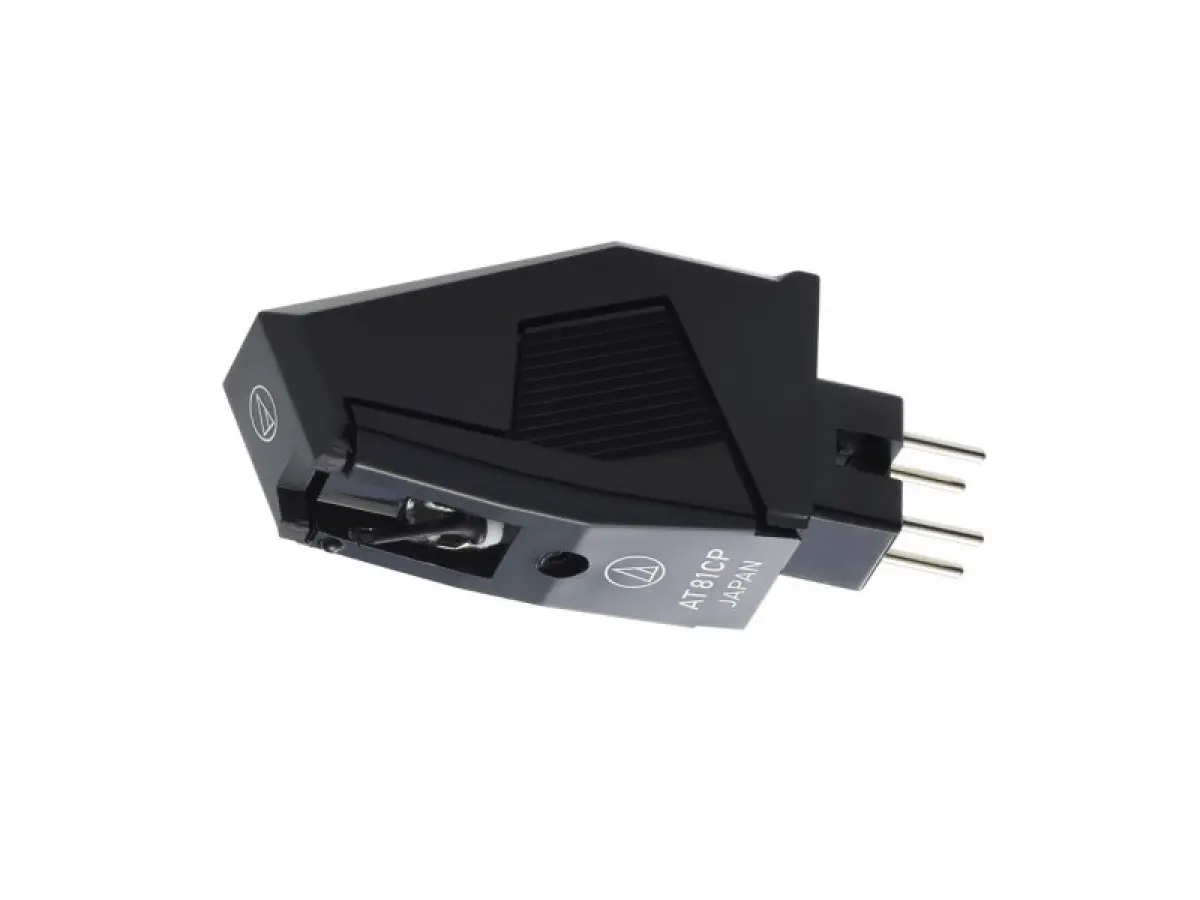

AUDIO TECHNICA AT81CP

T4P Conical  Cartridge

The AT81CP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.

Designed specifically for the linear format, the AT81CP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.

Specifications
Frequency Response: 20-20,000 Hz
Channel Separation: 18 (dB at 1 kHz)
Vertical Tracking Force: 1.0-1.5 g (1.25 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 3.5 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.5 dB (1 kHz)

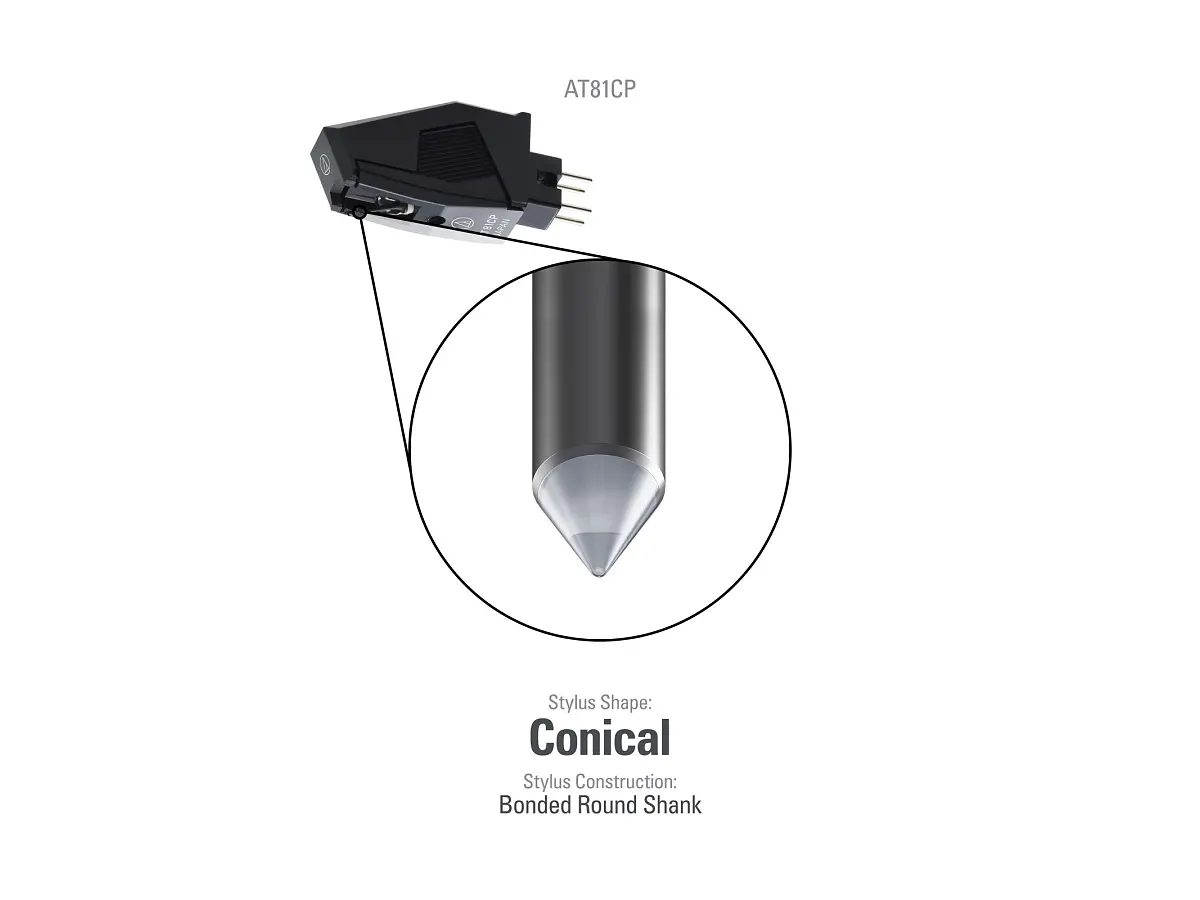

Stylus Shape: 0.6 mil conical
Cantilever: Carbon fiber-reinforced ABS
Mount: P-mount
Replacement Stylus: ATN81CP
Coil impedance: 2.8 k Ω (1 kHz)
DC resistance: 410 ohms
Recommended load capacitance: 100 to 200 pF
Coil inductance: 400 mH (1 kHz)
Vertical tracking angle: 20°
Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
Weight: 6.0 g (0.21 oz)
