AUDIO TECHNICA AT-VM95C

The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL

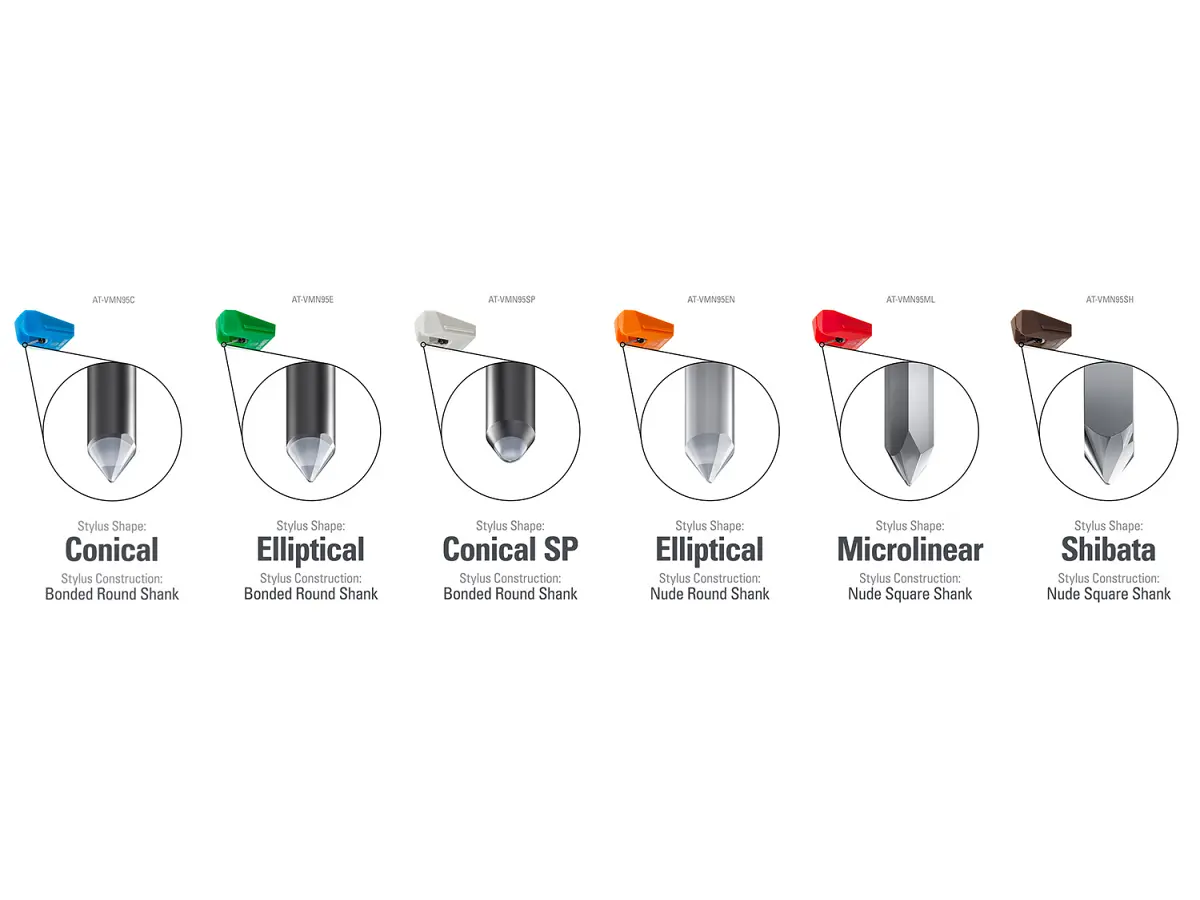

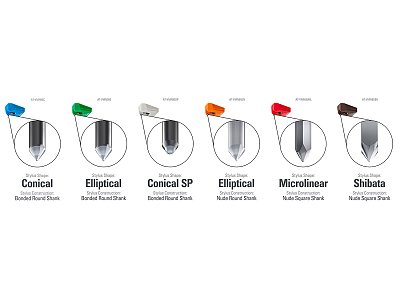

Also the AT-VM95C is a "budget" cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.

- Aluminium cantilever
- 4.0mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- Replacement for AT91, AT91R and CN5625AL


Specifications:
Type: VM Stereo Dual Magnet
Mounting: 1/2" centres
Frequency Response: 20 - 20,000 Hz
Channel Separation: 18 dB (1 kHz)
Output Channel Balance: 2.5 dB (1 kHz)
Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)
Stylus Shape: Conical
Stylus Size: 0.6 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 kΩ (1 kHz)
Coil Inductance: 550 mH (1 kHz)
DC Resistance: 485 Ω
Static Compliance: 17 x 10 - 6 cm / dyne
Dynamic Compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)
Wire Used for Coil: T.P. Copper
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 6.1g
Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus: AT-VMN95C
Accessories Included: Two 11 mm installation screws;
Two 8 mm installation screws; Two washersCaratteristiche tecniche:
Type: VM Stereo Dual Magnet
Mounting: 1/2" centres
Frequency Response: 20 - 20,000 Hz
Channel Separation: 18 dB (1 kHz)
Output Channel Balance: 2.5 dB (1 kHz)
Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)
Stylus Shape: Conical
Stylus Size: 0.6 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 kΩ (1 kHz)
Coil Inductance: 550 mH (1 kHz)
DC Resistance: 485 Ω
Static Compliance: 17 x 10 - 6 cm / dyne
Dynamic Compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)
Wire Used for Coil: T.P. Copper
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 6.1g
Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus: AT-VMN95C
Accessories Included: Two 11 mm installation screws;
Two 8 mm installation screws; Two washers
