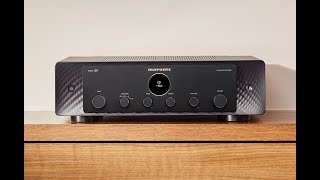

MARANTZ MODEL 50

70 Watts of Pure Analog Power and Stereo Connectivity
Drive your stereo system with 70 Watts of pure high-current Class A/B power, delivering the authoritative and musical Marantz sound.

A Legacy 70 Years in the Making
Warm, rich, and spacious sound. Elegant design. The Marantz 50 Series strikes the perfect balance between modern and timeless.

Key Features

• Powerful Yet Precise
  With a meticulously designed Class A/B amplifier, MODEL 50 drives your speakers with authority, unveiling details you never knew existed.
• Pure and Simple Analog Design
  Analog is at the heart of MODEL 50’s design. The decision to exclude digital audio ensures a completely intuitive operation and eliminates the risk of interference from complex digital circuitry.
• Connect Any Source. Hear Everything.
  With six analog inputs, including a dedicated phono input, MODEL 50 brings Marantz musicality to all your source components.
• Refined Aesthetic
  We designed MODEL 50 to be both thoroughly modern and timeless. Distinctive aesthetic elements such as symmetry, warmth, and tactile satisfaction push the boundaries of audio product design while paying homage to our iconic past.

Powerful and Precise Class A/B Amplifier
Even demanding loudspeakers will perform effortlessly with the high-current dual-transistor amplifier in MODEL 50.

Six Analog Inputs
With a variety of analog inputs available, MODEL 50 accepts audio from a wide range of source components and features upgraded connectors for CD and Phono inputs.

MM Phono Stage
An integrated moving magnet phono stage is precisely optimized to reveal details in your vinyl that you never knew existed.

Technical Specifications:

• Power Output (8 / 4 Ohm RMS): 70 W / 100 W
• Frequency Response: 5 Hz – 100 kHz
• Total Harmonic Distortion: 0.02%
• Damping Factor: 100

Input Sensitivity:

• MM: 1.4 mV / 47 kΩ
• High Level: 185 mV / 16 kΩ
• Power Amp Direct IN: 1.5 V / 15 kΩ

Signal-to-Noise Ratio:

• MM: 87 dB
• High Level: 116 dB (2 V input)
• Power Amp Direct IN: 125 dB

Tone Control:

• Treble: ±10 dB at 15 kHz

• Bass: ±10 dB at 50 Hz

• Remote Control: RC003PMND

• Maximum Dimensions (W x D x H): 442 x 431 x 130 mm

• Weight: 14.2 kg
