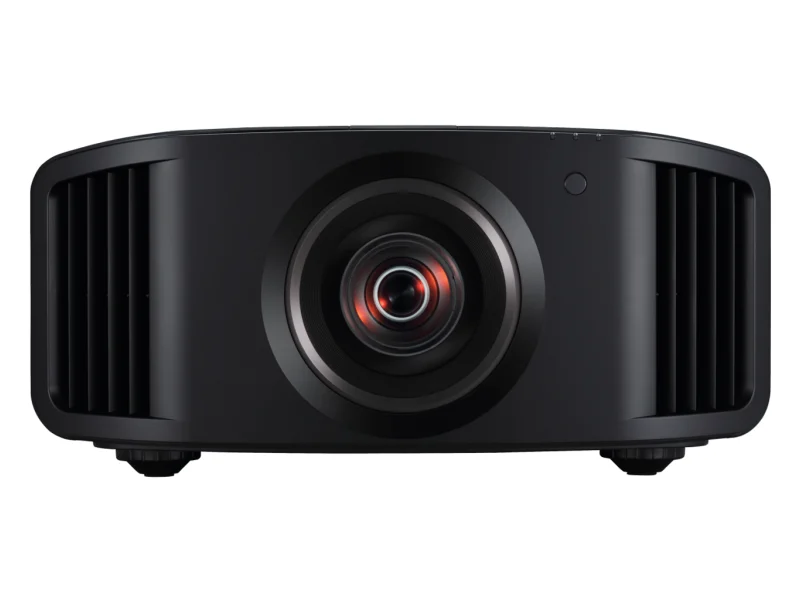

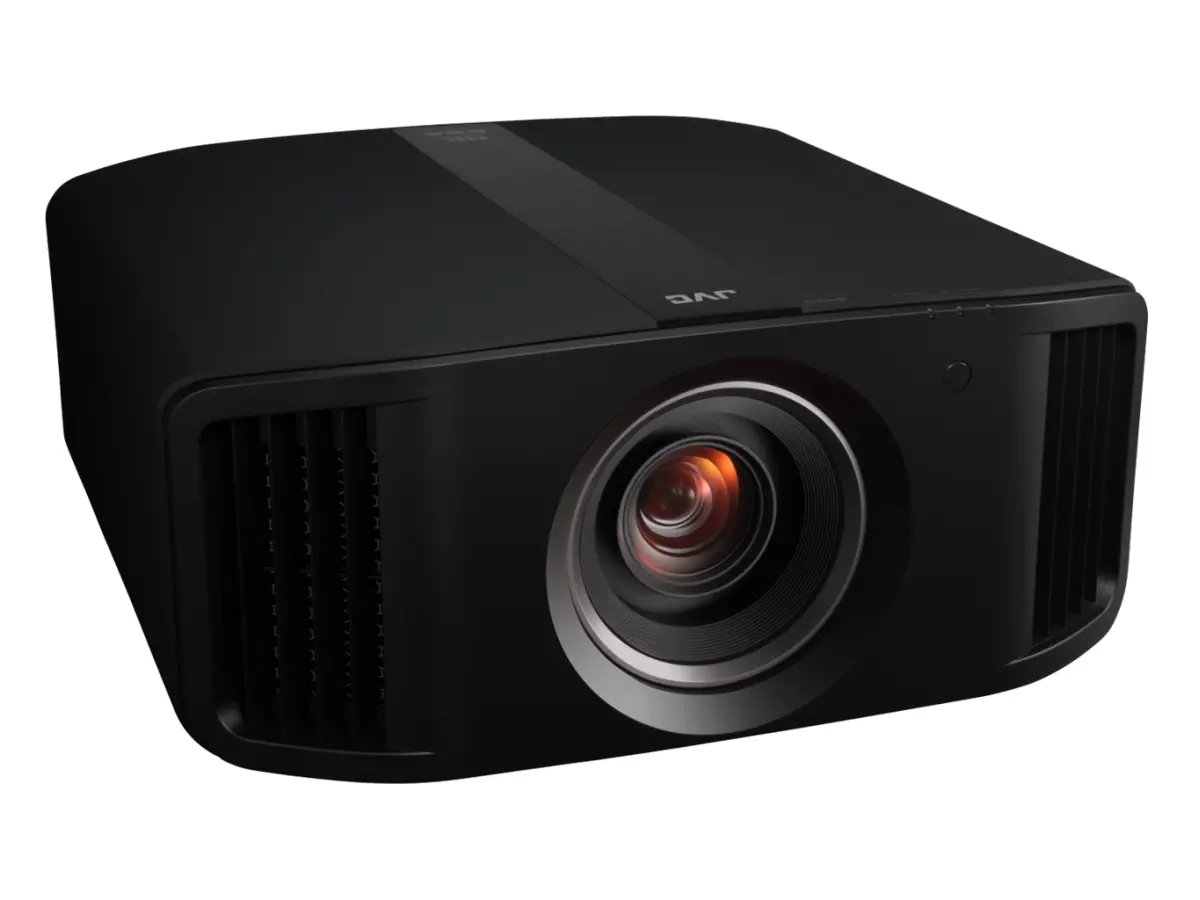

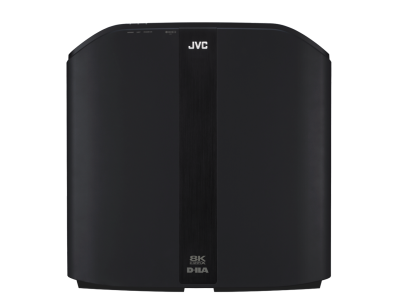

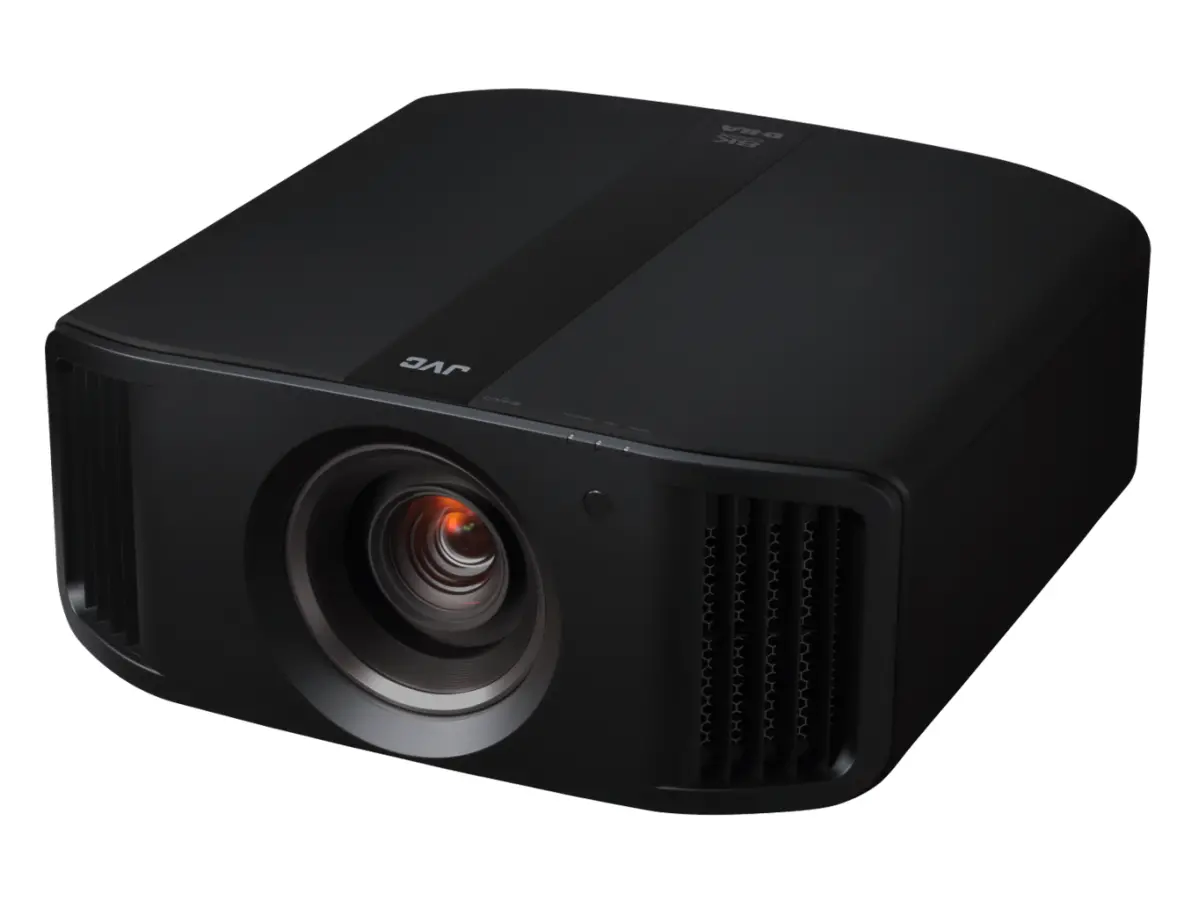

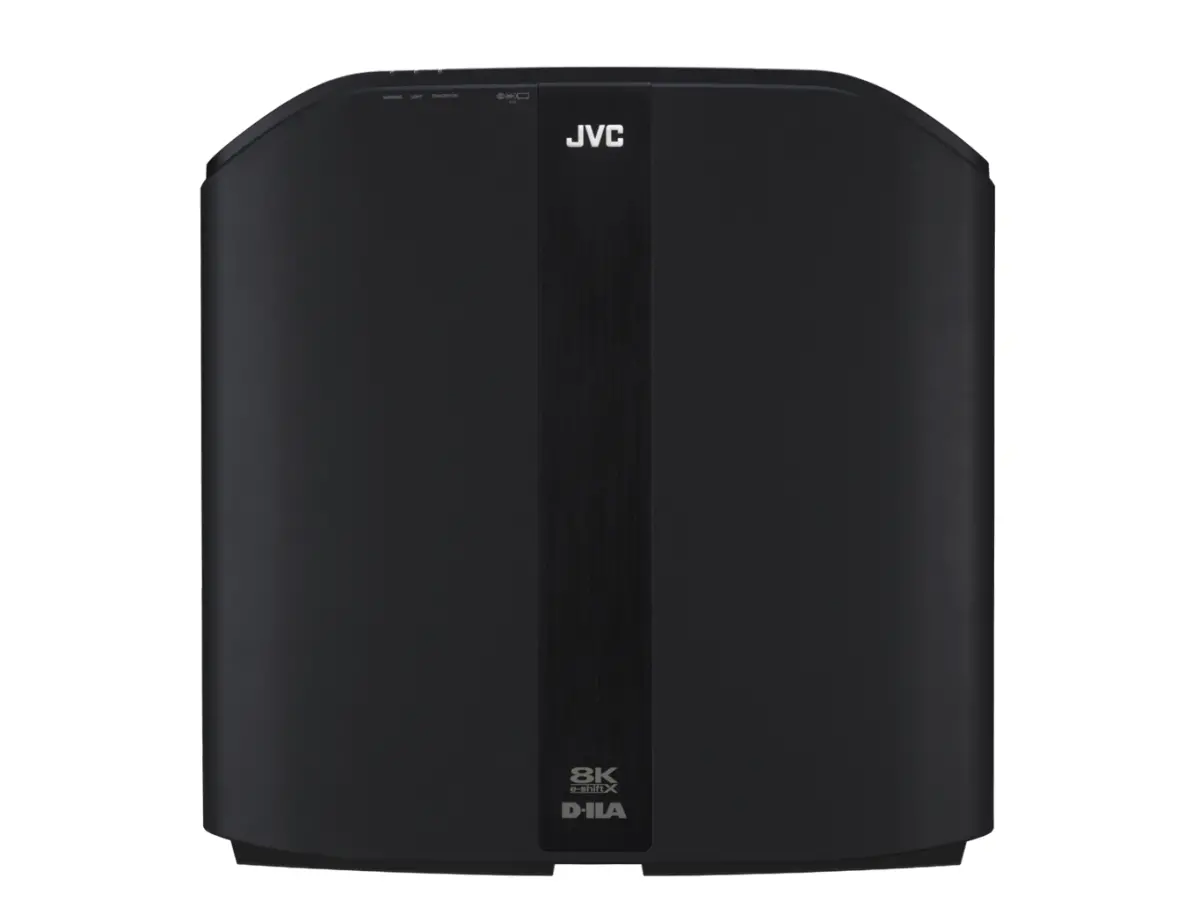

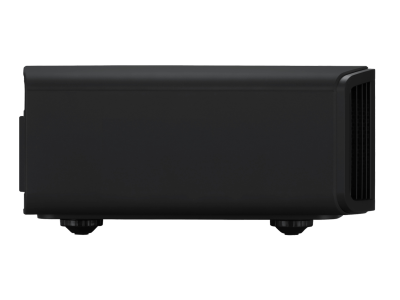

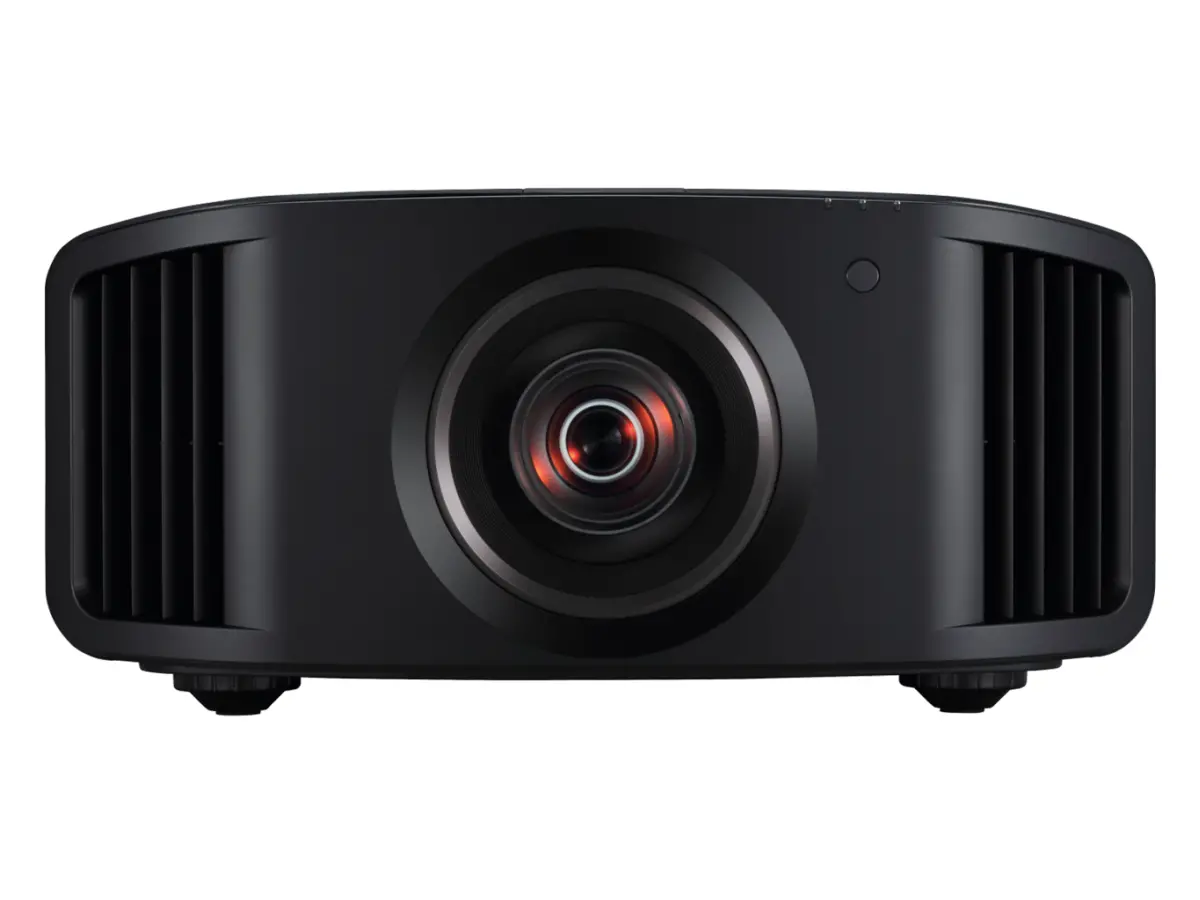

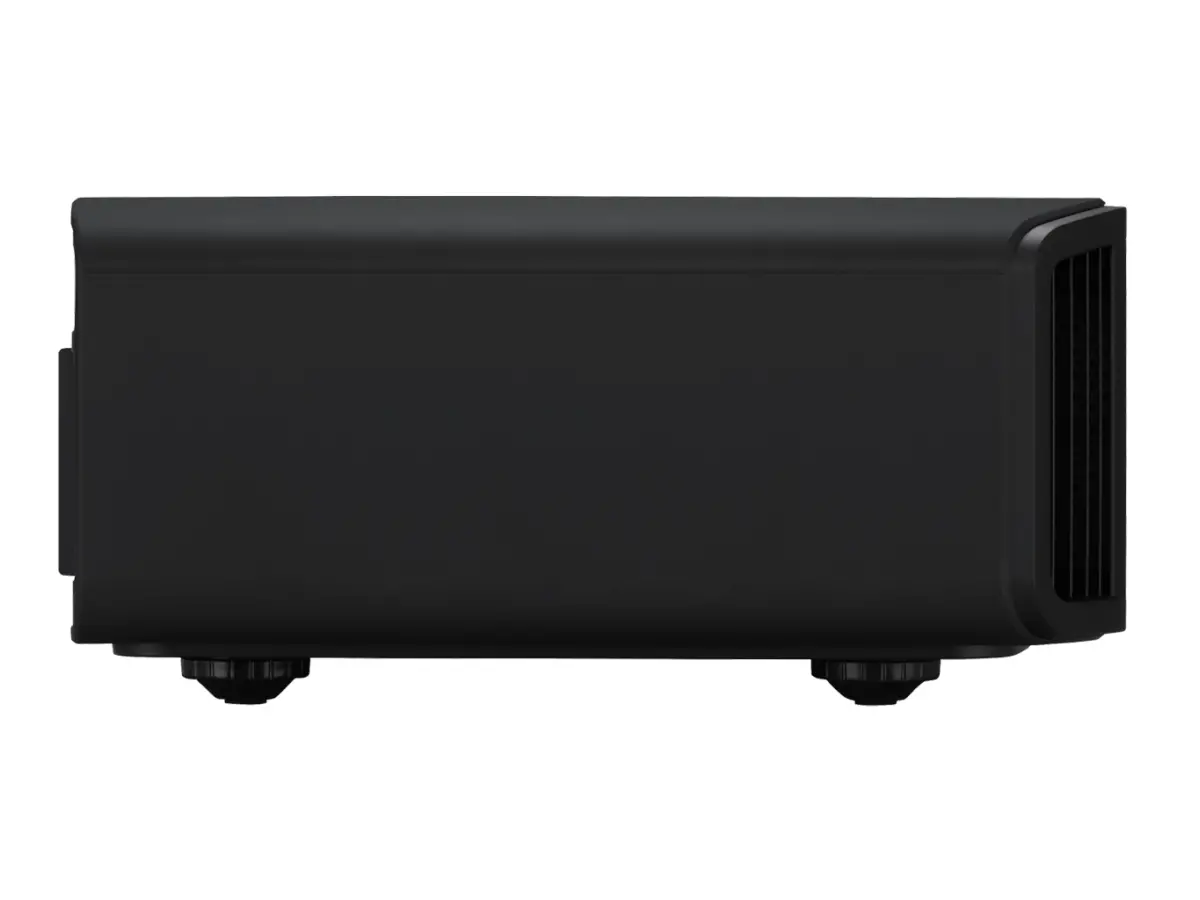

JVC DLA-NZ8

The DLA-NZ8 D-ILA projector is the world's first home theatre projector to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shiftX proprietary technology to reproduce 8K-quality images. The projector is driven by three native 4K D-ILA devices, a high-quality 65 mm glass lens, and an Ultra-High Brightness of 2,500 lumens. The BLU-Escent laser diode light source also contributes to project images that come close to reality. Compatible with the latest HDR10+, the projector boasts industry-leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVC's DLA-NZ8. *As a home theatre projector, as of September 2021, according to research by JVCKENWOOD.

Frame Adapt HDR Generation 2
The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.

Light source control by Gauge
Laser light source adjustment function that can be finely adjusted according to the environment and preference. After the update from the previous 3 steps, fine adjustment of 0 -100 steps is possible, and adjustment based on the brightness on the screen and flexible setting according to the use environment are possible.

USB Back-up
USB backup function that can save and write all settings at once.
This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.

New algorithm on the laser dynamic control
Laser Dynamic Dimming control was previously based on the average luminance of the entire scene. With the new mode, adjustment is based on peak luminance. This results in images with increased dynamic range. In particular, the new mode improves reproduction of content such as stars twinkling in pitch blackness and nightscapes. In addition, even images with low peak luminance can be enjoyed with a greater sense of contrast.

World’s first home projector capable of inputting 8K60p/4K120p signals
These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

4K120p input ideal for Low Latency Mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.


Features
Newly developed 8K/e-shiftX technology reproduces 8K image quality
BLU-Escent Laser Light Source
High brightness of 2,500 lm provides vibrant and dynamic images
Native Contrast Ratio of 80,000:1 translates to a spectacular Dynamic Contrast Ratio of ? :1

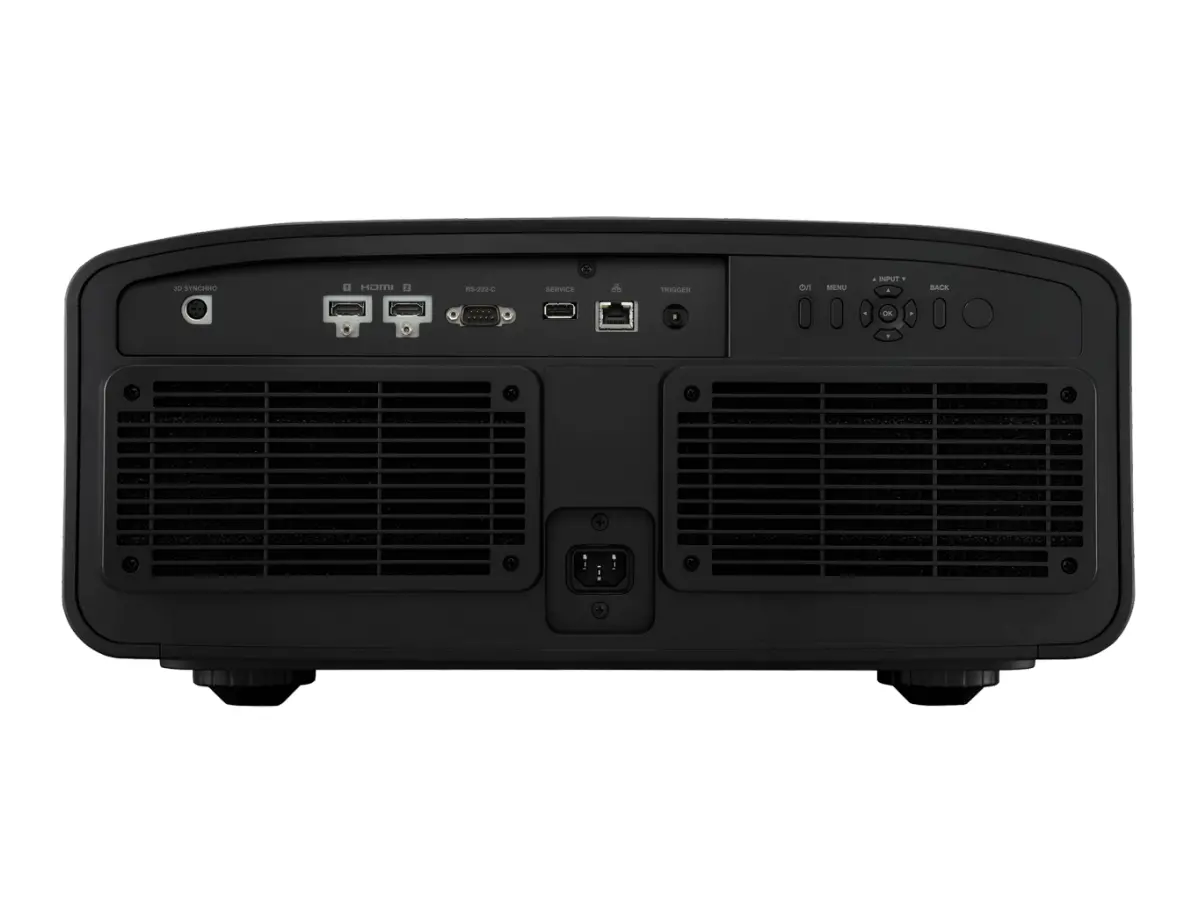

2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation. Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments. *
Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images.*
Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
New FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
17-element, 15-group all-glass 65mm diameter high-quality lens
For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
Color Management System with 6-axis Matrix
Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
Auto-Calibration Function using an optical sensor.
Wireless transmission options for 3D viewing
