TRIANGLE SIGNATURE DELTA

The Delta model was the company???s starting point in terms of research for this range. This speaker is a well-designed technological gem and a symbol of TRIANGLE???s acoustic expertise.

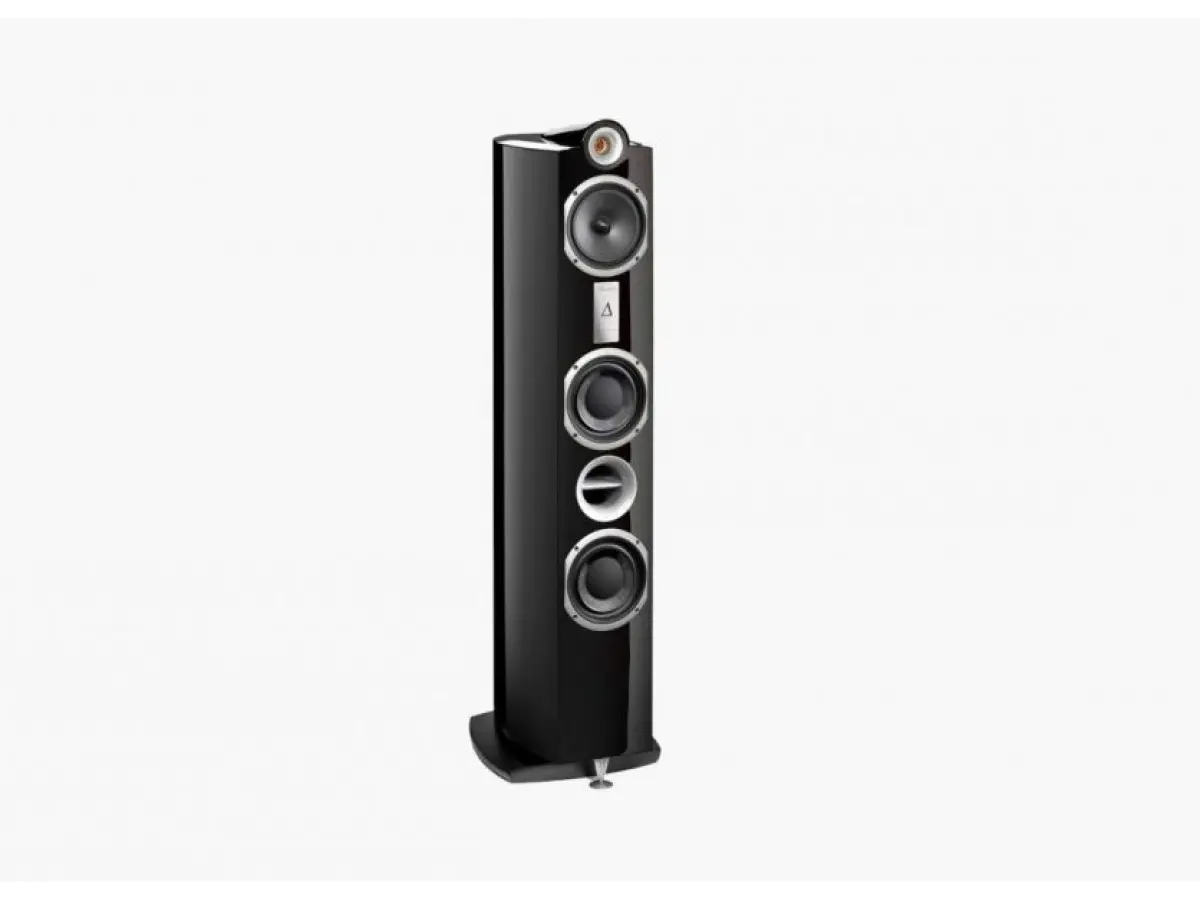

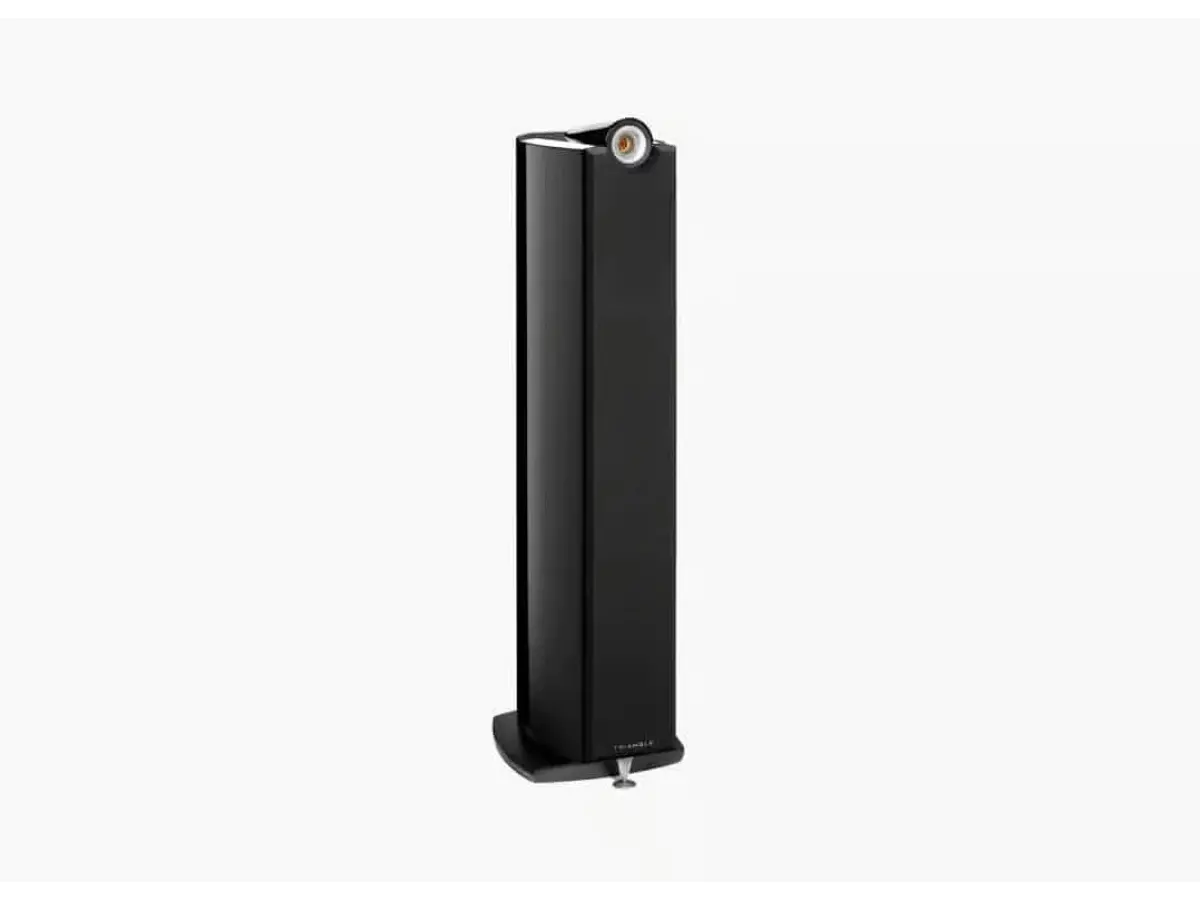

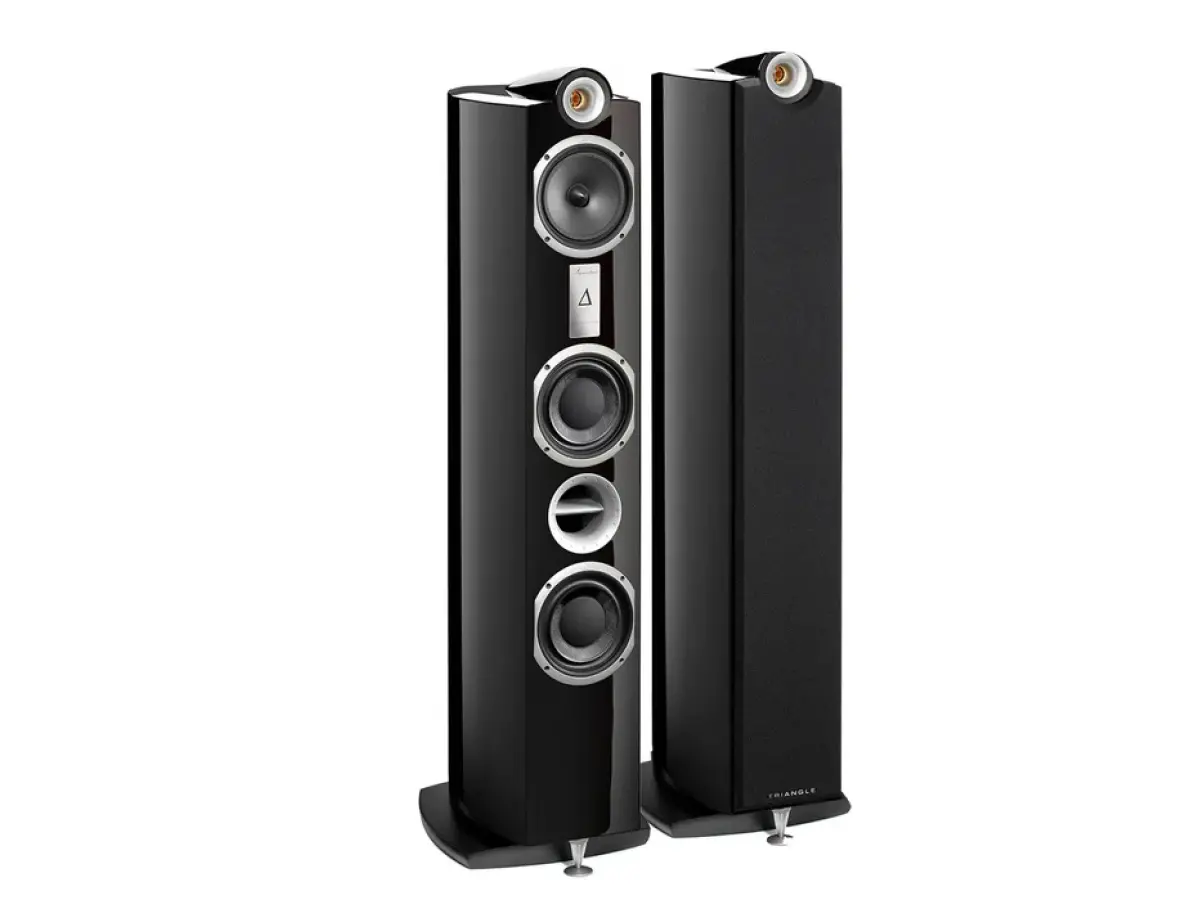

Built and assembled in Triangle???s workshop located in Soissons, France, the Delta Signature is a 3-way floorstanding speaker equipped with 4 drivers for a detailed and refined sound.
On the top of the cabinet sits a semi pod-mounted horn loaded tweeter, one 16 cm (6,5 inches) paper midrange for naturel reproduction of vocals and two 16 cm (6,5 inches) woofers. Each woofer is separate by a different cabinet enclosure. The woofer rear wave is discharged by a single twin-vent, a Triangle patent technology.
The Signature Delta will appeal to any High-Fidelity lovers looking for a high-performance, well balanced and musical loudspeaker. It is a perfect choice for rooms between 15 and 40 m2.

TWEETER TZ2550
Driver in die-cast aluminum
The new phase plug has been designed to go with the 25 mm titanium dome. The tweeter horn is made from 100% injected aluminum originally developed for the Magellan project. The tweeter???s larger surface offers a greater dispersion of high frequencies. The compression volume of the back chamber has been significantly increased to provide better shock absorbance, thus preventing the return of sound waves within the dome. These enhancements have improved the quality and detail of high frequencies, finesse and transparency, as well as minimal sound distortion.

MID-RANGE
Paper cone driver offering clear sound
The 185 mm aluminum basket has been entirely redesigned to provide better ventilation to its double-layered coil. It is equipped with a small pleat and peripheral short travel suspension. The new version of this treated paper cone provides increased clarity at this critically important frequency level of sound reproduction. The phase plug has been replaced by a dust cap of identical shape and size to prevent air leaks.

WOOFER
Double ferrites for precise bass performance
This driver benefits from numerous enhancements producing a faster and deeper bass. It is equipped with a double magnet motor, a double-layered coil and an inverted half-roll rubber suspension, all of which ensure a faster speaker response. The cone profile was developed to be purely used in low frequencies. To make it more rigid, the glass fiber membrane is supported by a second paper membrane.
