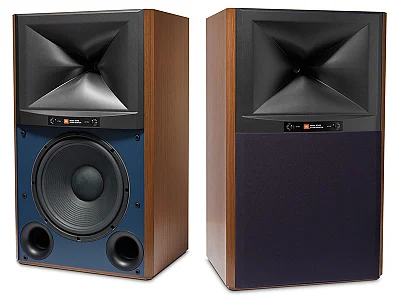

JBL SYNTHESIS 4349

The JBL 4349 Studio Monitor is a compact, high-performance monitor loudspeaker built around the patented JBL D2415K dual-1.5-inch compression driver mated to a large format horn, paired with a 12-inch, cast-frame Pure-pulp cone woofer. This combination delivers music with authority and accuracy not possible with traditional loudspeaker designs.

Designed and engineered in JBL???s world-famous acoustic engineering facility in Northridge, California, the 4349 Studio Monitor is a showcase of patented JBL acoustics technologies. This monitor loudspeaker features a 2-way design with patented High-Definition Imaging (HDI???) horn technology, the patented D2415K dual 1.5-inch (38mm) compression driver, and a 12-inch (300mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.

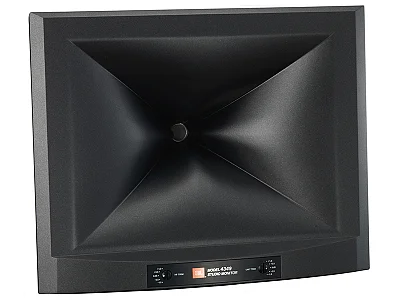

JBL???s revolutionary High-Definition Imaging horn geometry is the result of intense research into the nuances of horn design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis and provides a seamless transition between the high and low frequency drivers.

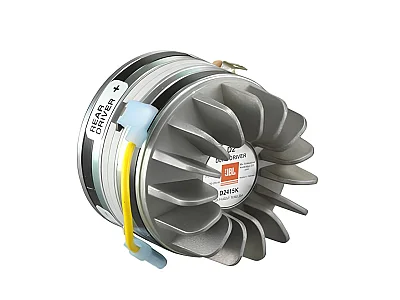

The JBL D2415K compression driver benefits from the advanced research and applications derived from JBL Professional???s ???D2??? range of transducers. At the core of the D2415K device is a pair of lightweight, polymer, annular diaphragms that improve high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression. The ???D??? prefix indicates that this driver utilizes dual diaphragms, dual voice coils, and dual motors for an incredibly efficient design.

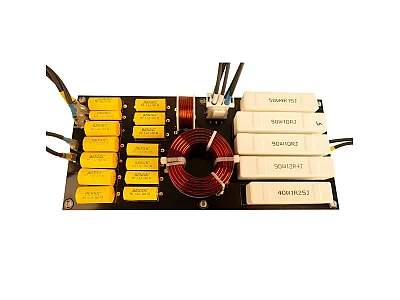

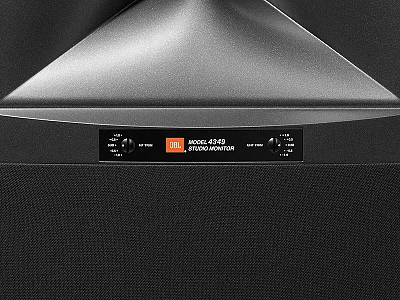

High-frequency and Ultra High-frequency tonal adjusters are located on the front panel below the horn and allow the sound to be tailored to the specific environment and listener preference. These controls work in conjunction with an advanced crossover network design that features air-core inductors, cast wire-wound resistors and low-ESR metallized film capacitors in a multi-cap configuration to optimize the performance of 4349 drive components. The multi-cap technique improves series capacitance by averaging their values while lowering ESR and distortion.
The 4349???s powerful 12-inch (300mm) woofer takes advantage of core JBL engineering techniques to ensure very high output with low distortion. The 3-inch (75mm) long-throw voice coil in conjunction with dual opposing spider dampers guarantee maximum output with significantly reduced distortion. A Pure-pulp cone provides a lightweight, rigid diaphragm and helps to eliminate breakup modes ensuring proper pistonic motion throughout the operating band.
The 4349 enclosure is heavily braced with 1-inch (25mm) thick walls to provide a solid acoustic foundation and incorporates a bass reflex design with dual front-firing, computer-optimized flared ports. The cabinet features a classic JBL studio monitor design with a blue baffle and is finished in a choice of Walnut or Black Walnut furniture-grade satin wood veneers. A blue (Walnut) or black (Black Walnut) cloth grille completes the elegant appearance. Dual sets of gold-plated binding posts provide a secure connection and offer a choice of single-ended or bi-wire/bi-amplified connections.

Highlights
Patented High-Definition Imaging (HDI???) horn, precision-molded in Sonoglass
Patented D2415K dual 1.5-inch (38mm) high-frequency compression driver
12-inch (300mm) cast frame, Pure-pulp cone woofer with 3-inch voice coil
Classic Studio Monitor design with premium finishes including satin Walnut wood veneer with blue grille or satin Black Walnut wood veneer with black grille

Specifications
Type     2-way monitor loudspeaker
Low Frequency Driver     12" (300mm) Pure Pulp cone woofer (JW300PG-8)
High Frequency Driver     D2415K, 1.5-inch (37.9mm) annular ring, Teonex® diaphragm compression driver with advanced HDI??? geometry horn molded in Sonoglass
Recommended Amplifier Power     25 - 200 WRMS
Impedance     8 Ohm
Loudspeaker Sensitivity     91 dB/2.83V/1m
Frequency Response     32 Hz - 25 kHz (-6 dB)
Coverage Angle, -6 dB @ 20kHz     80 x 70 Degrees (Hor x Vert)
Coverage Angle, -6 dB @ 10kHz     100 x 100 Degrees (Hor x Vert)
Crossover Frequency     1.5 kHz
Enclosure Type     V-braced front-ported cabinet
Grille Feature     Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)
Controls     HF and UHF tone controls
Input Type     Dual sets of gold-plated binding posts with shorting straps
Warranty     5 Years
Matching stand     JS-120
