MONITOR AUDIO SF1 SOUNDFRAME ON WALL

Ex-demo single speaker

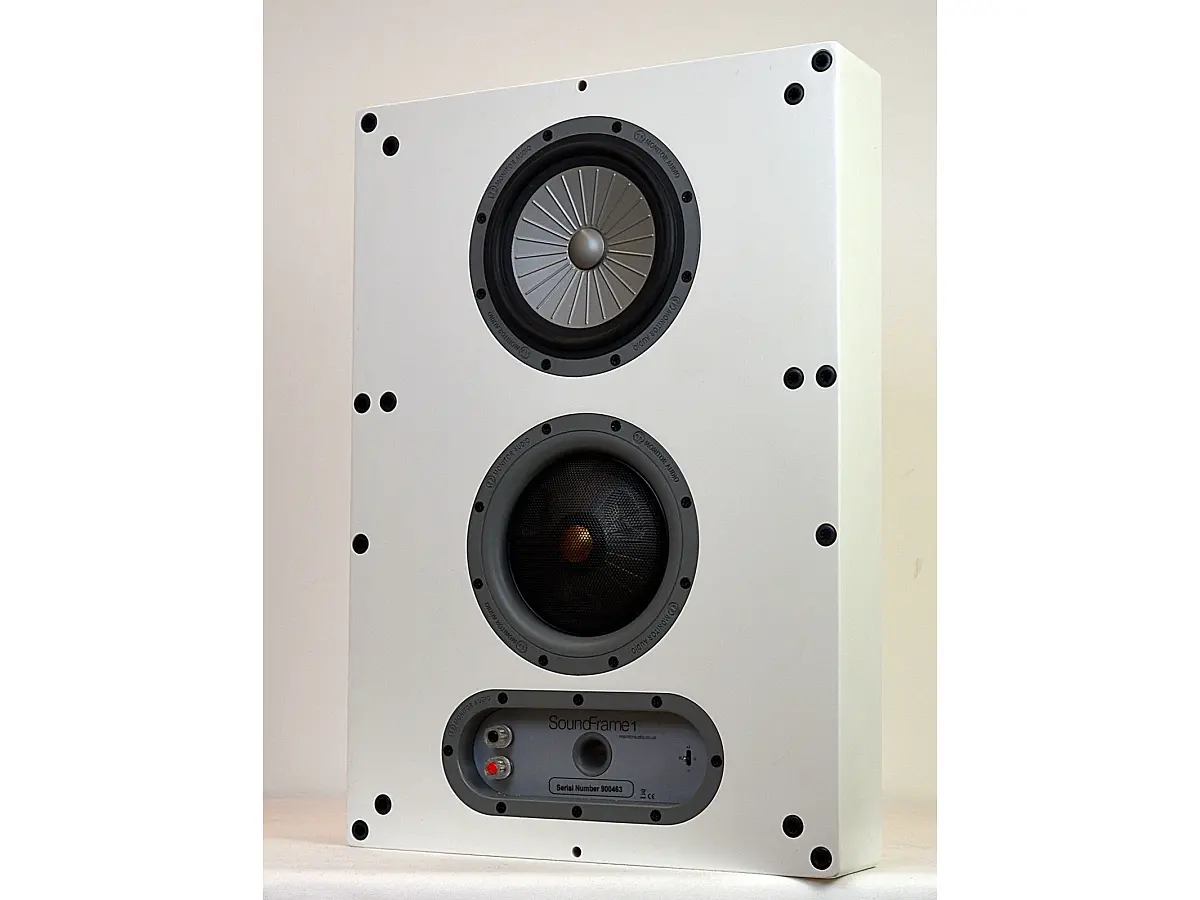

SoundFrame 1 adopts the aspect ratio of a typical picture frame and is designed for music and film sound applications in front left/right and surround locations.

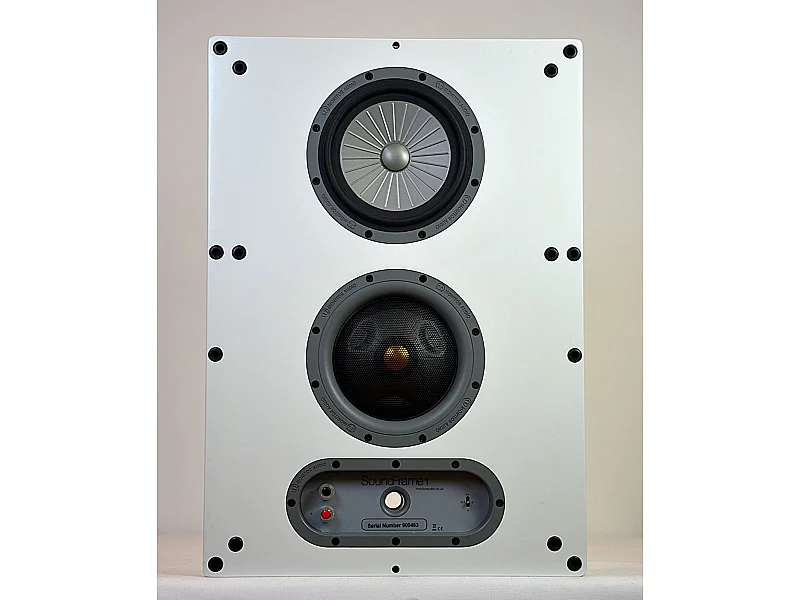

For on-wall and in-wall versions of SoundFrame 1 and its ‘centre-channel’ version SoundFrame 2, we’ve utilised our most advanced driver technologies to raise the quality of on-wall speaker performance. Both employ true 3-way full-range driver configurations featuring a pivoting Inverted Dual Concentric (IDC®) 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM® bass driver. The innovative IDC module is able to pivot in all directions allowing you precisely to direct crucial frequencies toward the listening area for greater detail, imaging and fidelity. At the same time sound is directed away from room boundaries, eliminating the unnecessary reflections that can cloud performance. The drivers, including the large high-power bass speaker, feature advanced RST® cone technology, developed by Monitor Audio for our flagship speakers. RST’s surface topology adds rigidity and strength but keeps the cone light and agile for a super-fast life-like response.

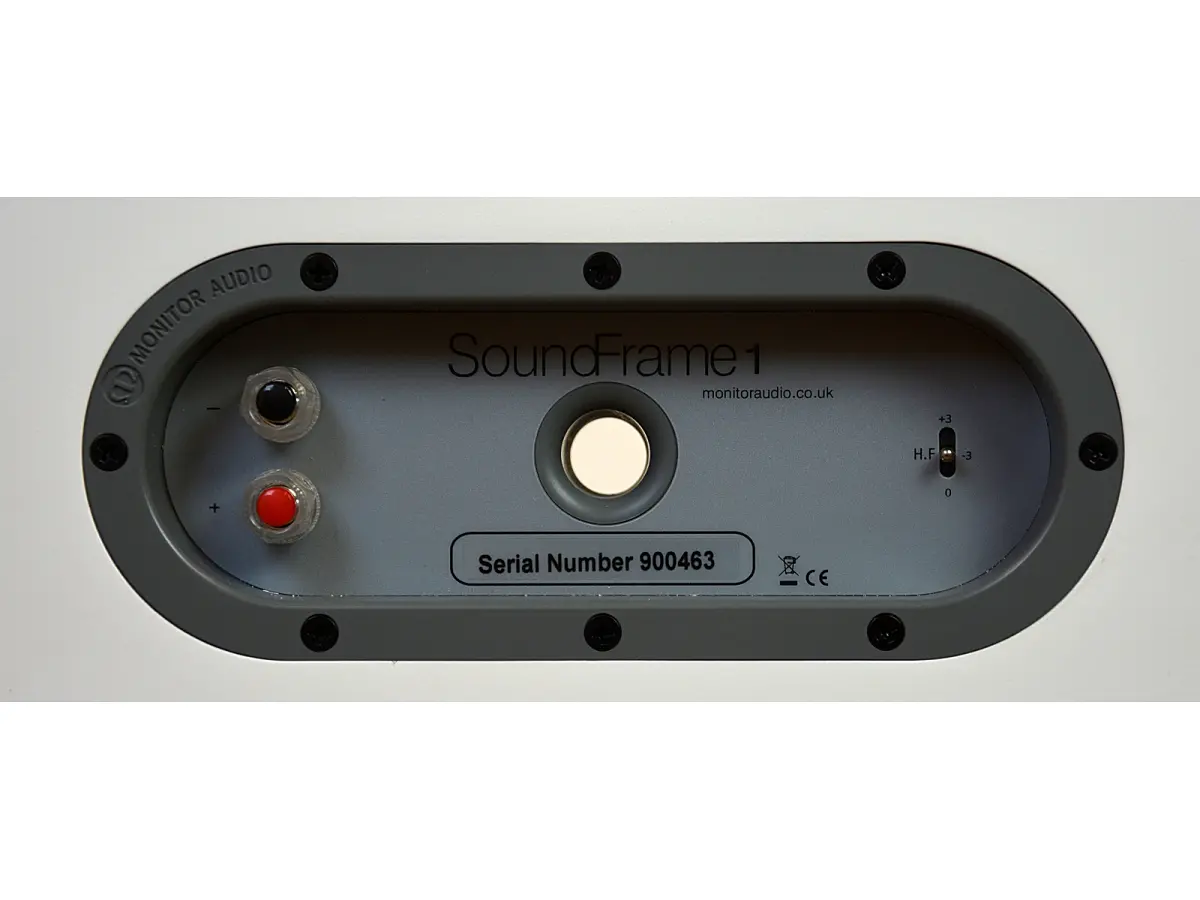

SF1 and SF2 models (on-wall and in-wall) may be fine-tuned to their environment with a high frequency ‘boost’ or ‘cut’, which will raise or lower levels by 3dB.

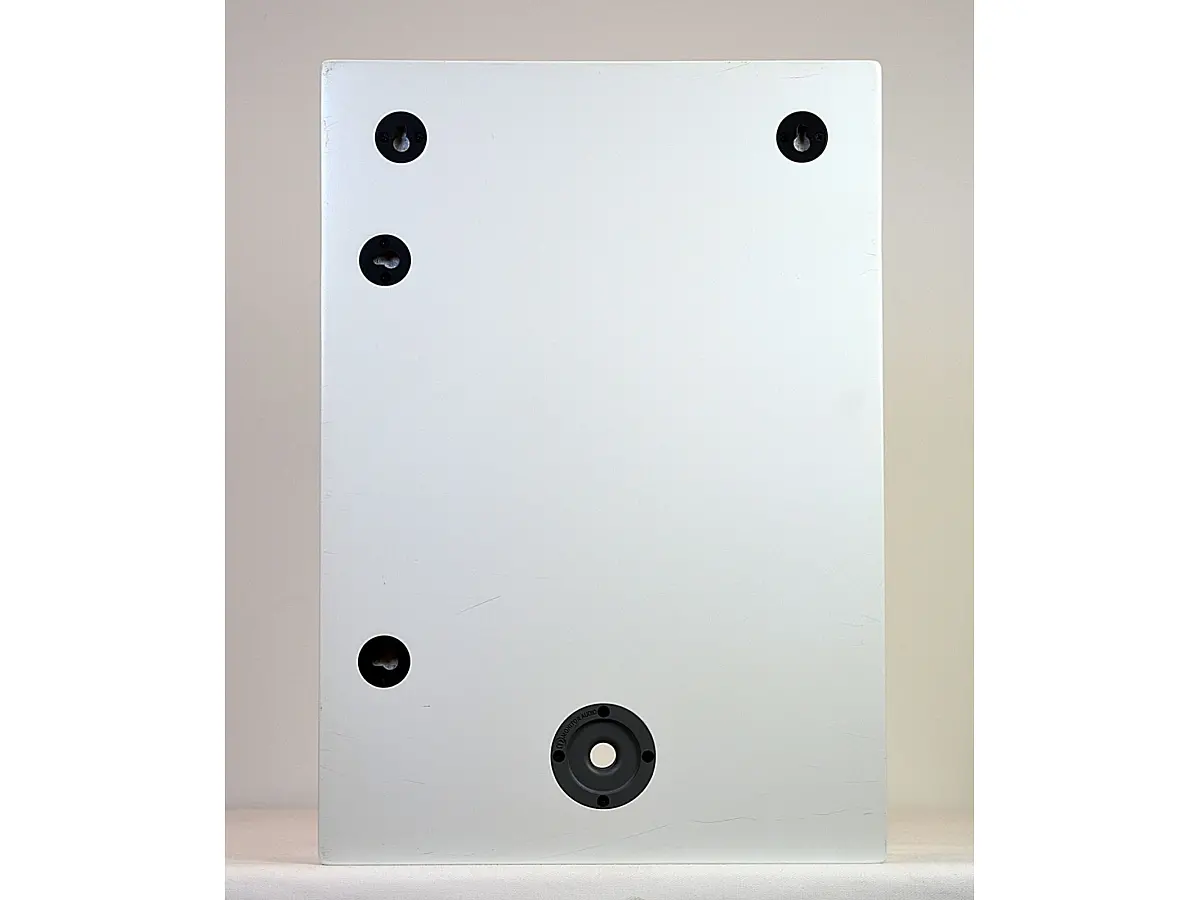

Keyhole fixings make on-wall installation easy and precise.

Features:
Frequency Response: 55Hz - 35KHz
Sensitivity (1W@1m): 86 dB
Impedance (nominal): 8 ohms
Power handling (RMS): 100 W
Maximum SPL (each @1M): 106 dBA
Amplifier Requirements (RMS): 25 - 100 W
Bass Alignment: Sealed Box
Crossover Frequency: 550Hz & 3.3KHz
System Configuration: 3 Way
Driver Compliment:
1 x 165mm (6.5 inches) C-CAM® mid/bass driver with RST®II
1 x 102mm (4 inches) IDC® mid-range driver with dual concentric 25mm (1 inches) C-CAM® gold dome tweeter
Dimensions Inc Frame: (H x W x D) 539 x 389 x 87.5 mm
(211/4 x 155/16 x 37/16 inches)
Depth from wall: 87.5 mm (37/16 Inches)
Weight Packaged: 7.44 Kg (16.37 lbs)
