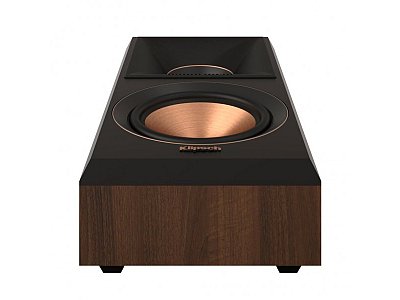

KLIPSCH RP-500SA II

Reference Premiere II Dolby Atmos Series

A new, larger 90° x 90° hybrid silicone composite Tractrix® horn allows for incredibly efficient transfer of high-frequency waves into the listening area, providing clearer, crisper sound. The phase plug and compression-molded silicone surface ensure a smooth frequency response.

The 1" Linear Travel Suspension (LTS) titanium diaphragm tweeter minimizes distortion, enhancing performance and providing greater detail. LTS tweeters are a hallmark of the Reference Premiere series, making them a core component of some of the best speakers in the world.

The vented tweeter design reduces standing waves that create unwanted harmonics, improving detail and clarity in high-frequency reproduction.

A signature feature of the Reference Premiere series, the 5.25" Cerametallic™ woofer has been upgraded to ensure flawless sound reproduction with minimal distortion and maximum efficiency. The redesigned woofer delivers the power, detail, and emotion expected from a Klipsch Reference Premiere speaker.

The Klipsch RP-500SA II Surround speakers can also be used as wall-mounted elevation or surround speakers via the easy-to-use keyhole mounting system, allowing the perfect angle for enhanced sound effects.

The RP-500SA II Dolby Atmos surround sound speakers feature a switchable crossover that allows for easy switching between Dolby Atmos and Dolby Surround modes for optimized performance in any configuration.

Technical Specifications:

• Certified Dolby Atmos Enabled speaker / 2-way surround channel in sealed cabinet
• Ideal complement to be placed on top of Reference Premiere II series speakers, but usable with any speaker of suitable size
• Wall-mountable with dual configuration crossover, selectable via a switch on the bottom/rear panel to set the speaker as a Dolby Atmos or surround channel
• Advanced cabinet design and construction, with internal bracing
• 1" LTS (Linear Travel Suspension) titanium diaphragm tweeter, featuring a vented housing and new-generation Hybrid Cross-Section Expanded Tractrix Horn 90° x 90° loading system
• Phase plug computer-modeled with compression-molded silicone exterior, with a wider horn that reconstructs a more extended soundstage and more accurate imaging
• 5.25" (13.3 cm) Cerametallic™ copper-colored woofer with flat dust cap, redesigned to ensure minimal distortion, superior speed and articulation, and greater power handling
• Nominal impedance: 8 ohms
• Sensitivity, frequency response, and crossover frequency in accordance with Dolby Atmos specifications
• Power handling: 300 watts peak / 75 watts RMS

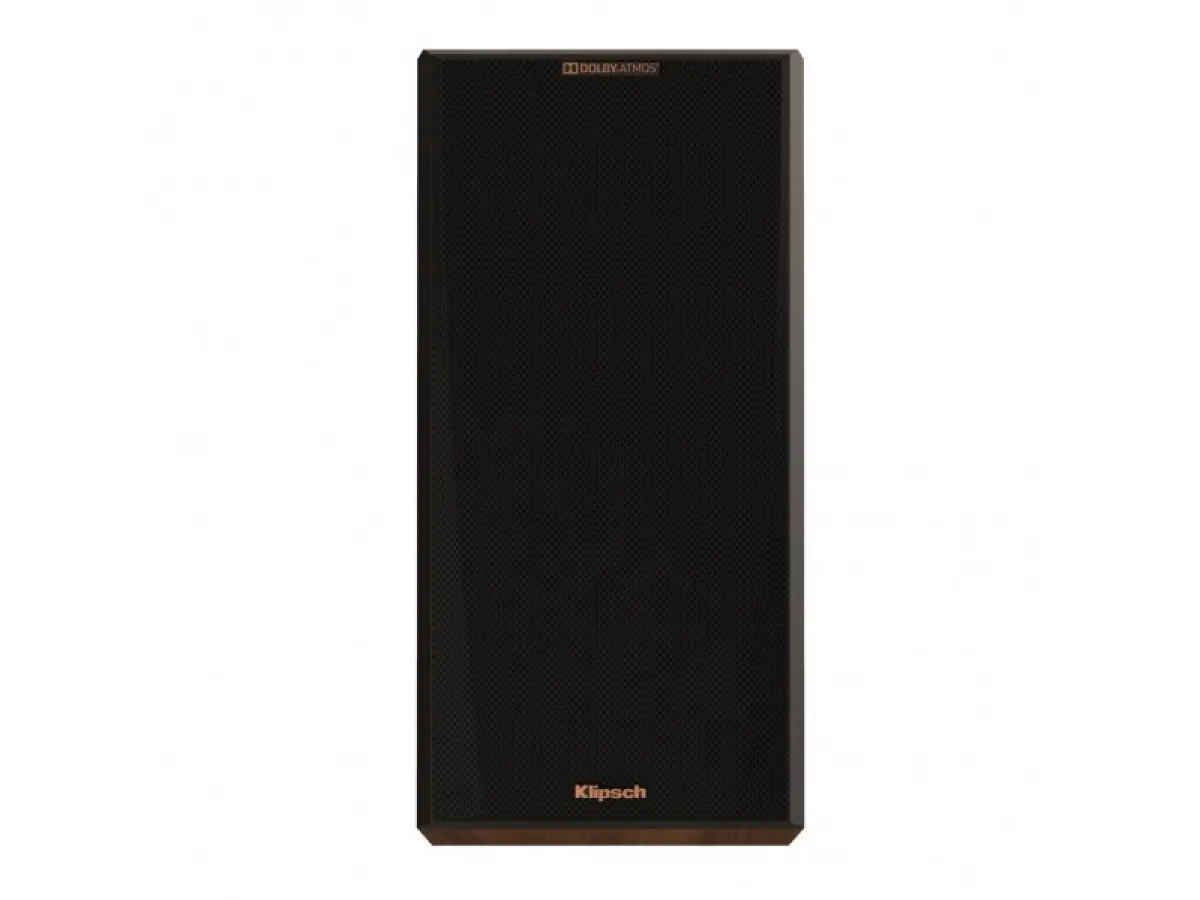

• Magnetic grille with hidden mounting attachments beneath the finish
• Elegant copper trim around the speakers
• Wall-mountable, with rubber feet and jumper terminals for connection to Reference Premiere II speakers included
• Scratch-resistant satin black front panel
• Dimensions (W x H x D): 173 x 217 x 320 mm
• Weight: 4.3 kg
