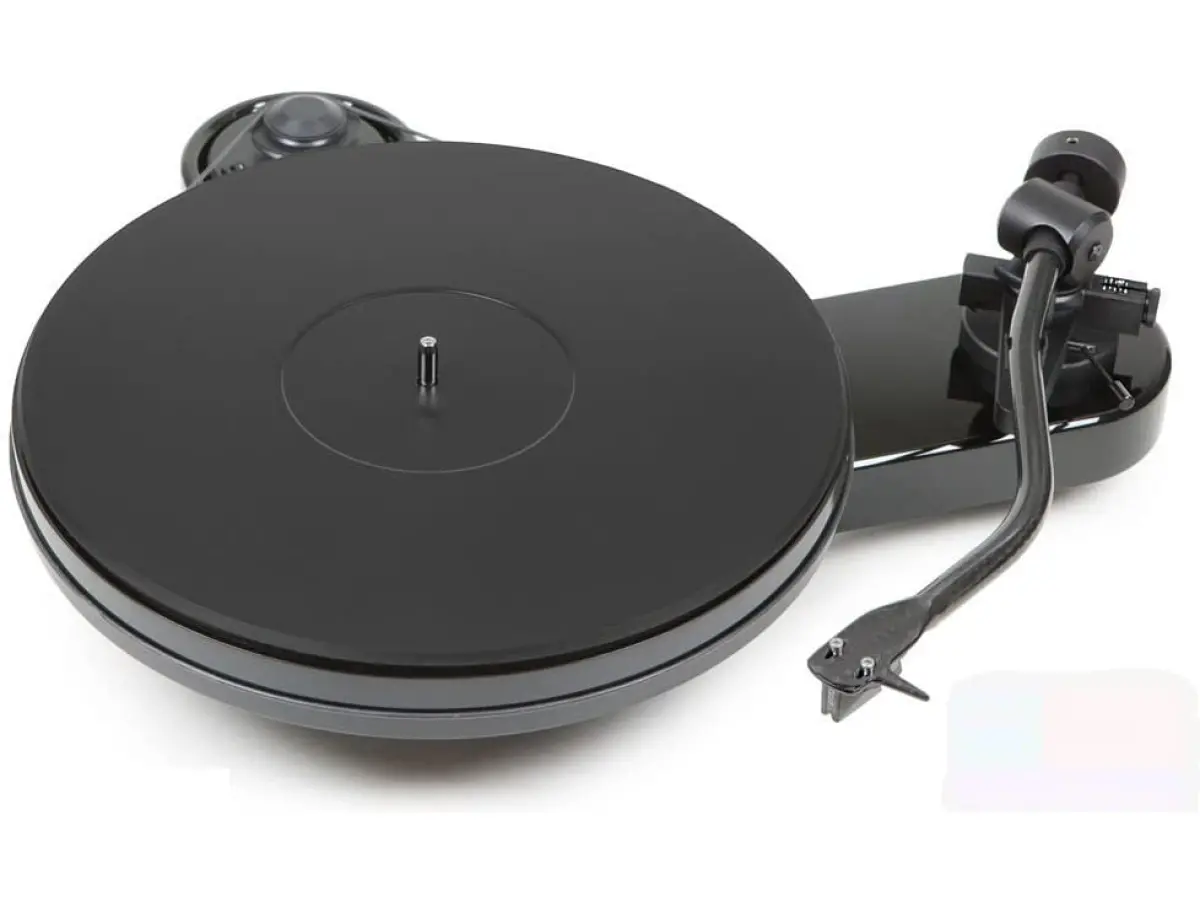

PROJECT RPM 3 CARBON 2M SILVER
Turntable
Code: 15651625
All our products are covered by Italian warranty.
Turntable including tonearm, pre-installed Ortofon 2M Silver cartridge, belt drive, 33/45 RPM speeds.
The RPM 3 Carbon turntable represents an evolution within the RPM series, introducing significant enhancements to optimize performance. Its low-resonance chassis houses an inverted platter bearing with a ceramic ball, further reducing background noise and ensuring exceptionally smooth rotation. The motor, isolated from the main structure, operates at 15V AC and is controlled by an ultra-precise AC generator powered by a DC supply, providing impeccable rotational stability.
The 10-inch S-shaped tonearm is crafted through a sophisticated manufacturing process that combines carbon fiber, aluminum, and resin. Undergoing a three-step heat treatment with 100-bar pressure application, the tonearm's rigidity is strengthened, internal damping is maximized, and resonances are minimized. Thanks to this advanced construction, it is also ideal for use with moving coil cartridges. A magnetic antiskating mechanism and TPE-damped counterweight complete the setup, ensuring optimal tracking control.
The MDF platter is designed to minimize unwanted vibrations and includes a vinyl mat for better coupling with records. The distribution of mass is carefully optimized to manage resonances, while the belt-drive system ensures smooth and consistent rotation.
Technical Specifications:
- Speed: 33, 45 RPM (manual speed change)
- Drive principle: Belt drive
- Platter: 300 mm MDF
- Main bearing: Stainless steel axle with ceramic ball
- Speed drift: 33 RPM: +/- 0.14% | 45 RPM: +/- 0.11%
- Wow & flutter: 33 RPM: +/- 0.19% | 45 RPM: +/- 0.08%
- Signal-to-noise ratio: -71 dB
- Tonearm: 10” carbon, aluminum, and resin
- Effective arm length: 254 mm
- Effective arm mass: 16 g
- Overhang: 16 mm
- Tracking force: 0 - 25 mN
- Included accessories: 15V DC / 500 mA power supply
- Power connection: 110/240 Volt - 50 or 60 Hz
- Power consumption: 5 watts max / < 0.5 watts standby
- Dimensions: 422 x 118 x 373 mm (W x H x D)
- Weight: 5.5 kg net
