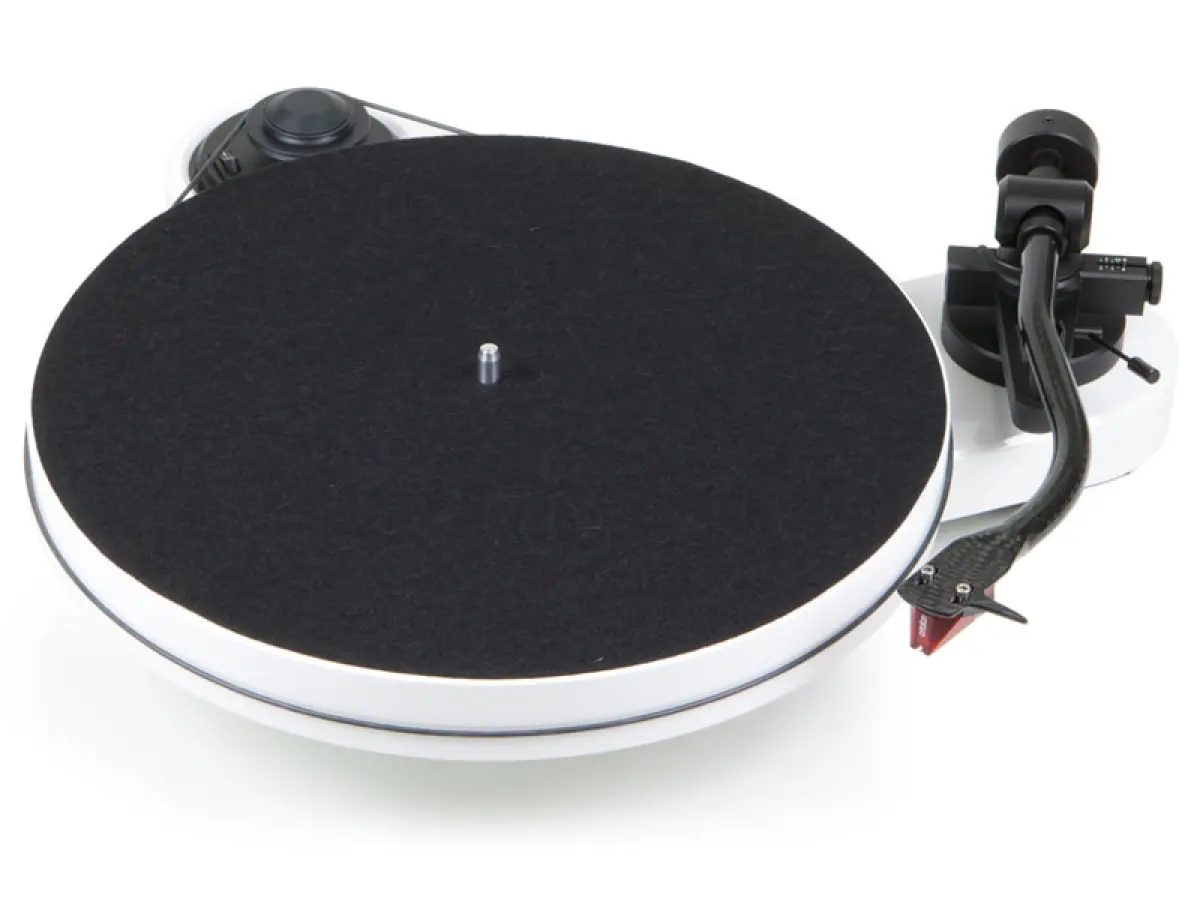

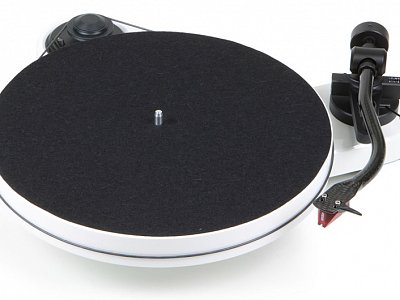

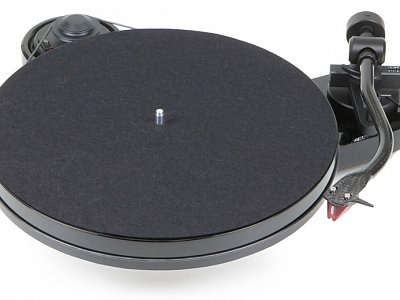

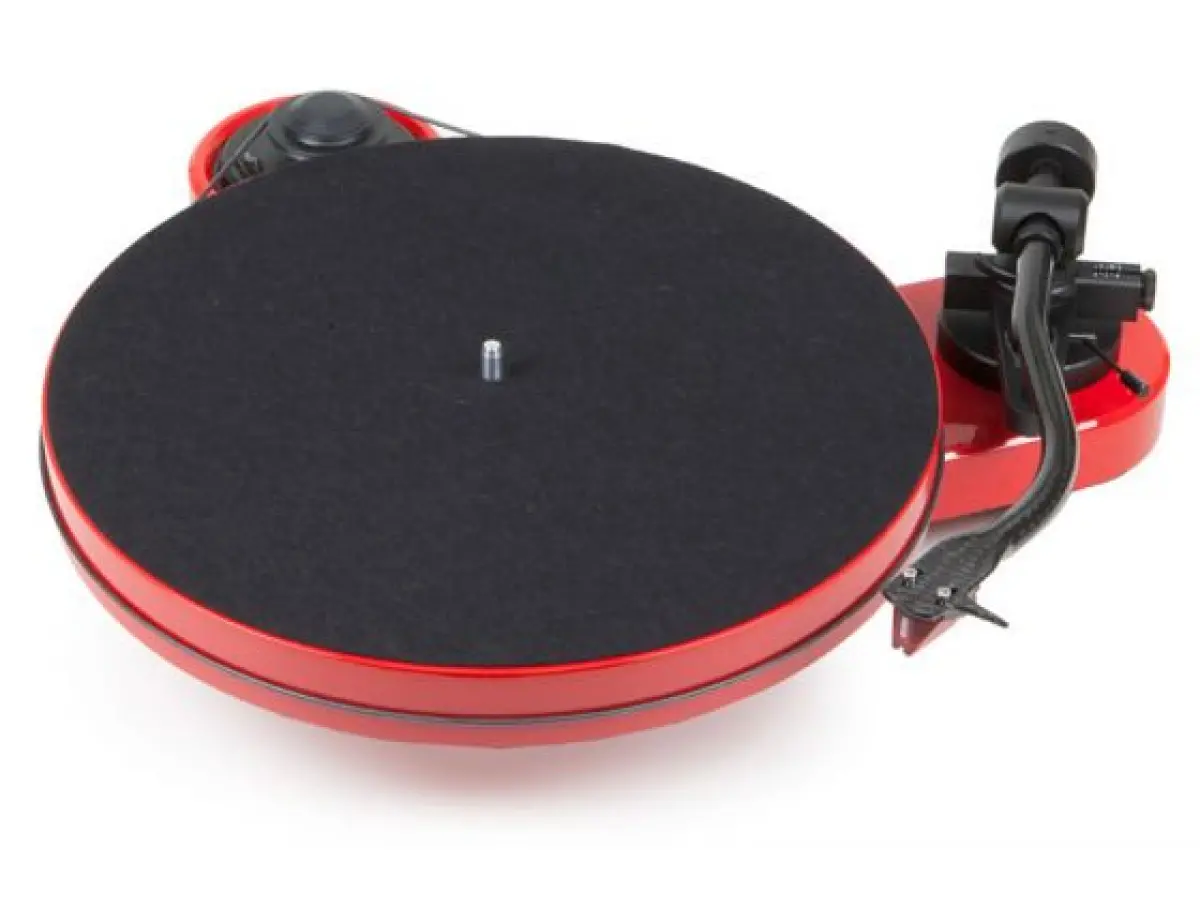

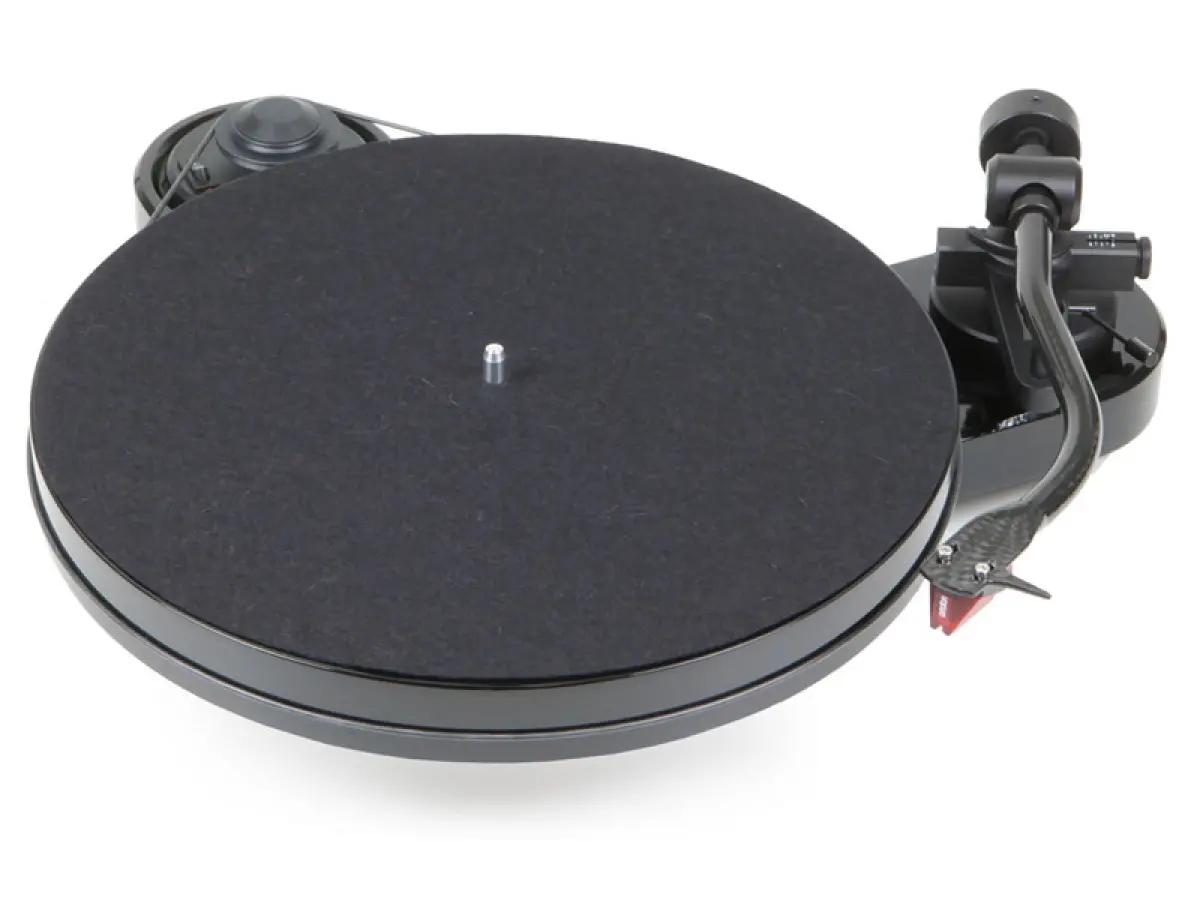

PROJECT RPM 1 CARBON 2M RED

With Ortofon 2M RED cartridge.
RPM-1 Carbon utilises a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. A completely new designed S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum.This makes the tonearm also suitable for MC cartridges. Additional features are a new magnetic antiskating mechanism and a TPE-damped counterweight. All ingredients add up to a miracle in sound for the price and ultra-stylish look!

??? Precision belt drive using synchronous motor
??? NEW Ultra-precision DC-driven AC generator motor power
??? NEW Inverted platter bearing with ceramic ball
??? Platter made from MDF using felt mat
??? NEW 8,6??? S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments
??? NEW Magnetic antiskating
??? NEW Counterweight with TPE damping
??? Available with or without Ortofon 2M Red cartridge
??? 3 high-gloss colours (black, red, white)


Technical data
Pro-Ject RPM 1 Carbon
Speed 33, 45 (manual speed change)
Drive principle belt drive
Platter 300mm MDF
Mains bearing stainless steel axle with ceramic ball
Wow & flutter 33: +/- 0,14% I 45: +/- 0,13%
Speed drift 33: +/- 0,27% I 45: +/- 0,19%
Signal to noise - 71dB
Tonearm 8,6??? carbon; aluminium and resin
Effective arm length 218,5 mm
Effective arm mass 13,5 g
Overhang 22mm
Tracking force 0 - 25mN
Included accessories 15 volts DC / 500 mA power supply
Power connection 110/240 Volt - 50 or 60 Hz
Power consumption 5 watt max / < 0,5 watt standby
Dimensions 380 x 110 x 350mm (WxHxD)
Weight 3,8 kg net
