MUSIC HALL MMF 11.3 SE Black

Price referred to the product on display in black

Complete with Ortofon Cadenza Black cartridge.

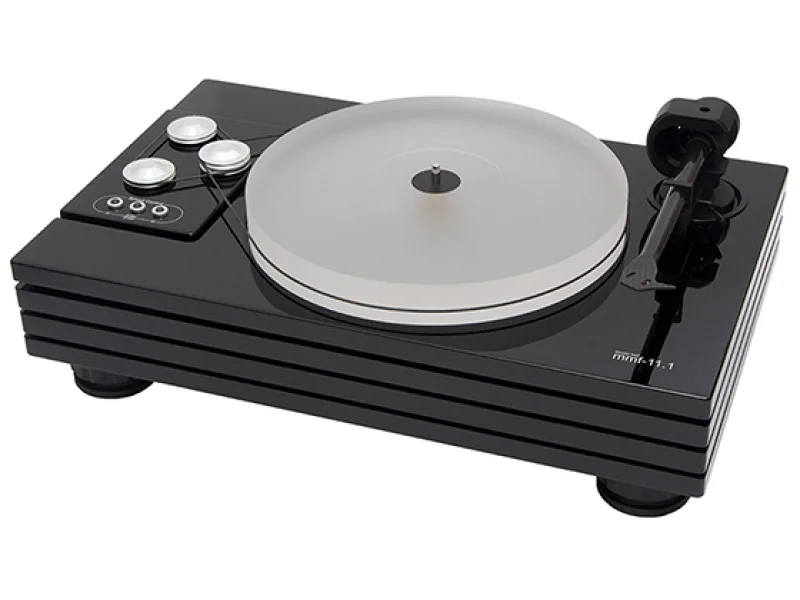

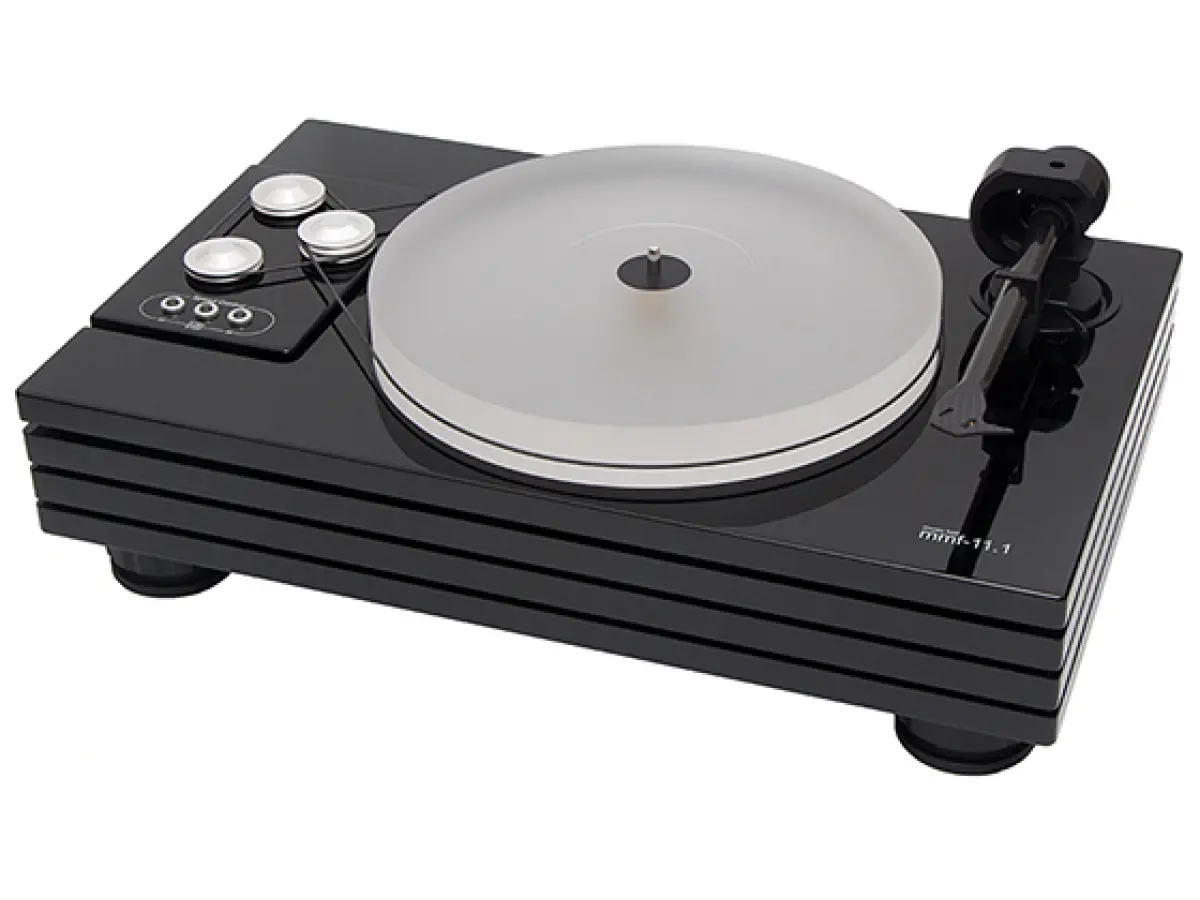

The music hall mmf-11.1 turntable, our latest flagship, is a 2-speed belt-driven audiophile turntable, featuring the unique quadruple-plinth construction originated by music hall.

Distinctive design
The distinctive design isolates the critical sound reproducing components, each on their own plinth. The tonearm is mounted to the upper plinth and the inverted ceramic main bearing is mounted to the second plinth allowing the partially sunken 1 1/2??? acrylic platter to spin freely.

Vibration damping
Moving the main bearing to the second plinth improved cartridge tracking and significantly lowered background noise. The adjustable magnetic-levitation isolation feet, microprocessor speed control, motors, flywheel, and wiring are all mounted to the bottom plinth. The motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform, which is separately isolated from the upper three main plinths.

Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth functions as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The mmf-11.1 comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dustcover is included.

Feature list
music hall's unique quadruple-plinth design w/sorbothane vibration isolation
one-piece Project 9cc Evolution carbon fiber tonearm
the arm uses four hardened Swiss ABEC 7 ball races in an inverted bearing design
tonearm is internally wired with flexible wire drawn from high purity copper with only two contact points from cartridge to output connectors
counterweight's center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
fully adjustable azimuth, VTA, and dampened arm lift
exclusive microprocessor electronic speed controlled dual motor single flywheel drive system
33 and 45 rpm speed change at the touch of button
motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
the dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge
magnetic-levitation adjustable isolation feet
inverted ceramic main bearing for super quiet fluid operation
thick acrylic platter
removable acrylic dustcover
high quality, gold RCA connectors with detachable phono cable
low noise fully manual belt-drive design, dustcover, 45rpm adaptor
ships securely in a substantial wood box
excellent instruction manual and easy assembly

Specifications
speed of turntable:     33 1/3 or 45 r.p.m.
change speed     electronically, luminous buttons
deviation speed     < ±0.1%
variance speed     < ±0.08%
mechanical distance     > -45dB
electrical distance     > -65dB
drive     silicone belt over pulley
motor     2 x synchronous motors; the motor is controlled via microprocessor
platter     acrylic (11.8 in., 300 mm) weight ??? (7.4lbs., 3.35 kg)
power     switching power supply (90 ??? 246 VAC, 47-63Hz) type EU, UK,USA
electric input     23W DC
effective arm length     9in. (230 mm)
effective arm mass     8.5 g
mounting distance     8.3 in (212 mm)
overlap     .71 in (18 mm)
angle crank     24°
course zero error angle     ø 130.5, ø 243.7
force on the tip     0-3 g
plinth material     MDF
belt material     silicone rubber
product dimensions     21.3??? x 13.8??? x 7.8??? (540 x 350 x 197 mm) 39.5 lbs. (17.9 kg)
