PIONEER TX-720

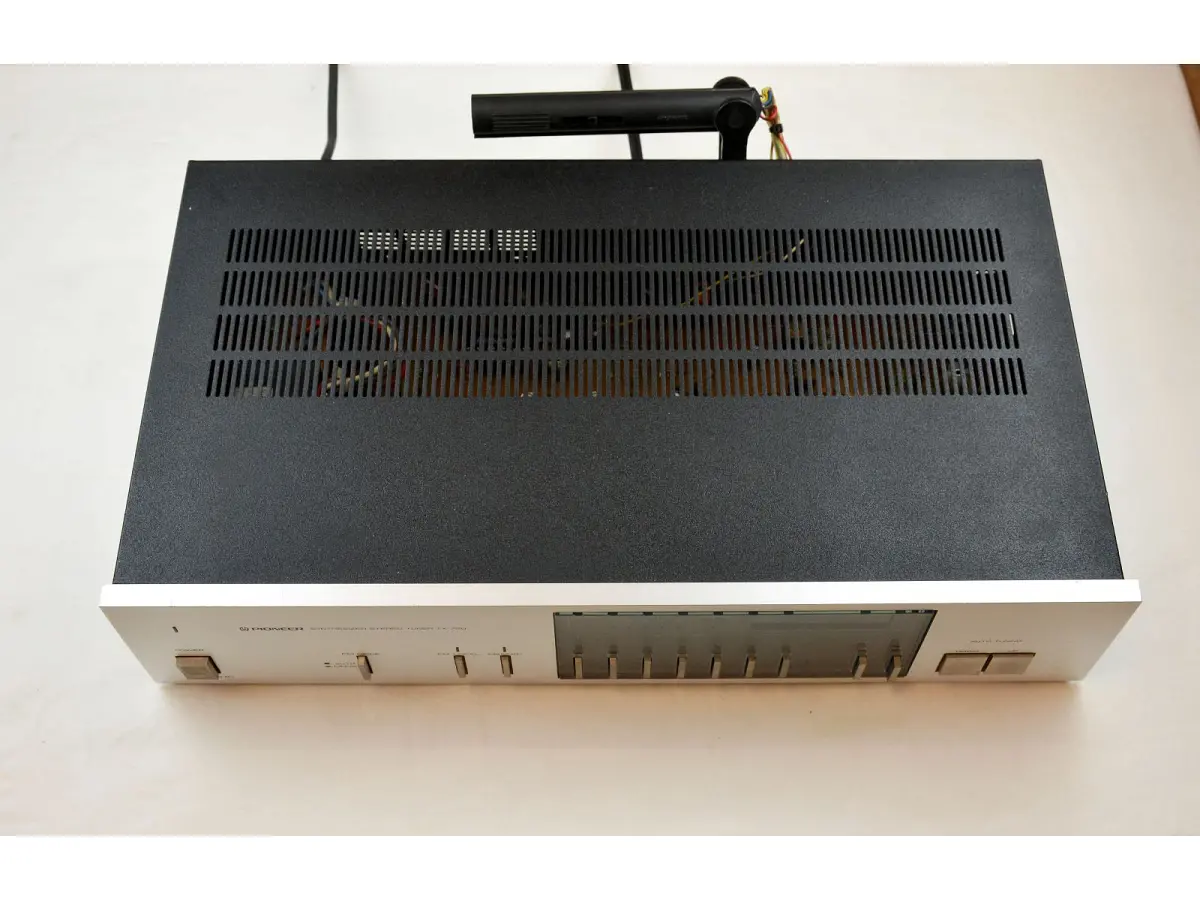

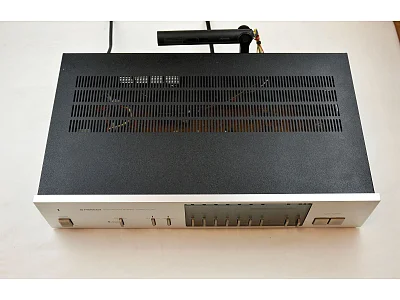

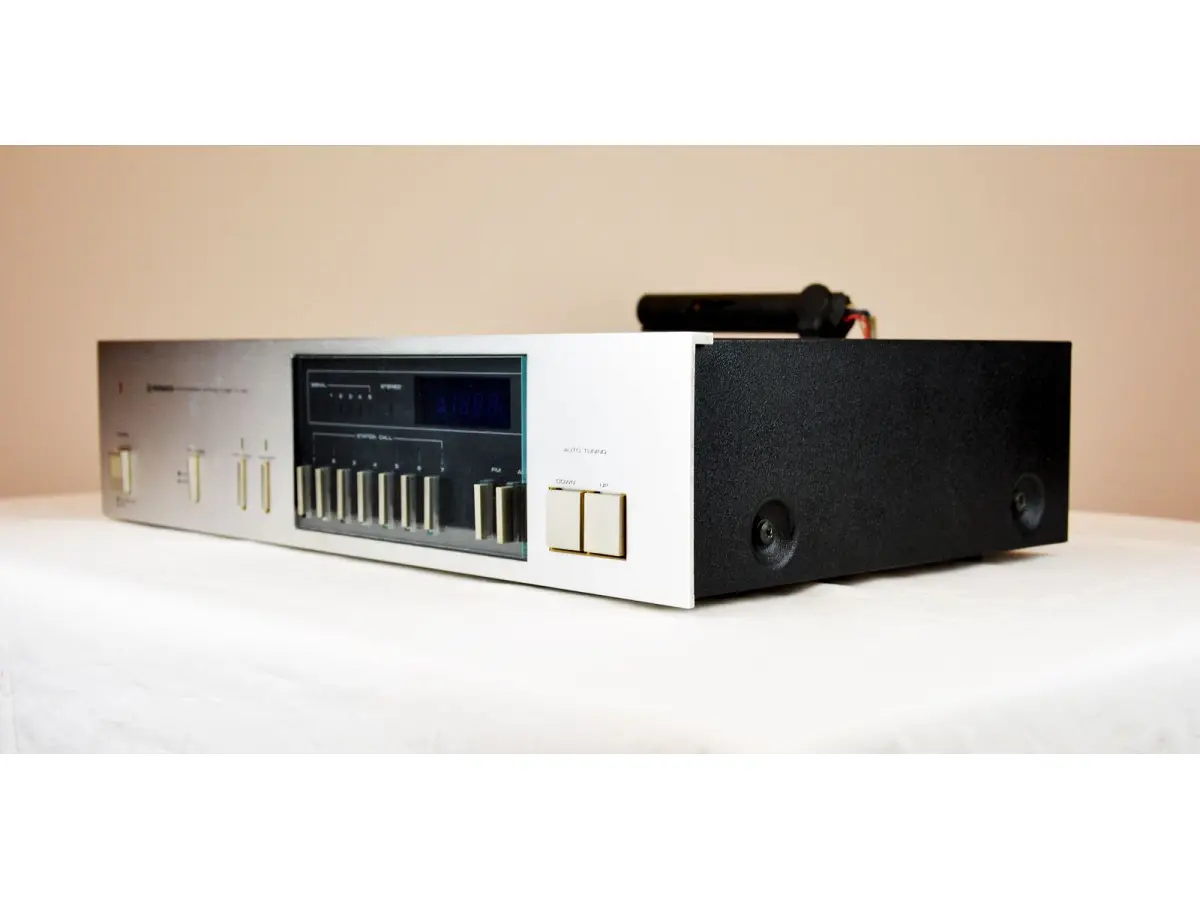

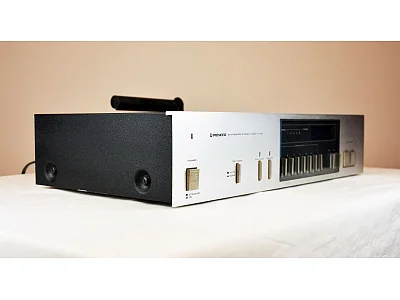

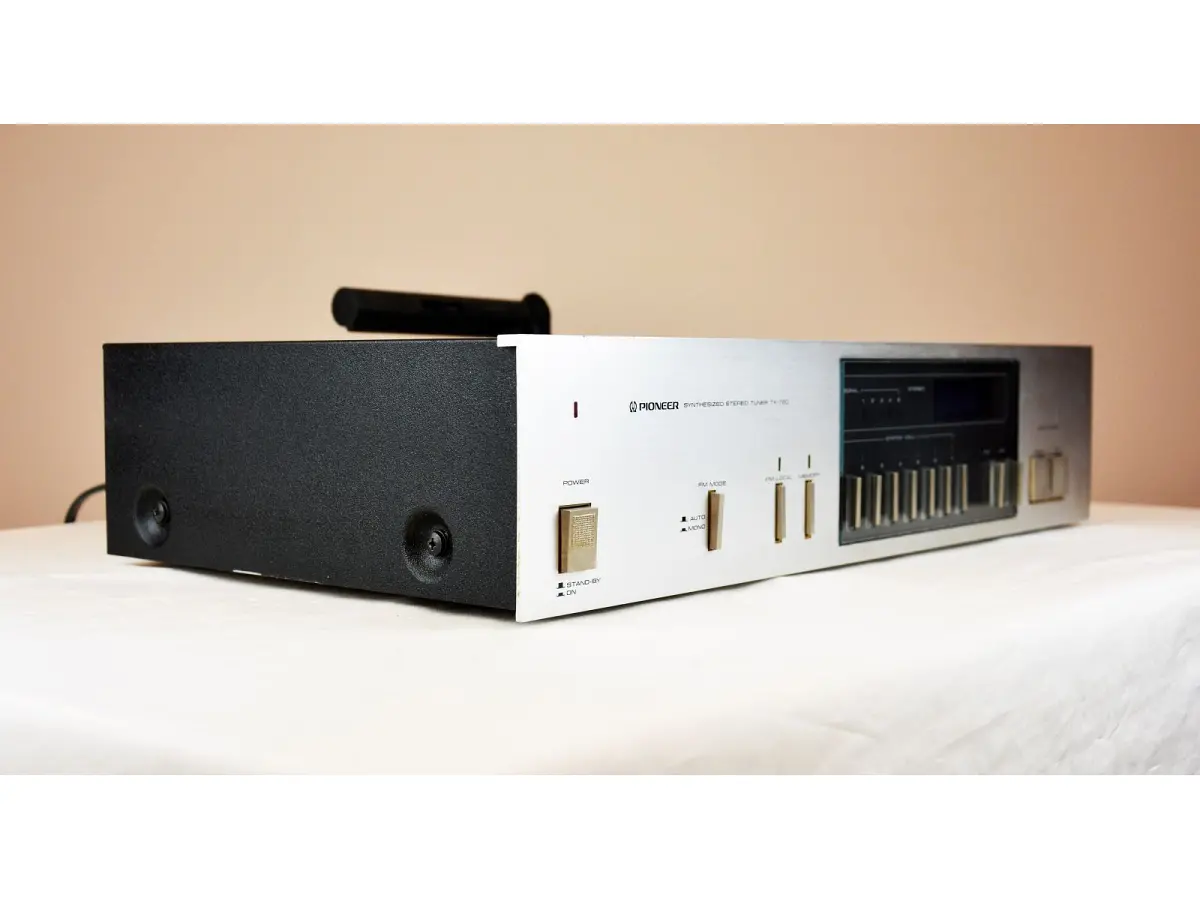

Second-hand. In good conditions. Shows some signs of wear as seen in the photos. Without original packaging.

The Pioneer TX-720 is a digital FM/AM stereo tuner produced between 1981 and 1982, making it an excellent choice for vintage hi-fi enthusiasts. With its sleek design and reliable performance, it integrates seamlessly into any home audio system.

This tuner provides accurate reception on both FM and AM bands, with a sensitivity of 1.9 µV for FM and 300 µV for MW, ensuring clear and stable signal quality. The signal-to-noise ratio is 75 dB for FM and 50 dB for MW, while the total harmonic distortion is just 0.15% for FM, delivering clean and faithful sound reproduction.

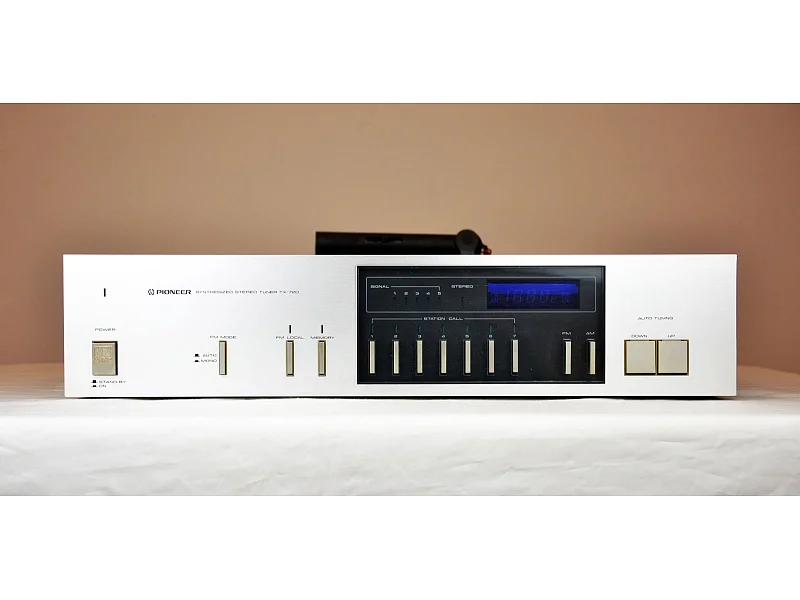

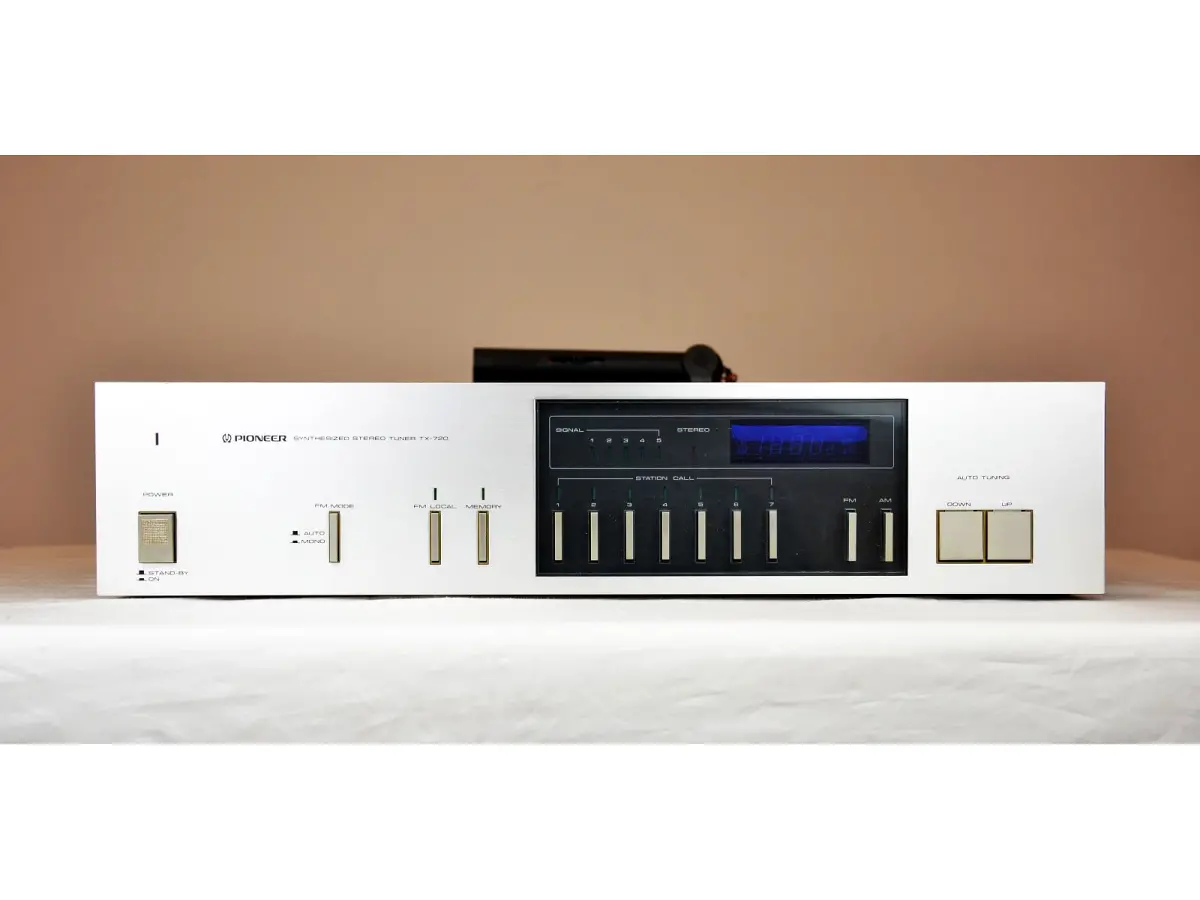

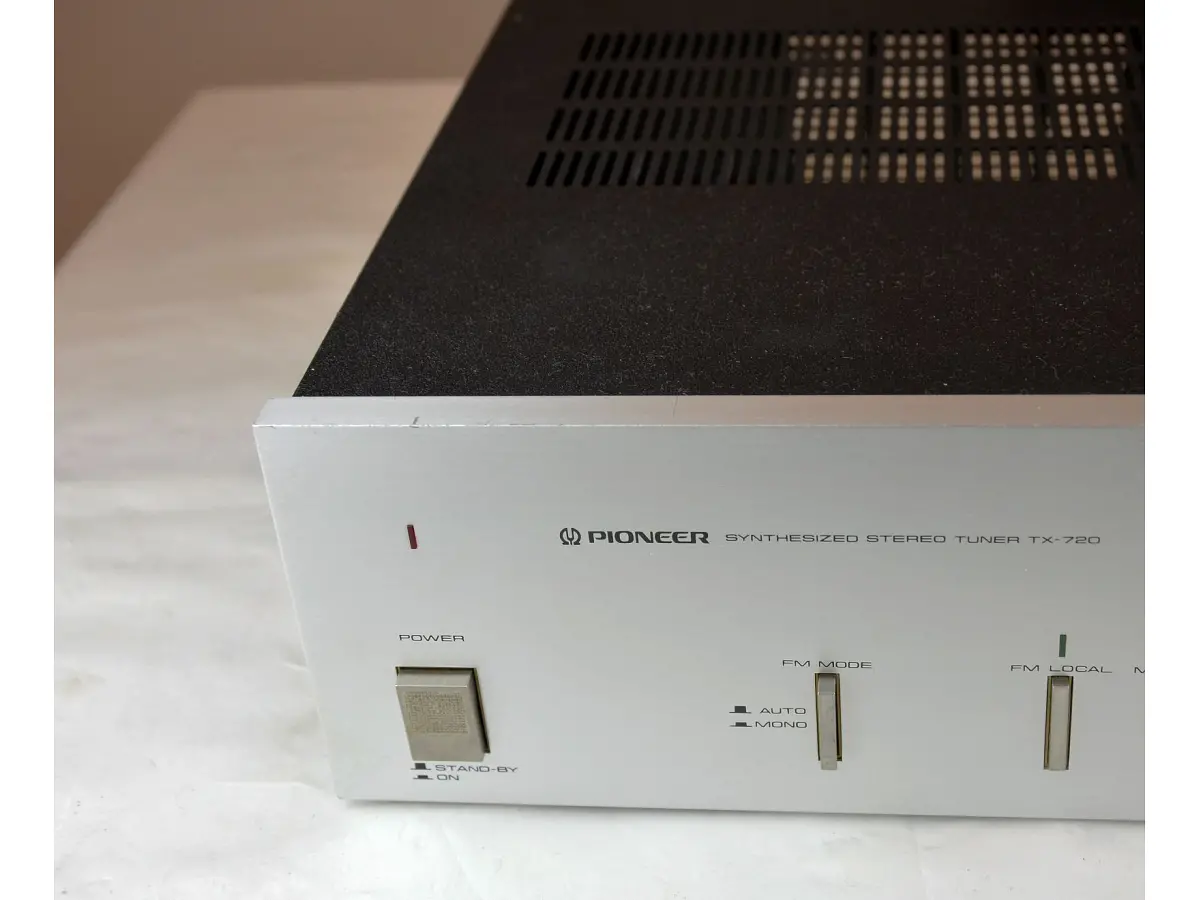

The TX-720 features a digital tuning scale with a blue LED display, allowing for precise station selection. Up to seven stations can be stored for each band, providing quick access to your favorite channels. Additional features include an FM Mode selector (auto/mono), FM Local button, Memory button, and preset buttons for memories 1 through 7.

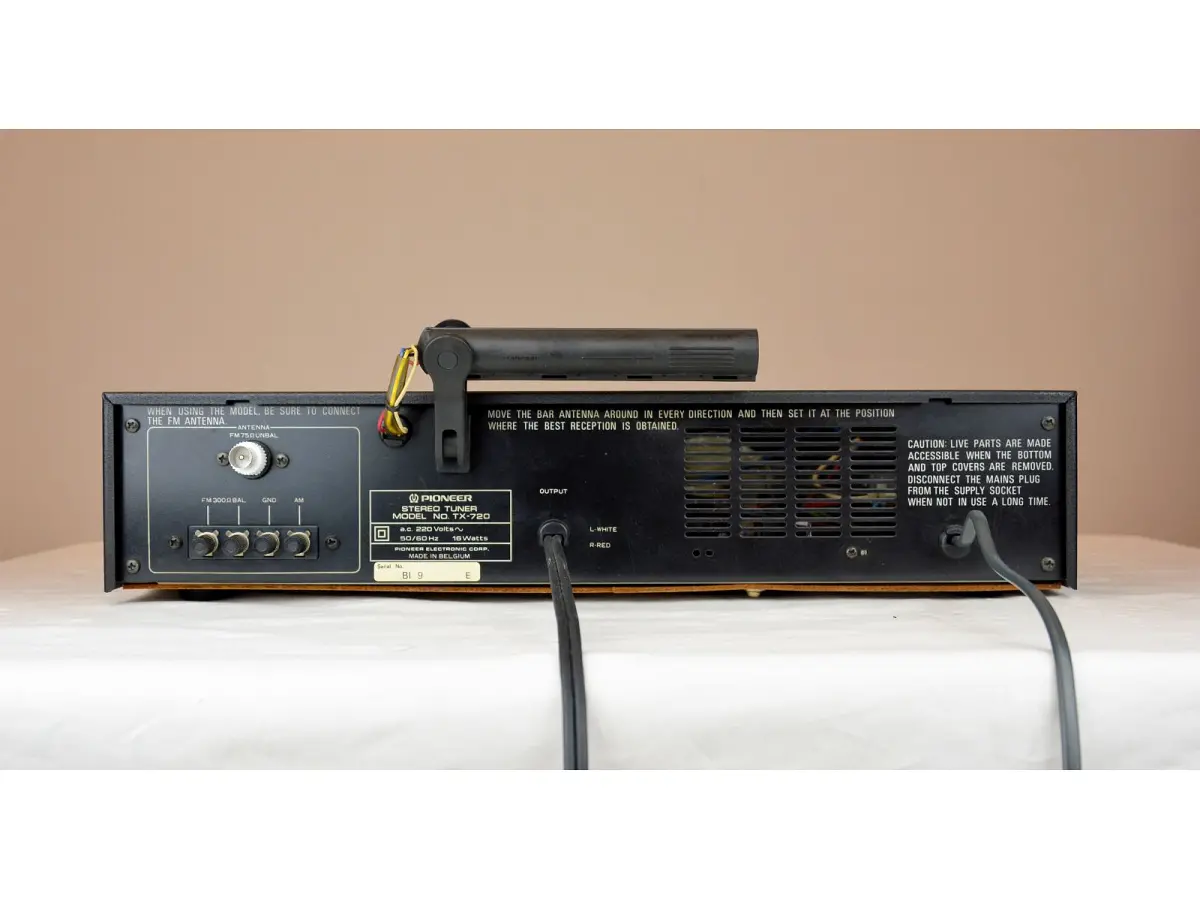

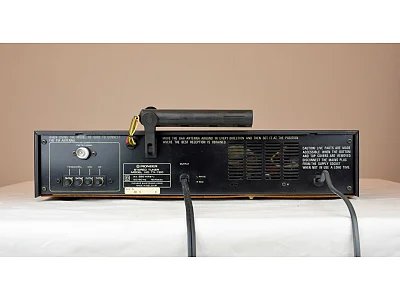

On the rear panel, the tuner is equipped with screw-type terminals for AM and FM antenna inputs (75 and 300 Ohm), offering flexible installation options.

Technical Specifications:

• Type: Mono/Stereo Tuner
• Tuning Bands: FM, MW (Medium Wave)
• Tuning Scale: Digital
• Sensitivity: 1.9 µV (FM), 300 µV (MW)
• Signal to Noise Ratio: 75 dB (FM), 50 dB (MW)
• Total Harmonic Distortion: 0.15% (FM)
• Selectivity: 60 dB (FM), 25 dB (MW)
• Frequency Response: 20 Hz to 15 kHz (FM)
• Output: 650 mV (FM), 150 mV (MW)
• Dimensions: 420 x 94 x 262 mm
• Weight: 3.3 kg
