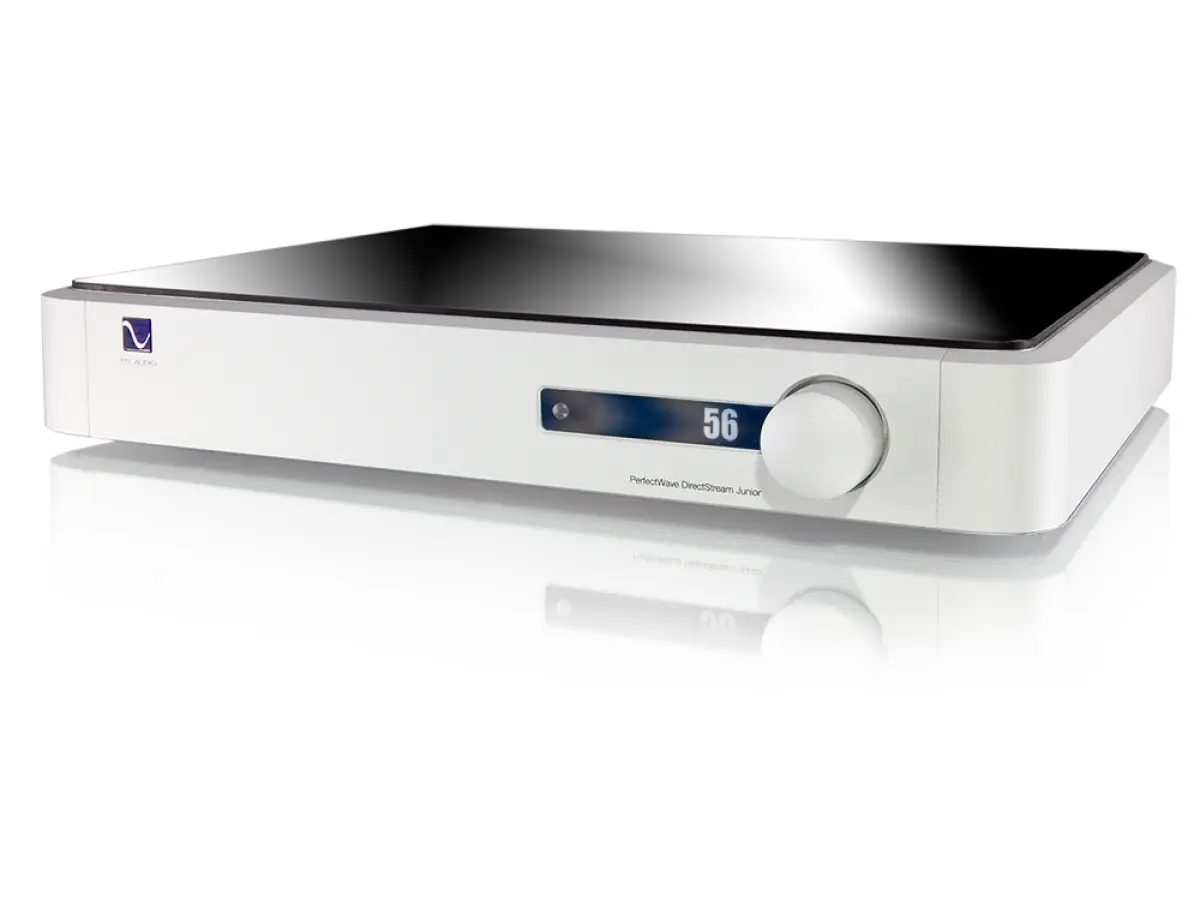

PS AUDIO DIRECTSTREAM JR DAC

Introducing DirectStream Junior (DSJ), a world class DAC based on the architecture of the Stereophile and Absolute Sound’s Product Of The Year, DirectStream. Hand-written, discrete, perfection based conversion that uncovers all the missing information hiding in your digital audio media for all these years. CD’s, downloads, high-resolution PCM or DSD based media are expertly upsampled in the DSJ to ten times DSD rate and output as pure analog directly into your amplifier or preamplifier. Classic PCM-based DACS, including many of today’s DACS that can also process DSD, tend to cover up some of the subtle musical details buried deep within digital audio music; a problem inherent in their architecture. DSJ solves this problem by employing a pure DSD single-bit approach for both PCM as well as DSD media. This means that your entire library of music can finally reveal all the music and subtle low level details buried deep within its core - and now, at a more affordable price than its progenitor, DirectStream.
Imagine going to a recording studio and listening to a master tape of any recording made. This is the experience DSJ affords its owners who enjoy a renewed sense of enjoyment and discovery when listening to everything in their library: CD’s, downloads, DSD.


Specifications
Physical
Unit Weight 18 lbs [8.1 kg]
Unit Dimensions 14" x 17" x 2.75" [ 36cm x 43cm x 6.98cm]
Shipping Weight 27 lbs [12.25 kg]
Shipping Dimensions 20.5"x 24" x 10" [52cm x 61cm x 25cm]


Power requirements
Input Power Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
Power Consumption 30W

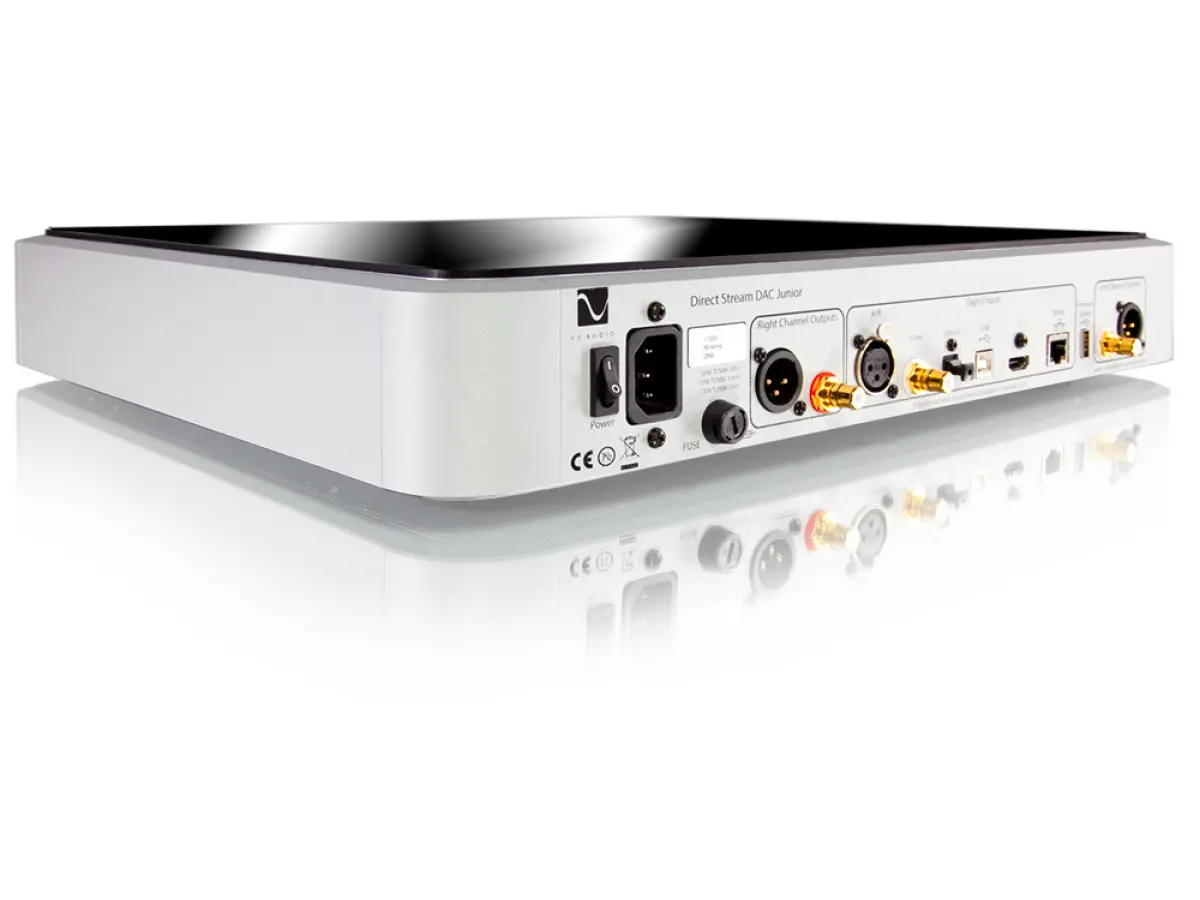

Digtial audio inputs
I²S, Coax, XLR Balanced, TOSLINK, USB, Ethernet
Sample Rates
I²S,S/PDIF, and USB -- 44.1kHz to 352.8kHz 16bit, 24bit, DSD 64, DSD 128
TOSLINK - 44.1kHz to 96kHz 16bit, 24bit

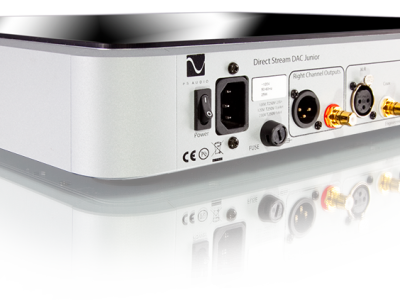

Analog Audio Output
Connector RCA/XLR Unbalanced /Balanced (X2)
Output level, low 1.41 Vrms(+5BV)/3.15
Output level high, maximum 2.81 Vrms (+8dBV)/5.3 Vrms (+12dBV)
Output Impedance 100„Š/200„Š
Frequency Response 20-20KHz +/- 0.25dB
THD+N @ 1KHz (full scale) 146 dB
Digital Volume Control Zero loss of precision
Analog Conversion method Delta Sigma (DSD) Single-bit double rate


I²S Digital Input
Connector HDMI
Format PCM or DSD. DoP on all inputs as well as raw DSD on I²S inputs


USB Digital Input
Connector USB "B" Type
Format PCM or DoP v1.1 (DSD over PCM)
Transfer mode Asynchronous
