ONIX CD10
CD Player
Code: 85935454
All our products are covered by Italian warranty.

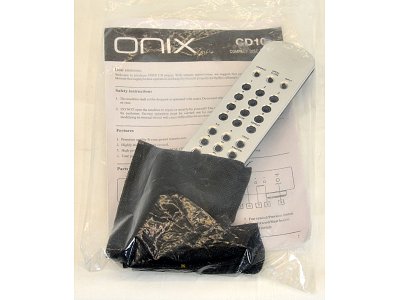

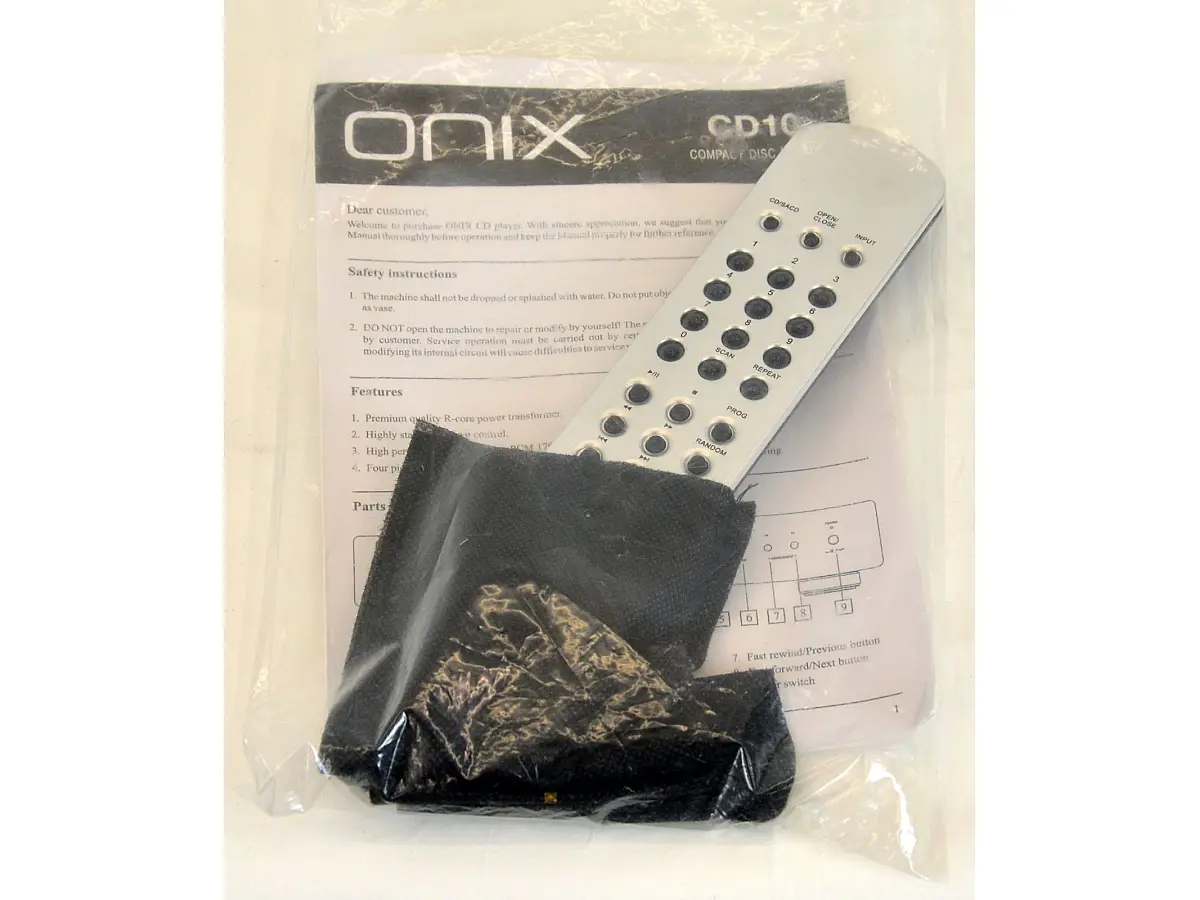

Second hand, in very good condition, without scratches. Supplied with remote control, without its original box.
A CD player which has all the sound characteristics to be combined with a sound system of a more high level. Designed to satisfy music lovers looking for a well-made product with a competitive price.

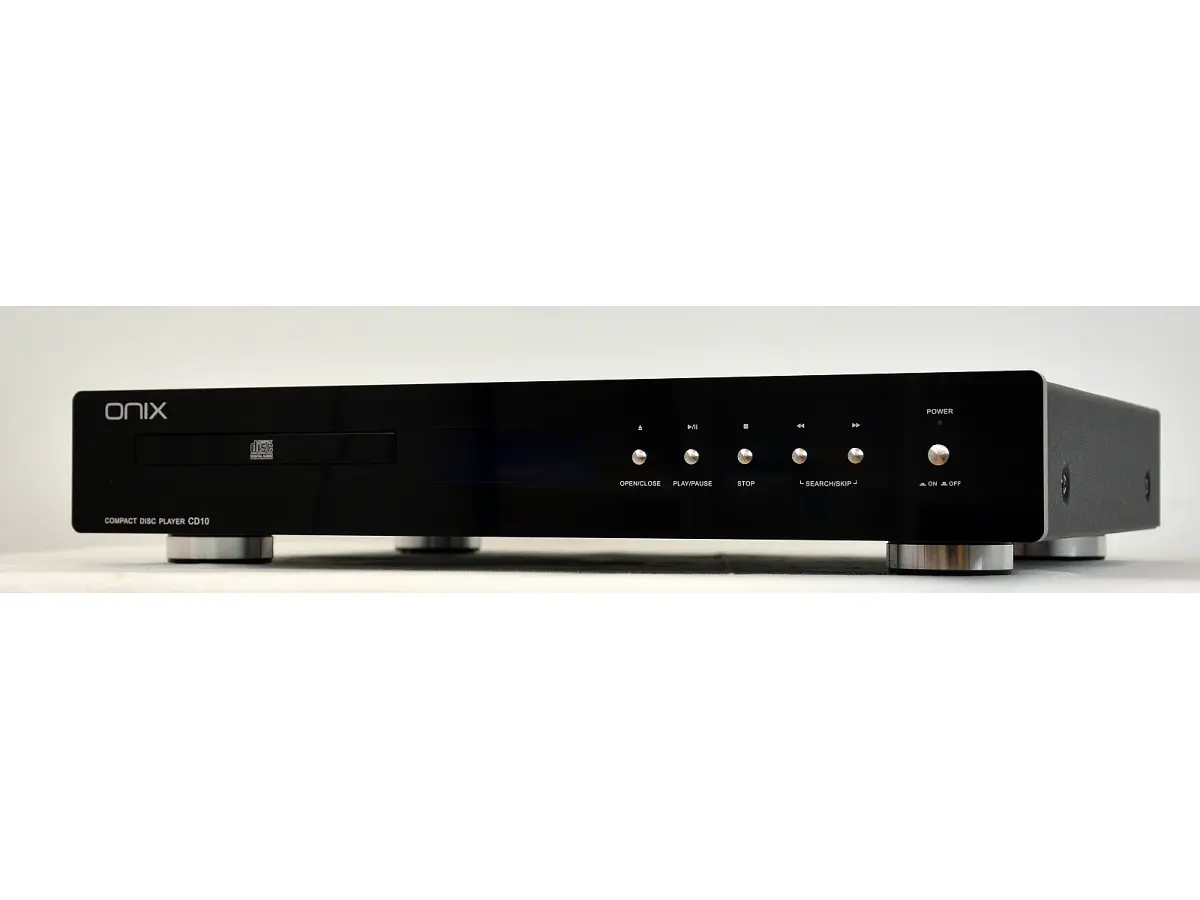

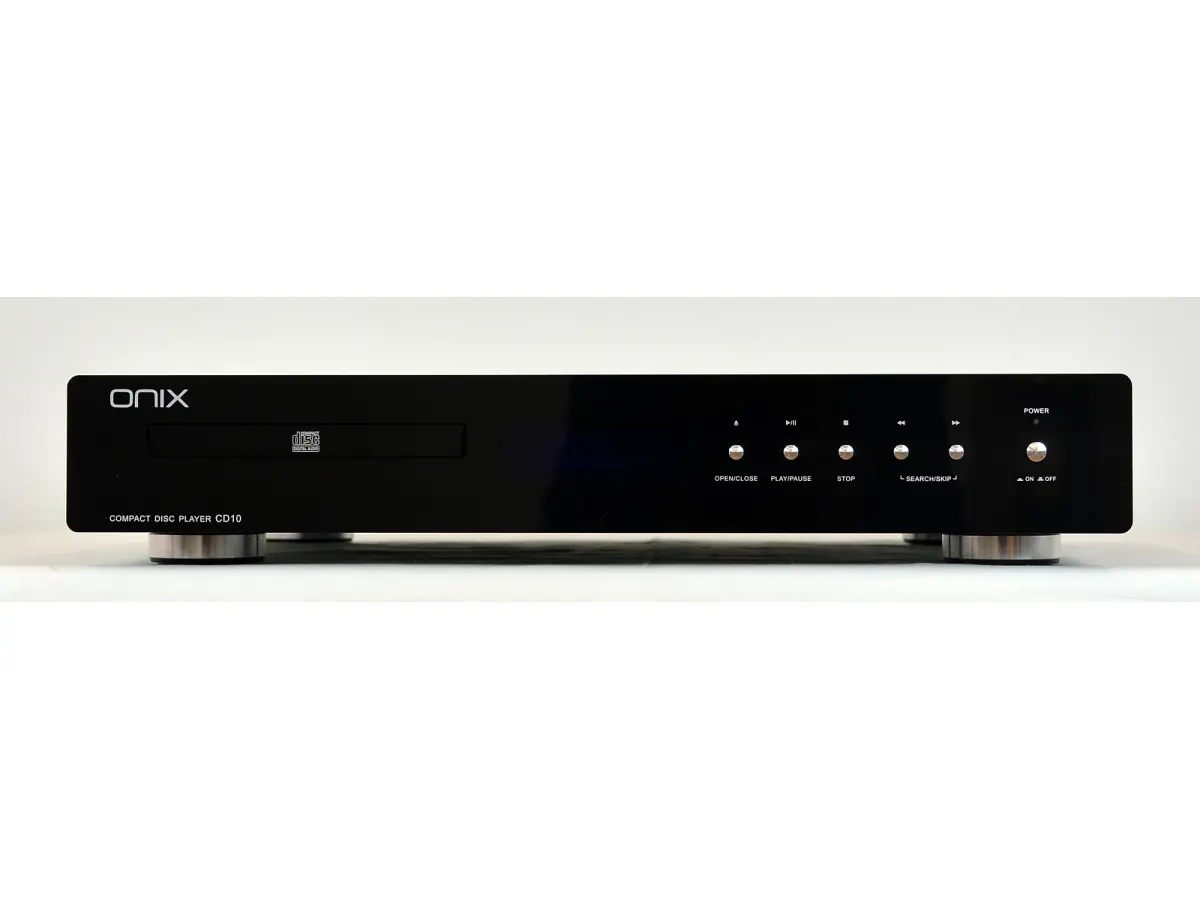

Front: Black Glass, steel buttons neatly lined on the right side. Quality engineering of the CD drawer positioned on the left and the display on the central.
The PCM1796 is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package. The data converters use TI’s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
Components:
Mechanical section: Transport SANYO HD850 super-linear mechanics, controlled by an MTK servo, laser SANYO DV 34.
D/A converter: DAC PCM 1796 24Bit/192 KHz Burr Brown, 4 x NE5534 and 1 x NE5532, Op Amps used for I/V conversion.
Power supply: R-CORE “high grade silicon steel core” transformer made to specifications Onix.
Specifications:
Output level: 2.0 Volt
Frequency response: 10Hz~20KHz (±0,5 dB)
Signal/noise Ratio: >108dB (A weighted)
THD: >0,004% (1KHz)
Dynamic range: >102dB
Channel separation: >96dB (1KHz)
Dimensions (W × D × H): 430 × 355 × 80 mm
Weight: 5,7 Kg
Power supply: 220V-240V AC
