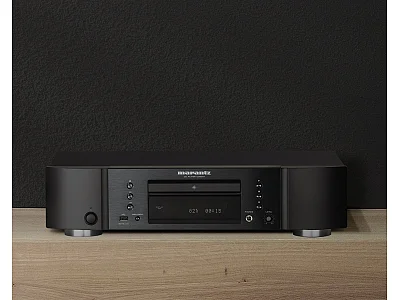

MARANTZ CD6007

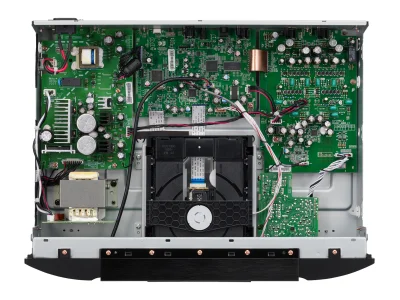

Further optimizing the award-winning CD6006, the CD6007 player features even more carefully selected components and an improved circuit layout. The rigid feet help reduce unwanted vibrations, while the oversized low-noise power supply efficiently powers both the digital and analog circuits of the player. The new high-quality AK4490 DAC, along with two selectable filter options, converts digital signals into analog, which are then sent to the gold-plated output terminals via Marantz’s proprietary signal amplifier, the HDAM-SA2 module. Additionally, a new remote control is included, which can also manage the PM6007 amplifier. The CD6007 is equipped with a newly designed, sophisticated headphone amplifier, featuring a gain adjustment to suit a wide range of headphone models.

Main Features:

• Versatile playback for all your music: enjoy your collection of CDs and CD-R/RW discs.
• Full support for your music files: play WAV, MP3, AAC, WMA, FLAC HD, ALAC, AIFF, and DSD files via the front USB port.
• Uncompromised sound quality: high-quality AK4490 DAC, ideal for high-resolution files.
• Optimized audio playback: two selectable digital filters to enhance digital music content.
• Designed for your sound: further refined sound thanks to carefully selected components.
• High-quality sound even with demanding headphones: fully discrete headphone amplifier with HDAM-SA2, gain control, and auto-off feature.
• Elimination of interference for superior sound quality: double-layer bottom plate and rigid feet for cleaner sound.
• Optimal amplifier connection: gold-plated L/R/Coax outputs for stable connection.
• Easy to use: universal remote control for CD player, amplifier, and Marantz network player.
• Fits any environment: available in black or silver-gold finishes.

Marantz HDAM Technology: Marantz has developed discrete circuits to replace traditional integrated circuits, using HDAM (Hyper Dynamic Amplifier Module) modules made from discrete surface-mount components. The signal paths for the left and right channels are short and symmetrical, ensuring superior response speed and noise reduction compared to operational amplifiers, resulting in a more dynamic, precise, and detailed sound. In the CD6007, the HDAM-SA2 module further improves upon the previous HDAM, ensuring greater power supply stability. The idle current is less influenced by the temperature variations of the power transistors, maintaining optimal sound performance even at high output levels.

Reference Quality D/A Converter: The CD6007 is equipped with a new high-resolution D/A converter. Fitted with the Reference-class AK4490 DAC, it offers two selectable filter options and a resolution of up to 192 kHz/24-bit and DSD up to 5.6 MHz. This ensures optimal musical fidelity, with fast bass, pleasant mids, and smooth highs for accurate playback of CDs and high-resolution formats from USB storage devices.

High-Current Power Supply: The audio power supply of the CD6007 uses high-speed, high-current Schottky diodes and new filter capacitors, which have been improved over previous models. The size of the power supply capacitors has been increased by 120%, improving current stability and reducing AC noise during more demanding listening sessions.

Headphone Amplifier with HDAM-SA2 and Gain Settings: Compared to the CD6006, the CD6007 features a redesigned headphone amplification section. The player is equipped with the exclusive Marantz HDAM-SA2 circuit, with three gain settings (Low/Medium/High) for perfect compatibility with almost all headphones. Additionally, the headphone amplifier includes an "Off Circuit" function that automatically turns off the circuit when no headphones are connected, preventing interference or unwanted noise.

High-Resolution USB Audio Playback: The CD6007 can play MP3, WMA, AAC, WAV, FLAC HD, ALAC, AIFF (up to 192 kHz/24-bit), and DSD (up to 5.6 MHz) files from a connected USB storage device.

Digital Filter: The CD6007 introduces a new selectable digital filter with two modes (Filter 1 and Filter 2). Filter 1, with a slower roll-off, improves the depth of the stereo image, while Filter 2, with a sharper roll-off, offers a more precise reproduction of the stereo image. Both filters optimize digital music playback via the new AK4490 DAC.

Technical Specifications:

• Supports CD, CD-R/RW, MP3, and WMA
• CD-TEXT display
• AK4490 DAC
• 2 selectable digital filters
• Headphone output with HDAM-SA2 and gain control
• USB input supporting WAV and DSD 5.6
• Ex Audio mode
• Headphone outputs
• Coaxial and optical digital outputs
• Gold-plated RCA outputs
• Separate power cable
• Remote control
• Dimensions (W x D x H) in mm: 440 x 340 x 105
• Weight in kg: 6.5
