MARANTZ CD60

CD player with a USB-A port on the front panel, allowing playback of a wide range of digital files such as MP3, WMA, AAC, and WAV, FLAC HD, ALAC, AIFF (up to 192 kHz/24 bit), and DSD (up to 5.6 MHz) from a connected USB storage device. New HDAM (Hyper Dynamic Amplifier Modules) allow for more controlled current flow, resulting in a significant reduction in distortion at high frequencies. The new DAC supports up to 192 kHz/24 bit and DSD 5.6 MHz for optimal musical fidelity with incredible clarity across all frequencies. The headphone amplifier features three gain settings, ensuring perfect pairing with virtually any headphones (it can also be turned off when not in use to eliminate unwanted interference).

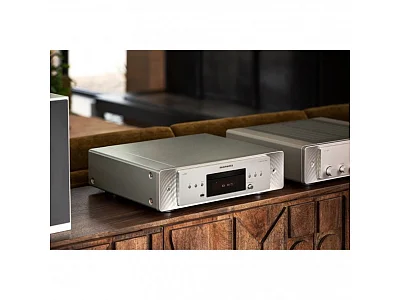

With its modern style and truly musical sound, the CD 60 inspires listeners to discover new details in their favorite CDs.

Rich, warm, and spacious sound
Skillfully perfected by the legendary Marantz Sound Master to achieve the most musical sound. Up to the task of your collection – the CD 60 is the CD player that will do justice to your beloved CD collection.

Optimized HDAM circuits

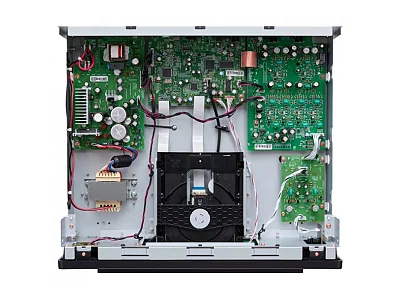

The HDAM circuit in the Marantz CD 60 has been further optimized compared to its previous version, with parts symmetrically positioned on the audio board and a more direct signal path. This upgrade improves the soundstage over previous models, delivering the most musical sound.

High-current power supply
The CD 60 power supply uses high-speed, high-current Schottky barrier diodes, high-value current storage capacitors, and improved voltage regulators compared to previous models in this class. The oversized capacitors in the power supply enhance current stability and reduce noise during demanding listening sessions.

Plays high-resolution USB audio sources
The Marantz CD 60 can play MP3, WMA, AAC, WAV, FLAC HD, ALAC, AIFF (up to 192 kHz/24 bit), and DSD (up to 5.6 MHz) files from a connected USB storage device.

Technical Specifications:

Frequency Response:

• CD: 2Hz - 20kHz
• USB PCM: 2Hz - 50kHz (-1.5dB)
• USB DSD: 2Hz - 50kHz (-3dB)

Harmonic Distortion:

• CD: 0.0015%
• USB PCM 24bit: 0.0005%
• USB DSD: 0.0006%

Signal-to-Noise Ratio (S/N):

• CD: 118dB
• USB PCM 24bit: 118dB
• USB DSD: 110dB

Dynamic Range:

• CD: 101dB
• USB PCM 24bit: 118dB
• USB DSD: 110dB

Output Levels:

• Line output: 2.2 Vrms
• Headphone output: 28 mW / 32 ohms

Output Circuit: New HDAM + HDAM-SA2

DAC: ES9016K2M

Digital Filters: Two selectable filters: Filter 1 or 2

Disc Playback: CD, CD-R, CD-RW, MP3, WMA

Outputs:

• Analog: Gold-plated RCA
• Digital: Optical and Coaxial

Front Input: USB A

Supported Formats: FAT 16/32, AAC, WAV, FLAC, AIFF, DSD, DSF (up to 5.6MHz)

Headphone Output: With HDAM-SA2 circuits and three selectable gain levels (Low, Medium, High)

Dimensions: 442 x 129 x 396 mm (W x H x D)

Weight: 7.5 kg
