SOUNDSMITH SUSSURRO

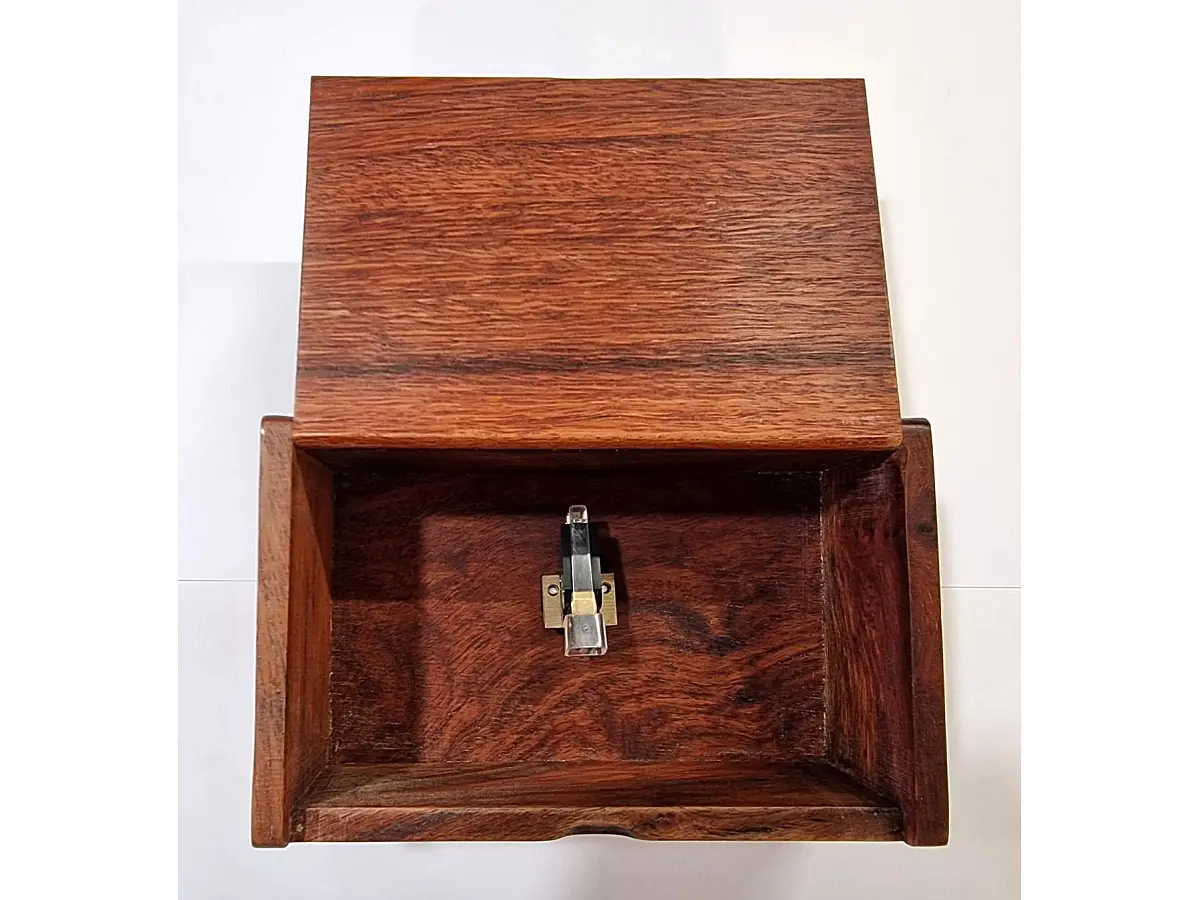

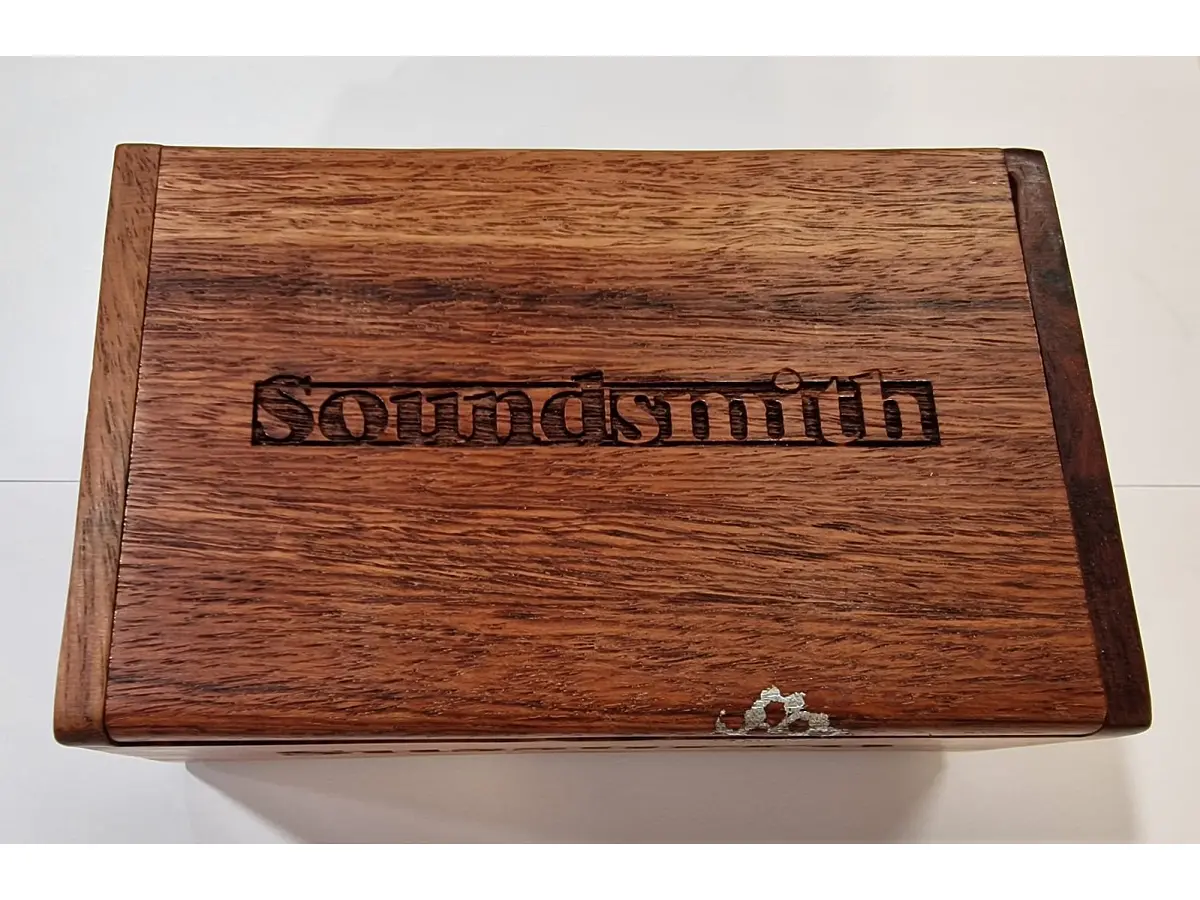

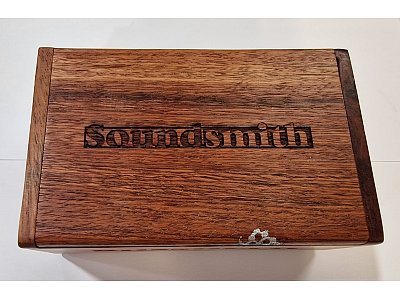

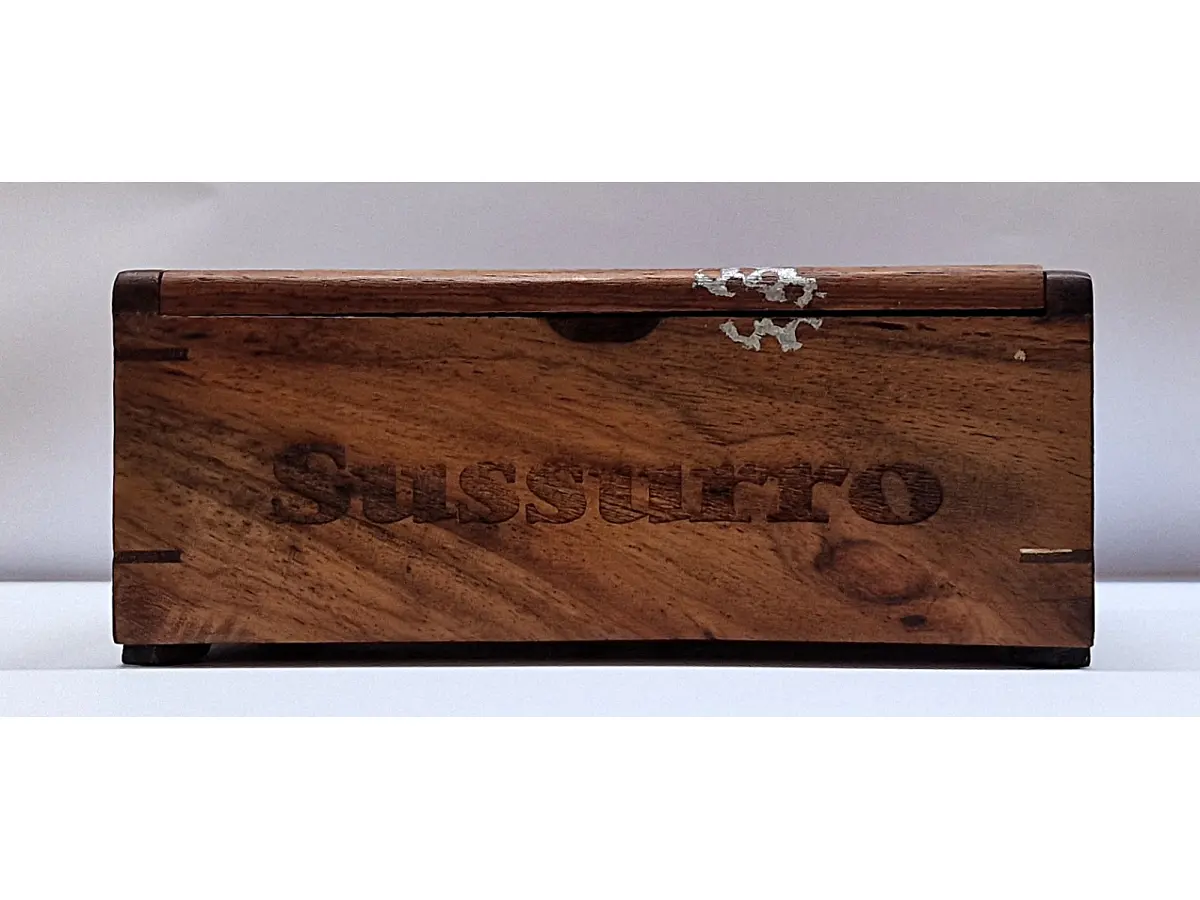

Second-hand cartridge, in mint condition, supplied with its original package.

Type: • Fixed Coil / Moving Iron
Mount: • Standard ½�
Stylus: • Contact Line, Nude, 0.10 mm square
Radius of Curvature: • Optimized Contour Contact Line SELECTED
Cantilever: • Ruby
Recommended Tracking Force: • 1.8 - 2.2 g
Effective Tip Mass: • 0.30 mg
Compliance: • 10 µm/mN
Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz:  • > 34 dB
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 25 dB
• N/A (Mono version)
Channel Difference:  • < 0.5 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 0.40 mV (LOW)
DC Resistance (DCR): • 10Ω
Coil Inductance per channel: • 2.75 mH
Suggested Preamp Gain: • 58 - 64 dB
Cartridge Weight: • 12.2 g (ES series)
Recommended Load Resistance: • ≥ 470Ω
Recommended Load Capacitance: • n/a
