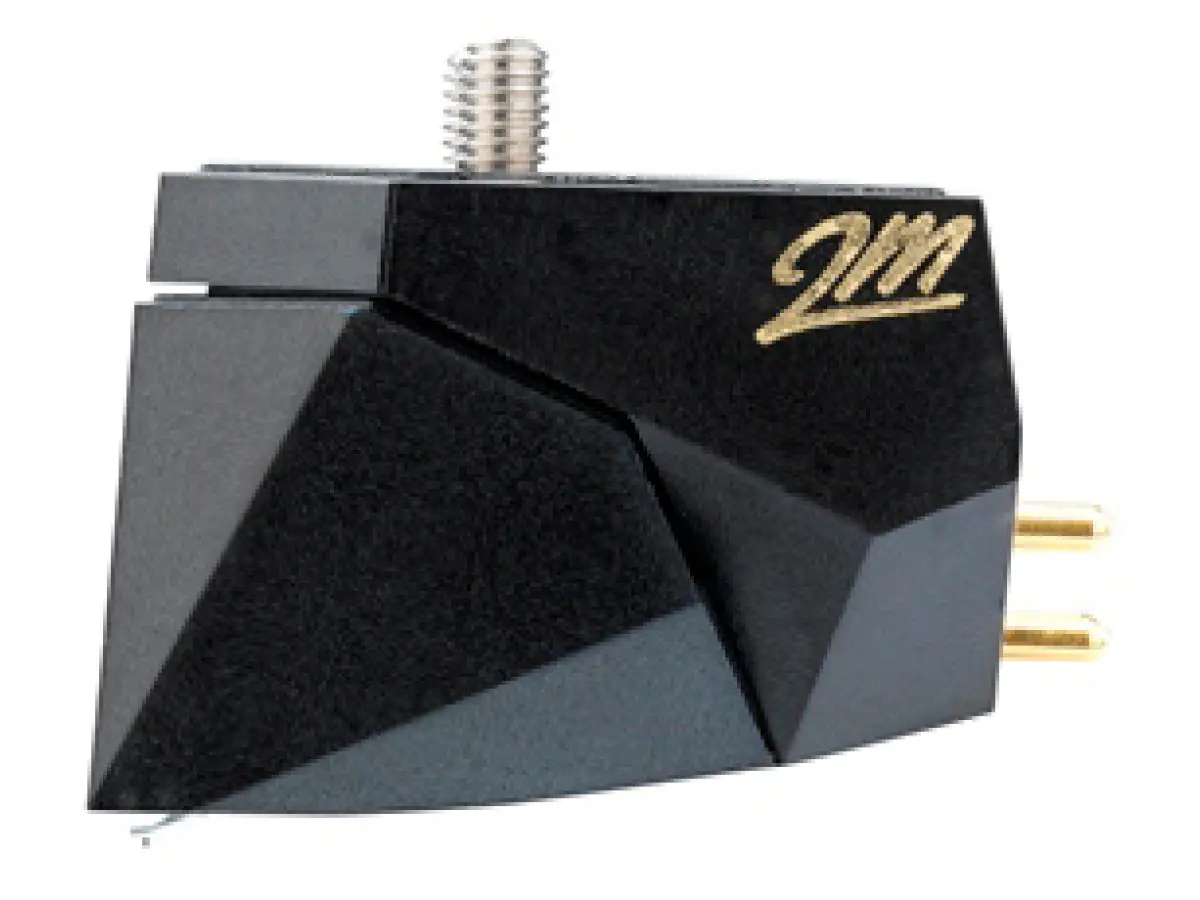

ORTOFON 2M BLACK VERSO
Cartridge
Code: 00457947
All our products are covered by Italian warranty.
The 2M Black Verso model is an alternative cartridge for bottom mount tonearms.
Specifications
Output voltage at 1000 Hz, 5cm/sec. 5 mV
Channel balance at 1 kHz 1 dB
Channel separation at 1 kHz 26 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-31.000 Hz
Frequency response 20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 22 µm/mN
Stylus type Nude Shibata
Stylus tip radius r/R 6/50 µm
Tracking force range 1,4-1,7g (14-17 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Internal impedance, DC resistance 1,2 kOhm
Internal inductance 630 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Black
Cartridge weight 7,2 g
Replacement stylus unit 2M Black (interchangeable with 2M Bronze)
Stylus protection guard 2M Black
