ORTOFON 2M 78 PREMOUNTED

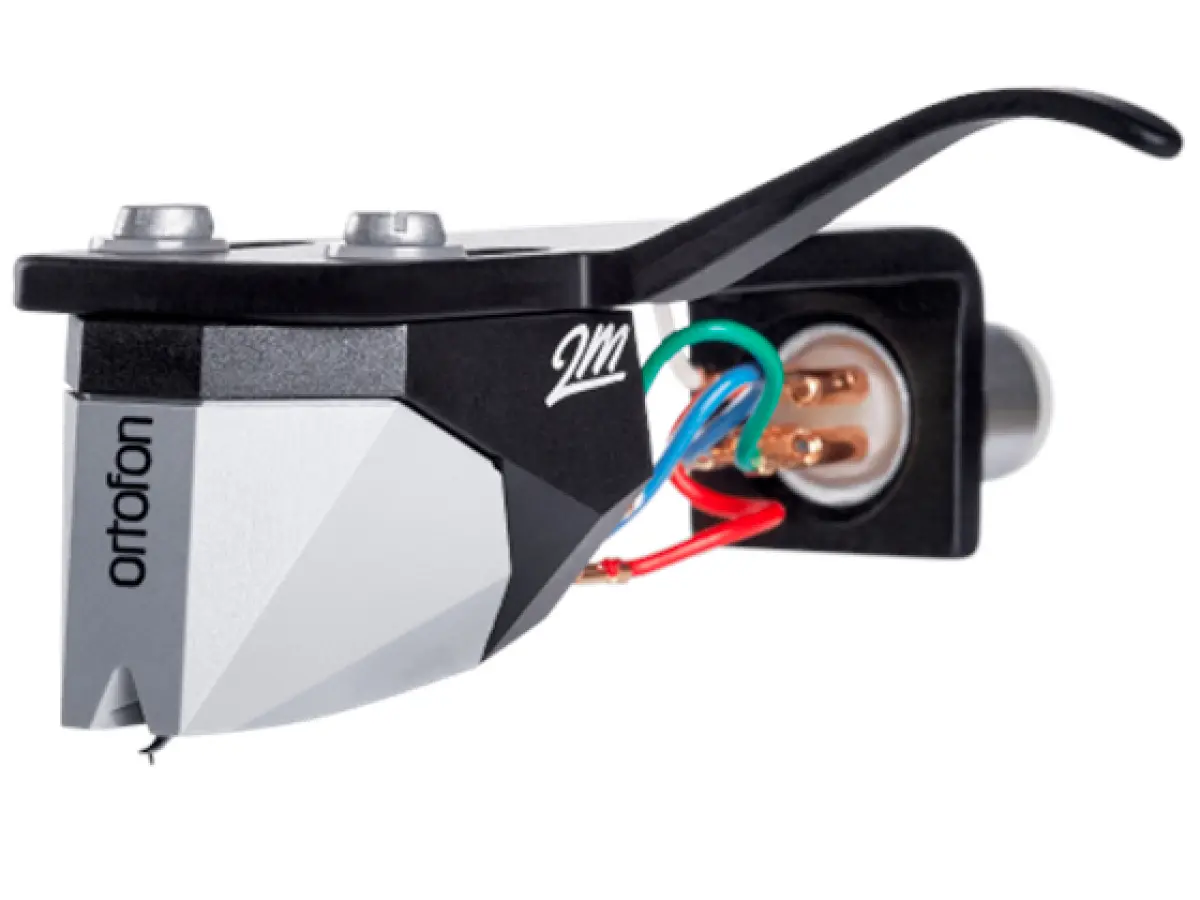

Ortofon 2M 78 Cartridge Mounted on SH-4 Black Headshell

2M Premounted Series
The new 2M Premounted Series offers a practical and elegant solution for those looking to simplify the entire process of mounting a cartridge onto the tonearm, or for those who want to swap cartridges without removing them from the headshell, particularly with S-shaped tonearms. The Ortofon SH-4 headshell provided with the cartridge boasts excellent quality, especially in terms of robustness and rigidity, despite its minimalistic and slim design. Additionally, the headshell features an arched finger lift that is easy to grasp and lift with your fingers.

Features

• Cartridge pre-mounted directly onto the SH-4 Black headshell
• Simple and immediate installation on S-shaped tonearms with a universal mount
• Baerwald alignment
• Interchangeable stylus with upgrade options: Red to Blue and Bronze to Black or Black LVB250

Ortofon 2M 78 Cartridge
The 2M 78 cartridge is equipped with a spherical diamond stylus, making it ideal for the playback of 78 RPM shellac records. These unique records require a wider stylus profile, and the 2M 78 perfectly meets this requirement, ensuring optimal playback quality while preserving the authenticity of your cherished collection.

The 2M 78 features a strapped output, delivering the same signal from both pairs of poles. This eliminates the need for mono-specific equipment, allowing for true mono reproduction on any stereo playback system.

The 2M Series is designed for easy cartridge mounting and is tailored in weight and dimensions to fit the most common turntables available on the market.

Specifications:

• Output voltage at 1000 Hz, 5 cm/sec: 4 mV
• Frequency range at -3 dB: 20-20,000 Hz
• Frequency response: 20-20,000 Hz (+3/-1 dB)
• Tracking ability at 315 Hz with recommended tracking force: 70 µm
• Compliance, dynamic, lateral: 18 µm/mN
• Stylus type: Spherical
• Stylus tip radius: R 65 µm
• Tracking force range: 1.6-2.0 g (16-20 mN)
• Recommended tracking force: 1.8 g (18 mN)
• Internal impedance, DC resistance: 700 Ohm
• Internal inductance: 350 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
• Tracking angle: 20°
• Cartridge color, body/stylus: Black/Grey
• Cartridge weight without screws: 7.2 g
• 2M PnP MkII cartridge with integrated headshell weight: 20 g
• 2M PnP MkII cartridge with integrated headshell length: 52 mm
• Replacement stylus unit: 2M 78 (interchangeable with 2M Mono)
