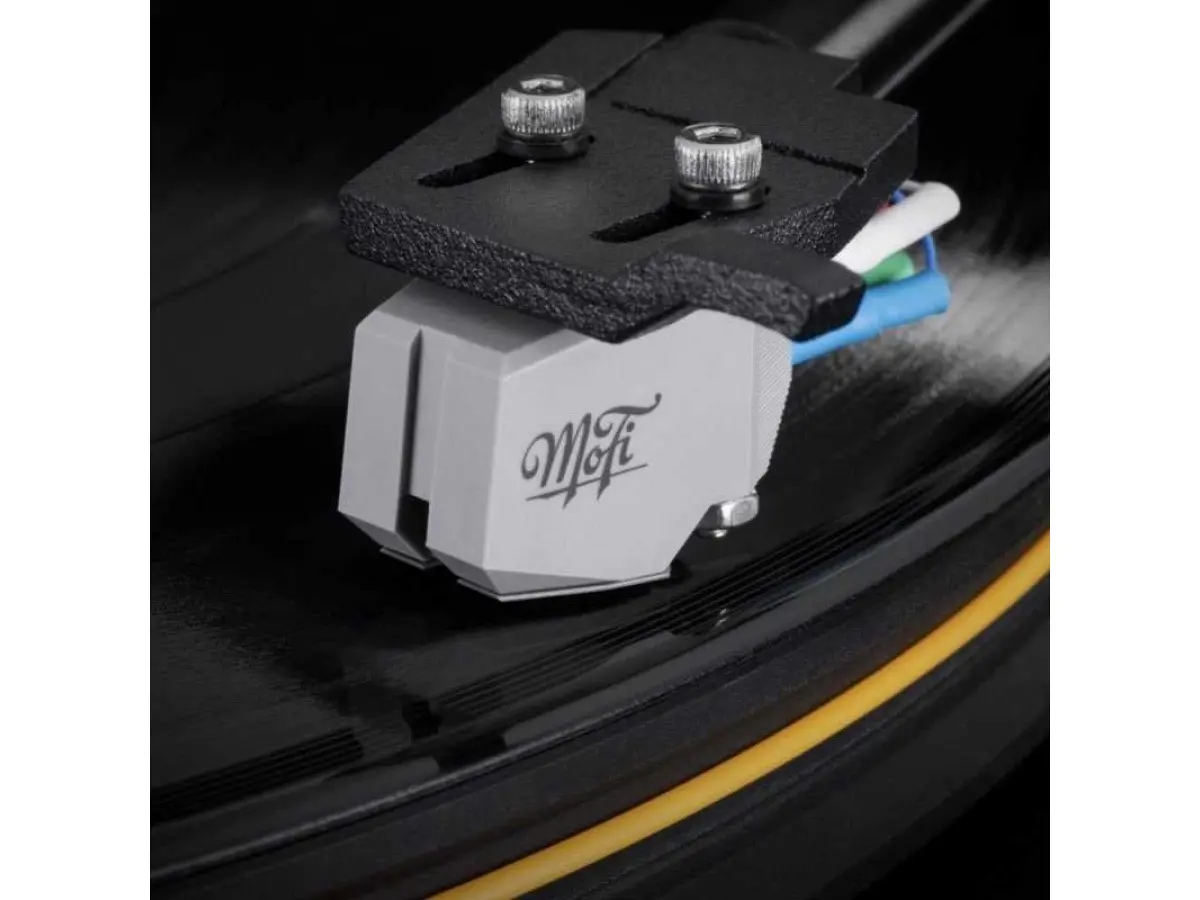

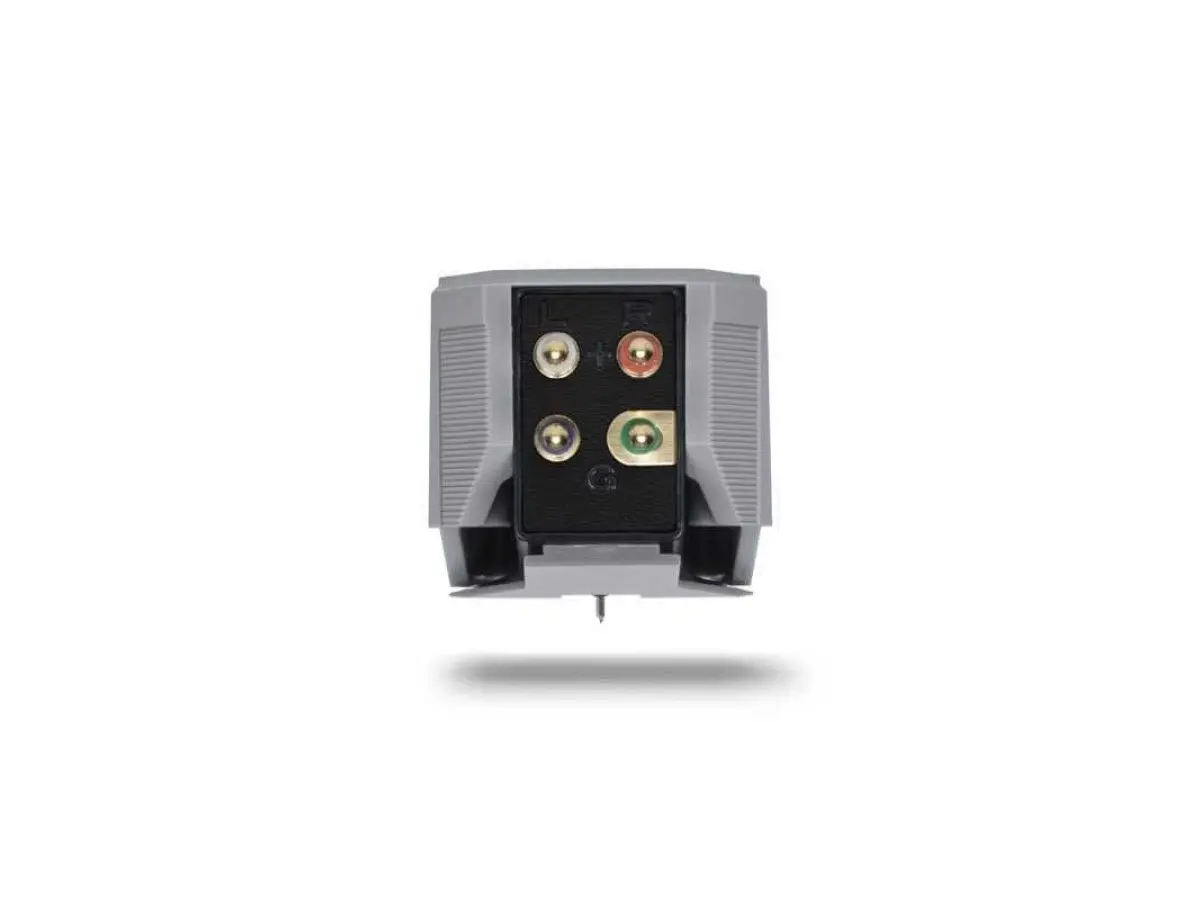

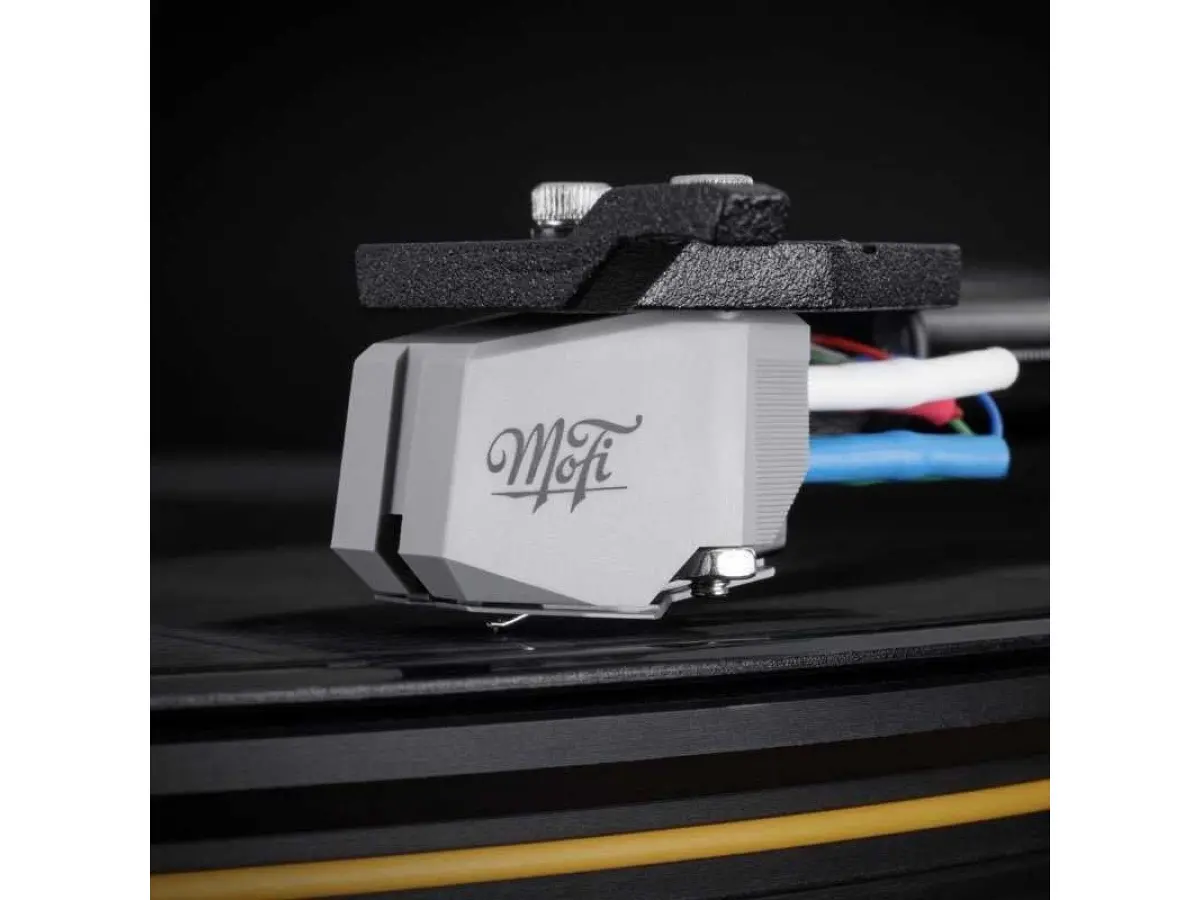

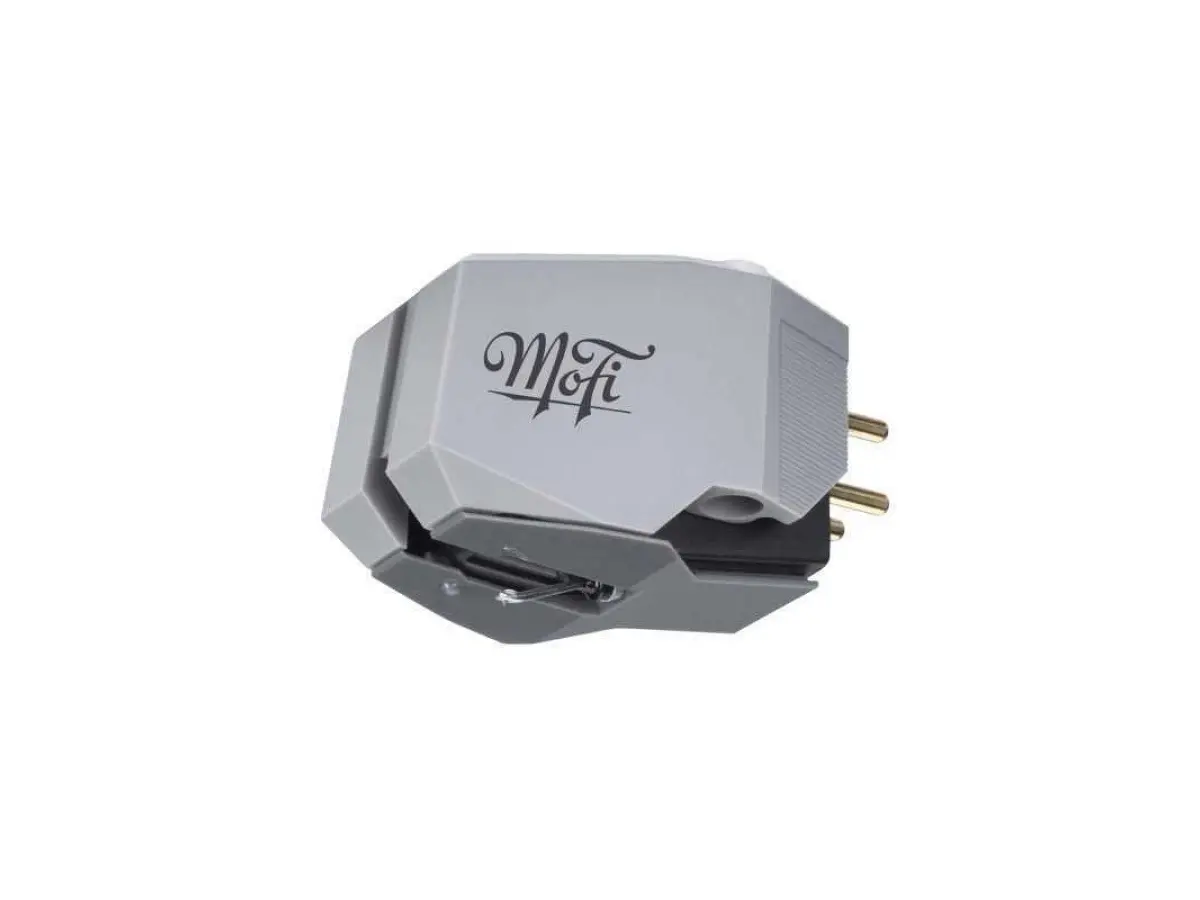

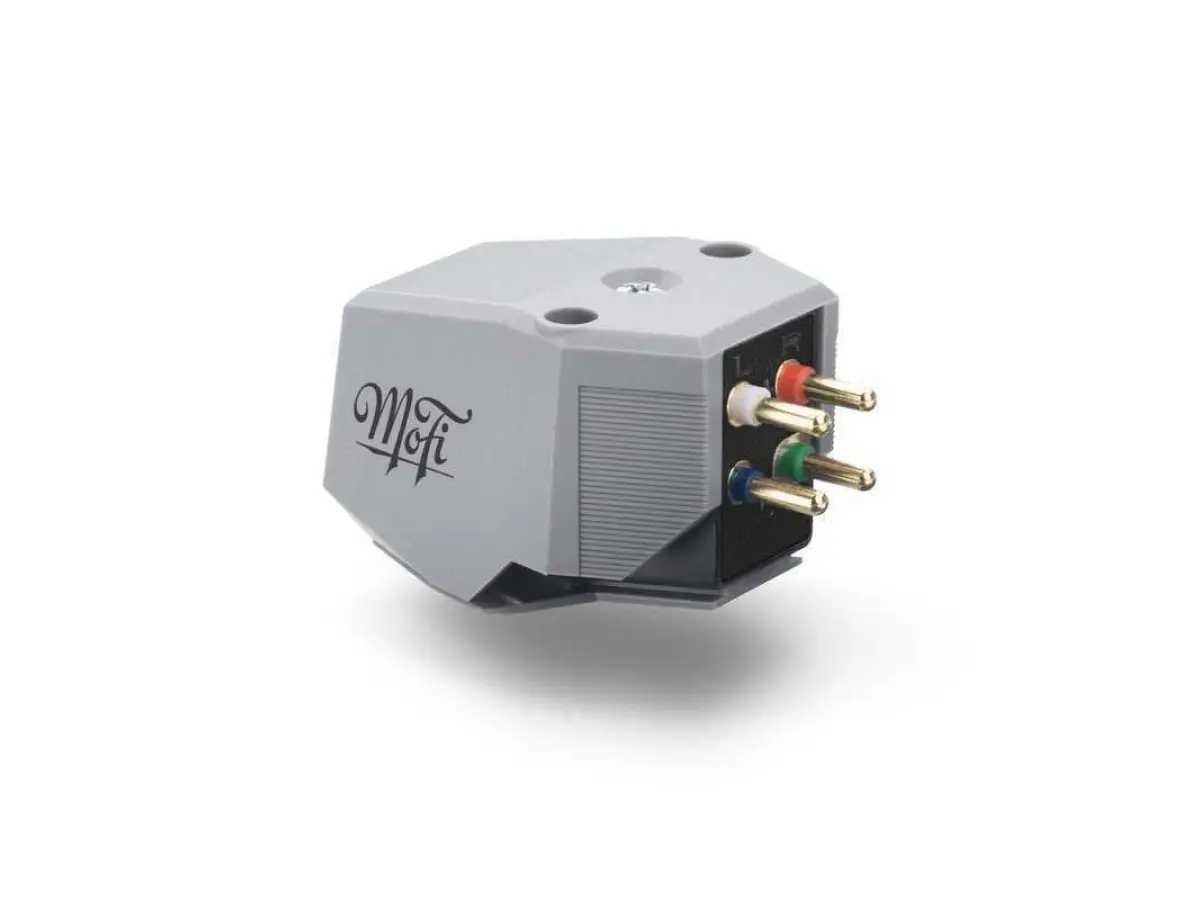

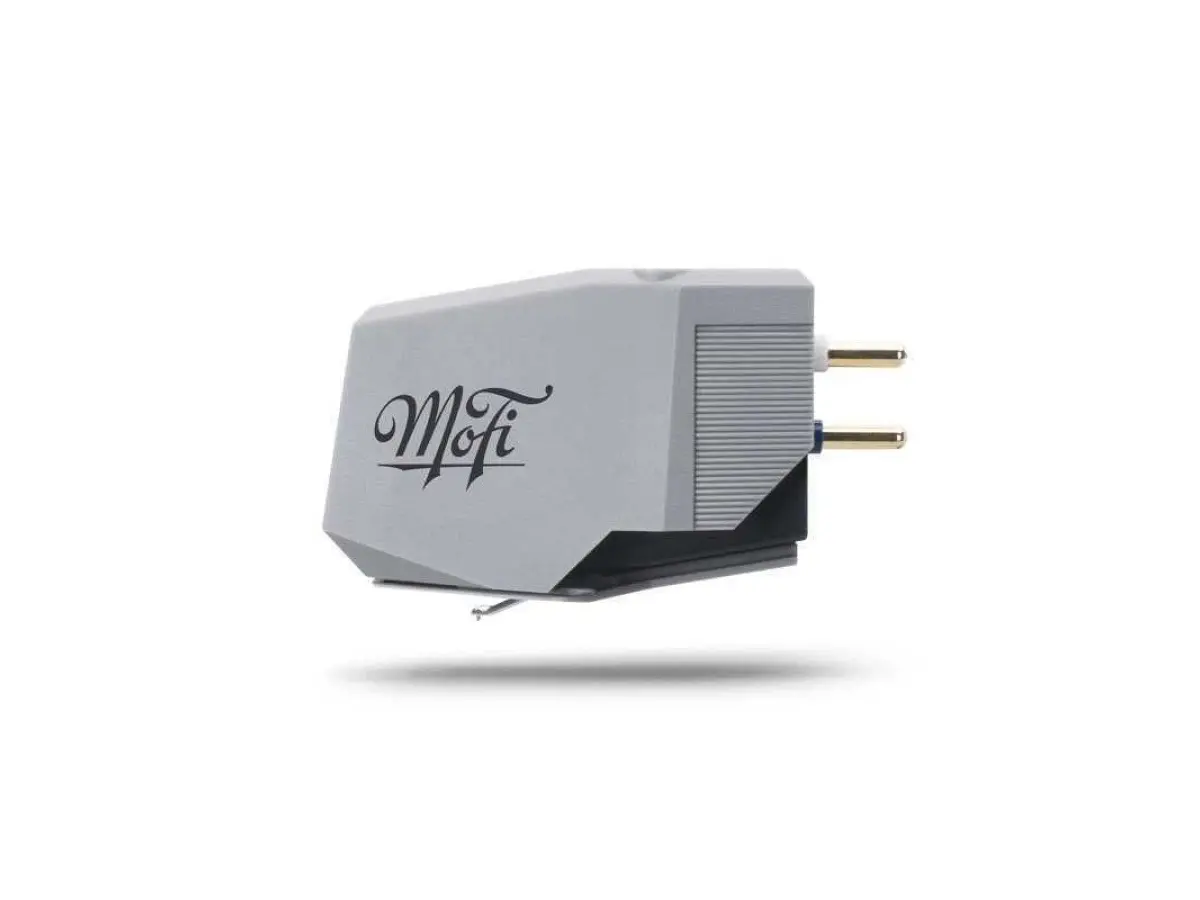

MOFI ELECTRONICS STUDIO TRACKER MM

MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record???s grooves.

V-TWIN DUAL-MAGNET GENERATOR
Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.

ELLIPTICAL DIAMOND STYLUS
With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.

SPECIFICATIONS
Type Dual Magnet (MM) Stereo
Stylus Elliptical
Output Voltage 3.5mV
Frequency Response 20???20,000Hz
Weight 6.4g
Tracking Force 1.8???2.2g
Impedance 47kOhm
Capacitance 100pF
Compliance
Static compliance :  35 x 10e-6/dyne
Dynamic compliance :  8 x 10e-6/dyne

FEATURES
??? V-Twin dual-magnet generator
??? Elliptical stylus
??? Polymer body
??? 3.5mV output
