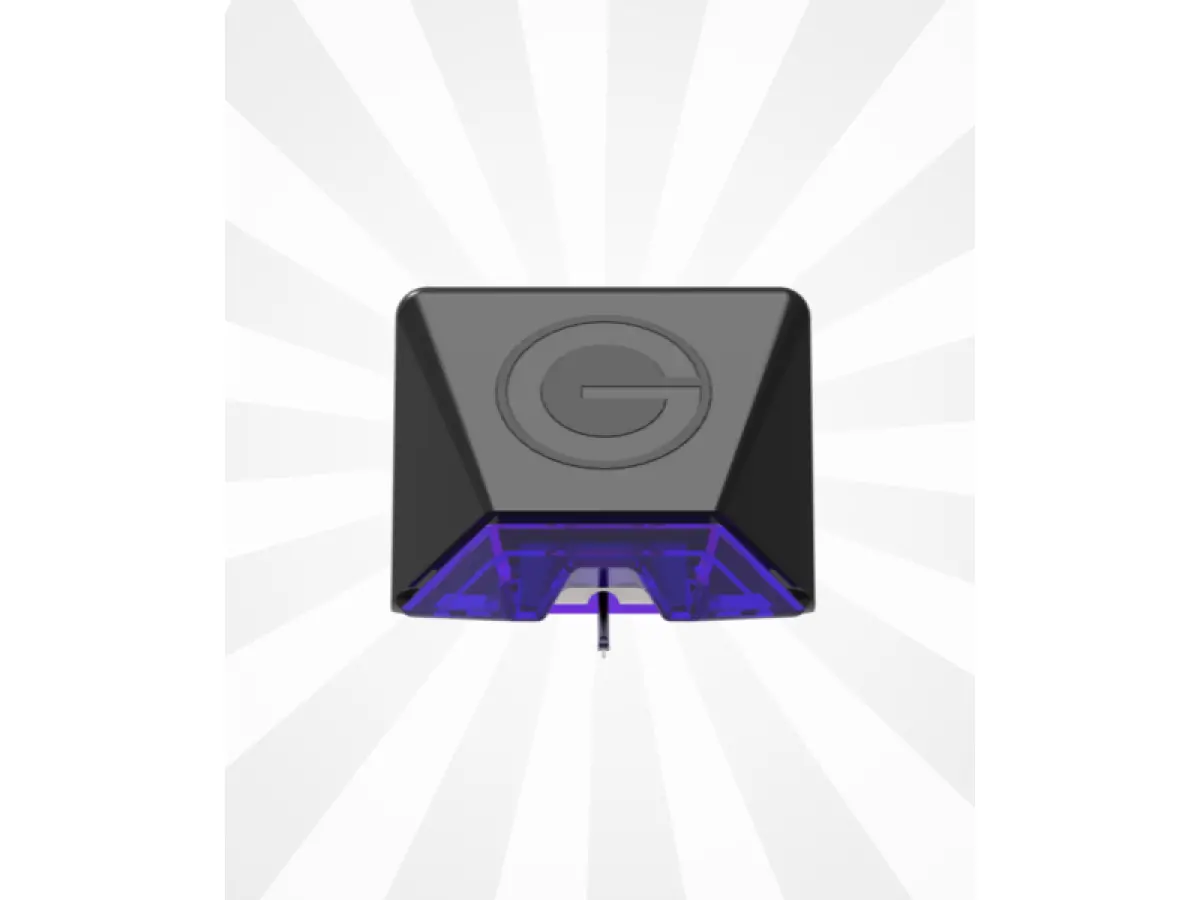

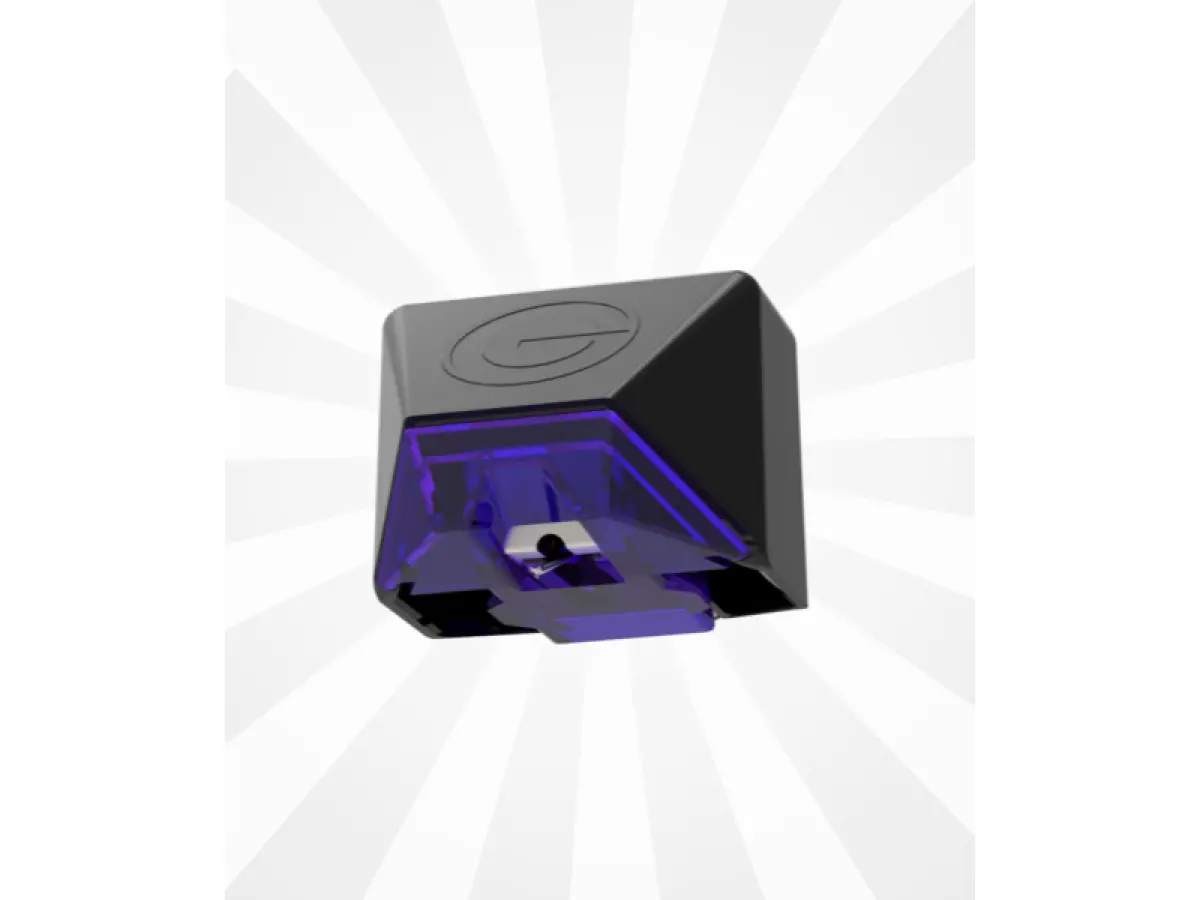

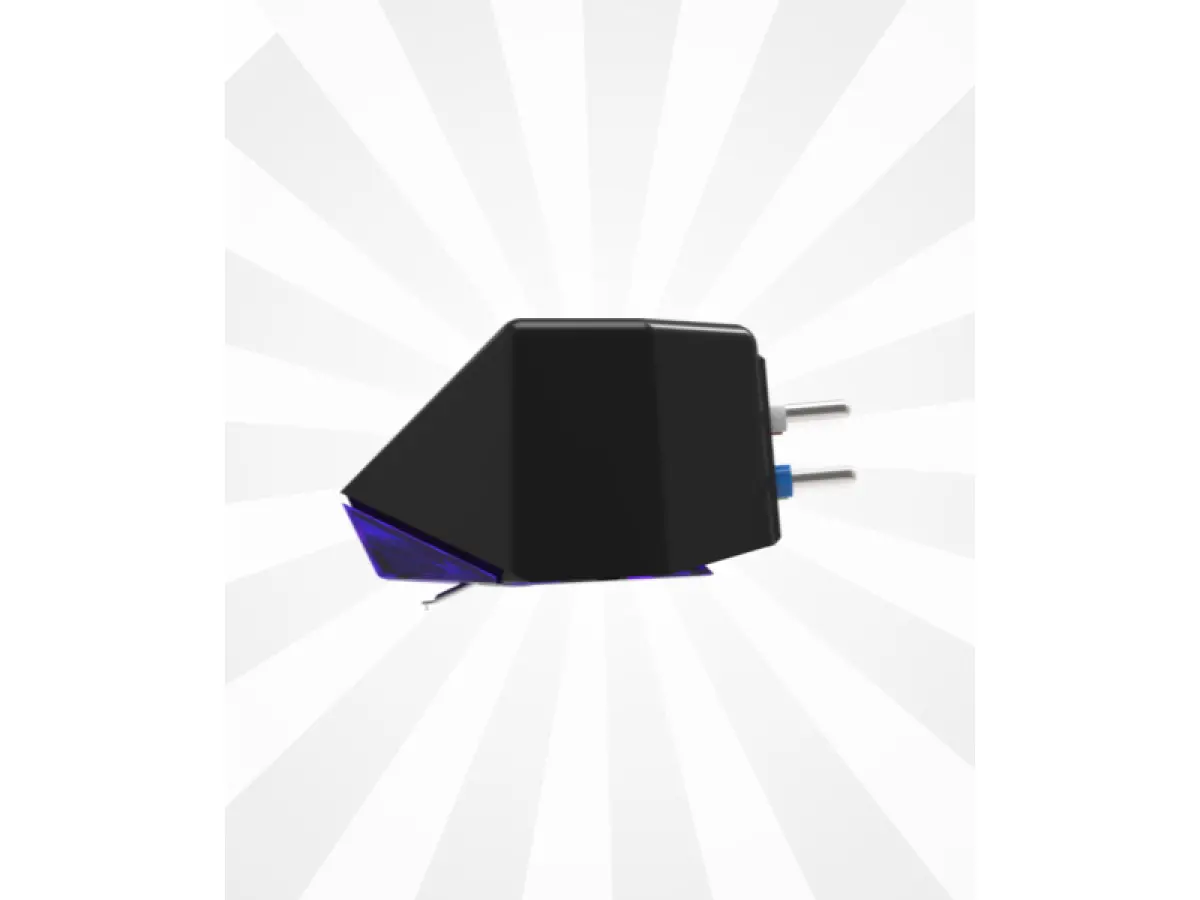

GOLDRING E3

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment.
The E3 cartridge, the highest in the range features the same aluminium cantilever as the E2, but benefits from a superior bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it superior high frequency groove detail retrieval ability over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) styli due to its smaller front to back radius. Its main effect is the reduction of sibilance, especially in high level vocal recordings

Specifications
Colour Violet
Cantilever Aluminium
Stylus profile Elliptical
Stylus radius 0.3 x 0.7 mil
Transducer Characteristics
Frequency range 20 Hz - 20 kHz
Channel balance 1.5 dB at 1 kHz
Channel separation >20 dB at 1 kHz
Sensitivity 3.5 mV (1 kHz @ 5 cm/sec)
Static compliance 20 mm/N
Vertical tracking angle 208
Electrical Characteristics
Load resistance 47 kOhm
Load capacitance 100 - 200 pF
Internal inductance 400 mH
Internal resistance 410 Ohm
Mechanical Characteristics
Cartridge mass 6.9 g
Fixing centres 12.7 mm (0.5 in)
Playing weight 1.5 g - 2.5 g (2.0 g recommended)
