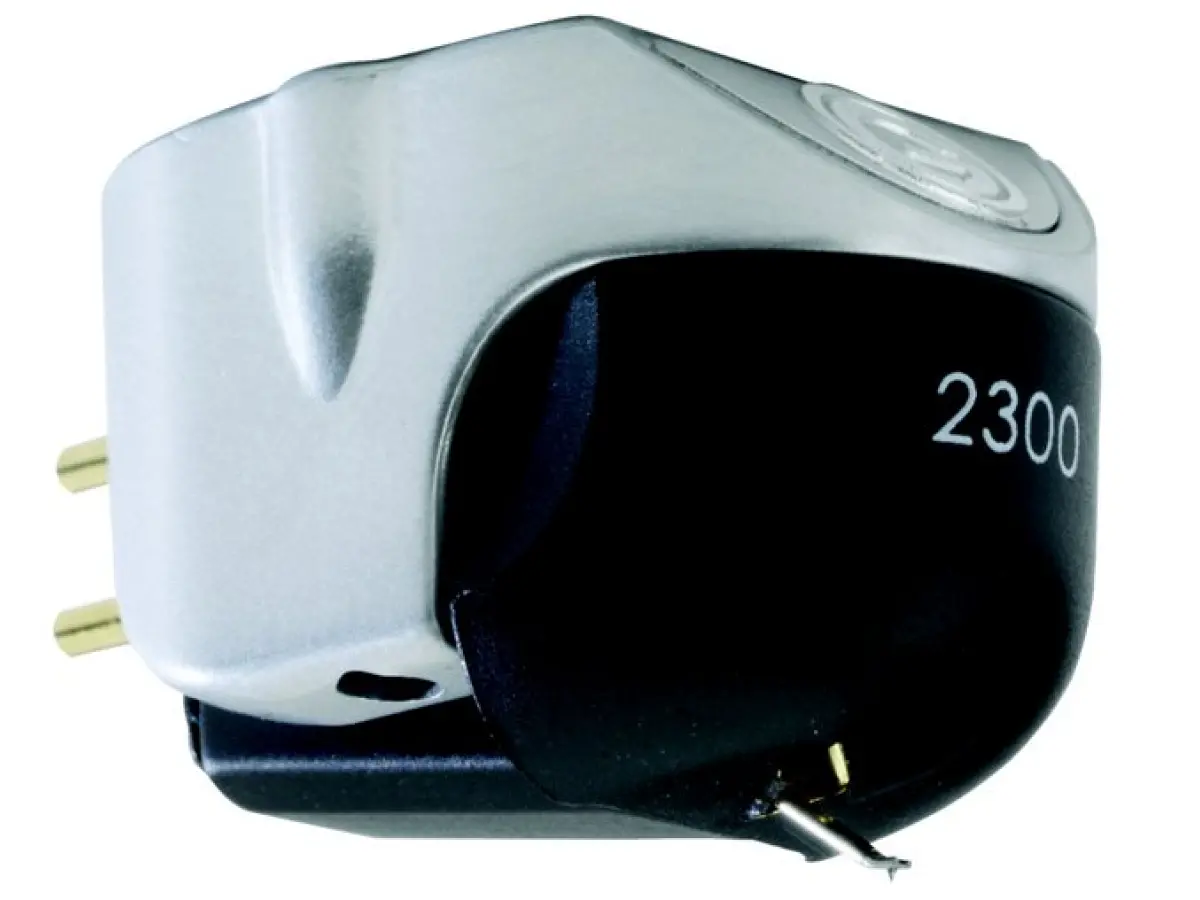

GOLDRING 2300
MM cartridge
Code: 1000013
All our products are covered by Italian warranty.
Use of the acclaimed Gyger II fine line diamond offers high clarity and excellent tracking ability. This cartridge will upgrade many mid-range turntables, allowing them to produce an even finer sound.
Frequency Response
20 Hz - 20kHz +/- 3 dB
Channel Balance within 2 dB @ 1 kHz
Channel Separation better than 20 dB @ 1 kHz
Sensitivity 6.5 mV 1.5 dB, 1 kHz @ 5 cm/sec
Static Compliance 35 mm/N
Dynamic Compliance @ 10 Hz 16 mm/N
Vertical Tracking Angle 24
Stylus Radius Nude Elliptical
Stylus Type Replaceable
Load Resistance 47 k
Load Capacitance 100 - 200 pF
Internal Inductance 680 mH
Internal Resistance 550
Cartridge Mass 7.4 g
Cartridge Mass ( inc. fixing screws) 8.6 g
Fixing Centre 0.5" (12.7 mm)
Playing Weight 1.5 - 2.0 g (1.7 g nom.)
