EMT JSD VM

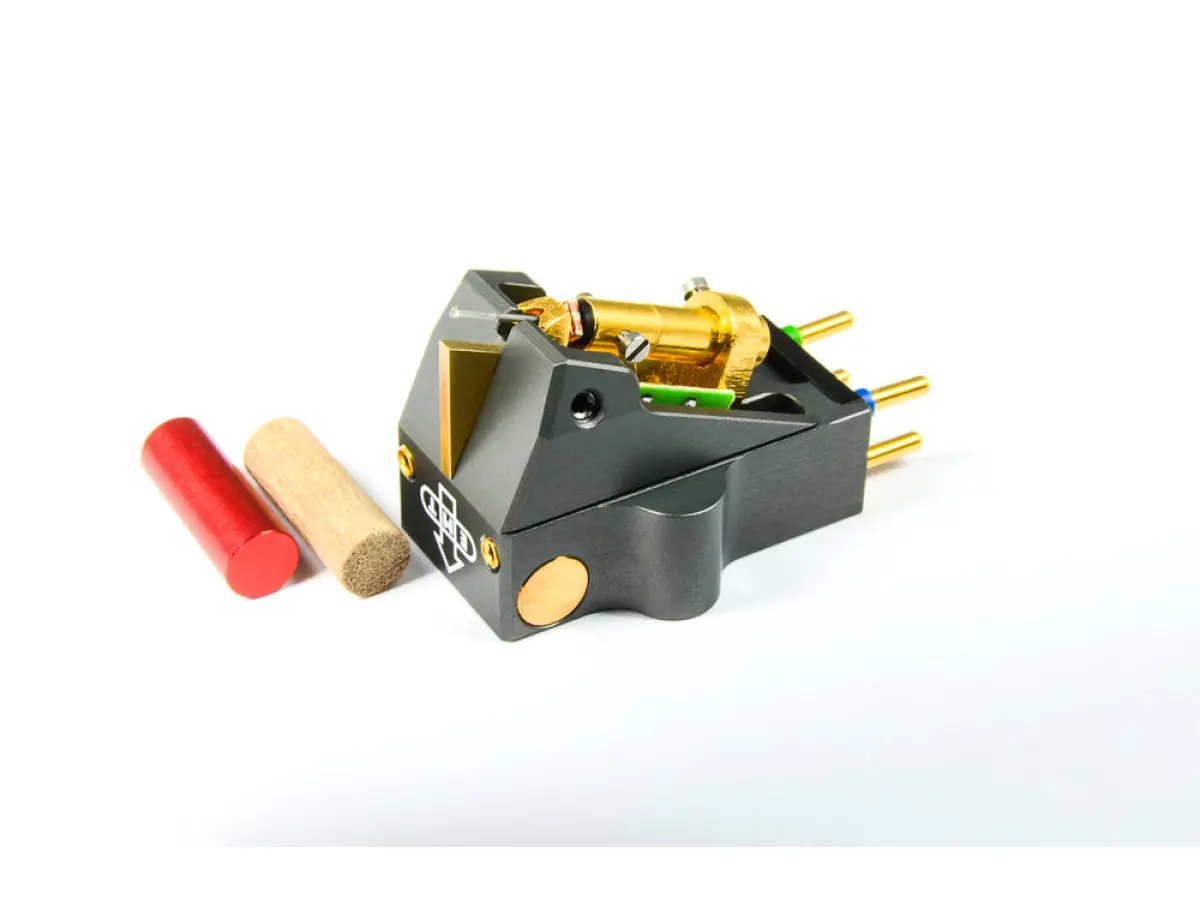

The JSD VM is the only cartridge that allows the user to tune the resonance behaviour according the tonearm specification and personal preference. It comes with three inlay bolts made of different materials.
All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.

Diamond: MR HP
Cantilever: Sapphire
Transducer: MC Stereo
Magnet: AlNiCo, gold-plated
Body: variable mass, graphite anodized
Connection: 1/2" - 4pin
Vertical Tracking Angle: 23°
Weight: 10???????????12g
Tracking force: 2,4g
Output voltage: 1.05mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30???000Hz
Impedance: 2x 24?
Recommended load: 200 - 300?
