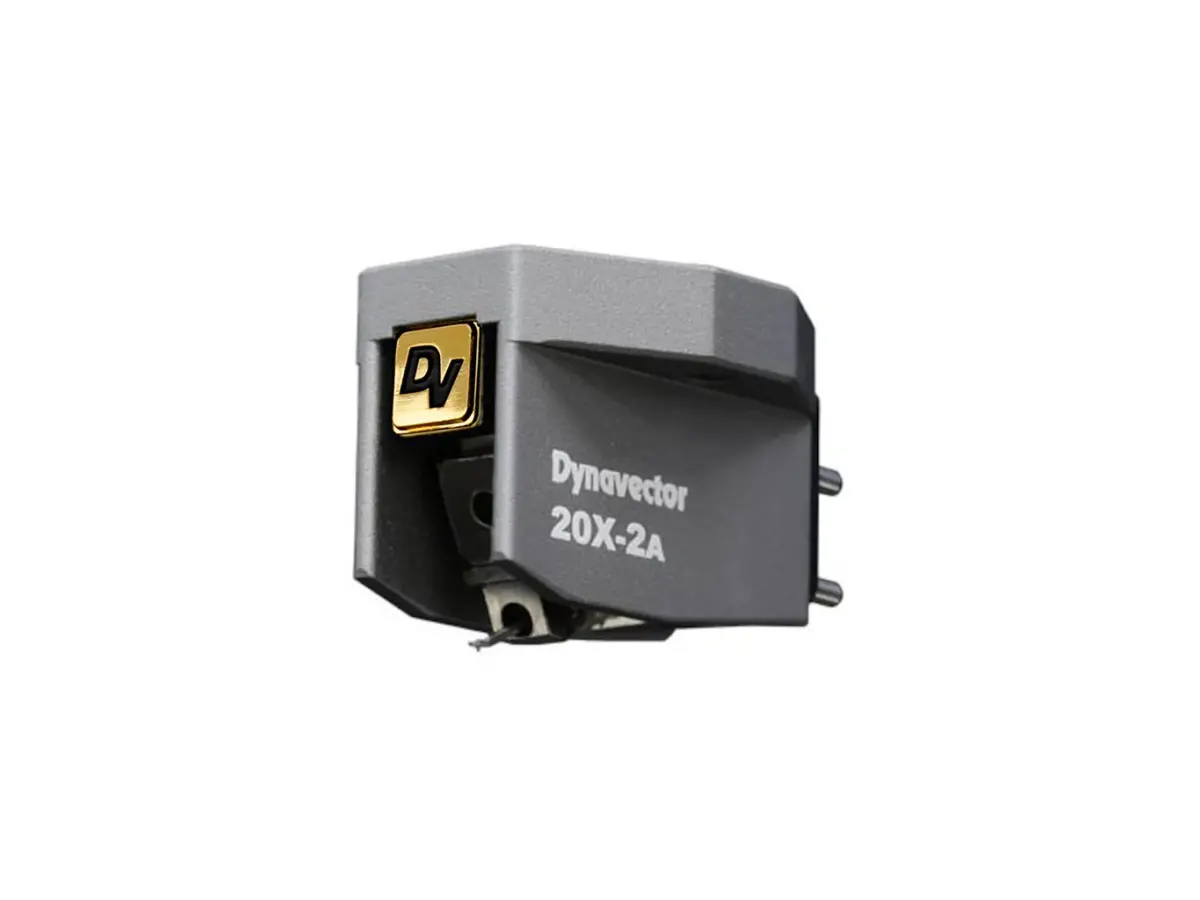

DYNAVECTOR DV-20X2AH

Image for illustrative purposes only.

The DV-20X2AH cartridge is the high-output model in Dynavector’s MC series, designed to deliver a high-level listening experience without the complexity typically associated with low-output cartridges. It shares the same core structure as the brand’s higher-end models, such as the XX-2A and Te Kaitora Rua, and features a solid aluminium alloy body, a rigid aluminium cantilever, and a Micro-Ridge nude diamond stylus—components that ensure precise groove tracking and a highly detailed sound reproduction.

Thanks to its high output, the DV-20X2AH is compatible with most MM phono inputs, making it an ideal choice for those looking to enjoy the sonic benefits of a moving coil cartridge without the need for an MC step-up transformer or dedicated MC preamp. It’s the perfect solution not only for audiophiles who want to fully immerse themselves in the refined sound of an MC cartridge, but also for newcomers who wish to explore this technology with ease and simplicity.

Technical specifications:

• Type: High output moving coil cartridge with flux damper and softened magnetism
• Output voltage: 2.8 mV (at 1 kHz, 5 cm/sec)
• Channel separation: 25 dB (at 1 kHz)
• Channel balance: 1.0 dB (at 1 kHz)
• Frequency response: 20 - 20,000 Hz (±2 dB)
• Compliance: 12 mm/N
• Recommended tracking force: 1.8 – 2.2 g
• Internal impedance: 150 ohms
• Recommended load impedance: 1,000 ohms / > 30 ohms
• Cantilever: 6 mm hard aluminium pipe
• Stylus tip: Micro Ridge nude diamond
• Weight: 9.2 g
