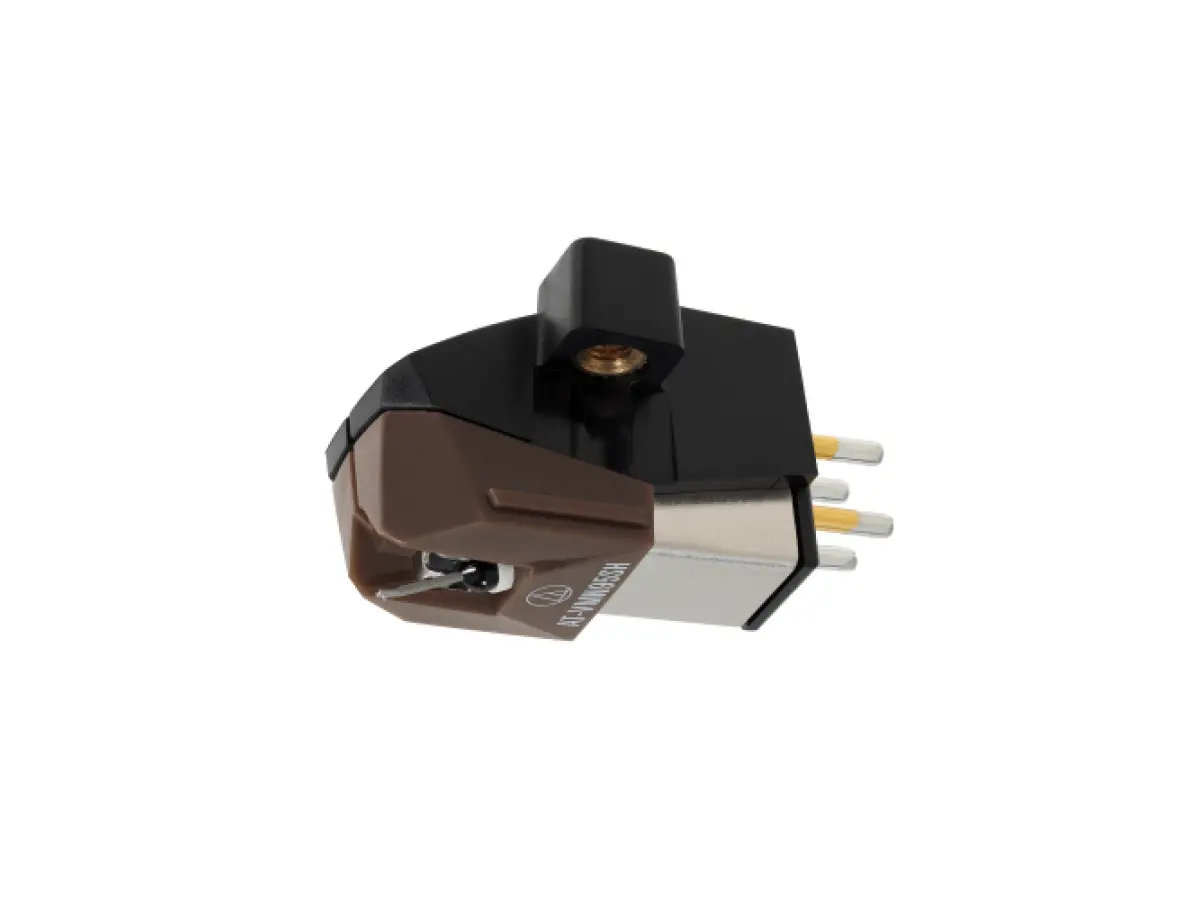

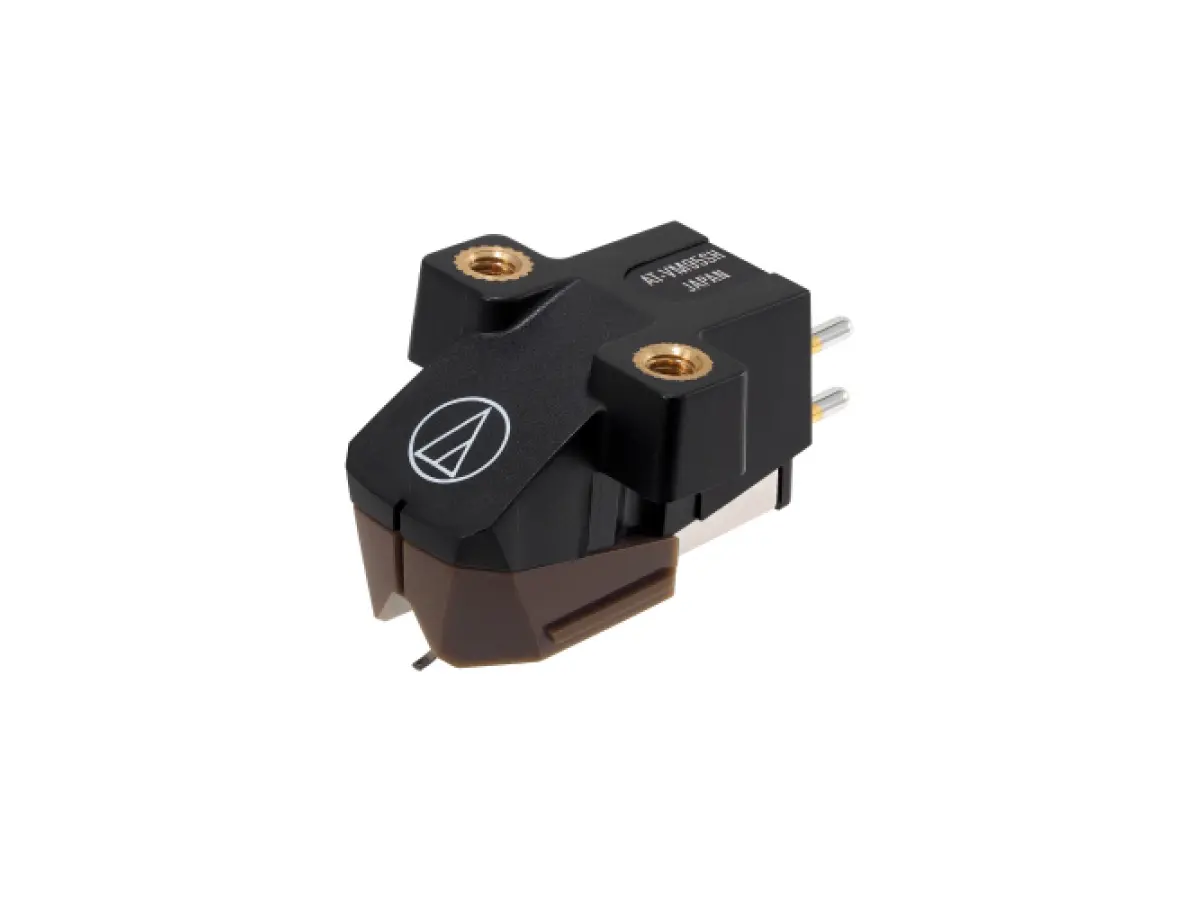

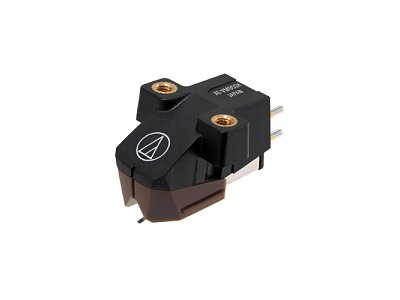

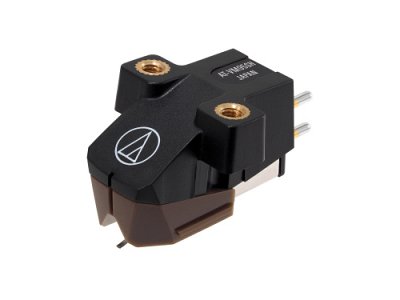

AUDIO TECHNICA AT-VM95SH

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features
VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
Aluminum cantilever
Durable low-resonance polymer housing
Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
Compatible with any AT-VMN95 replacement stylus

Specifications
Frequency Response: 20-25,000 Hz
Channel Separation: 23 (dB at 1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Nude square shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Coil Inductance: 550 mH (1 kHz)
Recommended load capacitance: 100 to 200 pF
Output: 3.5 mV (1 kHz, 5 cm/sec.)
Channel Balance: 1.5 dB (1 kHz)

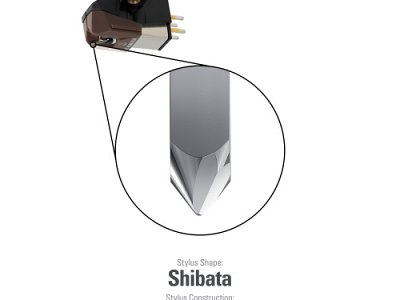

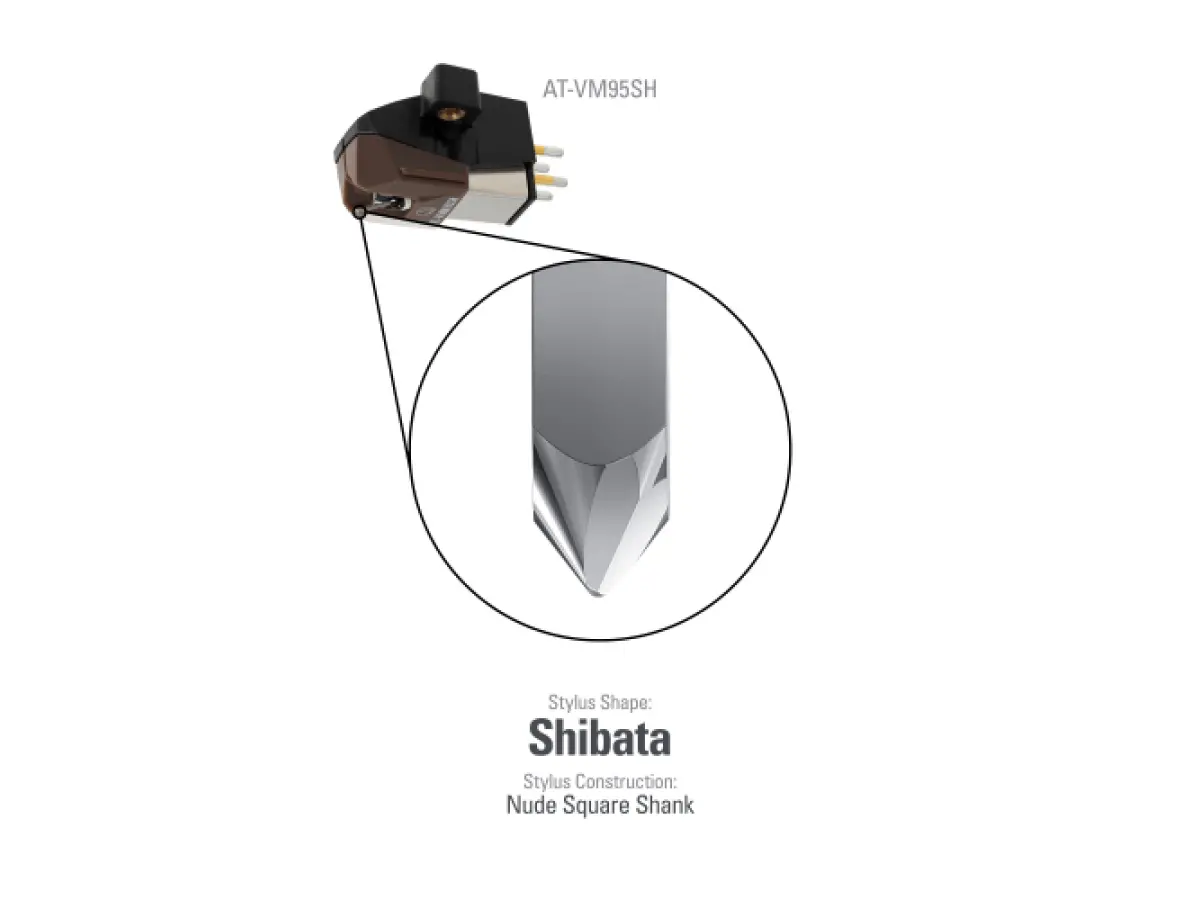

Stylus Shape: 2.7 x 0.26 mil Shibata
Cantilever: Aluminum pipe
Mount: Half-inch
Weight: 6.1 g (0.22 oz)
Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Replacement Stylus: AT-VMN95SH

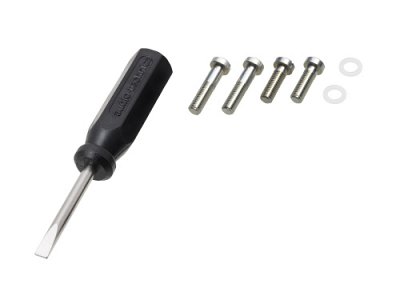

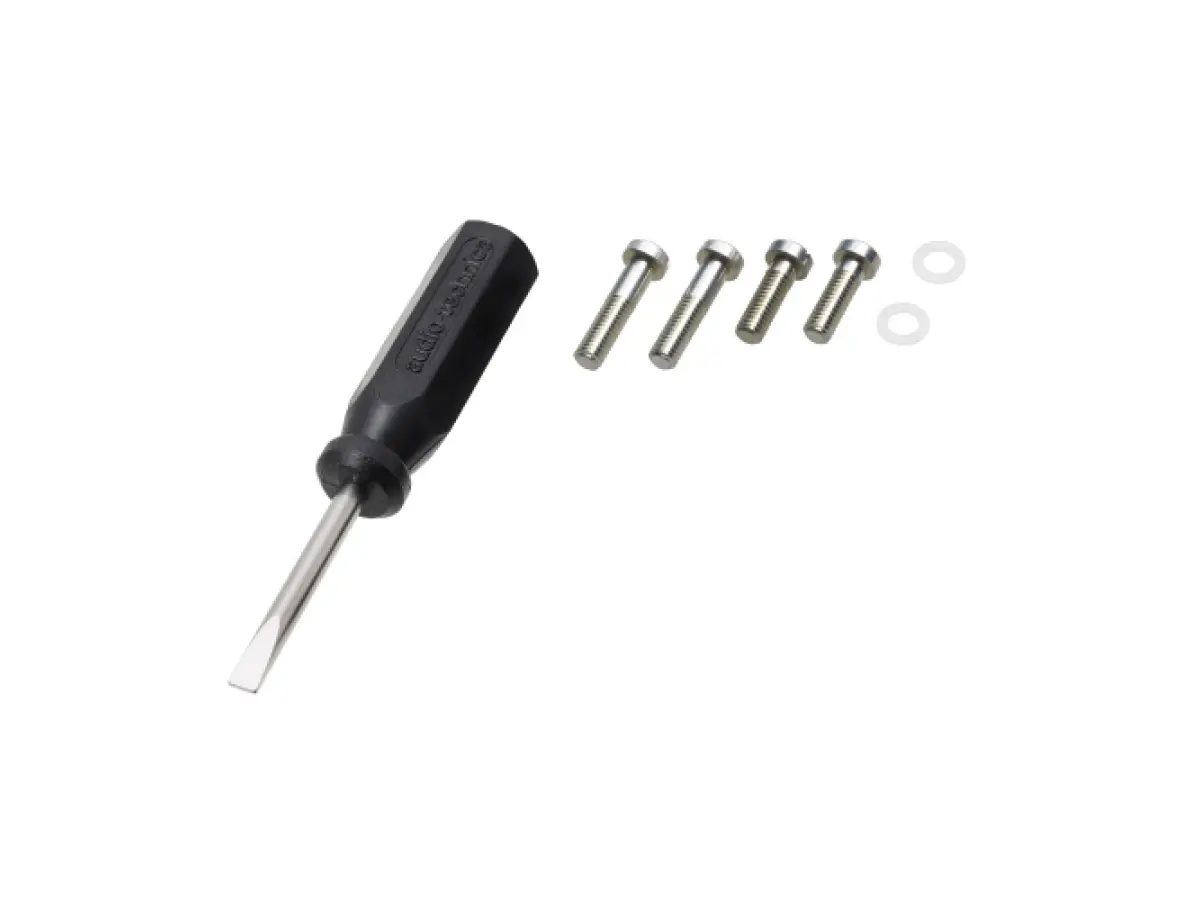

Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
