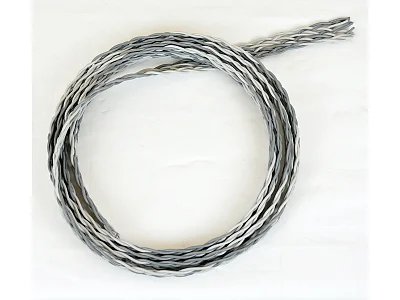

THENDER 52-040
Power cable composed twisted conductors
Code: 29326305
All our products are covered by Italian warranty.
Price for meter
Power cable composed of 10 main conductors twisted together in a flat mesh consisting of:
n1 conductor covered in light gray PVC - 7 strands - ø 0.25 mm - total section 0.34 mm2 - OFC copper
n1 conductor covered in dark gray PVC - 7 strands - ø 0.25 mm - total section 0.34 mm2 - OFC copper
n2 conductors covered in light gray PVC - 45 strands - ø 0.10 mm - total section 0.71 mm2 - OFC copper
n2 conductors covered in dark gray PVC - 45 strands - ø 0.10 mm - total section 0.71 mm2 - OFC copper
n2 conductors covered in light gray PVC - 45 strands - ø 0.10 mm - total section 0.71 mm2 - silver-plated OFC copper
n2 conductors covered in dark gray PVC - 45 strands - ø 0.10 mm - total section 0.71 mm2 - silver-plated OFC copper
Total strands: 374
Total section: 3.52 sqmm (2x1.76 sqmm)
External dimensions: 5x16 mm
Resistance: 0.059 Ohm/meter
Inductance: 0.151 uH/meter
Capacitance: 169 pF/meter
Impedance: 30 Ohms
