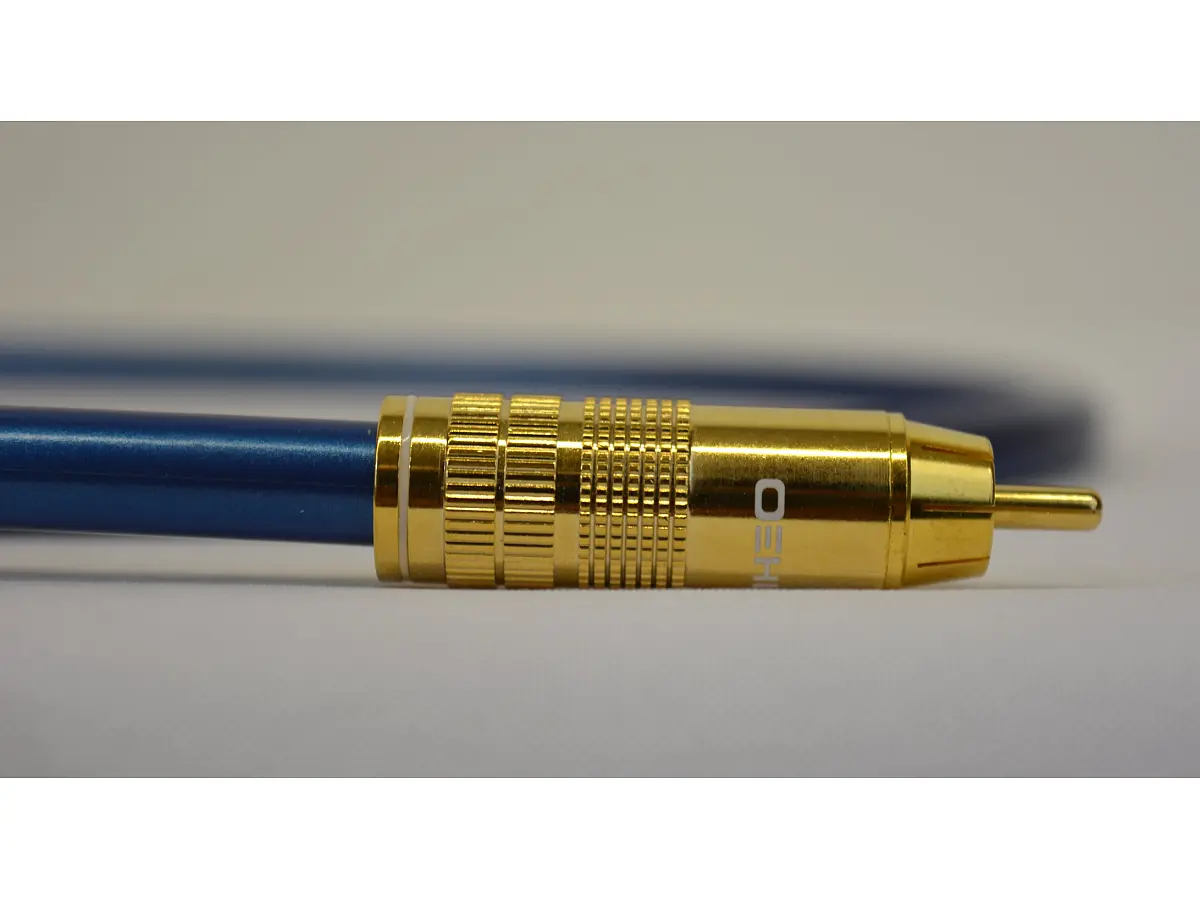

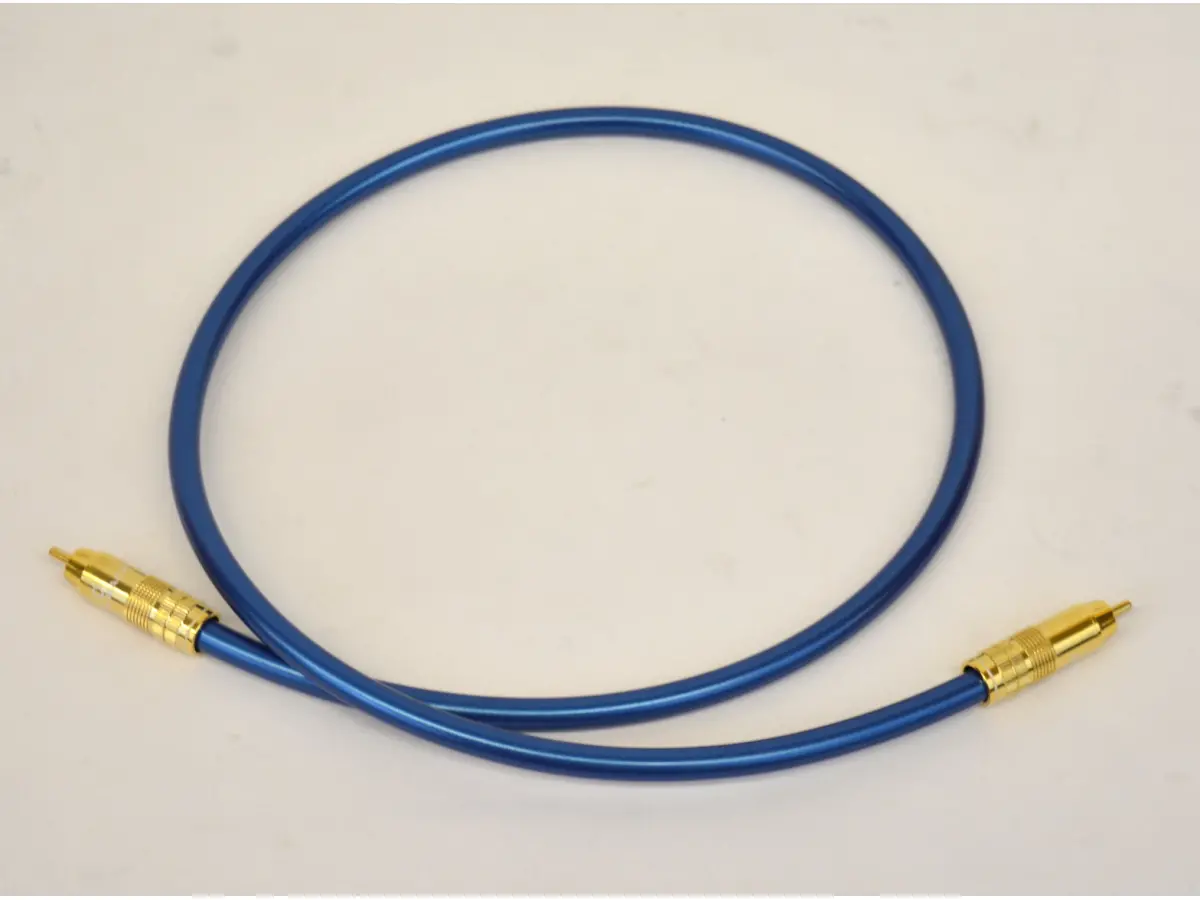

THENDER 52605
Digital coaxial cable
Code: 27455934
All our products are covered by Italian warranty.
Signal cable available in the following lenghts: 50 cm, 1 mt, 1, 5 mt, 2 mt
Double shielded coaxial cable in pure copper UP-OCC.
Impedance adjustment for digital transmission 75 Ohm.
Specifications
Central conductor: 1 copper conductor OCC 95 wires Ø 0,10 mm
Diameter: 1,13 mm
Section: 0,746 mmq
Shield: PVC
Dielectric 1 & 2: PE->PEF
Thickness 1 & 2: 0,53-> 2,33 mm
Diameter 1 & 2: 2,2-> 5,8 mm
Shield: PVC conductive black
Diameter: 6,5 mm
Shield: copper OCC, 24 bunches of 8 stranded wires Ø 0,12 mm
External sock: PVC, blue finish
Dimensions: Ø 9 mm
Conductor resistance: 0.025 Ohm/M a 20°C
Capacity: 72.15 PF/M
Inductance: 0.430 uH/M to 1 KHz
Impedance: 75.77 Ω to 10 MHz
Attenuation:
1 MHz: 0.67 dB/100M
5 MHz: 2.32 dB/100M
10 MHz: 3.66 dB/100M
20 MHz: 5.70 dB/100M
30 MHz: 7.48 dB/100M
60 Hz: 0.18 dB/100M
1 KHz: 0.20 dB/100M
20 KHz: 0.21 dB/100M
50 KHz: 0.22 dB/100M
100 KHz: 0.26 dB/100M
500 KHz: 0.44 dB/100M
700 KHz: 0.53 dB/100M
