ROTEL P5 S2

The Michi P5 Series 2 preamplifier is designed to deliver an extraordinary audio experience, combining advanced technology with refined design. At its core are the ESS SABRE ES9028PRO 8-channel DACs, configured in MONO with a dedicated DAC for each channel, left and right. This multi-DAC architecture ensures detailed audio reproduction, capturing every nuance of the musical signal and providing a rich, immersive soundstage.

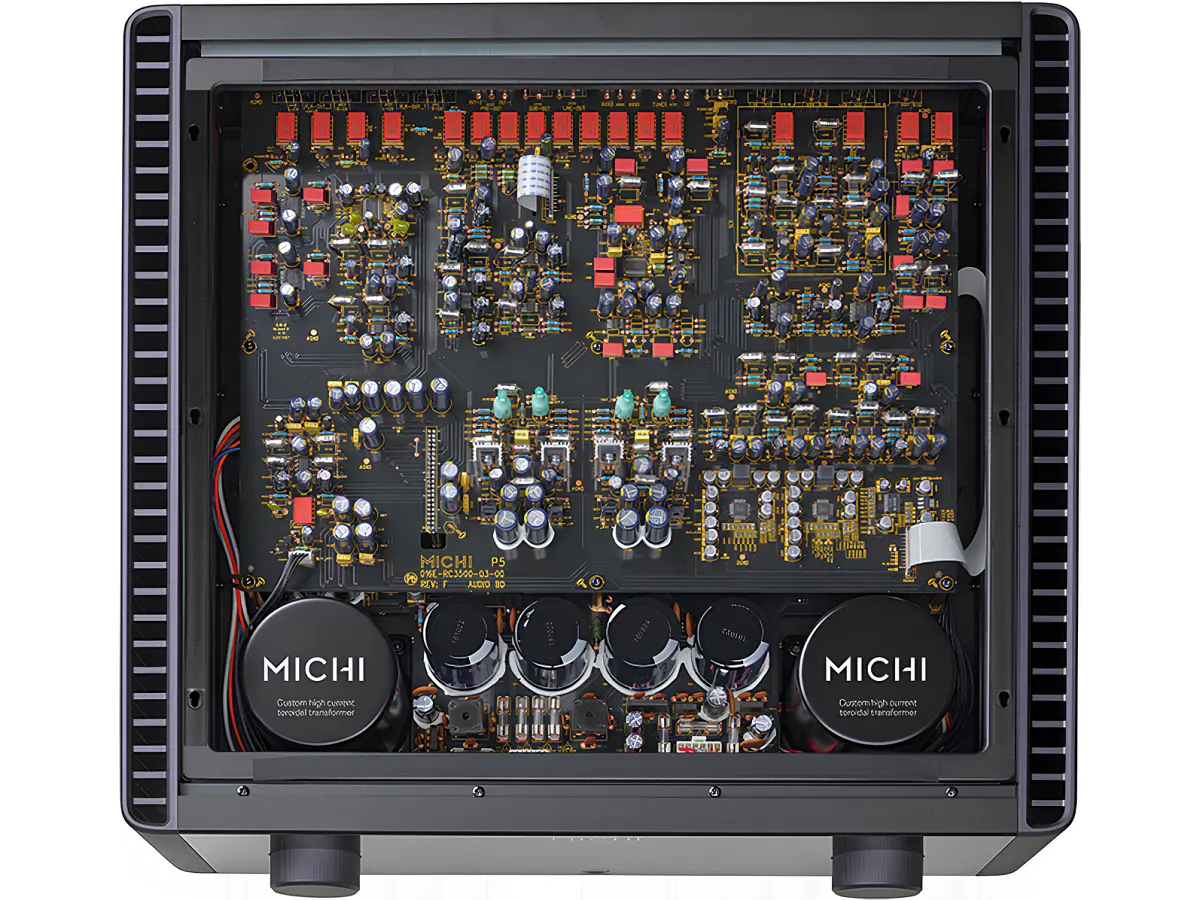

The P5 Series 2’s power system is built around two internally designed shielded toroidal transformers that drive 16 independent circuits to isolate and protect critical components. This design minimizes background noise and distortion, ensuring unparalleled clarity and precision. The Michi P5 Series 2 transforms every music track into an immersive experience, delivering each note with exceptional fidelity and dynamism.

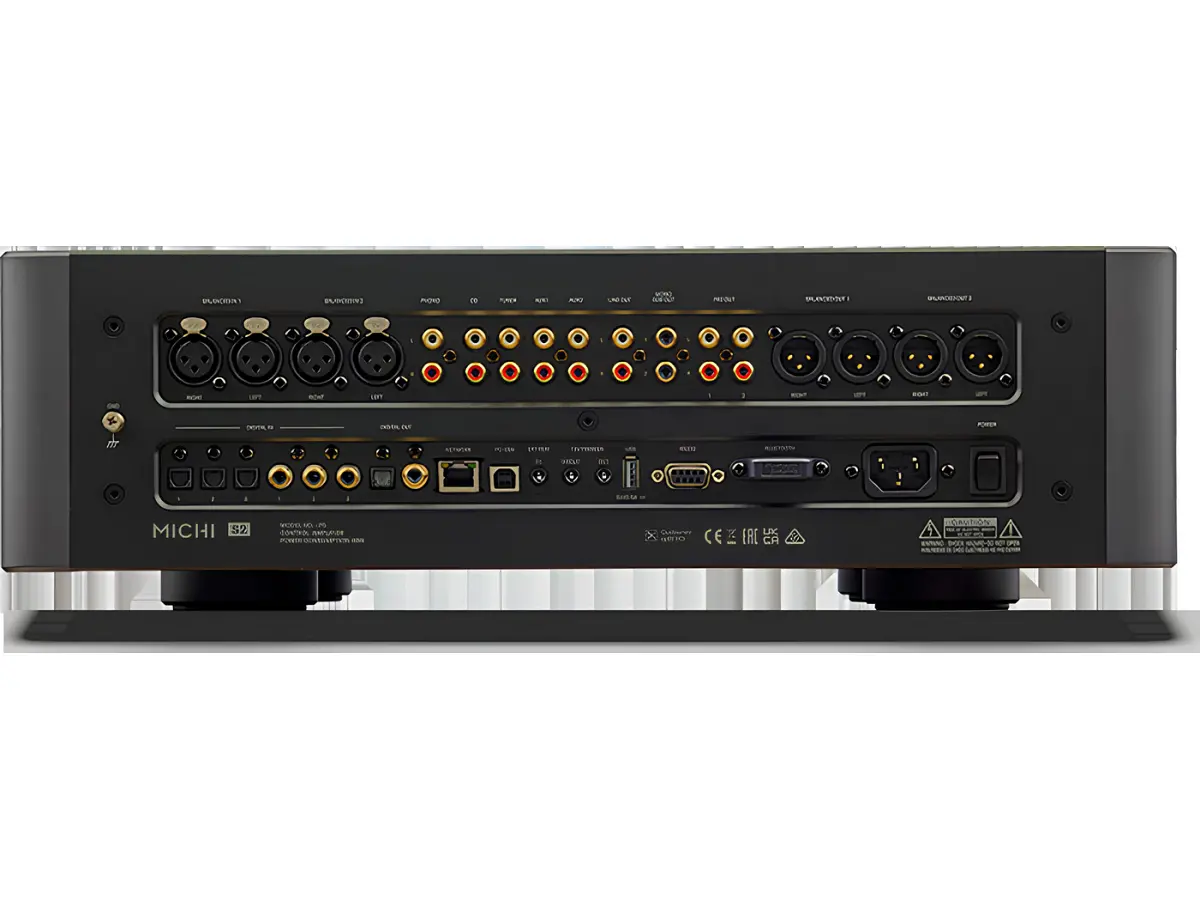

The Michi P5 Series 2 offers a wide range of inputs to meet all audio needs: RCA analog and balanced XLR connections, Phono inputs for MM and MC cartridges, Bluetooth aptX HD, coaxial, and optical inputs. The PC-USB input supports high-resolution file playback, handling PCM up to 32-bit/384kHz, Quad DSD (11.2MHz), and MQA decoding up to 24-bit/384kHz, providing exceptional versatility and audio quality.

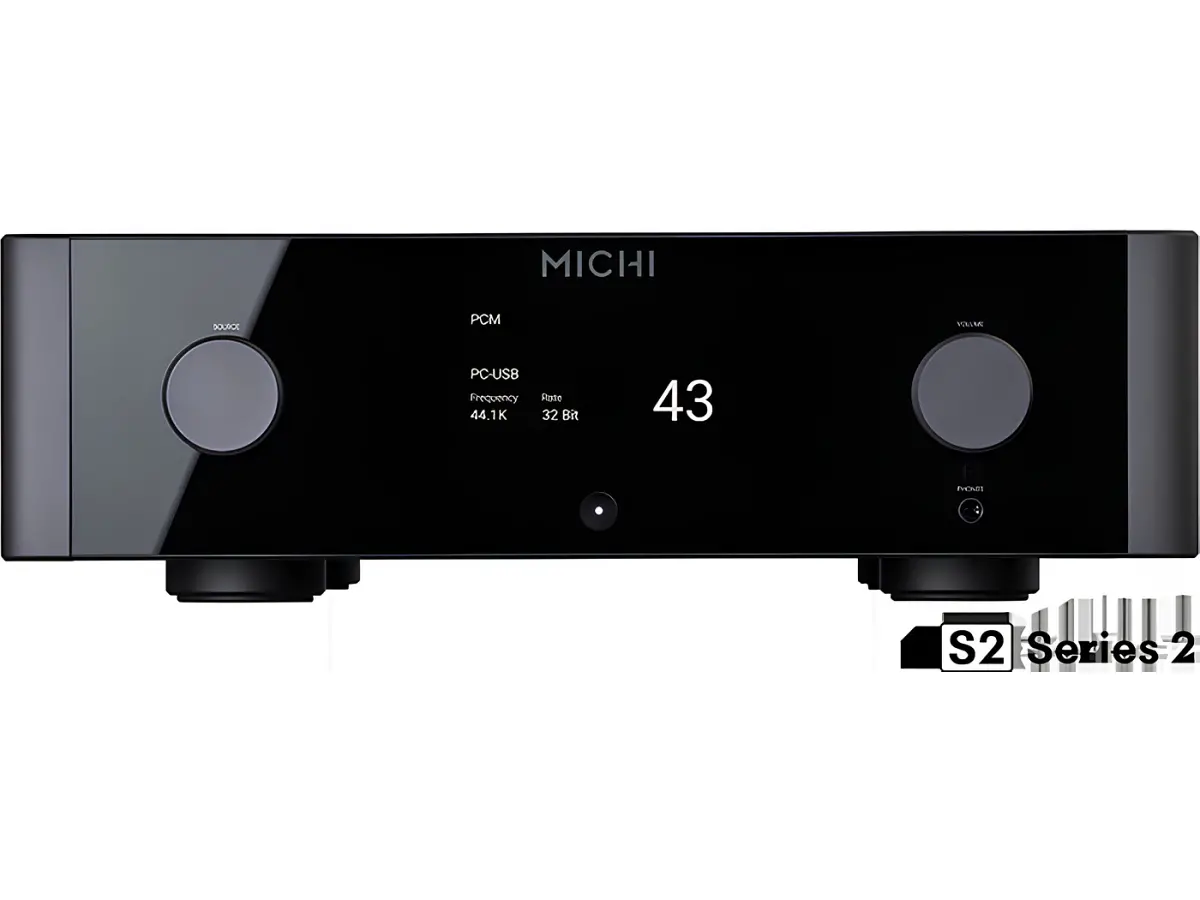

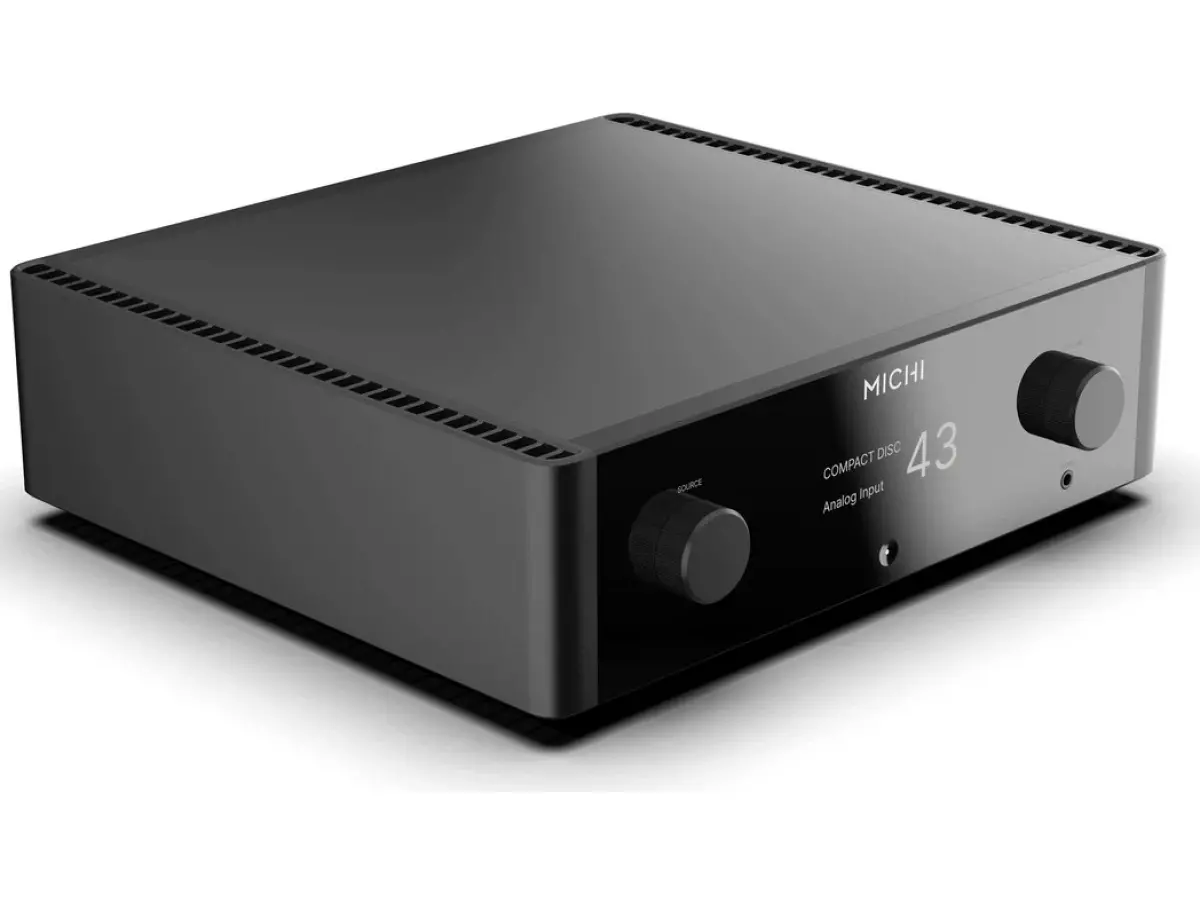

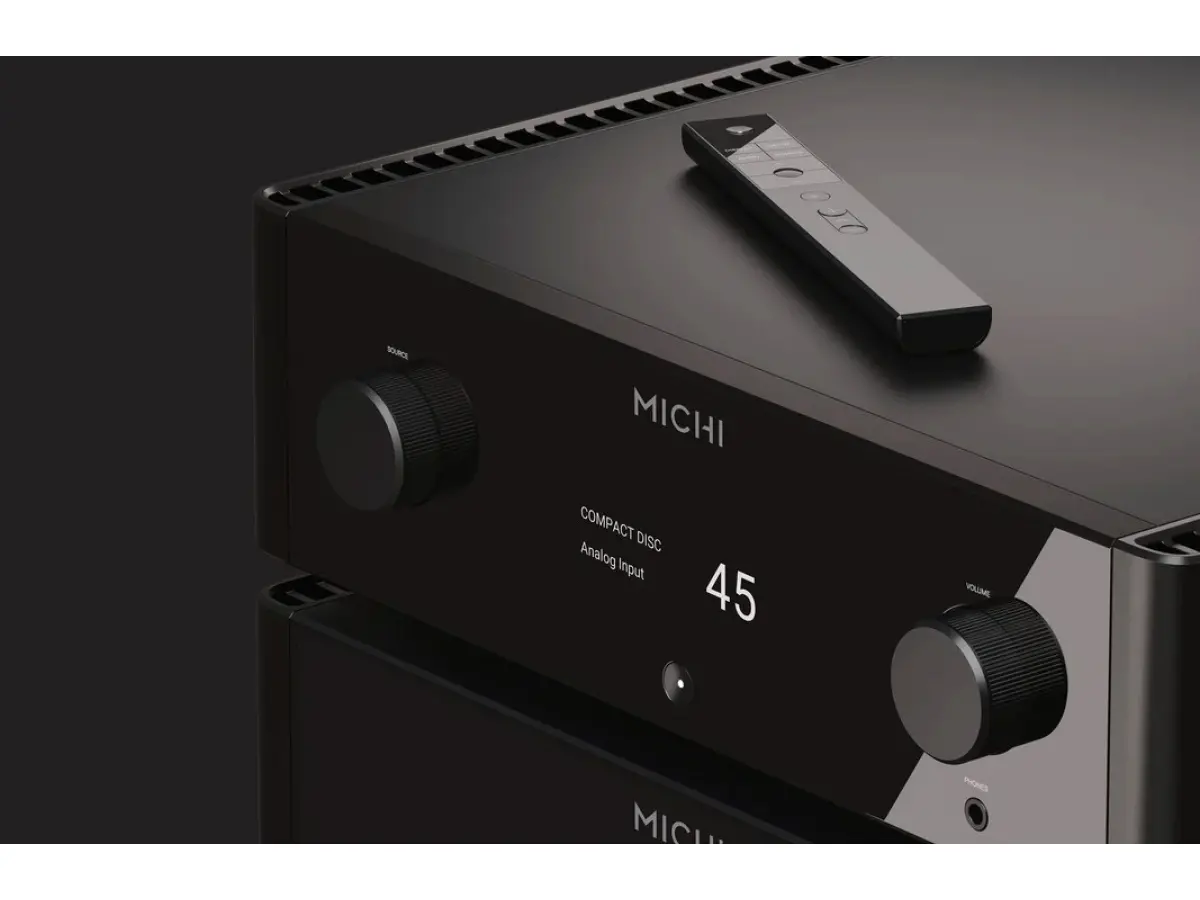

Aesthetically elegant and functional, the Michi P5 Series 2 integrates seamlessly into any environment. Its high-resolution graphic display and intuitive front-panel controls ensure easy and immediate use, while the 6.3mm headphone output and RS232 and Ethernet ports ensure compatibility with popular control systems. An ergonomic remote control completes the package, offering a more convenient and customizable user experience.

Technical Specifications:

• Total Harmonic Distortion (20Hz–20kHz): <0.002%

• Frequency Response:

  • Line Inputs: 10Hz - 100kHz (±0.3dB)
  • Digital Inputs: 20Hz - 20kHz (±0.3dB)
  • Phono Input: 20Hz - 20kHz (±0.3dB)

• Signal-to-Noise Ratio (A-weighted IHF):

  • Line Inputs: 116dB
  • Digital Inputs: 100dB
  • Phono Input: 80dB

• Dimensions (W x H x D): 485 × 150 × 452mm

• Front Panel Height: 132mm

• Power Supply: 230V, 50Hz

• Power Consumption:

  • Operational: 40W
  • Normal Standby: <0.5W
  • Network Standby: <2W

• Net Weight: 22.9kg
