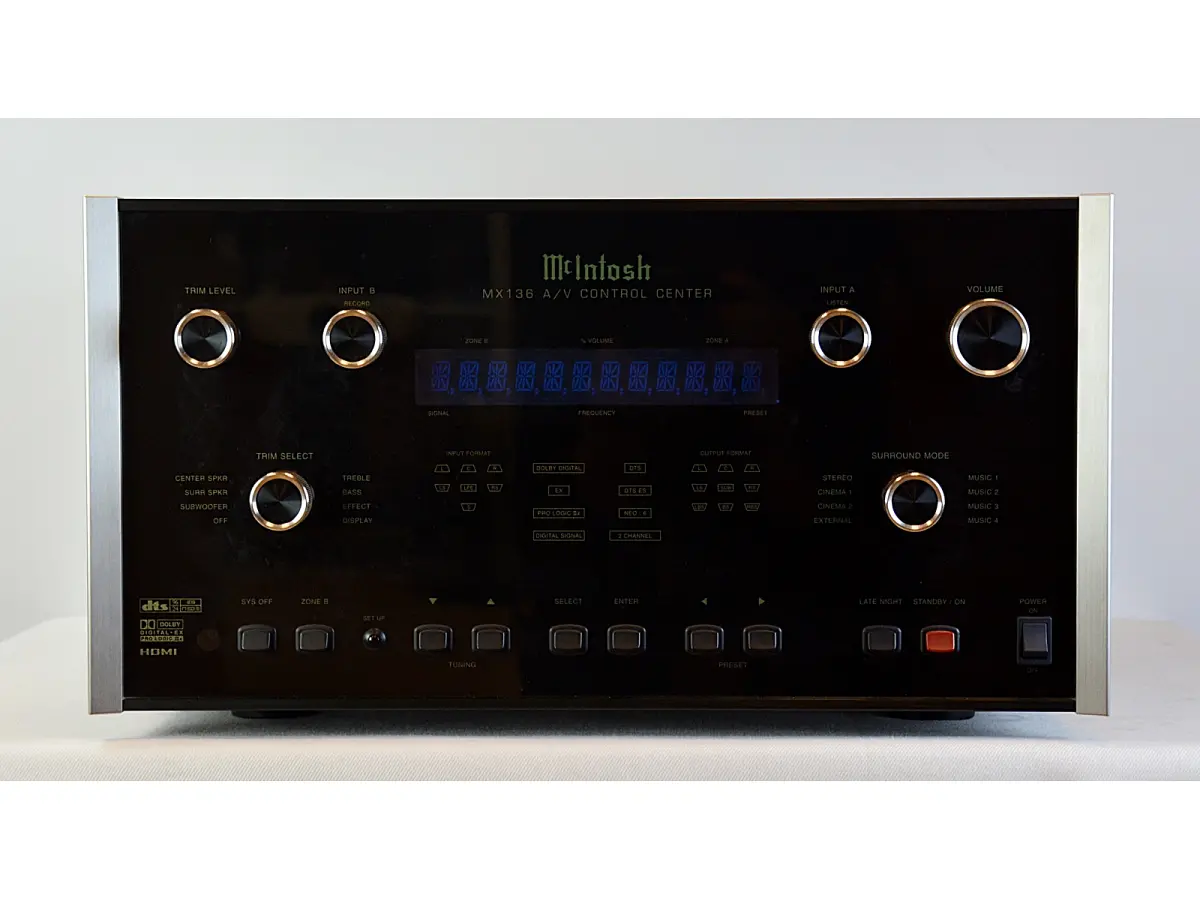

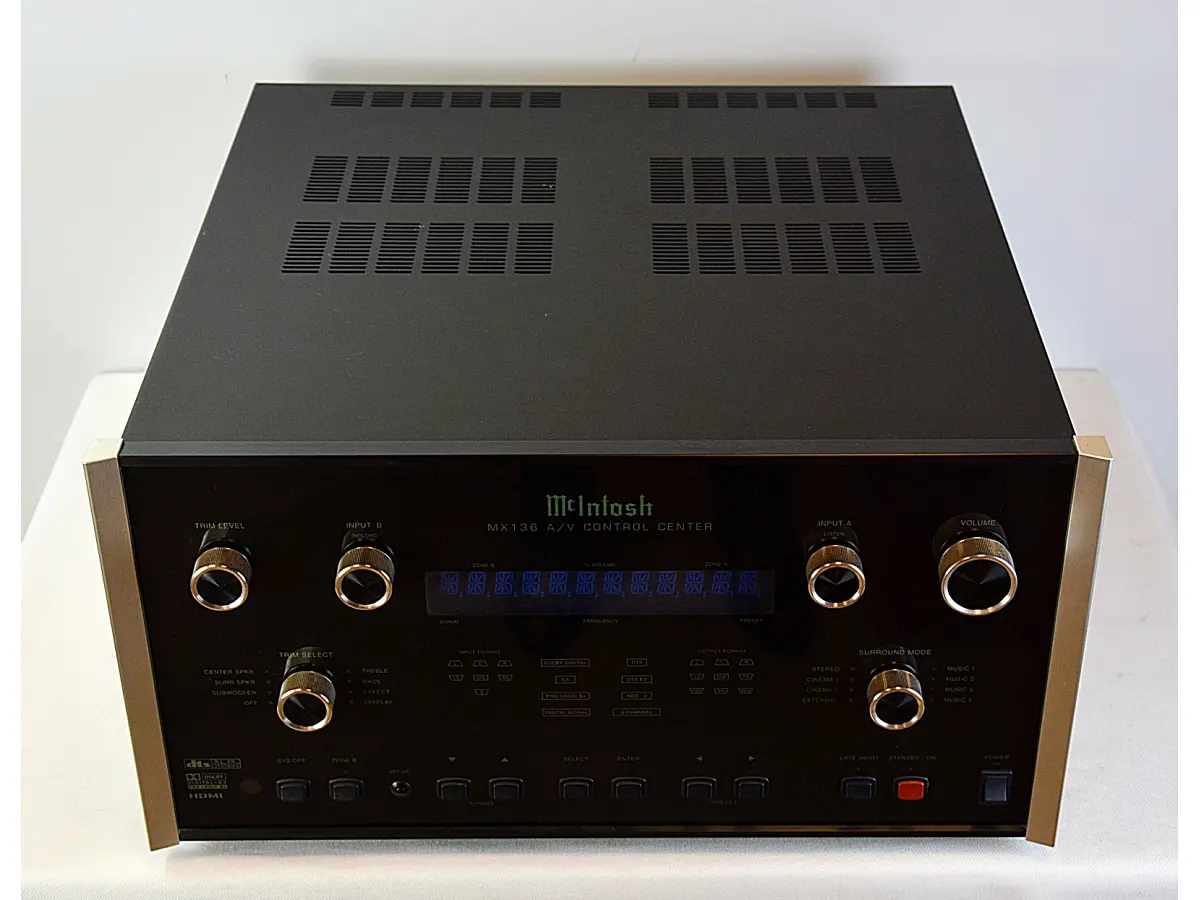

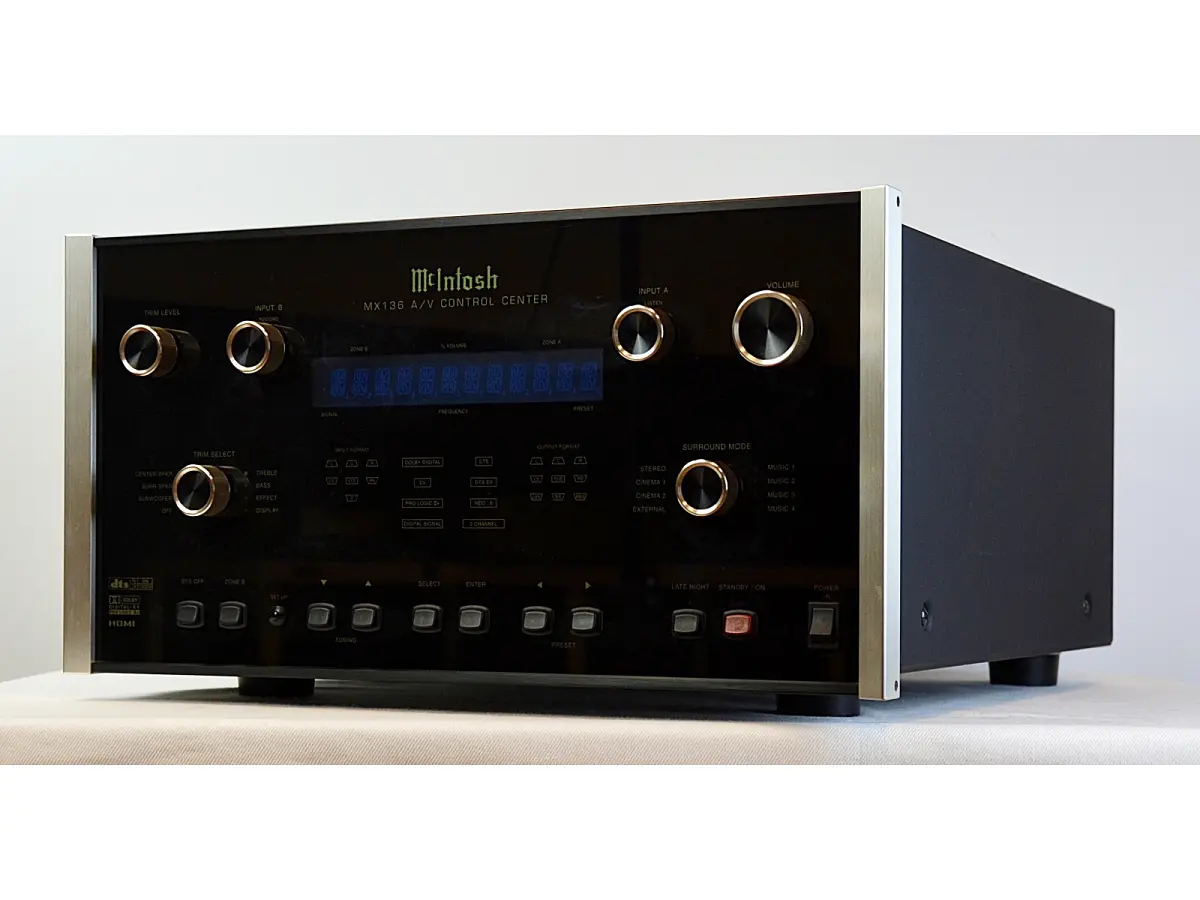

MCINTOSH MX136

Second-hand, in good condition, without scracthes. Supplied with remote control, no original package.
A/V Preamplifier

The MX136 is a complete system control center that combines the
legendary McIntosh analog two channel performance with the latest
digital audio and video formats. Video or Music may be enjoyed and
optimized in a variety of listening environments.
The newest video switching architecture is provided with four assignable
High Definition-HDMI digital inputs and five Component video inputs.

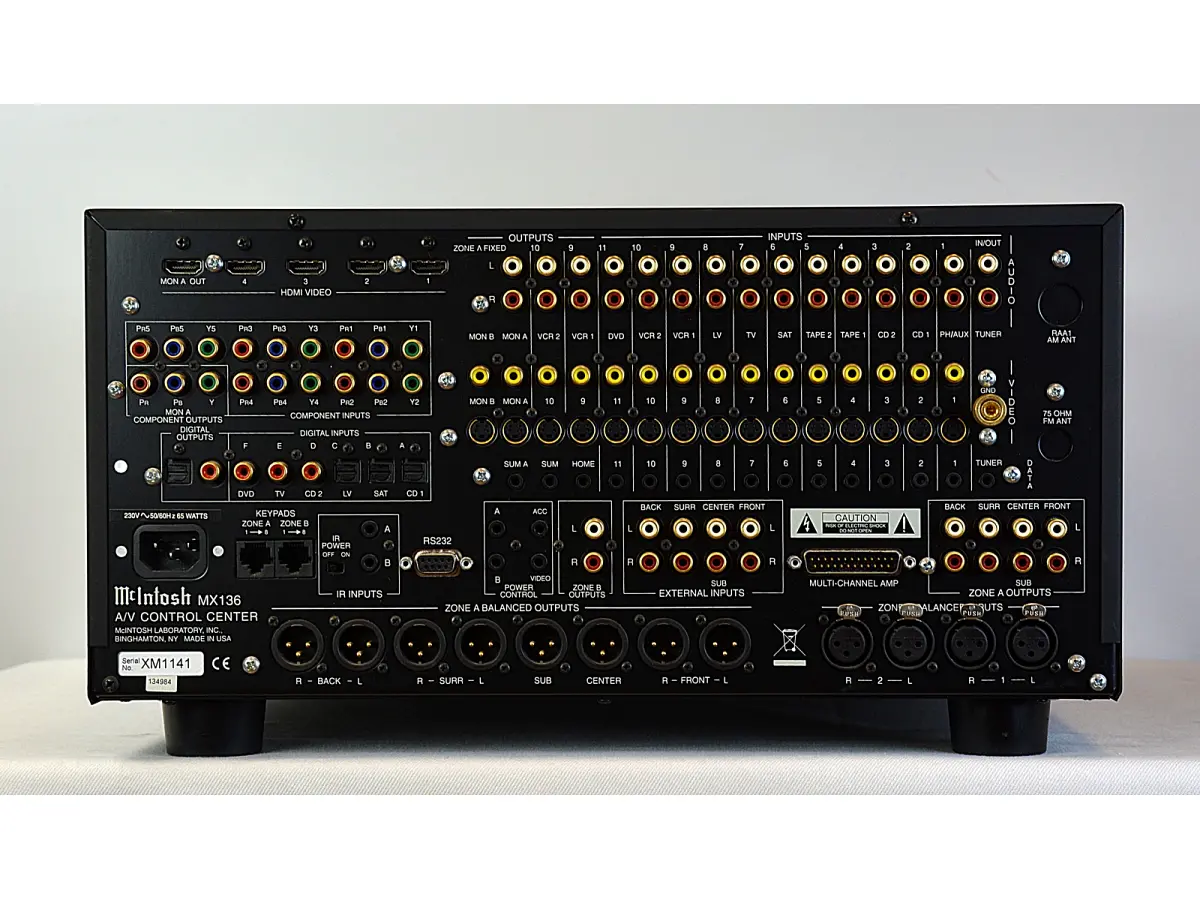

Each of the eleven MX136 inputs have both audio and video signal paths.
Multiple modes of video are supported including digital video conversion
of legacy video sources. Analog video sources with Composite or ‘S’
outputs may be converted to Component video to match modern display
technology. When using a High Definition video display all inputs may be
further scaled to digital 720p HDMI output. Pure HD HDMI sources are
switched and supported at the highest 1080p line rate.
Audiophiles need not give up sound quality for flexibility with an MX136.
Pure analog and two-channel bypass modes are provided, as is low noise
MM phono preamp. Balanced and unbalanced connections are provided.
Add the TM-1 AM/FM module and enjoy the best AM and FM can offer.

FREQUENCY RESPONSE
STEREO MODE
LEFT and RIGHT FRONT Channels,
+0, -0.5dB from 20Hz to 20kHz
DOLBY PRO LOGIC IIx MODE
and MUSIC MODES
LEFT, CENTER and RIGHT FRONT,
LEFT and RIGHT SURROUND and
BACK channels, +0, -0.5dB from
20Hz to 20kHz
If SMALL speakers are programmed,
the above channels employ high pass
filters with a corner frequency of
80Hz and a 12dB per octave roll-off.
DD, DTS, and 8 CHANNEL
EXTERNAL INPUT
All channels, +0, -0.5dB from
20Hz to 20kHz
SUBWOOFER
Low pass filtered with an
80Hz corner frequency and
24dB per octave roll-off in
all Modes except External.
RATED OUTPUT
2V from all Outputs
OUTPUT IMPEDANCE
Less than 600 ohms all Outputs
MAXIMUM OUTPUT
8V from all Outputs
TOTAL HARMONIC DISTORTION
All channels, 0.005% from
20Hz to 20kHz
INPUT SENSITIVITY
Line Level: 100mV for 500mV output
Phono: 1mV for 500mV output
Dolby Level: 200mV
External Processor Reference Level:
200mV

SIGNAL-TO-NOISE RATIO, A-WEIGHTED
98dB below rated output
MAXIMUM INPUT SIGNAL
High Level: 6V
INPUT IMPEDANCE:
High Level: 20k ohms
Phono: 47k ohms
VOLTAGE GAIN
High Level to Tape Output: 0dB
High Level to Preamp Output: 14dB
Phono to Preamp Output: 54dB
TONE CONTROLS
Bass and Treble variable 12dB boost to 12dB cut
POWER REQUIREMENTS
100V, 110V, 120V, 220V, 230V, 240V,
50/60Hz, 65 watts
OVERALL DIMENSIONS (H x W x D) includes feet
9-7/16" (24cm) x 17-1/2" (44.5cm) x 18-3/4" (47.6cm)
WEIGHT
31 lbs. (14.1Kg) net, 46 lbs. (20.9Kg) in shipping carton
