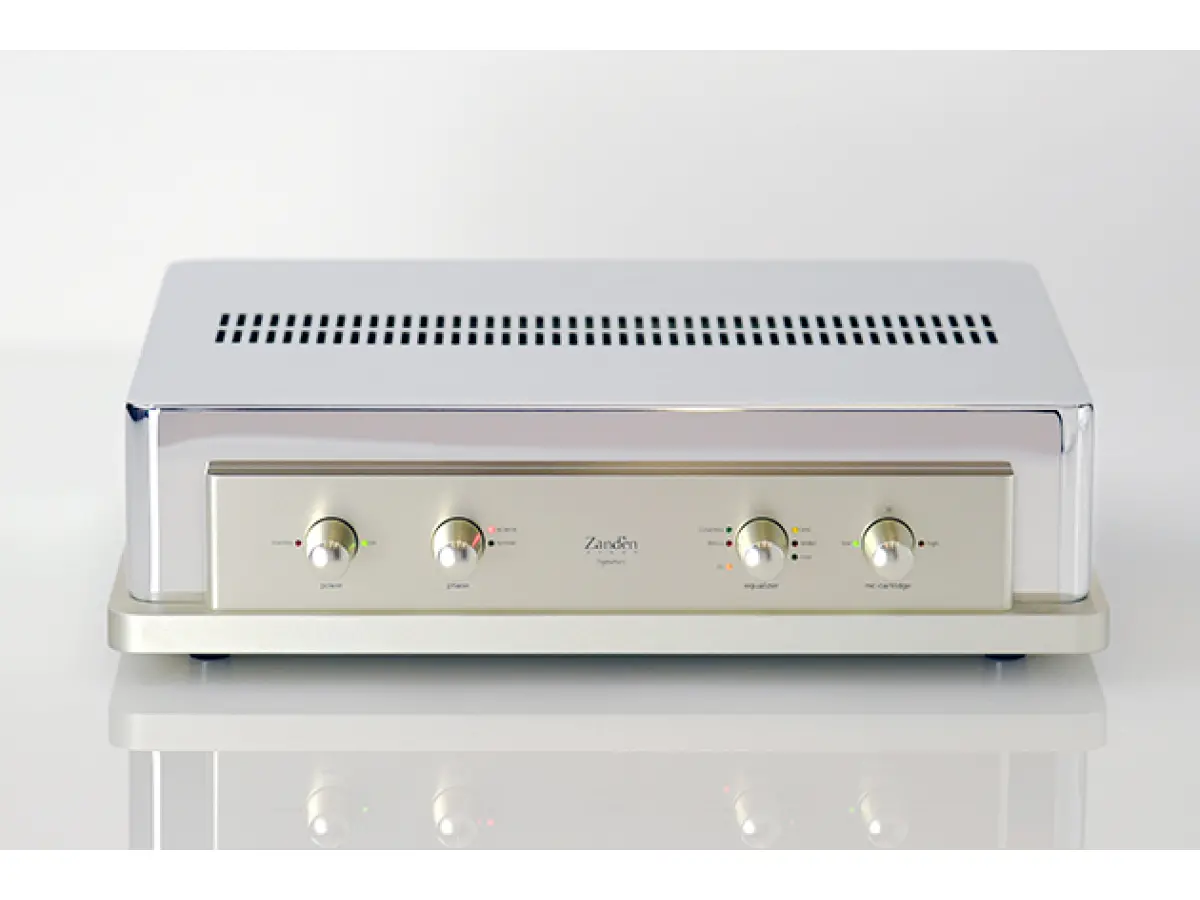

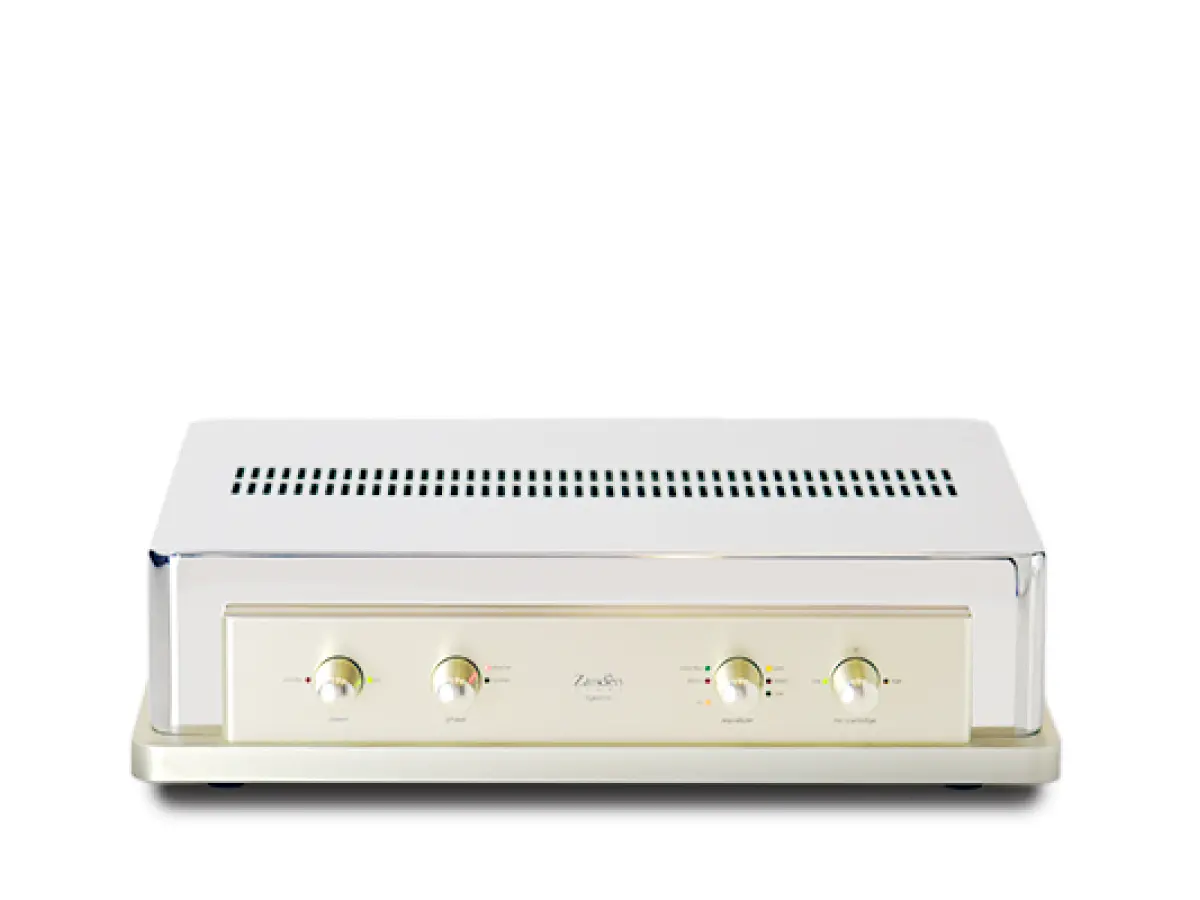

ZANDEN MODEL 1200 SIGNATURE

Many people believe that the recording curves of stereo LPs were unified in RIAA. However, as a result of a survey that Zanden conducted, we reached the conclusion that, TELDEC, EMI, COLUMBIA, and DECCA curves also exist in addition to RIAA and must be supported. In addition, we have come to the conclusion that it is necessary to set three types of fourth time constants in order to reproduce the sound of stereo LP perfectly and accurately. Further, if the recording phase of stereo LPs takes the output phase of current stereo LP cartridges as its reference, then the existence of recordings with extremely numerous inverted phases also has been identified. These facts overturn the conventional wisdom about stereo LPs. Zanden's Model 1200 Signature solves all of these issues.
The newly developed fully balanced LCR EQ circuit produces a detailed and solid soundstage. The hearing experience is comparable to listening to a master tape and makes one forget that the source is a vinyl disc. This unique circuit also brings intensity of music to the listener and transports him/her to the concert hall. It enables the listener to experience live performance on stage, rather than the traditional feeling of listening to the performance at a great distance in the audience seat of the concert hall. When played back by the correct equalization curve and phase with this circuit, stereo LPs will present us with a wonderful and amazing world of music never experienced before.


Specification
EQ curve positions: RIAA, TELDEC, EMI, COLUMBIA, DECCA are combined with 3 positions of 4th time constant
Inputs:
- Low impedance MC cartridge x1 (XLR or RCA)
- High impedance MC cartridge x1 (XLR or RCA)
Input impedance
low: 35?
hi: 480?

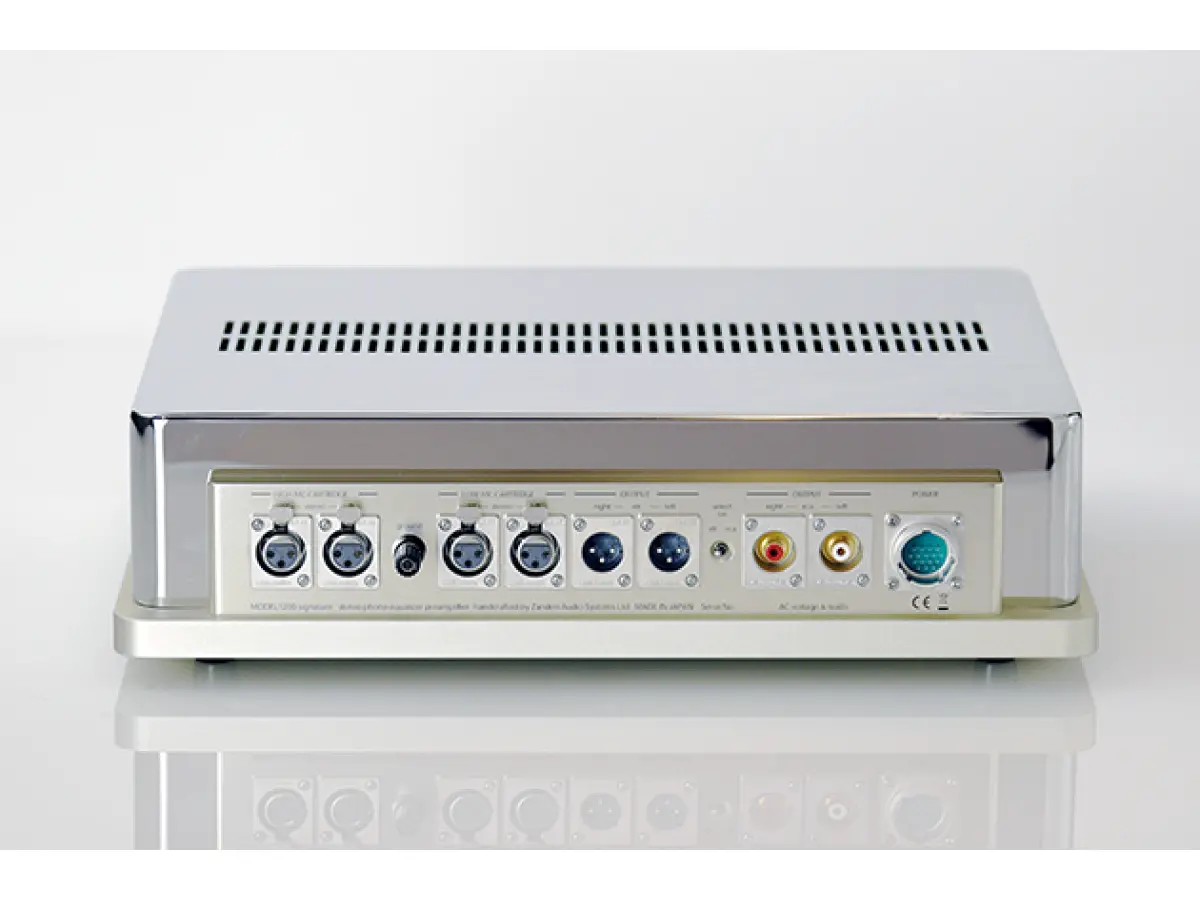

Outputs: XLR and RCA
Output impedance: 300?
Gain
Low MC: 64dB (1kHz, RIAA)
High MC: 54dB (1kHz, RIAA)
Frequency deflection: 0.5dB (20Hz - 30kHz) maximum
Total harmonic distortion: 0.13% @ 2V RMS output, 1kHz
Signal to Noise: -73dB (IHF-A, 5.0mv RMS)
Tube compliment
Main unit : 6922 x6

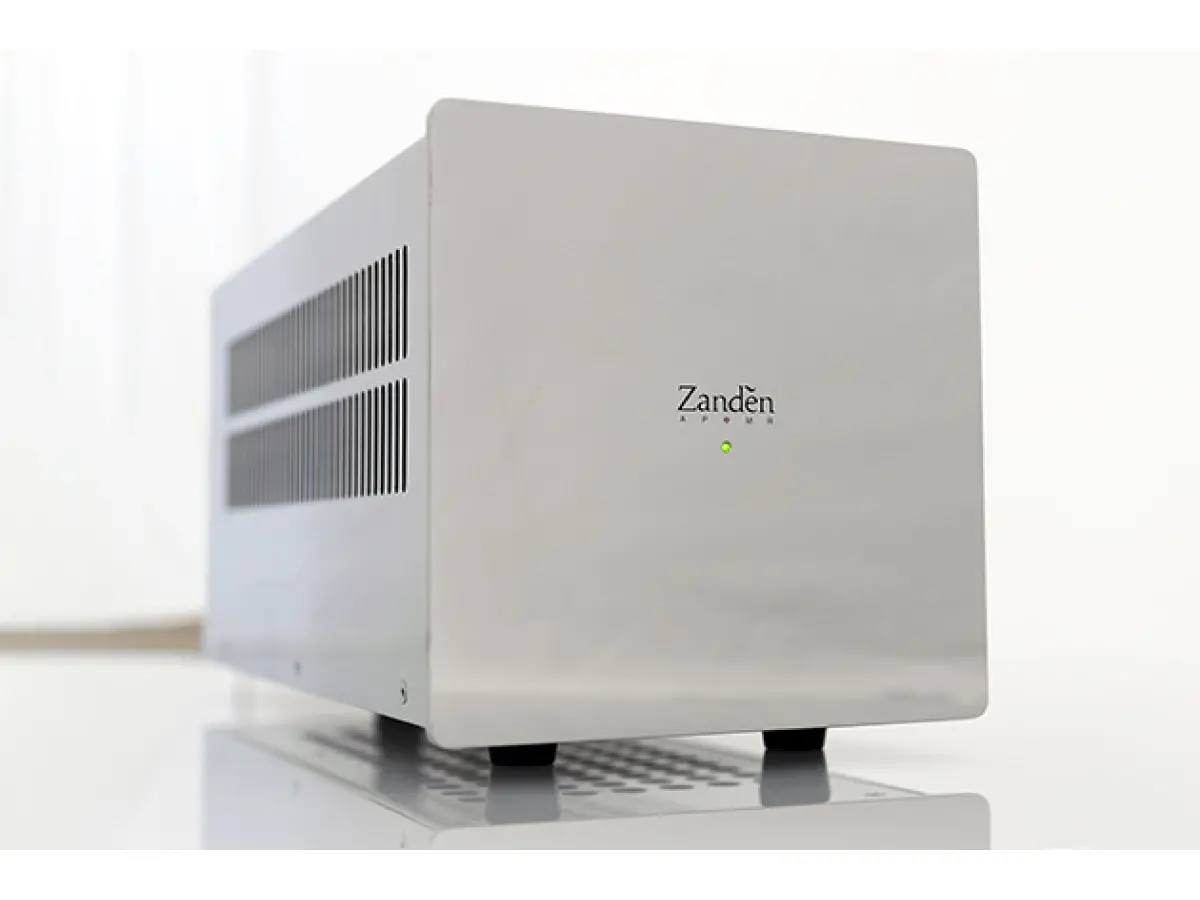

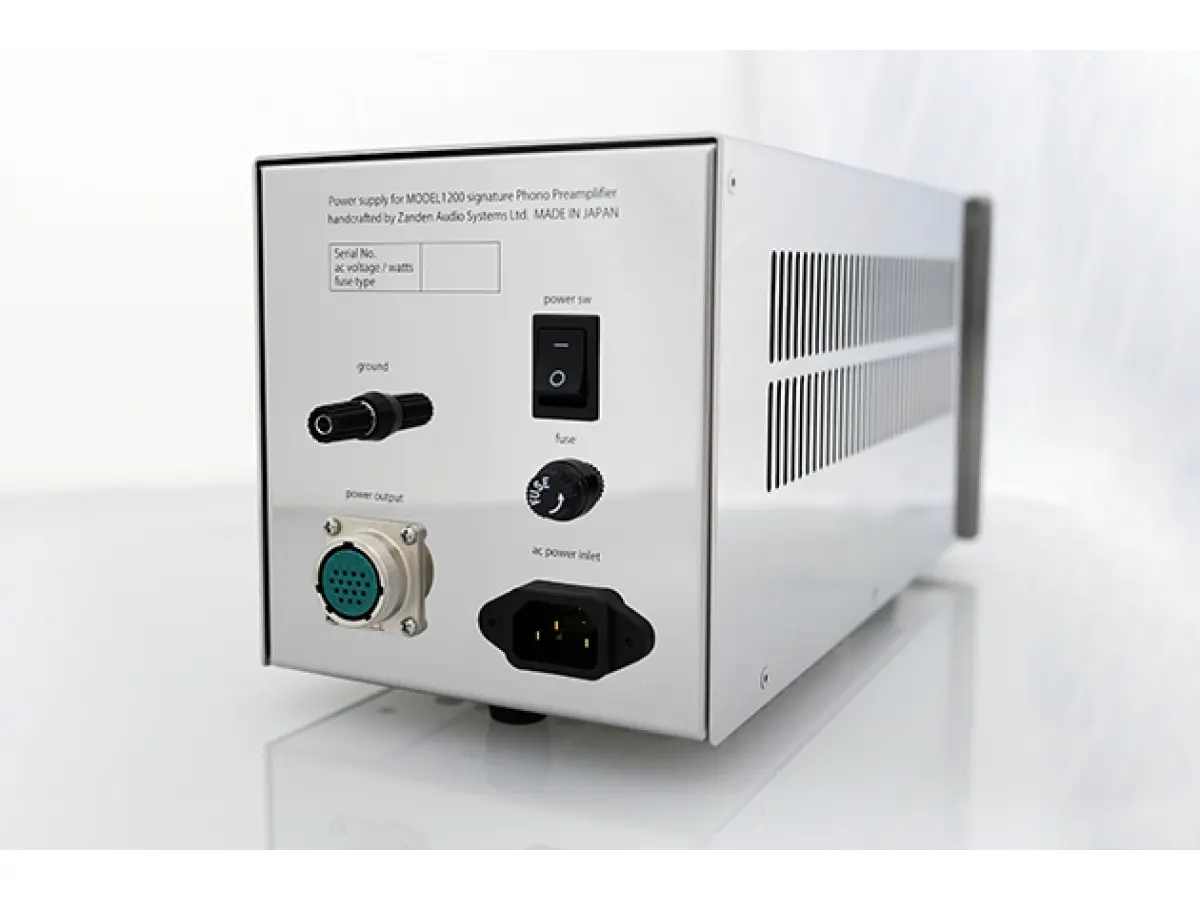

Power supply unit : 6922 x1, 6CA4 x2
Channel balance: 0.5dB maximum
Power consumption: 75W
Dimensions
(main) W: 398mm / H: 103mm / D: 405mm
(power) W: 155mm / H: 163mm / D: 336mm
Weight: (main) 9.0kg (power) 8.0kg
