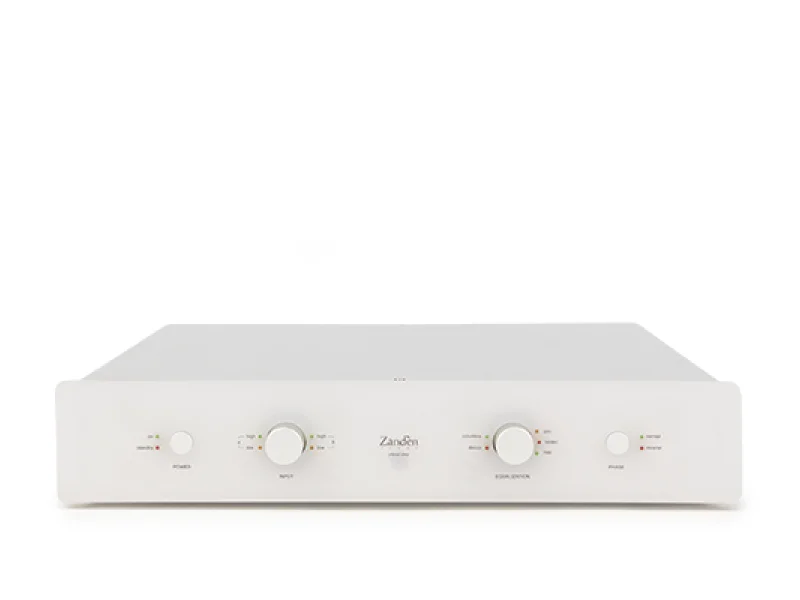

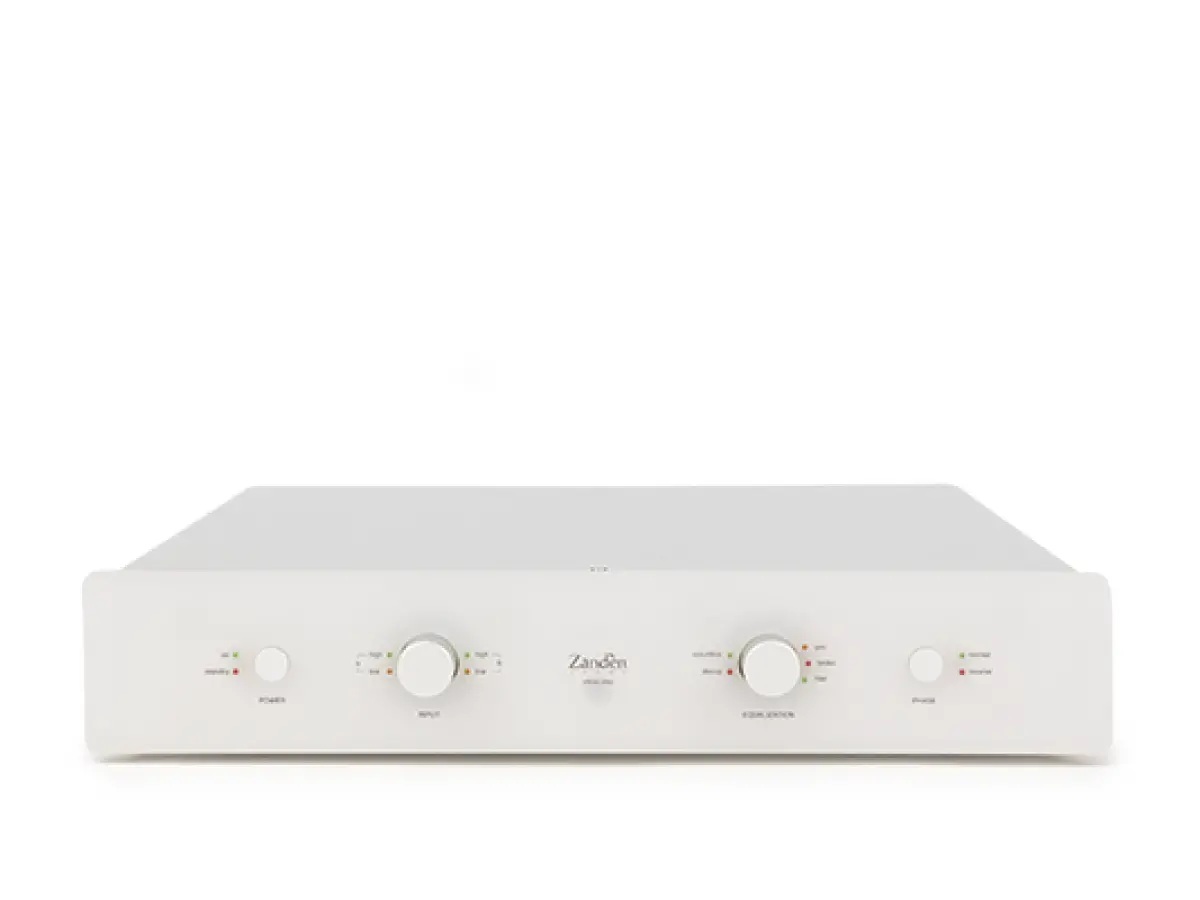

ZANDEN MODEL 120

Pre phono


Features
-(5) selectable EQ curves (RIAA, TELDEC, EMI, COLUMBIA, DECCA)
-LCR type equalization circuit
-absolute polarity switch
-solid-state amplification circuit
-(2)Jensen step up transformers to accommodate a wide range of cartridges
-3 layers of shielding on critical parts
-seperated power supply

Specification
EQ curve positions: RIAA, TELDEC, EMI, COLUMBIA, DECCA
Inputs: MC cartridge x2 ( a / b )
Input impedance:
low: 36?
hi: 470?
Output impedance: 50?
EQ curve deviation: ± 0.5 dB (20Hz ??? 20kHz)
Gain:
Low MC: 75dB (1kHz, RIAA)
High MC: 63dB (1kHz, RIAA)
Power consumption: 8W (AC100V, 50 / 60 Hz)
Dimensions:
(main) W: 360mm / H: 70mm / D: 370mm
(power) W: 78mm / H: 58mm / D: 168mm
Weight
(main) 5.4kg
(power) 1.0kg
