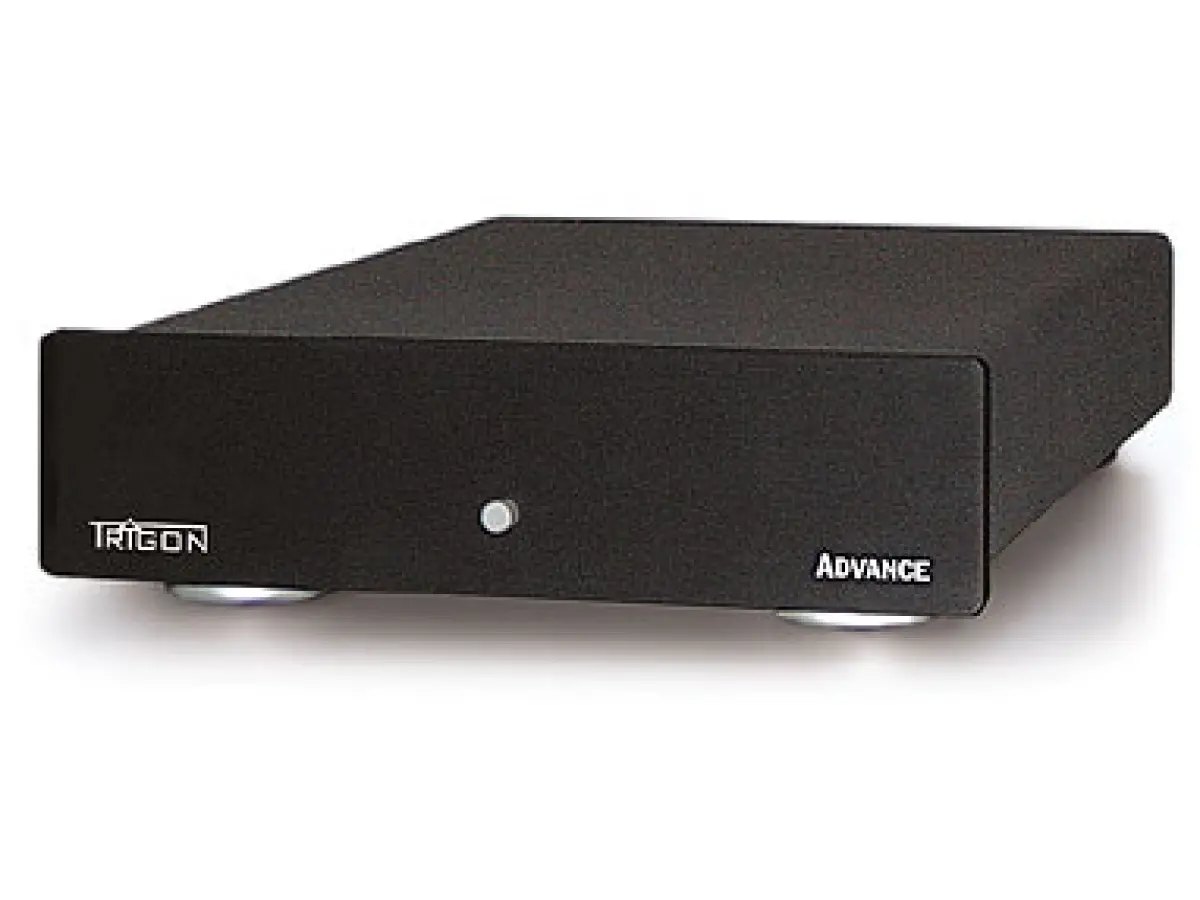

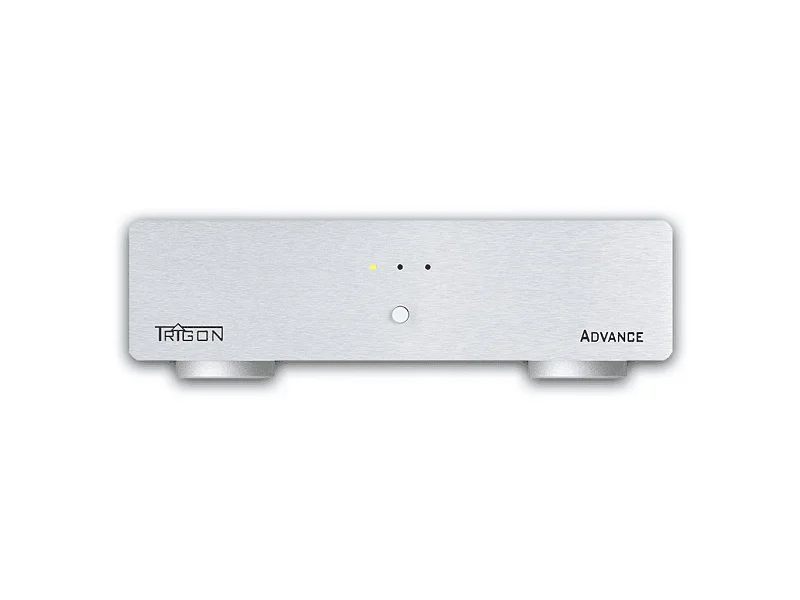

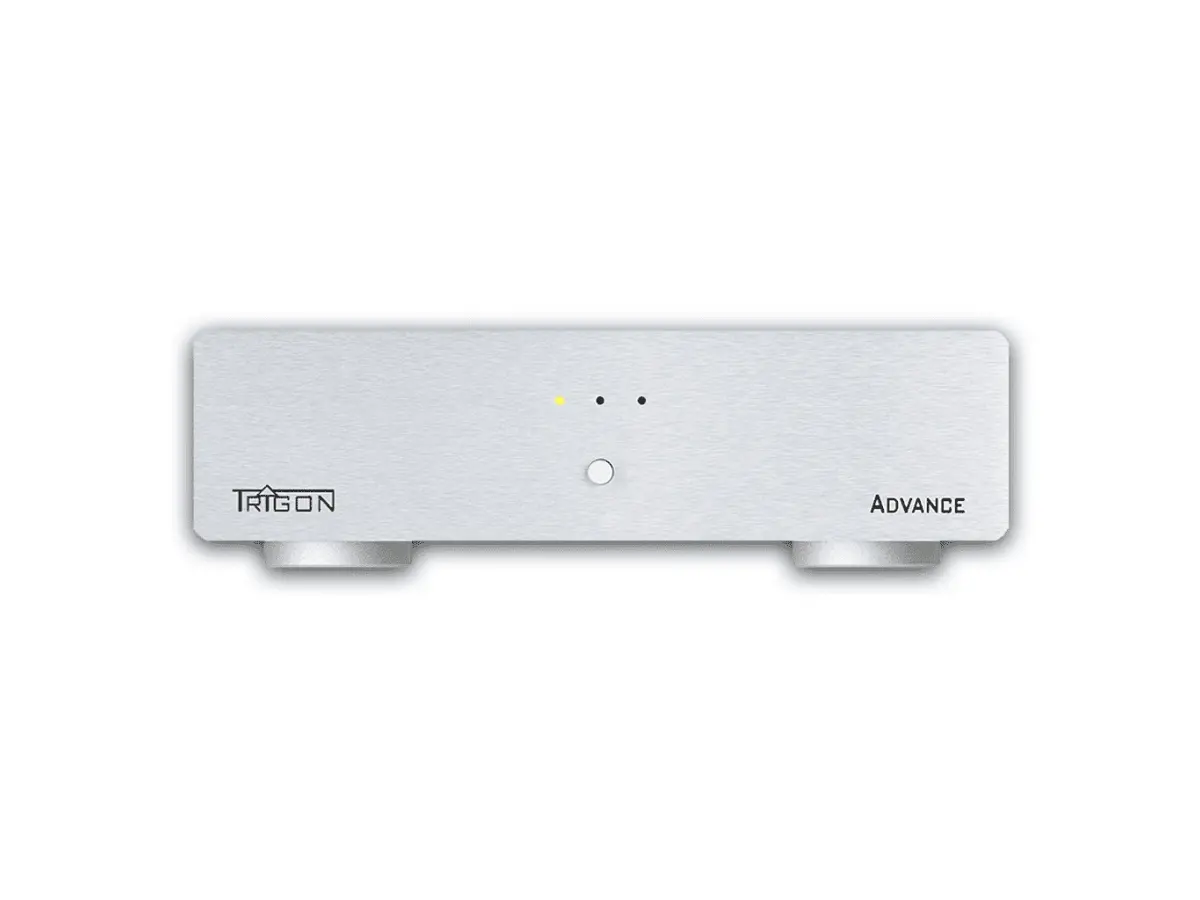

TRIGON ADVANCE

MM/MC Phono Preamp with Battery Power Supply

Designed for MM and MC systems, with an integrated battery power supply and an external power supply for charging. Thanks to the purely battery-powered design, the ADVANCE ensures that phono signals retain all of their original integrity, providing a highly immersive analog experience. The result is incredibly low noise, which this unique design brings to the listening experience.

For simple operation and high reliability, the front panel displays indicators of all operational conditions, while sophisticated software manages the charging and monitoring of the long-life lead batteries. Externally accessible switches allow for optimal adjustment of gain, impedance, and capacitance for different cartridges. The compact design promotes audiophile compliance by minimizing signal paths, which are established as close to the turntable as possible.

Technical Specifications:

• Amplification: 36 - 60 dB, adjustable
• Input Resistance: from 25 Ω to 1800 Ω - 47 KOhm
• Capacity MM: 47pf, 100pf, 147pf adjustable
• Input: 1x RCA (Cinch)
• Output: 1x RCA (Cinch)
• THD+N Distortion: < 0.06%
• Signal Noise: -72 dBA at 60 dB amplification, -94 dBA at 36 dB amplification
• Frequency Response (RIAA): ± 0.2 dB
• Power Dissipation: 7 - 16VA
• Dimensions: 320 x 200 x h 58.5 mm
